NORDICTRACK ELITE 10.9 I ELLIPTICAL – 23939.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
79 Parts Available for NORDICTRACK ELITE 10.9 I ELLIPTICAL - 23939.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 331296 | 2 | REAR STABILIZER | $138.99 | |||
| 376234 | 3 | RAMP | $192.99 | |||
| 404461 | 4 | UPRIGHT | $218.49 | |||
 | 194878 | 5 | M4 X 19MM SCREW | $2.99 | ||
| 328773 | 6 | FRONT STABILIZER | $137.49 | |||
| 404460 | 7A | CONSOLE | $541.99 | |||
| 409697 | 7B | REPROG THUMBDRIVE | $111.49 | |||
| 385663 | 7C | CNSL FAN | $111.99 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
 | 398534 | 9 | TABLET HOLDER | $107.49 | ||
| 404554 | 10 | RAMP COVER | $140.49 | |||
| 320496 | 11 | INCLINE MOTOR | $156.49 | |||
| 331259 | 12 | INCLINE MOTOR ARM | $72.49 | |||
 | 320336 | 14 | SMALL ROLLER | $8.49 | ||
| 404553 | 15 | REAR STABILIZER COVER | $91.49 | |||
 | 371314 | 16A | TRACK | $18.99 | ||
| 317273 | 16B | TRACK FOAM TAPE | $13.49 | |||
| 320335 | 17 | LARGE FRAME BUSHING | $16.99 | |||
 | 386166 | 18 | CRANK | $162.99 | ||
| 277369 | 19 | PULLEY | $174.49 | |||
| 386662 | 20 | CRANK ARM | $182.99 | |||
 | 208320 | 21 | M4 X 10MM SCREW | $0.99 | ||
 | 363093 | 22 | IDLER | $116.49 | ||
| 332581 | 23 | M10X15MM FLAT HEAD SCREW | $6.49 | |||
| 332579 | 24 | M10 X 95MM BOLT | $14.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
| 195975 | 26 | M10 X 42MM BOLT | $12.49 | |||
 | 125819 | 27 | PLASTIC STAND-OFF | $3.99 | ||
| 362898 | 28A | EDDY MECHANISM | $319.99 | |||
 | 321678 | 28B | RESISTANCE CABLE | $46.49 | ||
| 328775 | 30 | STABILIZER CAP | $19.99 | |||
 | 416695 | 31 | CONTROLLER | $161.49 | ||
 | 264511 | 32 | POWER SWITCH | $32.99 | ||
 | 246285 | 33 | LEVELING FOOT | $10.99 | ||
 | 148803 | 34 | FRONT WHEEL | $3.49 | ||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||
 | 143426 | 36 | UPRIGHT BUSHING | $8.99 | ||
| 335818 | 37 | ACCESSORY TRAY | $46.49 | |||
 | 372087 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 131090 | 39 | REED SWITCH CLIP | $0.99 | ||
 | 295804 | 40 | FRAME BEARING | $66.99 | ||
| 362905 | 41 | EDDY MECH SNAP RING | $1.49 | |||
| 338320 | 42 | SLEEVE | $2.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 378487 | 44 | LEFT PEDAL ARM | $175.99 | |||
| 379975 | 45 | LEFT ROLLER ARM | $150.49 | |||
| 331059 | 47 | LEFT UPPER BODY ARM | $102.99 | |||
| 250210 | 48 | HAIRPIN COTTER PIN | $1.99 | |||
| 404462 | 49 | LEFT PEDAL | $146.49 | |||
 | 275907 | 50A | M10 LOCKNUT,CRNK ARM CLMP | $4.49 | ||
 | 148710 | 50B | M10 LOCKNUT | $2.49 | ||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 348190 | 52 | PEDAL ARM REAR CAP | $6.49 | |||
 | 337966 | 53A | LARGE AXLE COVER | $5.49 | ||
 | 384941 | 53B | AXLE COVER | $9.49 | ||
 | 371082 | 54 | PIVOT SPACER | $34.99 | ||
 | 384940 | 55 | RETAINER | $5.99 | ||
 | 390683 | 56 | ROLLER ARM BUSHING | $28.49 | ||
 | 290729 | 57 | LARGE ARM BEARING | $43.49 | ||
| 378490 | 58 | RIGHT PEDAL ARM | $175.99 | |||
| 379970 | 59 | RIGHT ROLLER ARM | $150.49 | |||
| 331061 | 61 | RIGHT UPPER BODY ARM | $102.99 | |||
| 316467 | 62 | LEFT GRIP | $107.99 | |||
| 324444 | 63A | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
| 399157 | 63B | PULSE WIRE | $59.99 | |||
| 384800 | 64 | PEDAL ARM AXLE | $43.49 | |||
| 384834 | 65 | RIGHT ARM FRONT COVER | $53.49 | |||
| 384828 | 66 | RIGHT ARM REAR COVER | $48.99 | |||
| 384816 | 67 | LEFT ARM FRONT COVER | $51.99 | |||
| 384822 | 68 | LEFT ARM REAR COVER | $46.49 | |||
 | 335837 | 69 | RIGHT LEG OUTER COVER | $43.99 | ||
 | 335834 | 70 | LEFT LEG OUTER COVER | $43.99 | ||
| 335815 | 71 | DISC | $87.49 | |||
| 335835 | 72 | LEFT LEG INNER COVER | $43.99 | |||
| 362774 | 73 | LEFT SHIELD | $189.99 | |||
| 362775 | 74 | RIGHT SHIELD | $189.99 | |||
| 383076 | 75 | SHIELD COVER | $89.99 | |||
 | 337964 | 76 | LEFT PEDAL ARM SIDE CAP | $10.99 | ||
 | 281801 | 77 | M8 WASHER | $7.49 | ||
 | 386629 | 78 | KEY | $9.49 | ||
| 252795 | 79 | M10 SPLIT WASHER | $0.99 | |||
| 404463 | 80 | RIGHT PEDAL | $146.49 | |||
| 335817 | 81 | REAR UPRIGHT COVER | $78.99 | |||
 | 191032 | 82A | M8X13MM,PULLEY CRANK SCRW | $1.99 | ||
 | 383382 | 82B | M8 X 13MM SCREW | $0.99 | ||
| 335836 | 83 | RIGHT LEG INNER COVER | $43.99 | |||
| 238278 | 84A | LIFT ARM WASHER | $1.49 | |||
| 248342 | 84B | M10 WASHER | $1.99 | |||
| 386630 | 85 | SMALL LEVELING FOOT | $7.99 | |||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
 | 337965 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | ||
 | 208163 | 88 | M6 X 20MM HEX SCREW | $1.99 | ||
 | 281150 | 89 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
 | 014033 | 90A | WASHER | $1.49 | ||
 | 340140 | 90B | M6 CRANK ARM WASHER | $1.49 | ||
 | 281149 | 91 | M10 X 50MM HEX SCREW | $6.49 | ||
| 248334 | 92 | M10 X 19MM SCREW | $5.49 | |||
 | 168267 | 93 | FAN SCREW | $0.99 | ||
| 235322 | 94 | M5 WASHER | $2.49 | |||
 | 206321 | 95A | M8 X 19MM SCRW, NOTE: OM | $3.49 | ||
 | 223089 | 95B | LINKARM WHEEL BKT SCRW | $6.99 | ||
| 251830 | 96 | M8 X 38MM BOLT | $4.49 | |||
 | 248349 | 97A | M8 PVT CAP WASHER | $6.49 | ||
 | 223812 | 97B | M8 WASHER | $1.99 | ||
 | 224113 | 98 | M8 X 18MM WASHER | $2.49 | ||
 | 232289 | 99 | M10 X 25MM SCREW | $28.49 | ||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 013162 | 101A | CABLE TIE/BELLYPAN SCREW | $0.99 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 012042 | 102 | M8 LOCKNUT | $1.99 | ||
| 262341 | 103 | M6 X 12MM SCREW | $3.49 | |||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 331242 | 105 | GROMMET | $6.49 | |||
 | 286527 | 106A | MUSHROOM FASTENER/SCREW | $2.49 | ||
| 303479 | 106B | COVER MOUNT SCREW | $3.99 | |||
 | 275248 | 107 | M4 X 48MM SCREW | $0.99 | ||
| 242105 | 108 | M6 X 13MM SCREW | $1.99 | |||
| 208938 | 109 | M10 X 60MM BOLT | $5.99 | |||
| 362904 | 110 | MAIN WIRE | $69.99 | |||
| 184369 | 111 | TABLET HOLDER SCREW | $0.99 | |||
 | 313668 | 112 | POWER CORD GROMMET | $9.49 | ||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||
| 356782 | 114 | M4 X 40MM SCREW | $1.49 | |||
| 300804 | 115 | CONTROLLER BRACKET | $29.99 | |||
| 404555 | 116 | DISC RING | $125.99 | |||
 | 335816 | 117 | FRONT UPRIGHT COVER | $73.99 | ||
| 316692 | 118 | SHIELD COVER CAP | $28.49 | |||
 | 342275 | 119 | POWER CORD | $49.99 | ||
| 316836 | 120 | RAMP AXLE | $54.99 | |||
 | 237616 | 121 | FRAME BUSHING | $4.99 | ||
| 320499 | 122 | CLEVIS PIN | $10.99 | |||
| 306635 | 123 | PLASTIC SPACER | $3.49 | |||
| 273352 | 124 | M4 X 19MM SELF-TAP SCRW | $0.99 | |||
 | 157600 | 125 | BUMPER | $1.99 | ||
 | 384942 | 126 | M8 X 20MM SCREW | $6.49 | ||
 | 224606 | 127 | M4 X 25MM SCREW | $0.99 | ||
 | 384931 | 129 | SMALL ARM BEARING | $43.99 | ||
| 316468 | 130 | RIGHT GRIP | $80.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 132315 | # | WIRE TIE | $3.49 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 418625 | # | LITPAC, NOTE: | $199.49 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 116926 | # | RELEASABLE TIE | $0.99 | |||
| 234276 | # | M4 GROUND SCREW | $0.99 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 403683 | # | HARDWARE KIT, NOTE: | $157.49 | |||
| 266084 | # | DECAL, GENERAL WARNING | $14.49 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 364361 | # | CHEST PULSE STRAP | $135.99 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||

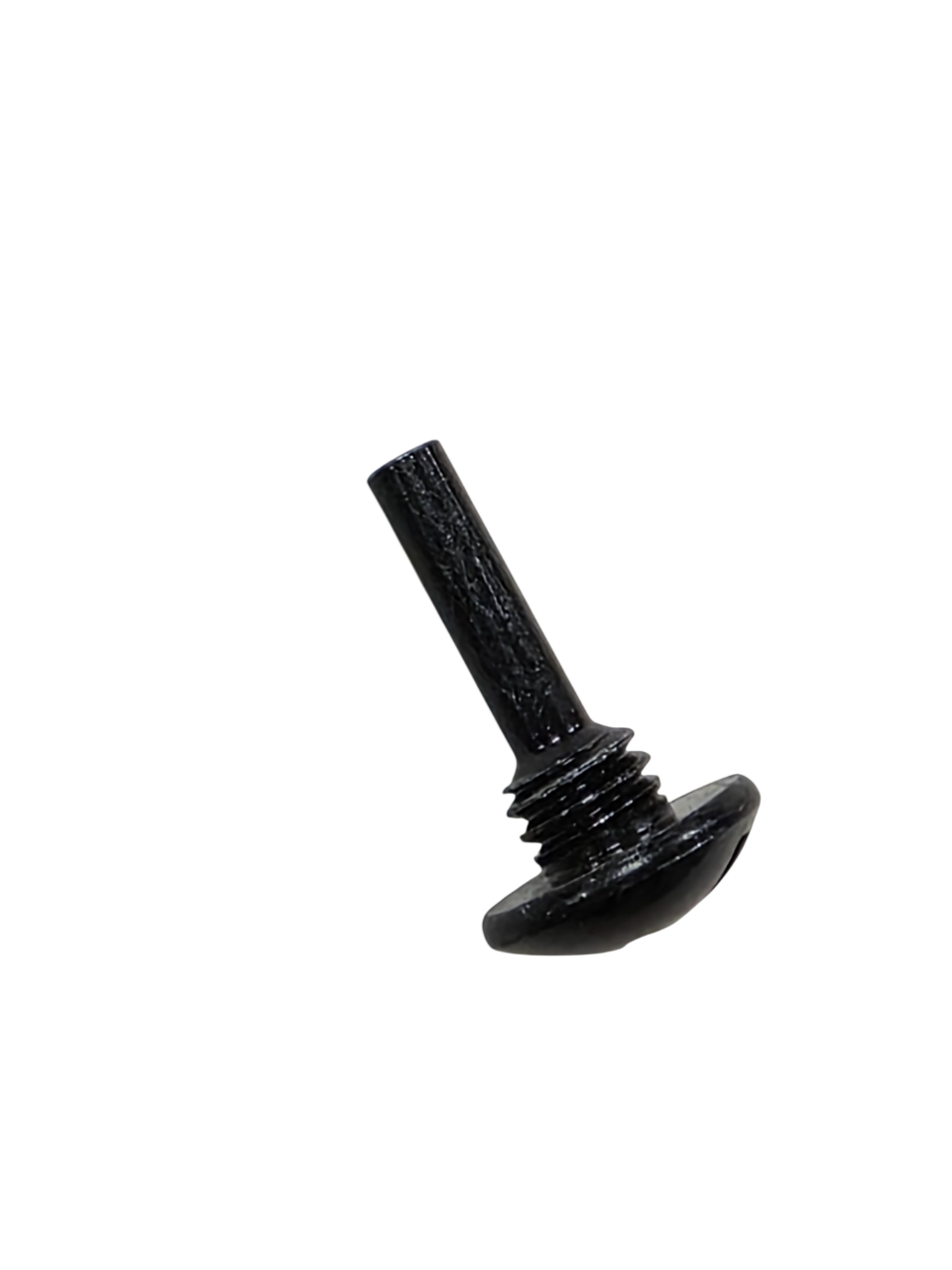

 | 413564 | # | D/O BKT SCREW/EDDY MECH | $4.99 | ||
| 320643 | TS4 | 26″ WHITE WIRE,M/F | $34.99 | |||
| 320644 | TS5 | 30″ BLUE WIRE,F/F | $25.49 | |||
| 142711 | TS6 | GROUND WIRE | $2.49 | |||
| 302754 | TS7 | LIFT MOTOR WIRE HRNS | $27.49 | |||
| 324737 | TS8 | 20″ CNTRLR/RESIST WIRE | $30.49 |
