NORDICTRACK E 9.5 Z ELLIPTICAL – NTEL89820-INT.0
200 Parts Available for NORDICTRACK E 9.5 Z ELLIPTICAL - NTEL89820-INT.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 393285 | 2 | REAR STABILIZER | $148.99 | |||
 | 393826 | 3 | ACCESS COVER | $59.49 | ||
| 438667 | 4 | UPRIGHT | $322.49 | |||
 | 250961 | 5 | M4 X 19MM SCREW | $0.99 | ||
| 347381 | 6 | FRONT STABILIZER | $192.49 | |||
| 438461 | 7A | CONSOLE | $308.49 | |||
| 411549 | 7B | CONSOLE FAN | $55.49 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
 | 406048 | 9 | CRANK BEARING SLEEVE | $29.99 | ||
| 394393 | 10 | REAR RAMP COVER | $68.49 | |||
| 403163 | 11 | INCLINE MOTOR | $178.99 | |||
| 397058 | 12 | INCLINE MOTOR ARM | $159.99 | |||
| 397379 | 13 | RAMP ARM | $95.99 | |||
| 349894 | 14 | CONNECTING ROD BUSHING | $8.99 | |||
| 422087 | 15 | REAR STABILIZER COVER | $97.49 | |||
 | 393286 | 16 | TRACK | $99.99 | ||
| 250627 | 17 | POWER SWITCH | $16.49 | |||
 | 428353 | 18 | CRANK | $149.49 | ||
| 277369 | 19 | PULLEY | $174.49 | |||
| 428356 | 20 | CRANK ARM | $192.49 | |||
 | 299478 | 21 | GRIP | $57.49 | ||
| 393287 | 22 | IDLER | $120.99 | |||
 | 157600 | 23 | BASE FOOT | $1.99 | ||
| 273032 | 24 | SMALL LEVELING FOOT | $17.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
 | 148710 | 26A | M10 LOCKNUT | $2.49 | ||
 | 275907 | 26B | M10 LOCKNUT | $4.49 | ||
| 248342 | 27 | M10 WASHER | $1.99 | |||
| 362898 | 28A | EDDY MECHANISM | $319.99 | |||
| 352967 | 28B | RESISTANCE CABLE | $39.49 | |||
 | 413564 | 28C | M6X16MM SCRW, MECH | $4.99 | ||
 | 393278 | 29 | RIGHT PEDAL | $164.99 | ||
 | 348200 | 30 | STABILIZER CAP | $24.99 | ||
| 250420 | 31A | M10 X 20MM SCREW | $2.99 | |||
| 331822 | 31B | 3/8″ X 16MM SCREW | $4.49 | |||
 | 416364 | 32 | ROLLER ARM BEARING SLEEVE | $16.99 | ||
 | 237631 | 33 | LEVELING FOOT | $34.99 | ||
 | 148803 | 34 | WHEEL | $24.99 | ||
 | 133333 | 35 | #8 CLIP | $0.99 | ||
 | 014033 | 36 | M6 WASHER | $1.49 | ||
 | 393306 | 37 | ACCESSORY TRAY | $129.99 | ||
 | 372449 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 282277 | 39 | CLAMP | $3.49 | ||
 | 277016 | 40 | FRAME BEARING | $62.49 | ||
| 397079 | 41 | UPPER RAMP COVER | $43.99 | |||
| 394384 | 42 | SLEEVE | $28.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 394129 | 44 | LEFT PEDAL ARM | $197.49 | |||
| 380033 | 45 | LEFT ROLLER ARM | $285.99 | |||
| 438370 | 46 | LEFT UPPER BODY LEG | $73.99 | |||
| 393290 | 47 | LEFT UPPER BODY ARM | $134.49 | |||
| 242387 | 48 | RECEPTACLE | $15.49 | |||
| 393280 | 49 | LEFT PEDAL | $164.99 | |||
| 367635 | 50 | M4 X 12MM SCREW | $6.49 | |||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 348190 | 52 | PEDAL ARM CAP | $6.49 | |||
 | 337966 | 53 | LARGE AXLE COVER | $5.49 | ||
 | 371082 | 54 | PIVOT SPACER | $34.99 | ||
 | 384940 | 55 | RETAINER | $5.99 | ||
| 399906 | 56 | ROLLER ARM BUSHING | $59.99 | |||
 | 290729 | 57 | LARGE ARM BEARING | $43.49 | ||
| 394128 | 58 | RIGHT PEDAL ARM | $324.99 | |||
| 380020 | 59 | RIGHT ROLLER ARM | $176.49 | |||
| 393291 | 61 | RIGHT UPPER BODY ARM | $122.99 | |||
| 299643 | 63 | HANDLEBAR GRIP | $57.49 | |||
 | 384800 | 64 | PEDAL ARM AXLE | $43.99 | ||
| 393304 | 65 | RIGHT ARM FRONT COVER | $64.99 | |||
| 393305 | 66 | RIGHT ARM REAR COVER | $47.99 | |||
| 393302 | 67 | LEFT ARM FRONT COVER | $64.99 | |||
| 393303 | 68 | LEFT ARM REAR COVER | $47.99 | |||
| 420057 | 69 | RIGHT LEG OUTER COVER | $98.99 | |||
 | 420239 | 70 | LEFT LEG OUTER COVER | $107.49 | ||
| 393297 | 71 | DISC | $154.99 | |||
 | 420240 | 72 | LEFT LEG INNER COVER | $93.99 | ||
| 403251 | 73 | LEFT SHIELD | $140.49 | |||
| 403252 | 74 | RIGHT SHIELD | $140.49 | |||
| 403263 | 75 | CENTER SHIELD COVER | $111.49 | |||
| 363319 | 76 | LEFT PEDAL ARM SIDE CAP | $17.49 | |||

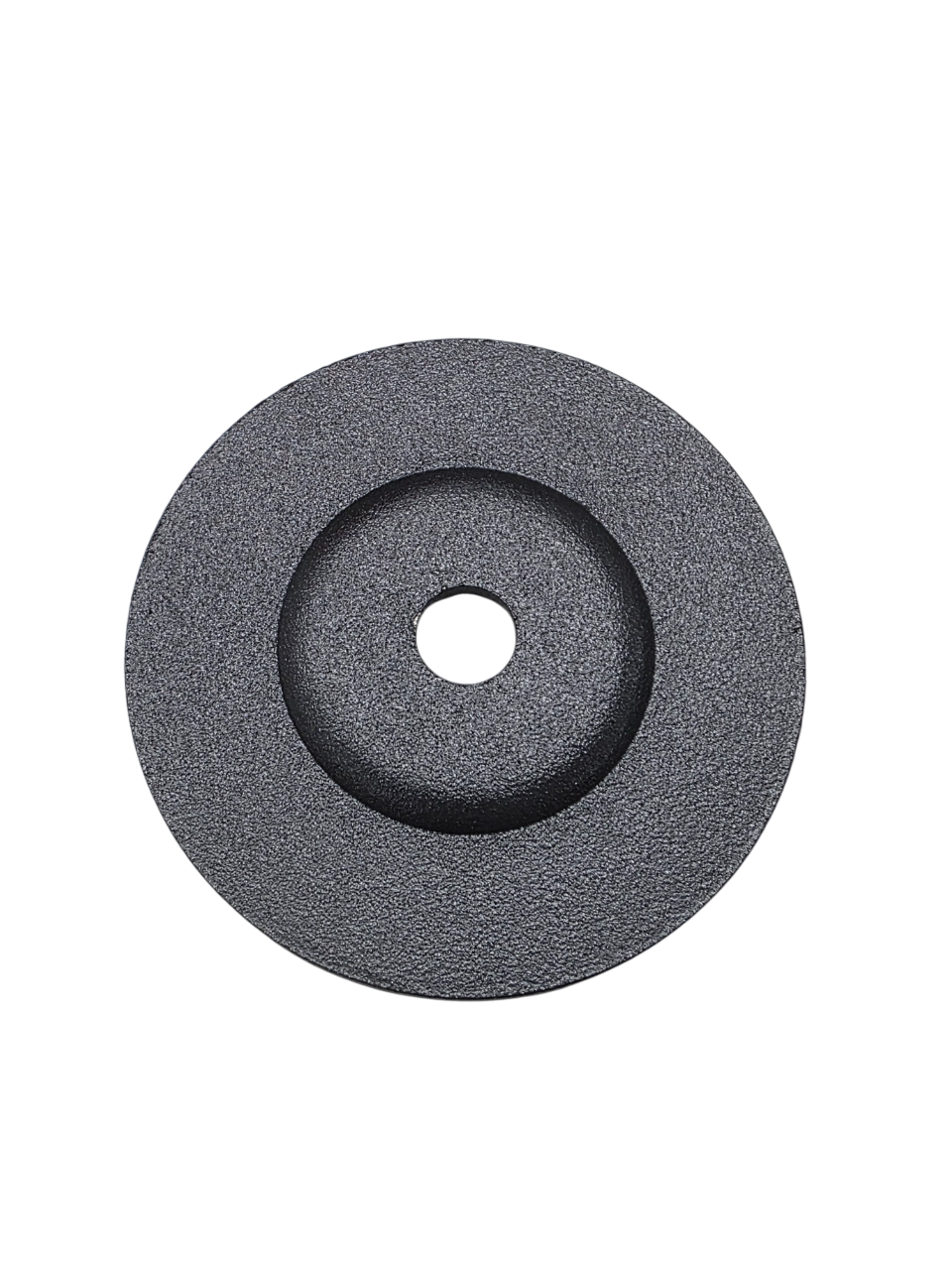

 | 428362 | 77 | CRANK COVER | $21.49 | ||
 | 386629 | 78 | KEY | $9.49 | ||
| 383085 | 79 | FRONT CONSOLE COVER | $54.49 | |||
| 394579 | 80 | REAR CONSOLE COVER | $66.99 | |||
 | 393307 | 81 | LOWER TRAY COVER | $54.49 | ||
 | 191032 | 82A | M8 X 16MM SCREW | $1.99 | ||
 | 383382 | 82B | M8 X 13MM SCREW | $0.99 | ||
| 420056 | 83 | RIGHT LEG INNER COVER | $98.99 | |||
| 234276 | 84 | M4 X 12MM SCREW | $0.99 | |||
| 331242 | 85 | GROMMET | $6.49 | |||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
| 363320 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | |||
 | 281150 | 88 | M6 X 20MM SHLDR SCRW,NOTE | $4.49 | ||
 | 208163 | 89 | IDLER SHOULDER SCREW | $1.99 | ||
 | 353545 | 90 | M6 X 19MM WASHER | $3.49 | ||
| 397183 | 91 | DRIVE BELT SCREW | $51.99 | |||
 | 227701 | 92 | M10 X 25MM SCREW | $2.49 | ||
 | 168267 | 93 | M4 X 12.7MM BRIGHT SCREW | $0.99 | ||
| 351856 | 94 | LIFT MOTOR SPACER | $1.99 | |||
 | 206321 | 95 | M8 X 19MM SCREW | $3.49 | ||
| 013226 | 96 | M10 X 45MM BOLT | $5.99 | |||
 | 223812 | 97 | M8 WASHER, NOTE | $1.99 | ||
 | 224113 | 98 | M8 WASHER | $2.49 | ||
| 428358 | 99 | INNER ARM BEARING | $64.99 | |||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 195562 | 101A | M4 X 16MM SCREW | $1.99 | ||
 | 362430 | 101B | M4 X 16MM SCREW | $3.49 | ||
 | 012042 | 102A | M8 NYLON LOCKNUT | $1.99 | ||
 | 256446 | 102B | M8 JAM LOCKNUT | $0.99 | ||
 | 197037 | 103A | M6 X 12MM SCREW | $0.99 | ||
 | 262341 | 103B | M6 X 12MM SCREW, WT RACK | $3.49 | ||
| 347127 | 104 | M10 X 114MM SCREW | $21.49 | |||
| 441909 | 105 | M4 X 25MM SCREW,NOTE: | $0.99 | |||
| 393300 | 106 | BOTTOM RAMP COVER | $41.99 | |||
 | 394383 | 107 | CRANK SPACER | $28.49 | ||
 | 174108 | 108 | M6 X 16MM SCREW | $5.99 | ||
 | 208583 | 109 | M10 X 58MM BOLT | $5.99 | ||
| 416413 | 110 | UPPER WIRE | $104.49 | |||
| 378126 | 112 | 4X1PMM FLNG SCRW,BTL HLDR | $3.49 | |||
| 392990 | 113 | DRIVE BELT | $127.49 | |||
| 316981K | 114 | CNTRL BRD W/STANDOFF | $112.99 | |||
 | 125819 | 115 | STANDOFF | $3.99 | ||
| 403264 | 116A | DISC RING | $109.49 | |||
| 372972 | 116B | M5 WASHER | $0.99 | |||
| 393829 | 117 | FRONT SHIELD COVER | $66.99 | |||
| 394571 | 118 | REAR SHIELD COVER | $112.99 | |||
 | 384942 | 120 | M8 X 20MM FLAT HEAD SCREW | $6.49 | ||
 | 287322 | 121A | LIFT BRACKET BUSHING | $10.99 | ||
 | 237616 | 121B | FRAME BUSHING | $4.99 | ||

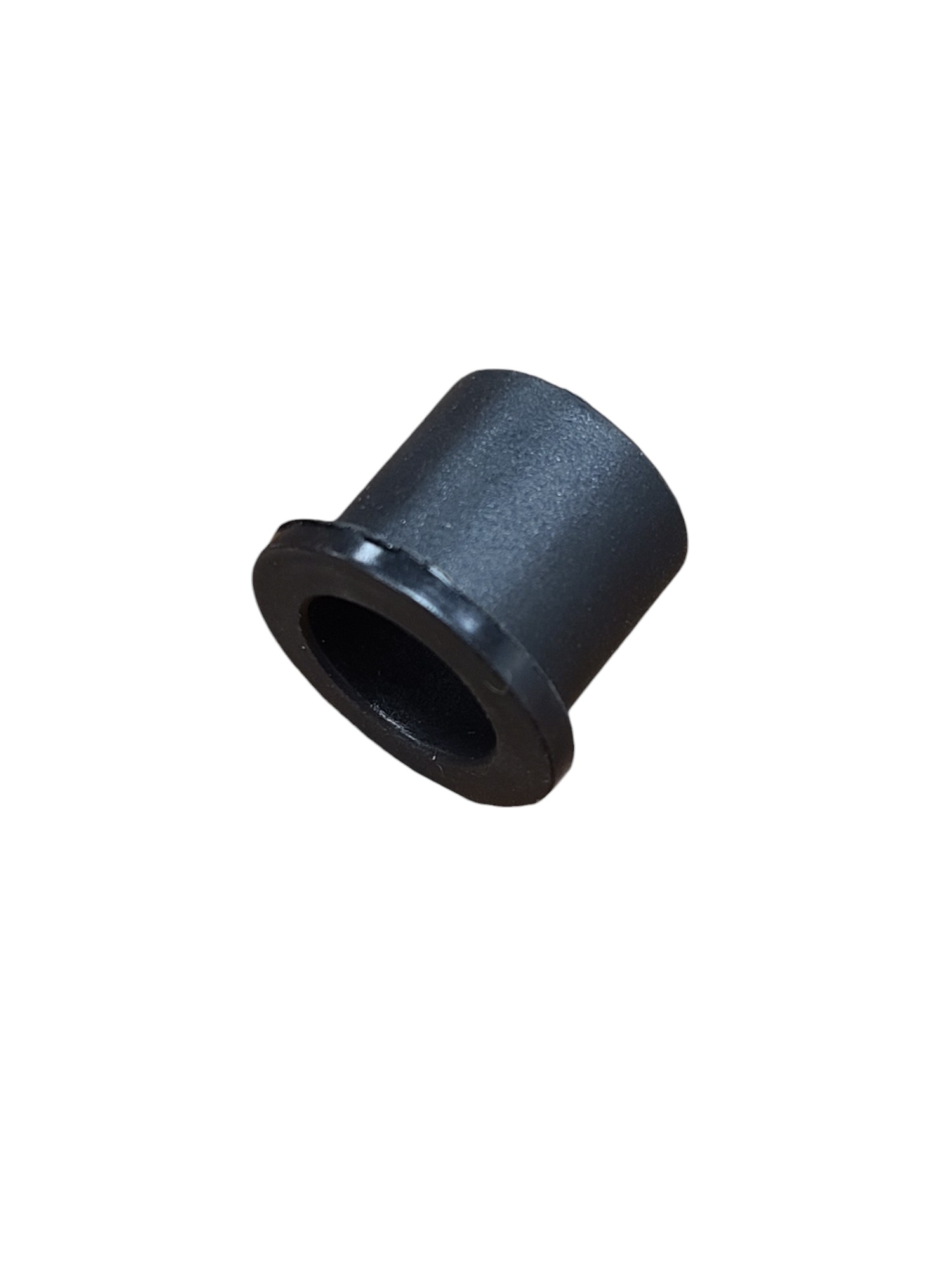

 | 397523 | 121C | PLASTIC FRAME BUSHING | $31.99 | ||
| 350182 | 122 | M10 X 50MM BOLT | $9.49 | |||
| 428360 | 123 | OUTER ARM BEARING | $64.99 | |||
 | 184369 | 124 | M4 X 16MM SCREW | $0.99 | ||
| 130286 | 125 | M10 X 28MM WASHER | $11.49 | |||
| 273353 | 126 | M4 X 38MM SCREW,NOTE: | $0.99 | |||
| 393298 | 127 | DISC BRACKET | $44.49 | |||
| 394385 | 128 | LONG BUMPER | $23.49 | |||
 | 281801 | 129 | M8 X 21MM WASHER | $7.49 | ||
 | 213457 | 130 | M4X12MM PEDAL INSERT SCRW | $1.99 | ||
| 394132 | 131 | ADHESIVE TAPE | $22.99 | |||
 | 340140 | 132 | M6 X 26MM WASHER | $1.49 | ||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 132315 | # | WIRE TIE | $3.49 | |||
| 438810 | # | HARDWARE KIT, NOTE: | $108.99 | |||
| 116926 | # | RELEASABLE CABLE TIE | $0.99 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
 | 372664 | # | TABLET HOLDER | $96.99 | ||
| 437942 | # | DECAL, WARNING | $10.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 144079 | TS14 | 6″ GRN/YEL WIRE, F/R | $4.49 | |||
| 130424 | TS15 | 4″ BLACK WIRE, 2F | $4.99 | |||
| 261730 | TS4 | 20″ WHITE WIRE, F/F | $26.49 | |||
| 199016 | TS5 | 18″ BLUE WIRE F/F | $7.49 | |||
| 301765 | TS6 | 14″ GRN/YEL WIRE, F/R | $4.49 | |||
| 324737 | TS8 | RESISTANCE MTR WIRE HRNS | $30.49 |
