NORDICTRACK DESK TREADMILL – NTL14815.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
118 Parts Available for NORDICTRACK DESK TREADMILL - NTL14815.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 341768 | 1 | 3/8″ X 2 3/8″ SCREW | $8.99 | ||
 | 163045 | 2 | 3/8″ STAR WASHER | $0.99 | ||
 | 142622 | 3 | HANDRAIL BOLT | $2.99 | ||
 | 119425 | 4 | 3/8″ JAMNUT | $0.99 | ||
| 380564 | 6 | #4 X 1/4″ SCREW | $0.99 | |||
 | 013607 | 7 | HOOD SCREW | $0.99 | ||
 | 013322 | 8 | #8 X 0.75″ SCREW | $0.99 | ||
 | 013576 | 9 | #8 X 0.5″ SCREW | $0.99 | ||
| 399019 | 10 | Desk Mounting Screw Kit | $4.99 | |||
 | 364027 | 11 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
| 136728 | 12 | #8 X 1/2″ SCREW | $0.99 | |||
 | 295758 | 13 | 5/16″ MOTOR BOLT | $3.49 | ||
| 141225 | 14 | INCLINE PIVOT BOLT | $12.99 | |||
| 179767 | 15 | INCLINE MOTOR BOLT,TOP | $61.49 | |||
 | 341769 | 16 | 3/8″ 2 3/4″ SCREW | $6.49 | ||
 | 145509 | 17 | 3/8″ X 1″ PATCH SCREW | $2.49 | ||
 | 013300 | 18 | #8 X 3/4″ SCREW | $0.99 | ||
| 243673 | 19 | #8 X 3/4″ FLAT HEAD SCREW | $0.99 | |||
| 014064 | 20 | REAR ROLLER STAR WASHER | $0.99 | |||
| 014157 | 21 | OPTIC MTG STAR WASHER | $0.99 | |||
 | 186819 | 22 | #8 X 0.5″ SCREW | $0.99 | ||
| 354294 | 23 | 5/16″ X SHOULDER BOLT | $4.99 | |||
| 164321 | 24 | 5/16″ X 3″ SCREW | $3.99 | |||
 | 013556 | 25 | 5/16″ X 3/4″ SCREW | $5.49 | ||
 | 100427 | 26 | 5/16″ JAMNUT | $0.99 | ||
 | 121576 | 27 | FRONT ROLLER NUT | $2.49 | ||
 | 133333 | 28 | HOOD CLIP | $0.99 | ||
| 375085 | 29 | 1/4″ X 3″ ROLL PIN | $1.99 | |||
| 207780 | 30 | REAR CUSHION | $12.99 | |||
| 413303 | 31 | LARGE WARNING DECAL | $3.99 | |||

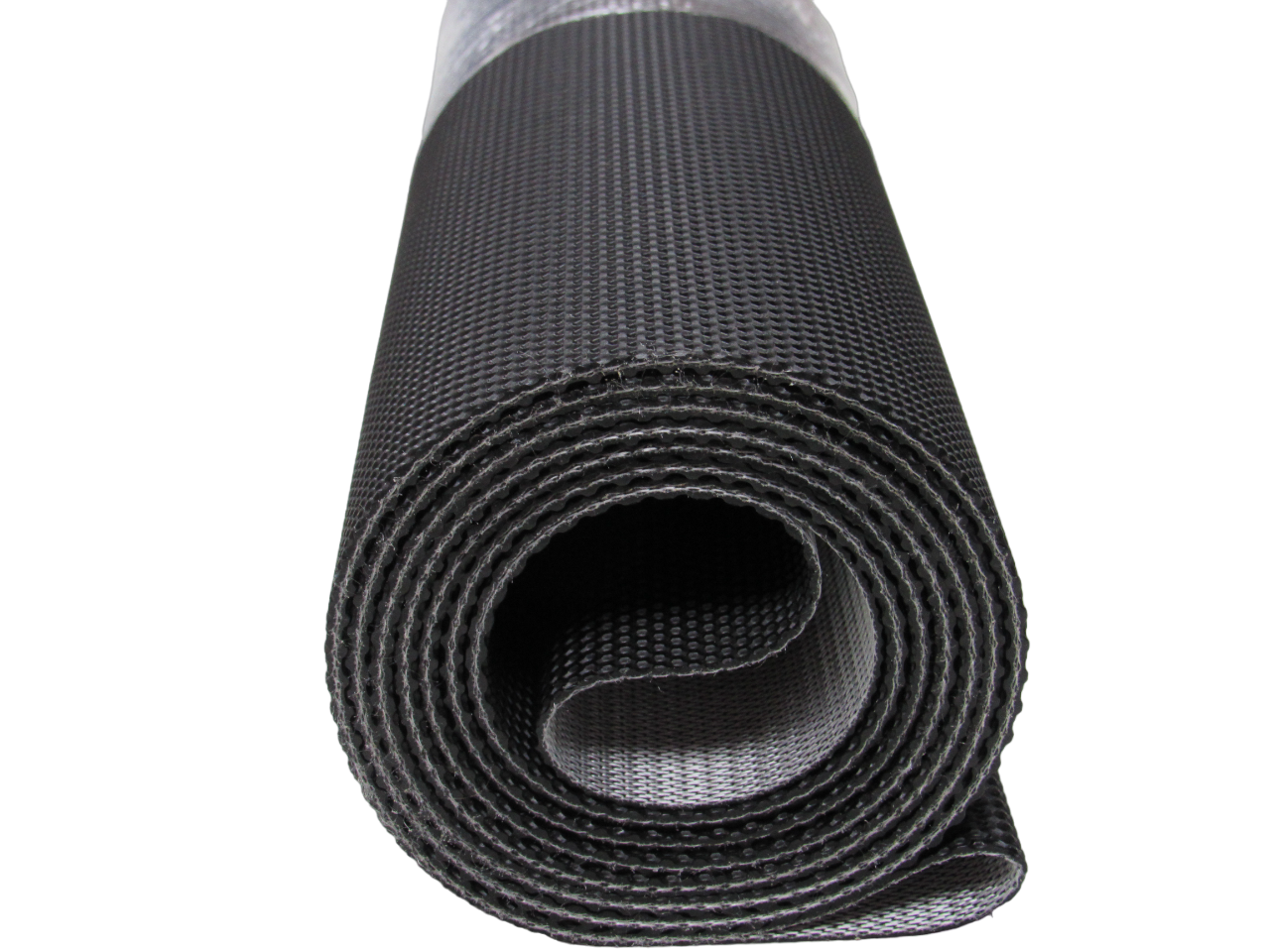

 | 375289 | 33 | WALKING BELT | $149.49 | ||
| 374835 | 34 | FOOT GRIP | $11.49 | |||
 | 198639 | 35 | BELT GUIDE | $5.99 | ||
| 374899 | 36 | DESK FRAME CAP | $1.99 | |||
| 375291 | 37 | DRIVE ROLLER/PULLEY | $147.49 | |||
 | 264179 | 38 | DRIVE BELT | $44.99 | ||
 | 258536 | 40 | 5/16″ X 1 3/4″ SCREW | $3.49 | ||
| 152526 | 41 | 1/4″ X 3 1/4″ SCREW,NOTE: | $3.49 | |||
| 374825 | 42 | RIGHT ROLLER GUARD | $7.99 | |||
| 374823 | 43 | LEFT ROLLER GUARD | $7.99 | |||
| 375290 | 44 | IDLER ROLLER | $138.49 | |||
| 375286 | 45 | HOOD | $74.49 | |||
| 398077 | 46 | CONTROLLER | $196.99 | |||
| 365328 | 47 | CONTROLLER CLAMP | $15.49 | |||
| 376182 | 48 | LIFT FRAME | $118.49 | |||
| 355217 | 49 | FOLD SENSOR | $30.99 | |||
| 248732 | 50 | INCLINE MOTOR | $170.99 | |||
| 379234 | 51 | LIFT FRAME SPACER | $1.49 | |||
 | 372092 | 52 | 3/8″ PLASTIC BUSHING | $4.99 | ||
| 405666 | 53 | DRIVE MOTOR | $255.49 | |||
 | 186726 | 54 | RESET/OFF CIRCUIT BREAKER | $22.49 | ||
| 375303 | 55 | BELLY PAN | $90.49 | |||
 | 031229 | 56A | POWER CORD | $39.99 | ||
| 251086 | 56B | POWER CORD, FCA | $39.99 | ||
 | 173169 | 57A | POWER CORD GROMMET | $0.99 | ||
 | 227199 | 57B | UPRIGHT GROMMET | $2.49 | ||
| 375304 | 58 | HOOD POST | $2.49 | |||
| 252433 | 59 | CAUTION DECAL | $0.99 | |||
| 375071 | 60A | SLIDER PLUG | $0.99 | |||
| 375128 | 60B | LONG PLUG | $0.99 | |||
 | 349213 | 61 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
| 376184 | 62 | LEFT UPRIGHT | $107.99 | |||
| 376203 | 63 | INNER LEFT UPRIGHT | $79.49 | |||
| 374827 | 64 | UPRIGHT COVER | $3.99 | |||
| 376204 | 65 | INNER RIGHT UPRIGHT | $81.99 | |||
| 376185 | 66 | RIGHT UPRIGHT | $107.99 | |||
 | 372591 | 67 | WHEEL | $7.49 | ||
 | 307031 | 68 | BASE FOOT | $2.99 | ||
| 375285 | 69 | BASE | $124.99 | |||
| 374917 | 70 | LIFT BUSHING | $2.99 | |||
| 376194 | 71 | RIGHT BASE COVER | $25.99 | |||
| 376195 | 72 | LEFT BASE COVER | $25.99 | |||
| 259840 | 73 | 5/16″ X 1″ BOLT | $1.99 | |||
| 399016 | 74 | DESK TOP | $148.49 | |||
| 374832 | 75 | DESK RAMP | $3.49 | |||
| 374964 | 76 | FRAME CAP | $1.49 | |||
| 374797 | 77 | DESK FRAME | $160.99 | |||
| 375008 | 78 | PLATFORM LATCH | $26.99 | |||
| 354264 | 79 | LATCH SPRING | $2.49 | |||
| 301345 | 80 | BASE PAD | $2.99 | |||
| 375292 | 81 | CONSOLE TOP | $224.99 | Unavailable to order | ||
| 374839 | 83 | SENSOR COVER | $3.99 | |||
| 355213 | 84 | SENSOR SWITCH | $25.99 | |||
| 358880 | 85 | 10″ WIRE HARNESS | $44.99 | |||
| 376192 | 87 | DESK SUPPORT FRAME COVER | $68.49 | |||
| 374813 | 88 | DESK SUPPORT FRAME | $112.99 | |||
| 374837 | 89 | CATCH | $6.99 | |||
| 375186 | 91 | STRAIN RELIEF BRACKET | $3.49 | |||
| 132315 | 92 | WIRE TIE | $3.49 | |||
| 375284 | 93 | UPRIGHT WIRE | $97.49 | Unavailable to order | ||
| 223520 | 94 | MOTOR CONTROLLER WIRE | $12.99 | |||
 | 102634 | 95 | 8″ GREEN GROUND WIRE | $3.49 | ||
| 153325 | 96 | 24″ GROUND WIRE | $6.99 | |||
 | 375262 | 97 | CONSOLE WIRE | $18.99 | ||
| 374921 | 98 | HANDLE PIN | $2.49 | |||
| 374830 | 99 | RIGHT ADJUSTMENT HANDLE | $12.99 | |||
| 376197 | 100 | LEFT INNER BASE COVER | $3.49 | |||
| 376198 | 101 | RIGHT INNER BASE COVER | $3.49 | |||
| 374458 | 102 | GAS SPRING | $117.99 | |||
| 374950 | 103 | GAS SPRING FITTING | $12.99 | |||
| 374829 | 104 | LEFT ADJUSTMENT HANDLE | $13.49 | |||
| 295243 | 105 | INCLINE STOP BRACKET | $1.99 | |||
| 375288 | 106 | LARGE PLATFORM CUSHION | $23.49 | |||
| 376190 | 107 | LEFT OUTER WHEEL COVER | $11.99 | |||
| 376188 | 108 | LEFT INNER WHEEL COVER | $12.99 | |||
| 376187 | 109 | RIGHT INNER WHEEL COVER | $12.99 | |||
| 376191 | 110 | RIGHT OUTER WHEEL COVER | $11.99 | |||
| 228682 | 111 | REAR WHEEL | $50.99 | |||
| 374831 | 112 | DESK COVER | $69.99 | |||
| 379236 | 113 | INCLINE MOTOR BUSHING | $0.99 | |||
| 362499 | 114 | ROLLER SPACER | $4.49 | |||
| 161903 | 116 | M4 WASHER | $0.99 | |||
| 380317 | 117 | M8 NUT | $0.99 | |||
 | 128457 | # | ALLEN WRENCH | $25.49 | ||
| 375182 | # | HARDWARE KIT, NOTE: | $66.99 | |||
| 116566 | # | PLASTIC TIE | $0.99 | |||
| 377781 | # | LITPAC, NOTE: | $28.49 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 240351 | # | CABLE TIE | $0.99 | |||
| 377782 | # | USER’S MANUAL | $23.99 | |||
 | 375250 | # | BASE WIRE | $9.49 | ||
| 1001235 | # | 4 TUBE LUBE KIT,FCA | $60.49 | |||
| 367244 | # | DECAL,REWORK SHEET,FCA | $72.49 | |||
 | 189813 | # | FILTER WIRE | $23.99 | ||
 | ARC14 | # | ARC FILTER | |||
| 330165 | # | DECAL,REWRK,OVERLAY SHEET | $112.99 | |||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
| 165224 | # | 12″ GREEN WIRE, 2 RING | $3.99 | |||
 | 215822 | # | GROUND WIRE | $5.99 | ||
| 219896 | # | ACCESSORY KIT, FCA | Contact for Pricing |
