NORDICTRACK COMMERCIAL ELLIPTICAL – NTEL71220.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
174 Parts Available for NORDICTRACK COMMERCIAL ELLIPTICAL - NTEL71220.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 394757 | 2 | REAR STABILIZER | $157.49 | |||

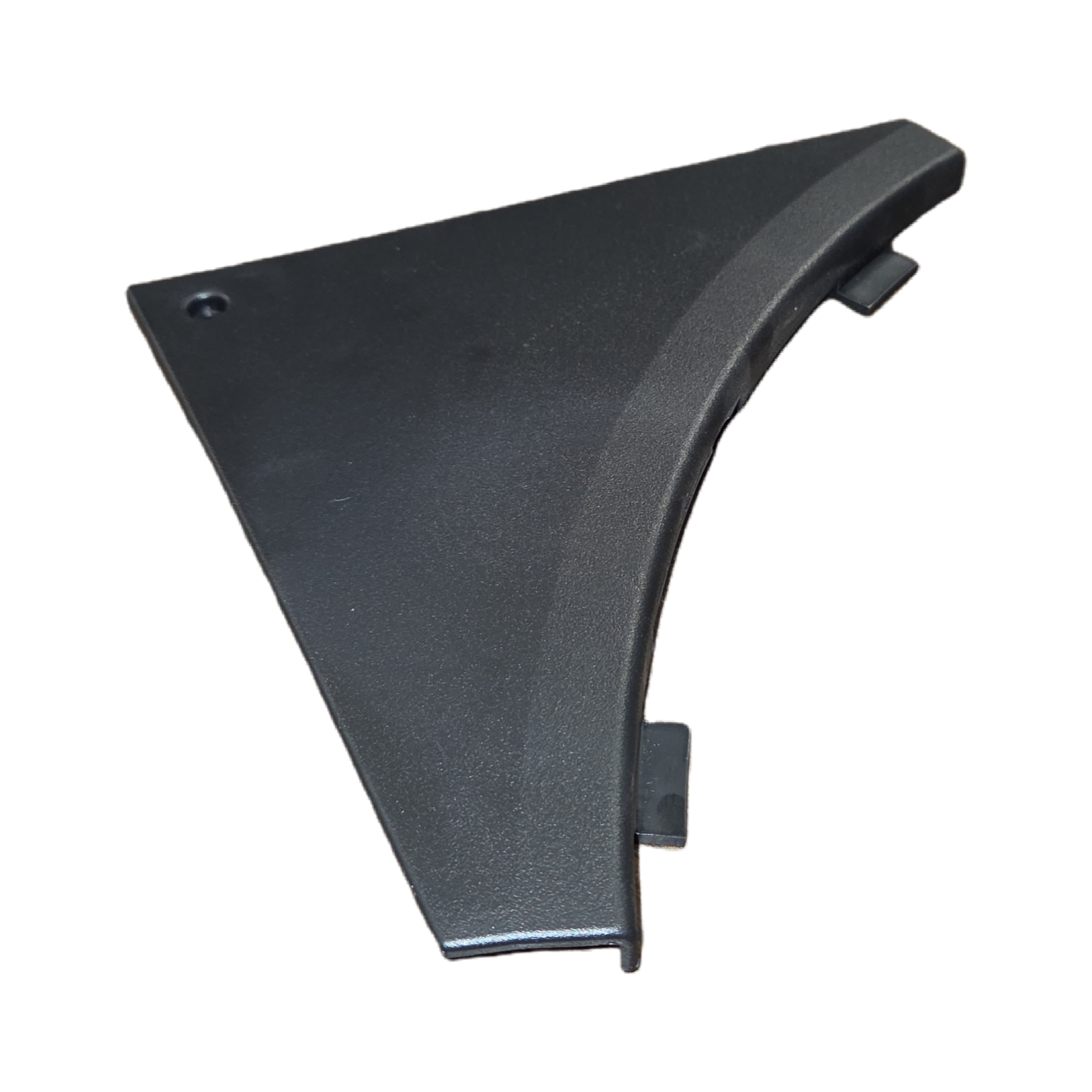

| 393826 | 3 | ACCESS COVER | $59.49 | |||
| 417721 | 4 | UPRIGHT | $256.49 | |||
 | 250961 | 5 | M4.2 X 19MM SCREW | $0.99 | ||
| 394756 | 6 | FRONT STABILIZER | $146.49 | |||
| 417719 | 7A | CONSOLE (ARGON) | $549.99 | |||
| 450785 | 7B | TABLET ONLY | $399.99 | |||
| 407854 | 7C | FAN | $50.99 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
 | 394381 | 9 | CRANK BEARING SPACER | $44.99 | ||
| 394393 | 10 | REAR RAMP COVER | $68.49 | |||
| 349845 | 11 | INCLINE MOTOR | $165.99 | |||
| 397058 | 12 | INCLINE MOTOR ARM | $119.99 | |||
| 397379 | 13 | RAMP ARM | $95.99 | |||
| 349894 | 14 | RAMP ARM SPACER | $8.99 | |||
| 397095 | 15 | REAR STABILIZER COVER | $69.99 | |||
 | 393286 | 16 | TRACK | $99.99 | ||
 | 264511 | 17 | POWER SWITCH | $32.99 | ||
 | 394130 | 18 | CRANK | $169.99 | ||
| 277369 | 19 | PULLEY | $174.49 | |||
| 394127 | 20 | CRANK ARM | $149.99 | |||
| 397064 | 21 | LEFT LOWER GRIP | $78.49 | |||
| 393287 | 22 | IDLER | $120.99 | |||
 | 157600 | 23 | BUMPER | $1.99 | ||
| 273032 | 24 | SMALL LEVELING FOOT | $17.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
 | 148710 | 26A | M10 LOCKNUT | $2.49 | ||
 | 275907 | 26B | M10 LOCKNUT,CRNK ARM CLMP | $4.49 | ||
| 248342 | 27 | M10 WASHER | $1.99 | |||
| 364319 | 28A | EDDY MECHANISM | $312.99 | |||
| 352967 | 28B | RESISTANCE CABLE | $39.49 | |||
| 417758 | 29 | RIGHT PEDAL | $236.49 | |||
 | 348200 | 30 | STABILIZER CAP | $17.49 | ||
| 331822 | 31 | M10 X 19MM SCREW | $4.49 | |||
 | 393295 | 32 | ROLLER ARM BEARING SPACER | $31.49 | ||
 | 237631 | 33 | LEVELING FOOT | $34.99 | ||
 | 148803 | 34 | FRONT WHEEL | $3.49 | ||
 | 133333 | 35 | CLIP | $0.99 | ||
 | 014033 | 36 | WASHER | $1.49 | ||

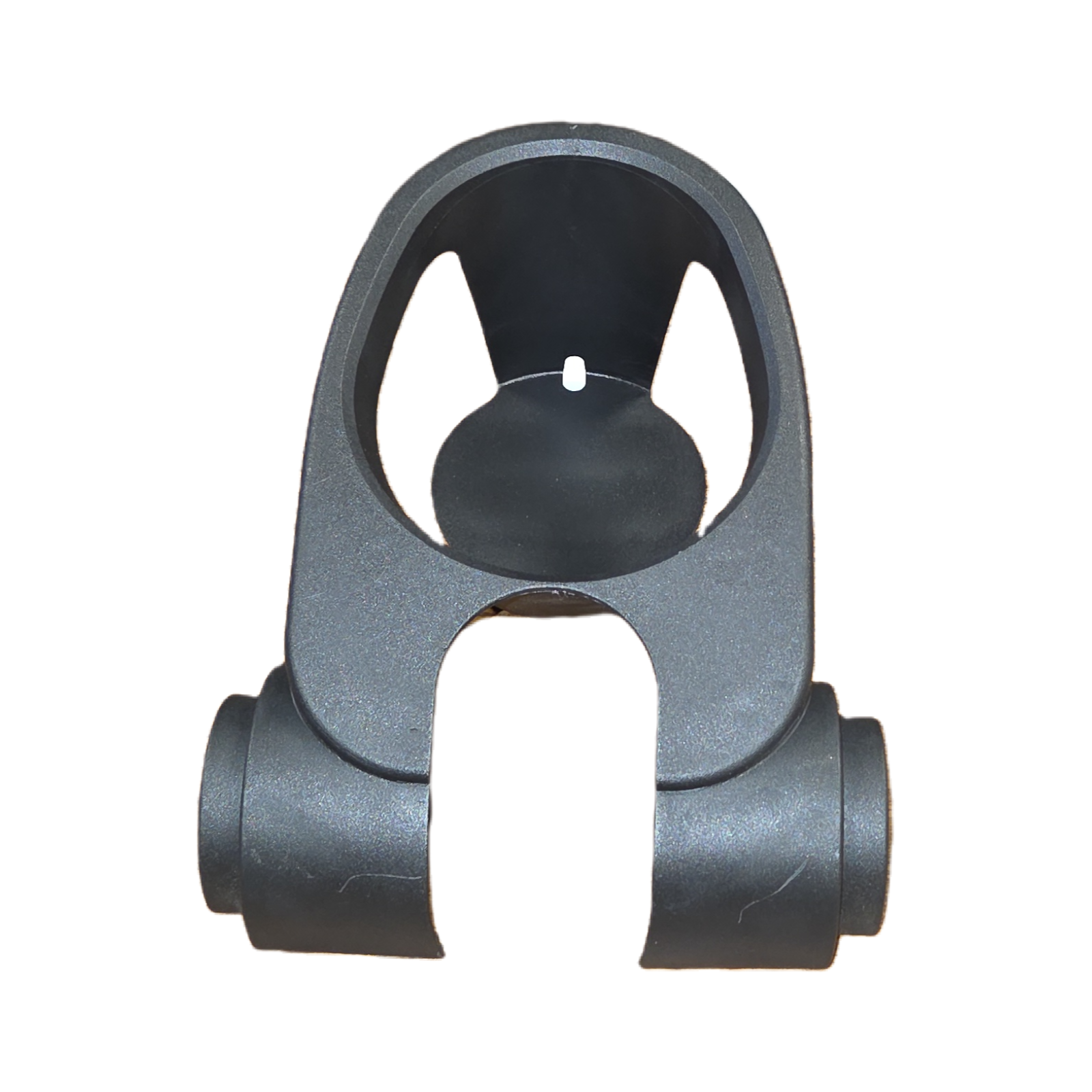

| 393306 | 37 | ACCESSORY TRAY | $129.99 | |||
 | 372449 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 282277 | 39 | CLAMP | $3.49 | ||
 | 295804 | 40 | FRAME BEARING | $66.99 | ||
| 397079 | 41 | UPPER RAMP COVER | $43.99 | |||
| 394384 | 42 | SLEEVE | $28.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 397041 | 44 | LEFT PEDAL ARM | $201.49 | |||
| 394834 | 45 | LEFT ROLLER ARM | $194.99 | |||
| 420263 | 46 | LEFT UPPER BODY LEG | $171.99 | |||
| 407956 | 47 | LEFT UPPER BODY ARM | $194.99 | |||
 | 313668 | 48 | POWER CORD GROMMET | $9.49 | ||
| 417757 | 49 | LEFT PEDAL | $231.99 | |||
| 367635 | 50 | M4 X 12MM SELF-TAP SCREW | $6.49 | |||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 417755 | 52 | LEFT PEDAL ADJ. HANDLE | $22.49 | |||
 | 337966 | 53 | LARGE AXLE COVER | $5.49 | ||
 | 371082 | 54 | PIVOT SPACER | $34.99 | ||
 | 384940 | 55 | RETAINER | $5.99 | ||
| 399906 | 56 | ROLLER ARM BUSHING | $59.99 | |||
 | 290729 | 57 | LARGE ARM BEARING | $43.49 | ||
| 397042 | 58 | RIGHT PEDAL ARM | $201.49 | |||
| 394833 | 59 | RIGHT ROLLER ARM | $194.99 | |||
| 420264 | 60 | RIGHT UPPER BODY LEG | $171.99 | |||
| 407959 | 61 | RIGHT UPPER BODY ARM | $189.49 | |||
| 397063 | 62 | LEFT UPPER GRIP | $82.99 | |||
| 271688 | 63A | PULSE SENSOR | $60.99 | |||
| 416389 | 63B | PULSE WIRE | $59.99 | |||
| 384800 | 64 | PEDAL ARM AXLE | $43.49 | |||
| 397077 | 65 | RIGHT ARM FRONT COVER | $60.99 | |||
| 397078 | 66 | RIGHT ARM REAR COVER | $54.49 | |||
| 397075 | 67 | LEFT ARM FRONT COVER | $60.99 | |||
| 397076 | 68 | LEFT ARM REAR COVER | $54.49 | |||
| 420057 | 69 | RIGHT LEG OUTER COVER | $98.99 | |||

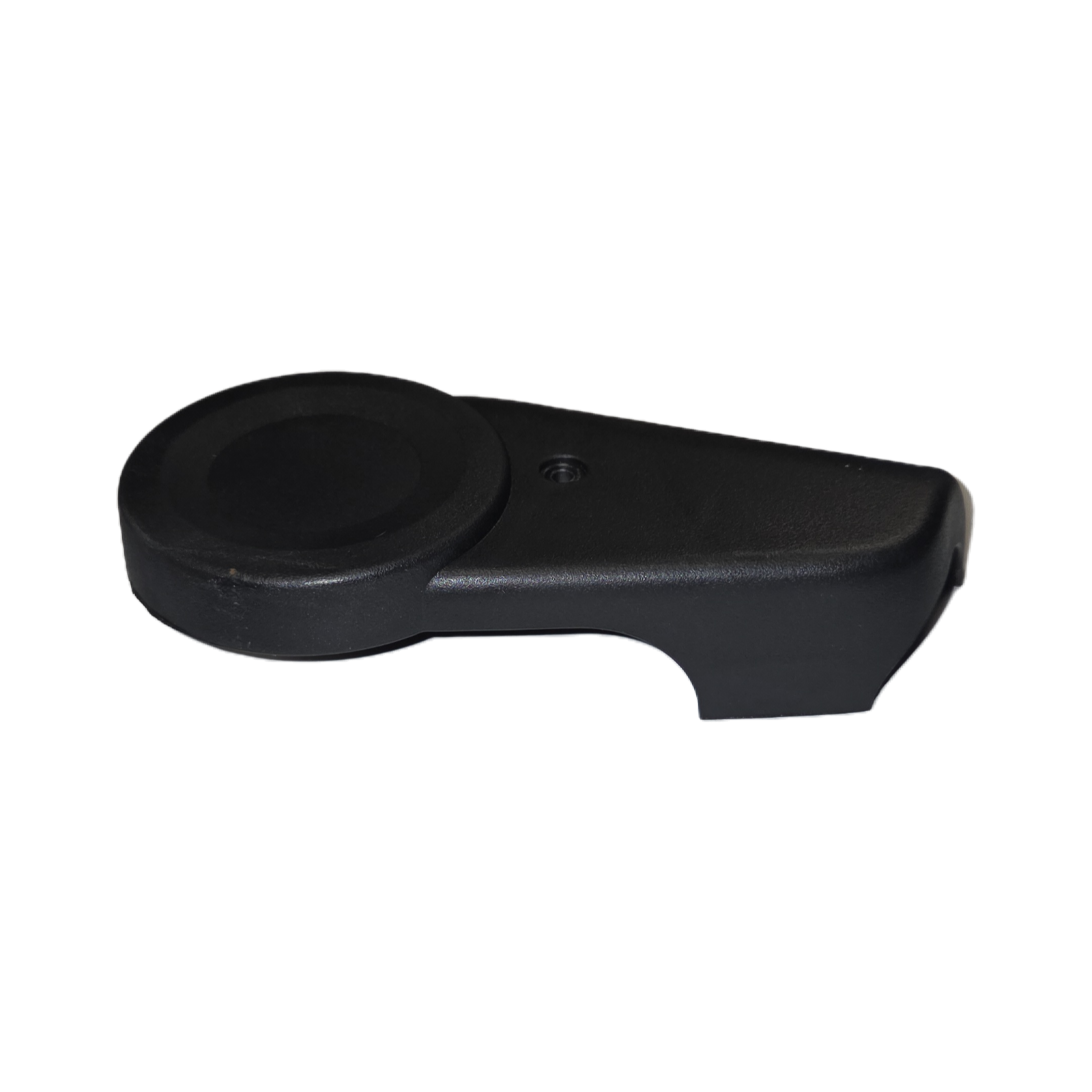

| 420239 | 70 | LEFT LEG OUTER COVER | $93.99 | |||
| 397073 | 71 | DISC | $108.99 | |||

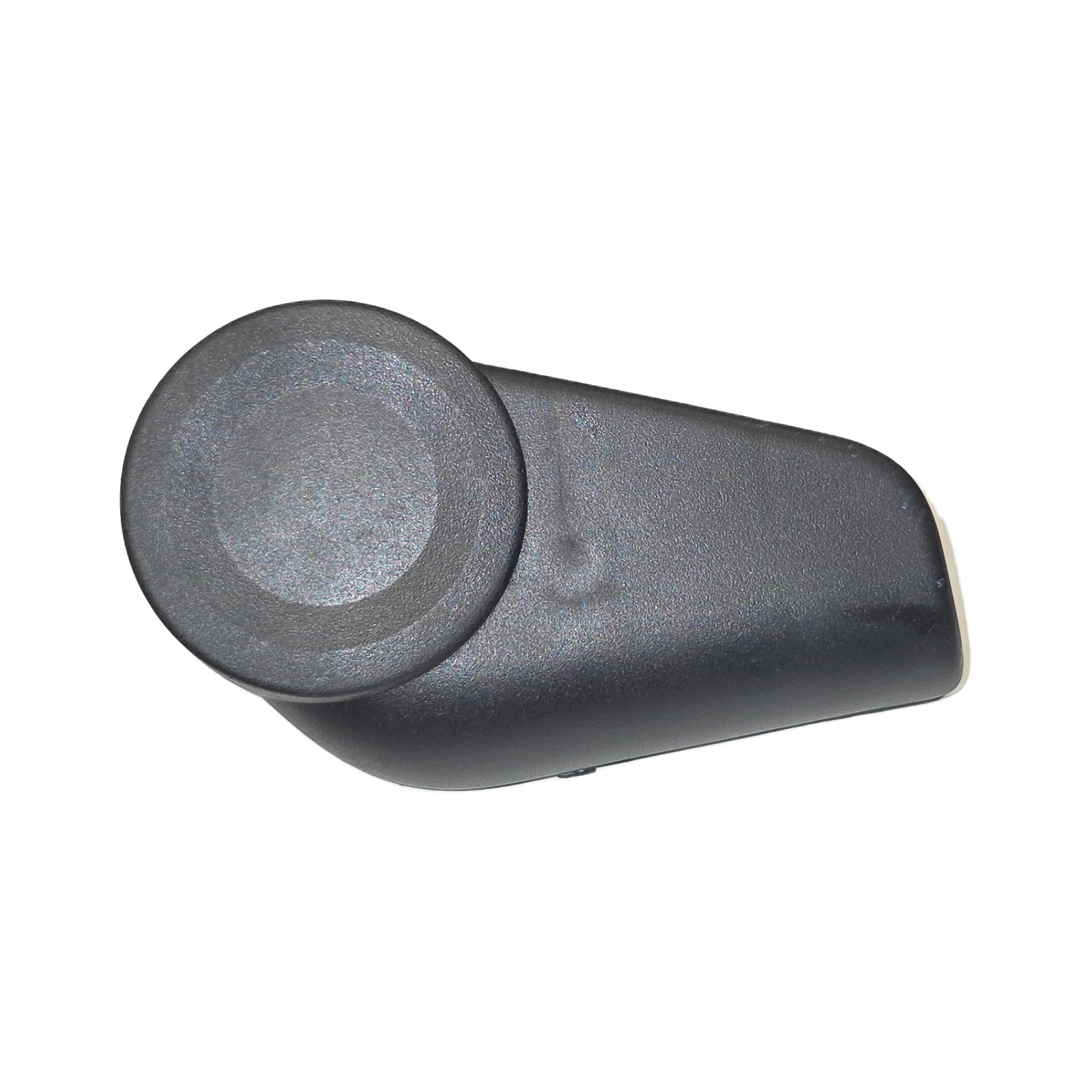

| 420240 | 72 | LEFT LEG INNER COVER | $93.99 | |||
| 397069 | 73 | LEFT SHIELD | $178.49 | |||
| 397070 | 74 | RIGHT SHIELD | $175.99 | |||
| 417720 | 75 | CENTER SHIELD COVER | $89.49 | |||
| 363319 | 76 | LEFT PEDAL ARM SIDE CAP | $17.49 | |||
 | 384941 | 77 | AXLE COVER | $9.49 | ||
 | 386629 | 78 | KEY | $9.49 | ||
| 383085 | 79 | FRONT CONSOLE COVER | $54.49 | |||
| 394579 | 80 | REAR CONSOLE COVER | $66.99 | |||
| 393307 | 81 | LOWER TRAY COVER | $54.49 | |||
 | 191032 | 82A | M8X13MM,PULLEY CRANK SCRW | $1.99 | ||
 | 383382 | 82B | M8 X 13MM SCREW | $0.99 | ||
| 420056 | 83 | RIGHT LEG INNER COVER | $98.99 | |||
| 234276 | 84 | M4 GROUND SCREW | $0.99 | |||
| 252795 | 85 | M10 SPLIT WASHER | $0.99 | |||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
| 363320 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | |||
 | 281150 | 88 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
 | 208163 | 89 | M6 X 20MM HEX SCREW | $1.99 | ||
 | 353545 | 90 | M6 X 19MM WASHER | $1.49 | ||
| 397183 | 91 | DRIVE BELT ADJUST SCREW | $43.99 | |||
| 227701 | 92 | M10 X 25MM SCREW | $2.49 | |||
 | 168267 | 93 | FAN SCREW | $0.99 | ||
| 351856 | 94 | MOTOR ARM SPACER | $1.99 | |||
 | 206321 | 95A | M8 X 19MM SCRW, NOTE: OM | $3.49 | ||
| 249930 | 95B | M8 X 20MM SCREW | $2.99 | |||
| 013226 | 96 | SHOULDER BOLT | $5.99 | |||
 | 223812 | 97 | M8 WASHER | $1.99 | ||
 | 224113 | 98 | M8 X 18MM WASHER | $2.49 | ||
| 394133 | 99 | CRANK PULLEY SPACER | $11.99 | |||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 362430 | 101A | M4 X 16MM SCREW | $3.49 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 256446 | 102A | M8 NUT | $0.99 | ||
 | 012042 | 102B | M8 LOCKNUT | $1.99 | ||
| 262286 | 103A | M6X12MM RAMP LIFT SCREW | $6.49 | |||
| 262341 | 103B | M6 X 12MM SCREW | $3.49 | |||
| 347127 | 104 | M10 X 114MM SCREW | $21.49 | |||
| 441909 | 105 | M4 X 25MM SCREW,NOTE: | $0.99 | |||
| 393300 | 106 | LOWER RAMP COVER | $41.99 | |||
 | 394383 | 107 | CRANK SPACER | $28.49 | ||
 | 174108 | 108 | M6 X 13MM SCREW | $5.99 | ||
| 208583 | 109 | WHEEL BOLT | $5.99 | |||
| 416413 | 110 | UPPER WIRE | $104.49 | |||
| 324737 | 111 | 20″ CNTRLR/RESIST WIRE | $30.49 | |||
| 378126 | 112 | M4 X 19MM SELF-TAP SCREW | $3.49 | |||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||
 | 416695 | 114 | CONTROLLER | $161.49 | ||
 | 125819 | 115 | PLASTIC STAND-OFF | $3.99 | ||
| 397093 | 116 | DISC RING | $103.99 | |||
| 393829 | 117 | FRONT SHIELD COVER | $66.99 | |||
| 394571 | 118 | REAR SHIELD COVER | $98.99 | |||
 | 342275 | 119 | POWER CORD | $49.99 | ||
 | 384942 | 120 | M8 X 20MM SCREW | $6.49 | ||
 | 287322 | 121 | SMALL BUSHING | $10.99 | ||
| 350182 | 122 | M10 X 48MM BOLT | $9.49 | |||
 | 384931 | 123 | SMALL ARM BEARING | $43.99 | ||
| 184369 | 124 | TABLET HOLDER SCREW | $0.99 | |||
| 397065 | 125 | RIGHT UPPER GRIP | $64.99 | |||
| 273353 | 126 | M4 X 38MM SCREW | $0.99 | |||
| 397074 | 127 | DISC BRACKET | $43.99 | |||
| 394385 | 128 | LONG BUMPER | $23.49 | |||
 | 281801 | 129 | M8 WASHER | $7.49 | ||
 | 213457 | 130 | M4 X 12MM SCREW | $1.99 | ||
| 394132 | 131 | ADHESIVE TAPE | $22.99 | |||
| 397050 | 132 | LEFT PEDAL PLATE | $160.49 | |||
| 400130 | 133 | M10 X 158MM BOLT | $26.49 | |||
| 397066 | 134 | RIGHT LOWER GRIP | $111.49 | |||
 | 340140 | 135 | M6 CRANK ARM WASHER | $1.49 | ||
| 130286 | 136 | M10 X 28MM WASHER | $11.49 | |||
| 417756 | 137 | RIGHT PEDAL ADJ HANDLE | $22.49 | |||
 | 325993 | 138 | PEDAL PIN | $19.99 | ||
| 321268 | 139 | PEDAL SPRING | $3.49 | |||
 | 194653 | 140 | M6 ACORN NUT | $1.99 | ||
| 249933 | 141 | M6 WASHER | $0.99 | |||
| 397053 | 142 | RIGHT PEDAL PLATE | $157.49 | |||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 214070 | # | RAIL BOLT, SEE #72 | $6.49 | |||
| 410314 | # | TABLET HOLDER | $117.49 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 416077 | # | HARDWARE KIT, NOTE: | $154.49 | |||
| 132315 | # | WIRE TIE | $3.49 | |||
 | 413564 | # | D/O BKT SCREW/EDDY MECH | $4.99 | ||
| 417716 | # | USER’S MANUAL | $23.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 364361 | # | CHEST PULSE STRAP | $135.99 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 417715 | # | LITPAC, NOTE: | $190.99 | |||
| 266084 | # | DECAL, GENERAL WARNING | $14.49 | |||
 | 331026 | # | M8 RAMP PVT/WHEEL WASHER | $0.99 | ||
| 372972 | # | M5 CRANK DISK WASHER | $0.99 | |||
| 116926 | # | RELEASABLE TIE | $0.99 | |||
| 250420 | # | M10 X 19MM BUTTON BOLT | $2.99 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 270274 | TS4 | 18″ WHITE WIRE, F-M | $5.99 | |||
| 203981 | TS5 | 18″ BLUE WIRE, F/F | $6.49 | |||
| 320978 | TS6 | CONTROLLER GROUND WIRE | $5.49 | |||
| 351172 | TS7 | 20″ CNCTLR/LIFT MTR WIRE | $50.99 |
