NORDICTRACK COMMERCIAL 1750 TREADMILL – NTL14221.2
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
142 Parts Available for NORDICTRACK COMMERCIAL 1750 TREADMILL - NTL14221.2 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 295136 | 1 | 5/16″ X 3/4″ SCREW | $3.49 | ||
 | 203283 | 2 | 5/16″ X 2″ BOLT | $2.99 | ||
 | 298484 | 3 | 5/16″X1 3/4″ SHOULDERBOLT | $2.49 | ||
 | 349213 | 4 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
 | 013322 | 5A | #8 X 3/4″ SCREW | $0.99 | ||
| 432031 | 5B | DECKRAIL SCREW | $2.49 | |||
 | 167049 | 6 | #10 X 3/4″ SCREW,UPRIGHT | $0.99 | ||
 | 427816 | 7 | GROUND SCREW | $0.99 | ||
 | 014149 | 8 | 5/16″ STAR WASHER | $0.99 | ||
 | 100427 | 9 | 5/16″ NUT | $0.99 | ||
 | 013300 | 10 | #8 X 3/4″ SCREW | $0.99 | ||
 | 013576 | 11 | #8 X 1/2″ SCREW | $0.99 | ||
 | 364027 | 12 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 186819 | 13 | GROUND SCREW | $0.99 | ||
 | 346519 | 14 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
| 399015 | 15 | 3/8″ X 1 3/4″ BOLT, NOTE: | $2.99 | |||
| 269380 | 16 | 5/16″ X 1 1/4″ SCREW | $2.49 | |||
| 136728 | 18 | #8 X 7/16″ SCREW | $0.99 | |||
 | 295758 | 19 | 5/16″ MOTOR BOLT | $3.49 | ||
 | 181979 | 20 | 3/8″ X 1 1/4″ SCREW | $3.49 | ||
| 225696 | 21 | 1/4″ X 1 1/4″ BOLT | $1.49 | |||
 | 381122 | 22 | 3/8″ X 1 1/2″ WHEEL BOLT | $2.99 | ||
 | 341769 | 23 | 3/8″ 2 3/4″ SCREW | $6.49 | ||
 | 013607 | 24 | BASE PAD SCREW | $0.99 | ||
 | 163045 | 25 | 3/8″ STAR WASHER | $0.99 | ||
| 377002 | 26 | 1/2″ X 2″ BOLT | $15.49 | |||
 | 183246 | 27 | 1/4″ X 1/2″ SCREW | $1.49 | ||
 | 384997 | 28 | 3/8″ X 1″ SCREW | $2.49 | ||
| 217913 | 29 | 1/4″ FLAT WASHER | $2.99 | |||
 | 121576 | 30 | 1/4″ NUT | $2.49 | ||
 | 152478 | 31 | 5/16″ FLAT WASHER | $0.99 | ||
 | 215822 | 32 | CONSOLE GROUND WIRE | $5.99 | ||
| 131483 | 33 | CHOKE BRACKET BOLT | $1.49 | |||
 | 100553 | 34 | 1/2″ JAM LOCK NUT | $1.49 | ||
 | 119425 | 35 | 3/8″ JAM NUT | $0.99 | ||
 | 133333 | 36 | CLIP | $0.99 | ||
| 360945 | 37 | CUSHION | $26.49 | |||
| 413303 | 38 | DECAL,GENERAL WARNING | $3.99 | |||
| 395777 | 39 | WALKING PLATFORM | $403.49 | |||
 | 403357 | 40 | WALKING BELT | $180.99 | ||
| 454372 | 41 | LEFT FOOT RAIL & CAP KIT | $131.99 | Unavailable to order | ||
| 454371 | 42 | RIGHT FOOT RAIL & CAP KIT | $99.99 | Unavailable to order | ||
| 198640 | 43 | BELT GUIDE | $25.49 | |||
| 403353 | 44 | LEFT FRAME COVER | $105.49 | |||
 | 372092 | 45 | 3/8″ PLASTIC BUSHING | $4.99 | ||
 | 372108 | 46 | 1/2″ PLASTIC BUSHING | $4.99 | ||
 | 129144 | 47 | FLYWHEEL WASHER | $3.49 | ||
 | 406939 | 48 | Fitness Equipment Controller | $219.99 | ||
| 014157 | 49 | #8 STAR WASHER | $0.99 | |||
| 398589 | 50 | CONTROLLER BRACKET | $43.49 | |||
| 402566 | 51 | DRIVE ROLLER/PULLEY | $164.99 | |||
| 240351 | 53 | CABLE TIE | $0.99 | |||
| 405694 | 54 | DRIVE MOTOR | $389.99 | |||
 | 342218 | 55 | OEM MOTOR BELT | $49.99 | ||
 | 388199 | 56 | STORAGE LATCH | $119.49 | ||
| 403354 | 57 | RIGHT FRAME COVER | $105.49 | |||
| 360938 | 58 | CUSHION PLATE | $2.99 | |||
 | 223662 | 59 | IDLER ROLLER | $165.99 | ||
| 395776 | 62 | MOTOR HOOD | $139.49 | |||
 | 372106 | 63 | INCLINE FRAME SPACER | $3.49 | ||
 | 301336 | 64 | FRAME SPACER | $5.49 | ||
| 394999 | 65 | INCLINE FRAME | $125.49 | |||
| 425612 | 66A | INCLINE MOTOR | $170.99 | |||
 | 426162 | 66C | INCLINE MOTOR SENSOR KIT | $38.99 | ||
 | 114078 | 67 | INCLINE MOTOR SPACER | $2.49 | ||
| 265134 | 68 | HOOD MOUNT | $5.99 | |||
 | 031229 | 69 | POWER CORD | $39.99 | ||
 | 173169 | 70 | GROMMET | $0.99 | ||
 | 186726 | 71 | POWER SWITCH | $22.49 | ||
| 395006 | 72 | BELLY PAN | $115.49 | |||
 | 385214 | 73 | LEFT HANDRAIL TOP COVER | $27.49 | ||
| 430371 | 74 | HANDRAIL | $60.99 | |||
 | 385215 | 75 | LT HANDRAIL BOTTOM COVER | $23.49 | ||
| 351467 | 76 | UPRIGHT CROSSBAR | $98.49 | |||
| 104794 | 77 | FRAME CAP | $1.99 | |||
 | 298474 | 78 | RUBBER CUSHION | $1.99 | ||
| 351687 | 79 | TRAY | $59.99 | |||
| 385210 | 80 | PULSE CROSSBAR | $124.49 | |||
 | 385212 | 81 | RIGHT HANDRAIL TOP COVER | $27.49 | ||
 | 385211 | 82 | RT HANDRAIL BOTTOM COVER | $23.49 | ||
| 426164 | 83 | UPRIGHT WIRE | $129.99 | |||
| 385577 | 84 | RIGHT UPRIGHT | $196.99 | |||
| 252433 | 85 | DECAL,CAUTION BASE LEG | $0.99 | |||
 | 319487 | 87 | SPRING | $13.99 | ||
| 410681 | 89 | LEFT BASE COVER | $78.99 | |||
| 410680 | 90 | RIGHT BASE COVER | $78.99 | |||
| 383741 | 91 | LEFT UPRIGHT | $117.99 | |||
 | 382172 | 92 | REAR WHEEL | $6.99 | ||
| 395002 | 93 | BASE | $239.49 | |||
| 385326 | 94 | LEFT TRAY | $31.99 | |||
| 407839 | 95 | CONSOLE FAN | $71.49 | |||
| 425613 | 96A | CONSOLE (ARGON) | $755.99 | |||
 | 395005 | 97 | REAR FOOT (Left Or Right) | $54.99 | ||
| 351453 | 99 | CUSHION ROD | $125.99 | |||
| 385328 | 100 | CONSOLE BASE | $139.49 | |||
| 385327 | 101 | RIGHT TRAY | $31.99 | |||
| 398591 | 102 | HOOD ACCENT | $62.99 | |||
| 395249 | 103 | HOOD GRILL | $29.49 | |||
 | 298898 | 104 | KEY/CLIP | $19.99 | ||
| 186253 | 105 | SEAT BRACKET ENDCAP | $1.99 | |||
| 384809 | 106 | CONSOLE FRAME | $106.99 | |||
| 132315 | 107 | WIRE TIE | $3.49 | |||
 | 013235 | 108 | PLATFORM SCREW | $6.99 | ||
| 395019 | 109 | LATCH CROSSBAR | $65.49 | |||
| 351958 | 110 | ADJUSTMENT HANDLE INSERT | $1.99 | |||
 | 102973 | 111 | 3/8″ WASHER | $0.99 | ||
| 301345 | 112 | BASE PAD | $2.99 | |||
| 351691 | 113 | HANDLE CAP | $6.99 | |||
| 269381 | 114 | 1/4″ X 5/8″ SCREW | $1.99 | |||
| 351689 | 115 | ADJUSTMENT HANDLE | $71.49 | |||
| 329452 | 116 | CUSHION BUSHING | $11.49 | |||
| 395911 | 117 | ISLATR,FRAME,LABBK | $39.99 | |||
| 360940 | 118 | CUSHION WHEEL STOP | $4.99 | |||
| 378826 | 119 | M10 SPRING WASHER | $0.99 | |||
| 329503 | 120 | CUSHION WHEEL | $10.99 | |||
| 425607 | 121 | INCLINE CONTROLLER BRKT | $23.49 | Unavailable to order | ||
 | 125819 | 122 | PLASTIC STAND-OFF | $3.99 | ||
 | 428528 | 123 | INCLINE MOTOR CONTROLLER | $119.99 | ||
| 425606 | 124 | POWER SUPPLY BRACKET | $28.49 | |||
| 398609 | 125 | M3 X 12MM SCREW | $0.99 | |||
 | 424108 | 126 | POWER SUPPLY | $189.99 | ||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
| 1001235 | # | 4 TUBE LUBE KIT,FCA | $60.49 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 411544 | # | WIFI REPEATER | $62.99 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 403164 | # | HARDWARE KIT, NOTE: | $94.99 | |||
| 410314 | # | TABLET HOLDER | $117.49 | |||
| 331708 | # | BUMPON,HOOD COWLING | $0.99 | |||
 | ARC14 | # | ARC FILTER | |||
| 219896 | # | ACCESSORY KIT, FCA | Contact for Pricing | |||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 209460 | # | ALLEN WRENCH | $7.99 | ||
| 426212 | # | USER’S MANUAL | $23.99 | |||
 | 189813 | TS11 | FILTER WIRE | $23.99 | ||

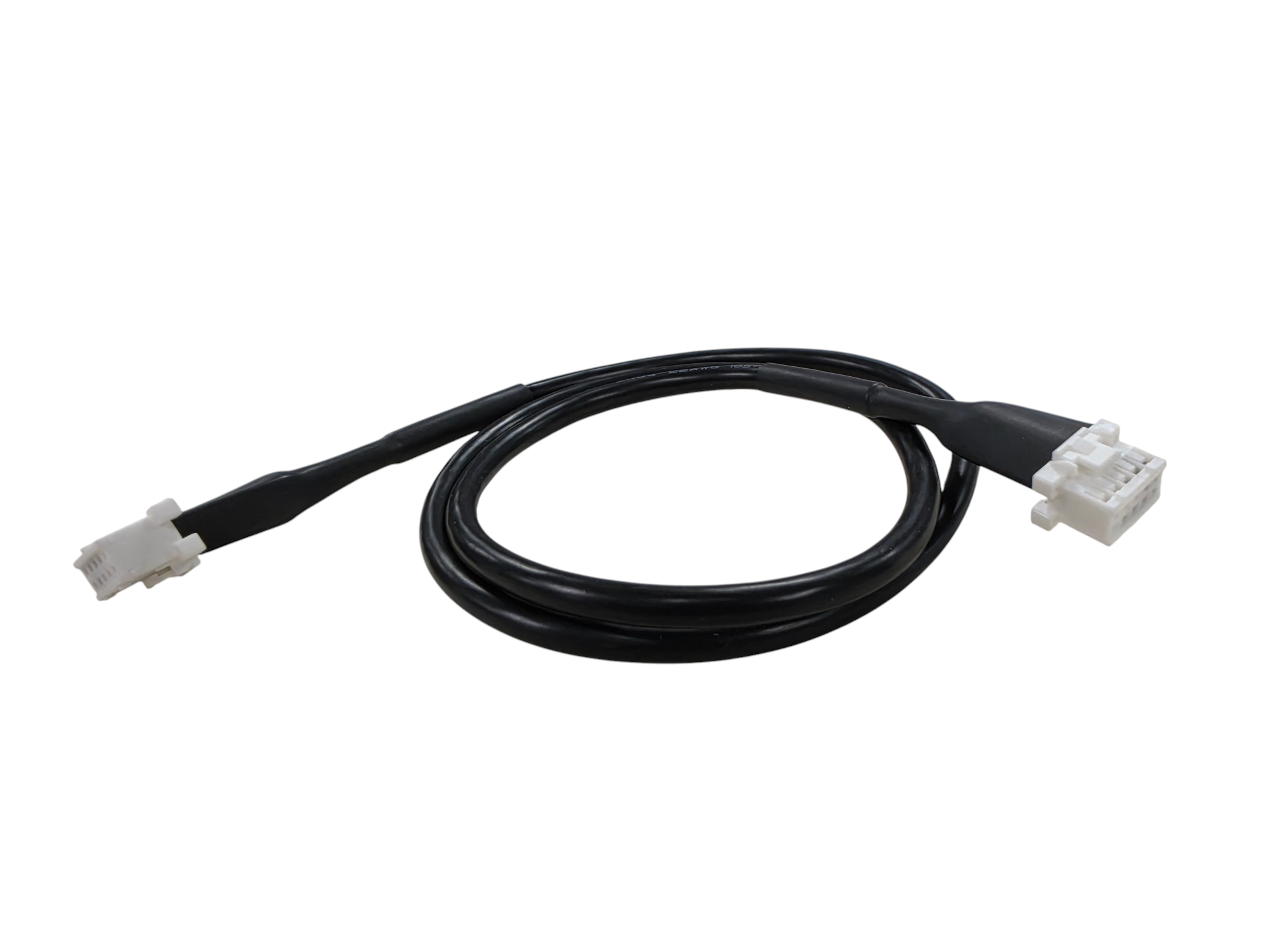

 | 426080 | TS15 | 32″ WIRE HRNS | $34.99 | ||
 | 414703 | TS16 | 4.5″ WIRE HRNS | $13.49 | ||
 | 102634 | TS4 | 8″ GREEN WIRE | $3.49 | ||
| 426078 | TS6 | 16″ WIRE HRNS | $27.99 | |||
| 430442 | TS7 | 11″ WIRE HRNS,W/RI | $66.99 |
