NORDICTRACK COMMERCIAL 1750 TREADMILL – NTL14117.2
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
129 Parts Available for NORDICTRACK COMMERCIAL 1750 TREADMILL - NTL14117.2 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 295136 | 1 | 5/16″ X 3/4″ SCREW | $3.49 | ||
 | 203283 | 2 | 5/16″ X 2″ BOLT | $2.99 | ||
 | 298484 | 3 | 5/16″ X 1 3/4″ BOLT | $2.49 | ||
 | 349213 | 4 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
 | 013322 | 5 | #8 X 3/4″ SCREW | $0.99 | ||
 | 167049 | 6 | #10 X 3/4″ SCREW | $0.99 | ||
 | 014149 | 8 | 5/16″ STAR WASHER | $0.99 | ||
 | 100427 | 9 | 5/16″ NUT | $0.99 | ||
 | 013300 | 10 | #8X3/4″ WASHER HEAD SCREW | $0.99 | ||
 | 013576 | 11 | #8 X 1/2″ SCREW | $0.99 | ||
 | 364027 | 12 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 186819 | 13 | #8 X 1/2″ SCREW | $0.99 | ||
 | 346519 | 14 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
| 399015 | 15 | 3/8″ X 2″ BOLT | $2.99 | |||
| 269380 | 16 | 5/16″X1 1/4″PTCH BLT,NOTE | $2.49 | |||
| 136728 | 18 | #8 X 7/16″ SCREW | $0.99 | |||
 | 295758 | 19 | 5/16″ X 7/16″ SCREW | $3.49 | ||
 | 181979 | 20 | 3/8″ X 1 1/4″ SCREW | $3.49 | ||
| 225696 | 21 | 1/4″ X 1 1/4″ BOLT | $1.49 | |||
 | 381122 | 22 | 3/8″ WHEEL BOLT,NOTE:OM | $2.99 | ||
 | 341769 | 23 | 3/8″ X 2 3/4″ SCREW | $6.49 | ||
 | 013607 | 24 | #8 X 3/4″ SCREW | $0.99 | ||
 | 163045 | 25 | 3/8″ STAR WASHER | $0.99 | ||
| 377002 | 26 | 1/2″ X 2″ BOLT | $15.49 | |||
 | 398534 | 27 | TABLET HOLDER | $107.49 | ||
 | 384997 | 28 | 3/8″ X 1″ SCREW | $2.49 | ||
| 013509 | 29 | #6X3/8″ SCREW | $0.99 | |||
 | 121576 | 30 | 1/4″ JAM NUT | $2.49 | ||
 | 152478 | 31 | 5/16″ FLAT WASHER | $0.99 | ||
 | 215822 | 32 | CONSOLE GROUND WIRE | $5.99 | ||
| 131483 | 33 | 1/4″ X 3/4″ BOLT | $1.49 | |||
 | 100553 | 34 | 1/2″ NUT | $1.49 | ||
 | 119425 | 35 | 3/8″ JAM NUT | $0.99 | ||
 | 133333 | 36 | #8 CLIP | $0.99 | ||
| 360945 | 37 | CUSHION | $26.49 | |||
| 413303 | 38 | WARNING DECAL | $3.99 | |||
 | 241697 | 38 | Controller | $189.99 | ||
| 395777 | 39 | WALKING PLATFORM | $369.99 | |||
 | 403357 | 40 | WALKING BELT | $180.99 | ||
| 395587 | 41 | LEFT FOOT RAIL | $90.49 | Unavailable to order | ||
| 395784 | 42 | RIGHT FOOT RAIL | $87.99 | |||
| 399477 | 43 | BELT GUIDE | $69.99 | |||
| 403353 | 44 | LEFT FRAME COVER | $105.49 | |||
 | 372092 | 45 | 3/8″ PLASTIC BUSHING | $4.99 | ||
 | 372108 | 46 | 1/2″ BUSHING | $4.99 | ||
 | 129144 | 47 | FRAME THRUST WASHER | $3.49 | ||
 | 388474 | 48 | CONTROLLER | $198.49 | ||
| 014157 | 49 | #8 STAR WASHER | $0.99 | |||
| 398589 | 50 | CONTROLLER BRACKET | $43.49 | |||
| 352011 | 51 | DRIVE ROLLER/PULLEY | $148.49 | |||
| 240351 | 53 | PLASTIC TIE | $0.99 | |||
 | 305744 | 53 | SINGLE IDLER ROLLER BOLT | $5.99 | ||
| 405597 | 54 | DRIVE MOTOR | $366.49 | |||
 | 342218 | 55 | OEM MOTOR BELT | $49.99 | ||
 | 388199 | 56 | STORAGE LATCH | $119.49 | ||
| 403354 | 57 | RIGHT FRAME COVER | $105.49 | |||
| 360938 | 58 | CUSHION PLATE | $2.49 | |||
 | 223662 | 59 | IDLER ROLLER | $165.99 | ||
| 395589 | 60 | LEFT REAR CAP | $28.49 | |||

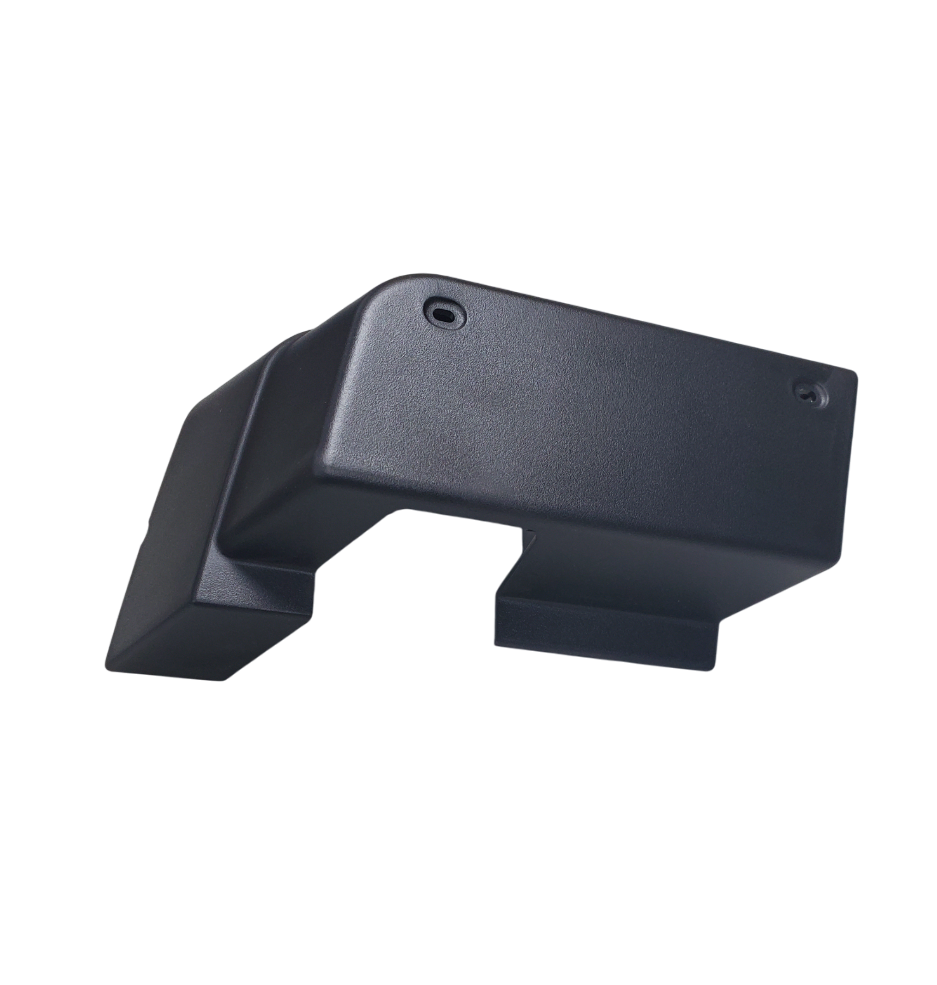

 | 395588 | 61 | RIGHT REAR CAP | $31.49 | ||
| 395776 | 62 | MOTOR HOOD | $189.99 | |||
 | 372106 | 63 | INCLINE FRAME SPACER | $2.99 | ||
 | 301336 | 64 | FRAME SPACER | $5.49 | ||
| 394999 | 65 | INCLINE FRAME | $125.49 | |||
| 318980 | 66 | INCLINE MOTOR | $186.99 | |||
 | 114078 | 67 | INCLINE MOTOR SPACER | $2.49 | ||
| 265134 | 68 | MOTOR HOOD MOUNT | $5.99 | |||
 | 031229 | 69 | POWER CORD | $39.99 | ||
 | 173169 | 70 | POWER CORD GROMMET | $0.99 | ||
 | 186726 | 71 | POWER SWITCH | $22.49 | ||
| 395006 | 72 | BELLY PAN | $115.49 | |||
 | 385214 | 73 | LT HANDRAIL TOP COVER | $32.99 | ||
| 357773 | 74 | HANDRAIL | $54.49 | |||
 | 385215 | 75 | LT HANDRAIL BOTTOM COVER | $23.49 | ||
| 351467 | 76 | UPRIGHT CROSSBAR | $98.49 | |||
| 104794 | 77 | CONSOLE FRAME CAP | $1.99 | |||
 | 298474 | 78 | RUBBER CUSHION | $1.99 | ||
| 351687 | 79 | TRAY | $59.99 | |||
| 385210 | 80 | PULSE CROSSBAR | $124.49 | |||
 | 385212 | 81 | RT HANDRAIL TOP COVER | $27.49 | ||
 | 385211 | 82 | RT HANDRAIL BOTTOM COVER | $23.49 | ||
| 383788 | 83 | UPRIGHT WIRE | $72.99 | |||
| 386468 | 84 | RIGHT UPRIGHT | $174.99 | |||
| 252433 | 85 | WARNING DECAL | $0.99 | |||
 | 227199 | 86 | GROMMET | $2.49 | ||
 | 319487 | 87 | SPRING | $13.99 | ||
| 304347 | 88 | INCLINE STOP BRACKET | $4.99 | |||
| 382319 | 89 | LEFT UPRIGHT COVER | $90.99 | |||
| 382318 | 90 | RIGHT UPRIGHT COVER | $90.99 | |||
| 383741 | 91 | LEFT UPRIGHT | $117.99 | |||
 | 382172 | 92 | REAR WHEEL | $6.99 | ||
| 395002 | 93 | BASE | $239.49 | |||
| 385326 | 94 | LEFT TRAY | $31.99 | |||
| 395788 | 96B | REPROGRAM MODULE | $106.99 | Unavailable to order | ||

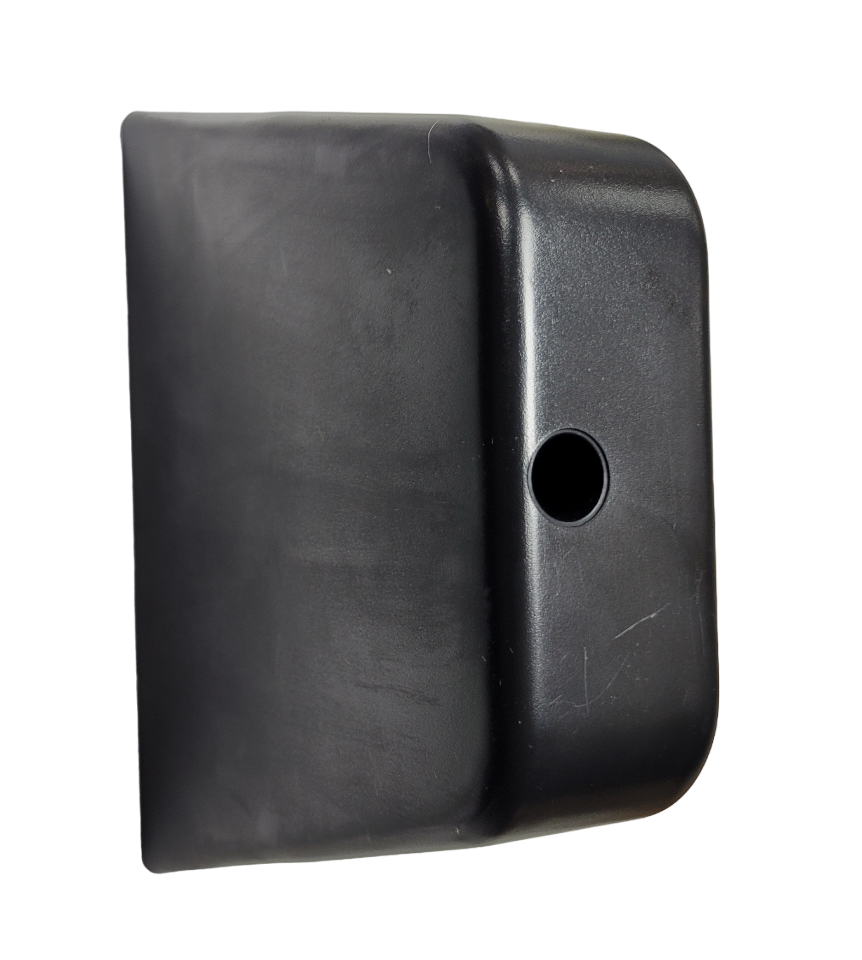

 | 395005 | 97 | REAR FOOT (Left Or Right) | $54.99 | ||
| 353430 | 99 | SPEAKER | $61.49 | |||
| 385328 | 100 | CONSOLE BASE | $139.49 | |||
| 385327 | 101 | RIGHT TRAY | $31.99 | |||
| 395250 | 102 | HOOD ACCENT | $88.49 | |||
| 395249 | 103 | HOOD GRILL | $62.49 | |||
 | 298898 | 104 | KEY/CLIP | $19.99 | ||
| 186253 | 105 | CONSOLE FRAME CAP | $1.99 | |||
| 384809 | 106 | CONSOLE FRAME | $106.99 | |||
| 132315 | 107 | WIRE TIE | $3.49 | |||
 | 184369 | 108 | M4 X 16MM SCREW | $0.99 | ||
| 395019 | 109 | LATCH CROSSBAR | $65.49 | |||
| 364361 | 110 | CHEST HEART RATE MONITOR | $135.99 | |||
 | 102973 | 111 | 3/8″ THRUST WASHER | $0.99 | ||
| 301345 | 112 | BASE PAD | $2.99 | |||
 | ARC14 | # | WALL ARC FILTER | |||
| 397910 | # | HARDWARE KIT NOTE: | $85.49 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 209460 | # | WRENCH | $7.99 | ||
| 401822 | # | LITPAC NOTE: | Contact for Pricing | |||
| 331708 | # | WALK BOARD BUMPON | $0.99 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
 | 286707 | # | INCLN MTR SENSOR WIRE KIT | $70.49 | ||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
| 1001632 | # | REPAIR KIT | $195.49 | |||
 | 214773 | TS04 | CONTROLLER GROUND WIRE | $2.99 | ||
| 211260 | TS06 | LIFT MOTOR WIRE HARNESS | $12.99 | |||
| 101896 | TS07 | RESISTOR WIRE | $3.49 | |||
 | 189813 | TS11 | FILTER WIRE | $23.99 | ||
 | 102634 | TS14 | 8″ GREEN WIRE | $3.49 |
