NORDICTRACK COMMERCIAL 1500 TREADMILL - NTL09707.4

NORDICTRACK COMMERCIAL 1500 TREADMILL – NTL09707.4

Brand: NordicTrack

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

100 Parts Available for NORDICTRACK COMMERCIAL 1500 TREADMILL - NTL09707.4 ↓

Part #	Diagram #	Title	Price
230965	1	FOOT RAIL COVER	NLA
013607	3	#8 X 3/4″ TEK SCREW	$0.99
013322	4	#8 X 3/4″ SCREW	$0.99
138853	5	ISOLATOR FASTENER	$0.99
248927	6	WALKING PLATFORM	$180.49
136728	8	#8 X 7/16″ SCREW	$0.99
261568	9	ISOLATOR	$22.49
128272	10	TOP ISOLATOR BOLT	$0.99
264670	11	DRIVE ROLLER/PULLEY	$138.49
195476	12	MAGNET	$16.49
013576	13	#8 X 1/2″ SCREW	$0.99
131090	14	REED SWITCH CLIP	$0.99
232962	15	INCLINE ROD BUSHING	$7.49
230979	18	HOOD POST	$5.49
129542	19	UPRIGHT SPACER	$2.99
157504	20	REED SWITCH	$26.99
243797	21	CONSOLE CLAMP	$0.99
149072	22	3/8″ X 1 3/4″ BOLT	$3.99
179767	24	3/8″X1 3/4″ HEX HEAD BOLT	$61.49
245900	26	LEFT GRIP, NOTE: FOR	$17.99
245899	27	RIGHT GRIP, NOTE: FOR	$17.99
260972	28	MOTOR BELT	$55.99
013300	29	SCREW	$0.99

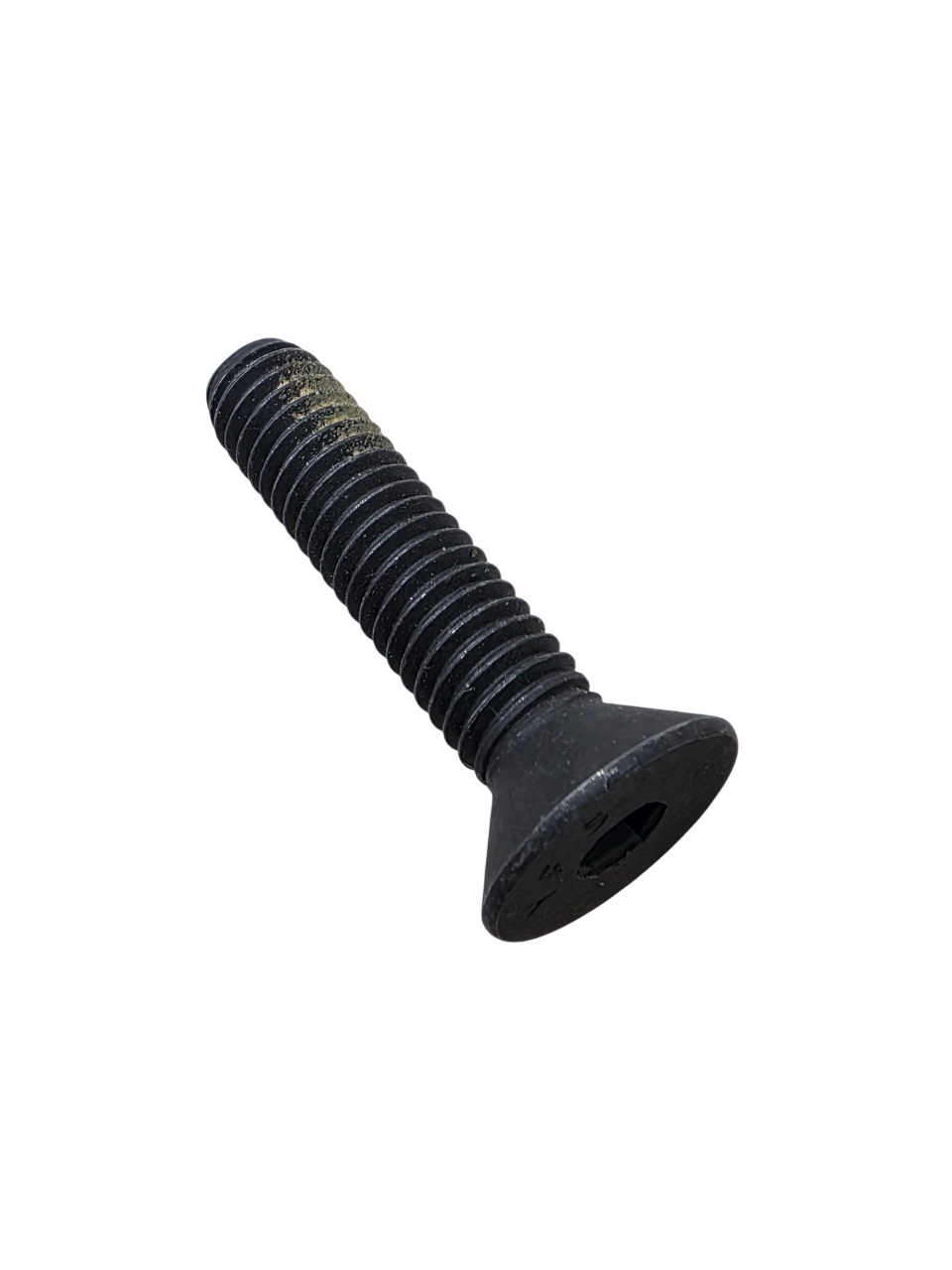

187160	30	3/8″ X 1 7/8″ BOLT	$5.49
287483	31	MOTOR	$289.99
259500	32	MOTOR BOLT	$2.99
119439	33	OPTIC SWITCH BRACKET NUT	$0.99
257229	34	ELECTRONICS BRACKET	$24.99
119425	38	3/8″ JAM NUT	$0.99
186726	41	POWER SWITCH	$22.49
234015	43	POWER CORD BRACKET	$3.49
133333	45	HOOD CLIP	$0.99
227199	46	GROMMET	$2.49
260620	47	WALKING BELT	$241.99
173169	49	POWER CORD GROMMET	$0.99
189813	53	FILTER WIRE	$23.99
014064	55	1/4″ STAR WASHER	$0.99
305744	56	SINGLE IDLER ROLLER BOLT	$5.99
128457	57	ALLEN WRENCH,3/16-7/32	$25.49
261573	59	LEFT REAR CAP	$43.49
248923	60	REAR ROLLER	$146.49
136012	61	PLATFORM NUT	$0.99
137224	62	5/16″ X 1 1/4″ BOLT	$0.99
243861	63	FAN	$91.99
142622	64	3/8″ X 1 1/2″ BOLT	$2.99
243208	65	CONSOLE BASE	$150.49
246002	67	BOOK RACK	$25.99
031229	68	POWER CORD	$39.99
186819	69	#8 X 1/2″ SILVER SCREW	$0.99
244406	70	PULSE RECEIVER COVER	NLA
243855	71	30″ RT CNSL WIRE HRNS	$31.49
169663	72	3/8″ X 3 3/4″ WHEEL BOLT	$7.99
260893	73	LEFT UPRIGHT	$186.49
260894	74	RIGHT UPRIGHT	$188.99
252954	75	WIRE HARNESS	$92.99
252956	76	LEFT BASE COVER	$124.99
215822	78	CONSOLE GROUND WIRE	$5.99
014157	80	#8 STAR WASHER	$0.99
157600	81	BUMPER	$1.99
146427	82	#8 X 1″ TEK SCREW	$0.99
261571	83	BASE	$254.99
150148	85	WHEEL BOLT	$4.49
169064	86	WHEEL	$3.49
252433	87	WARNING DECAL	$0.99
161411	88	BASE PAD SPACER	$0.99
163045	90	3/8″ STAR WASHER	$0.99
116926	91	RELEASABLE CABLE TIE	$0.99
116927	92	CABLE TIE CLAMP	$0.99
016057	93	8″ CABLE TIE	$2.99
254333	94	HANDRAIL COVER	$71.49
287638	96	RIGHT UPRIGHT SLEEVE	$23.99
012152	98	#8 NUT	$0.99
274498	99	HANDRAIL	$139.49
413303	101	CAUTION DECAL	$3.99
013028	103	#8 X 1″ SCREW	$0.99
243209	104	SPEAKER COVER	NLA
014126	105	1/4″ LOCK WASHER	$0.99
223520	106	INCLINE WIRE	$12.99
241898	107	INCLINE STOP BRACKET	$6.99
013423	109	M4 X 19MM BRIGHT SCREW	$0.99
245901	110	CONSOLE PLATE	$80.49
130659	111	#8X3/4″ WIRE TIE SCREW	$0.99
013544	112	BASE PLATE SCREW	$3.99
112083	#	8″ BLUE WIRE, 2F	$4.49
258740	#	TECH SHEET	$0.99
259671	#	USER’S MANUAL	$29.99
148580	#	INCLN MTR SNSR WIRE CLIP	$2.49
158013	#	FELT PAD	$0.99
214284	#	DECAL, SPACESAVER	$4.99
293455	#	INCLINE SENSOR WIRE	$26.49
262823	#	USER’S MANUAL, NTL09707.4	$8.49
123945	#	TECH SHEET ENVELOPE	$0.99
243469	#	HARDWARE KIT, NOTE:	$64.99
259507	#	DECAL UPRT COMERCIAL 1500	NLA
258763	#	DECAL DECKRAIL DURASTRIDE	$14.49
191355	#	DECAL, HOOD, “N”	$14.49
219170	#	3 TUBE LUBE KIT	$39.49
356520	#	ACCESSORY KIT	$62.49
101896	#	4″ WHITE WIRE, M/F	$3.49
219168	#	LUBE KIT, 1 TUBE	$18.99
