NORDICTRACK COMMERCIAL 14.9 ELLIPTICAL – NTEL71420.4
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
170 Parts Available for NORDICTRACK COMMERCIAL 14.9 ELLIPTICAL - NTEL71420.4 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 393285 | 2 | REAR STABILIZER | $148.99 | Unavailable to order | ||
 | 393826 | 3 | ACCESS COVER | $59.49 | ||
| 421104 | 4 | UPRIGHT | $175.99 | Unavailable to order | ||
 | 250961 | 5 | M4 X 19MM SCREW | $0.99 | ||
| 347381 | 6 | FRONT STABILIZER | $192.49 | |||
| 441057 | 7A | CONSOLE,W/FAN (ARGON) | $810.49 | |||
| 412131 | 7C | FAN | $138.49 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
 | 394381 | 9 | CRANK BEARING SPACER | $44.99 | ||
| 394393 | 10 | REAR RAMP COVER | $68.49 | |||
| 349845 | 11 | LIFT MOTOR | $165.99 | |||
| 397058 | 12 | INCLINE MOTOR ARM | $159.99 | |||
| 397379 | 13 | RAMP ARM | $95.99 | |||
| 349894 | 14 | RAMP ARM SPACER | $8.99 | |||
| 421105 | 15 | REAR STABILIZER COVER | $120.99 | |||
 | 393286 | 16 | TRACK | $99.99 | ||
 | 264511 | 17 | POWER SWITCH | $32.99 | ||
 | 394130 | 18 | CRANK | $172.99 | ||
| 277369 | 19 | PULLEY | $174.49 | |||
| 394127 | 20 | CRANK ARM | $149.99 | |||
| 397064 | 21 | LEFT LOWER GRIP | $78.49 | |||
| 393287 | 22 | IDLER | $120.99 | |||
 | 157600 | 23 | BUMPER | $1.99 | ||
| 273032 | 24 | SMALL LEVELING FOOT | $17.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
 | 148710 | 26A | M10 LOCKNUT | $2.49 | ||
 | 275907 | 26B | M10 CRANK NUT,NOTE: | $4.49 | ||
| 248342 | 27 | M10 LARGE WASHER | $1.99 | |||
| 364319 | 28A | EDDY MECHANISM | $312.99 | |||
| 352967 | 28B | RESISTANCE CABLE | $39.49 | |||
 | 413564 | 28C | M6X16MM SCRW, MECH | $4.99 | ||
| 421109 | 29 | RIGHT PEDAL | $157.99 | |||
 | 348200 | 30 | STABILIZER CAP | $24.99 | ||
| 250420 | 31 | M10 X 20MM SCREW | $2.99 | |||
 | 393295 | 32 | ROLLER ARM BEARING SPACER | $31.49 | ||
 | 237631 | 33 | LEVELING FOOT | $34.99 | ||
 | 148803 | 34 | WHEEL | $24.99 | ||
 | 133333 | 35 | HOOD CLIP | $0.99 | ||
 | 014033 | 36A | M6 WASHER | $1.49 | ||
 | 353545 | 36B | M6 X 19MM WASHER | $3.49 | ||
 | 393306 | 37 | ACCESSORY TRAY | $129.99 | ||
 | 372449 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 282277 | 39 | REED SWITCH CLAMP | $3.49 | ||
 | 295804 | 40 | BEARING | $66.99 | ||
| 397079 | 41 | UPPER RAMP COVER | $43.99 | |||
| 394384 | 42 | SLEEVE | $28.49 | |||
 | 113842 | 43 | SENSOR MAGNET | $1.49 | ||
| 397041 | 44 | LEFT PEDAL ARM | $201.49 | |||
| 394834 | 45 | LEFT ROLLER ARM | $194.99 | |||
| 407787 | 46 | LEFT UPPER BODY LEG | $171.99 | |||
| 421305 | 47 | LEFT UPPER BODY ARM | $69.99 | |||
 | 313668 | 48 | POWER CORD GROMMET | $9.49 | ||
| 421108 | 49 | LEFT PEDAL | $100.49 | |||
| 367635 | 50 | M4 X 12MM SCREW | $6.49 | |||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 421106 | 52 | LEFT PEDAL HANDLE | $14.49 | |||
 | 337966 | 53 | LARGE AXLE COVER | $5.49 | ||
 | 371082 | 54 | PIVOT SPACER | $34.99 | ||
 | 384940 | 55 | RETAINER | $5.99 | ||
| 399906 | 56 | ROLLER ARM BUSHING | $59.99 | |||
 | 290729 | 57 | ARM BEARING | $43.49 | ||
| 397042 | 58 | RIGHT PEDAL ARM | $237.99 | |||
| 394833 | 59 | RIGHT ROLLER ARM | $237.99 | |||
| 407786 | 60 | RIGHT UPPER BODY LEG | $188.49 | |||
| 421306 | 61 | RIGHT UPPER BODY ARM | $69.99 | |||
| 397223 | 62 | LEFT UPPER GRIP | $83.49 | |||
 | 421101 | 63 | HANDGRIP | $39.49 | ||
 | 384800 | 64 | PEDAL ARM AXLE | $43.99 | ||
| 397077 | 65 | RIGHT ARM REAR COVER | $60.99 | |||
| 397078 | 66 | RIGHT ARM FRONT COVER | $54.49 | |||
| 397075 | 67 | LEFT ARM FRONT COVER | $60.99 | |||
| 397076 | 68 | LEFT ARM REAR COVER | $54.49 | |||
| 420057 | 69 | RIGHT LEG OUTER COVER | $98.99 | |||
 | 420239 | 70 | LEFT LEG OUTER COVER | $107.49 | ||
| 397073 | 71 | DISC | $108.99 | |||
 | 420240 | 72 | LEFT LEG INNER COVER | $93.99 | ||
| 397069 | 73 | LEFT SHIELD | $178.49 | |||
| 397070 | 74 | RIGHT SHIELD | $175.99 | |||
| 421102 | 75 | CENTER SHIELD COVER | $34.99 | |||
| 363319 | 76 | LEFT PEDAL ARM SIDE CAP | $17.49 | |||
 | 384941 | 77 | CRANK COVER | $1.49 | ||
 | 386629 | 78 | KEY | $9.49 | ||
| 420986 | 79 | FRONT CONSOLE COVER | $26.99 | |||
| 394579 | 80 | REAR CONSOLE COVER | $66.99 | |||
 | 393307 | 81 | LOWER TRAY COVER | $54.49 | ||
 | 191032 | 82A | M8 X 13MM PATCH SCREW | $1.99 | ||
 | 383382 | 82B | M8 X 13MM SCREW | $0.99 | ||
| 420056 | 83 | RIGHT LEG INNER COVER | $98.99 | |||
| 234276 | 84 | GROUND SCREW | $0.99 | |||
| 252795 | 85 | M10 LOCK WASHER | $0.99 | |||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
| 363320 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | |||
 | 281150 | 88 | IDLER PIVOT SCREW | $4.49 | ||
 | 208163 | 89 | M6 X 20MM SCREW | $1.99 | ||
| 331822 | 90 | M10 X 16MM SCREW | $4.49 | |||
| 397183 | 91 | DRIVE BELT SCREW | $51.99 | |||
 | 227701 | 92 | M10 X 25MM SCREW | $2.49 | ||
 | 168267 | 93A | FAN SCREW | $0.99 | ||
| 372972 | 93C | M5 WASHER | $0.99 | |||
| 421824 | 94 | LEFT CONTROL PAD | $43.99 | |||
 | 206321 | 95A | M8 X 19MM PATCH SCREW | $3.49 | ||

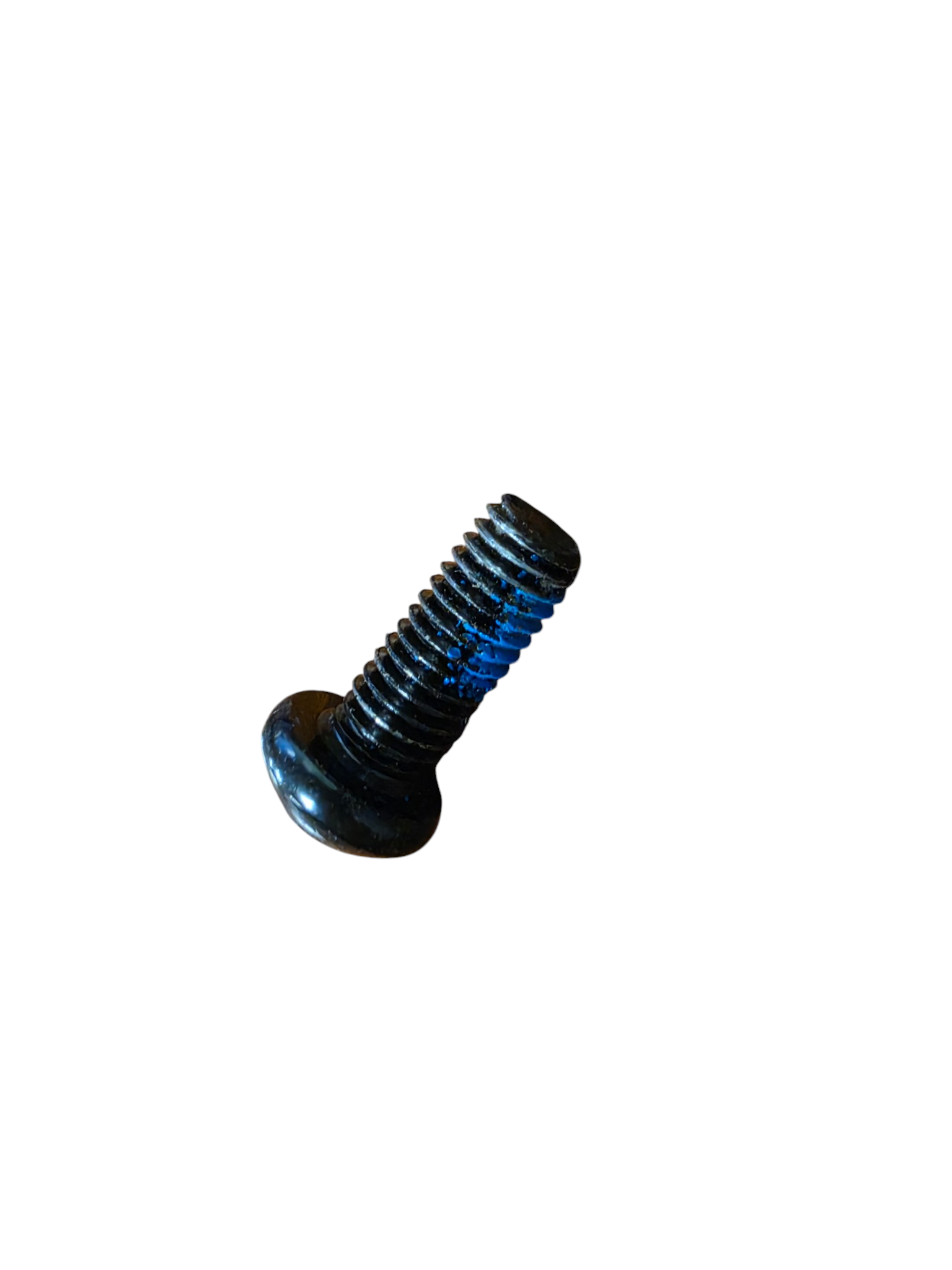

 | 249930 | 95B | M8 X 20MM SCREW | $2.99 | ||
| 013226 | 96 | M8 X 45MM BOLT | $5.99 | |||
 | 223812 | 97 | M8 CRANK PIVOT WASHER | $1.99 | ||
 | 224113 | 98 | M8 WASHER | $2.49 | ||
| 394133 | 99 | CRANK PULLEY SPACER | $22.99 | |||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 362430 | 101A | M4 X 16MM BLUNT SCREW | $3.49 | ||
 | 195562 | 101B | ST4.2 X 16MM SCREW | $1.99 | ||
 | 256446 | 102A | M8 LOCKNUT | $0.99 | ||
 | 012042 | 102B | M8 NYLON LOCKNUT | $1.99 | ||
| 262286 | 103A | SET SCREW | $6.49 | |||
 | 262341 | 103B | M6 X 12MM SCREW | $3.49 | ||
| 353576 | 104 | M10 X 115MM SCREW | $27.99 | |||
| 441909 | 105 | M4 X 25MM SCREW,NOTE: | $0.99 | |||
| 393300 | 106 | BOTTOM RAMP COVER | $41.99 | |||
 | 394383 | 107 | CRANK SPACER | $28.49 | ||
 | 174108 | 108 | M6 X 14MM SCREW | $5.99 | ||
 | 208583 | 109 | M10 X 58MM BUTON SCREW | $5.99 | ||
| 416413 | 110 | UPPER WIRE | $104.49 | |||
| 421498 | 111 | LEFT EXTENSION WIRE | $134.49 | |||
| 378126 | 112 | M4 X 19MM SCREW, NOTE: | $3.49 | |||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||
 | 416695 | 114 | CONTROLLER | $161.49 | ||
 | 125819 | 115 | PLASTIC STAND-OFF | $3.99 | ||
| 421103 | 116 | DISC RING | $71.49 | |||
| 417714 | 117 | FRONT SHIELD COVER | $24.99 | |||
| 397092 | 118 | REAR SHIELD COVER | $100.49 | |||
 | 342275 | 119A | POWER CORD | $49.99 | ||
| 236006 | 119B | DECAL,SURGE WARNING | $3.99 | |||
 | 384942 | 120 | M8 X 20MM FLAT HEAD SCREW | $6.49 | ||
 | 237616 | 121 | BRASS BUSHING | $4.99 | ||
| 350182 | 122 | M10 X 47MM BOLT | $9.49 | |||
 | 384931 | 123 | SMALL ARM BEARING | $43.99 | ||
 | 184369 | 124A | M4 X 16MM SCREW | $0.99 | ||
| 397224 | 125 | RIGHT UPPER GRIP | $82.99 | |||
| 273353 | 126 | M4 X 38MM SCREW | $0.99 | |||
| 397074 | 127 | DISC BRACKET | $43.99 | |||
| 394385 | 128 | LONG BUMPER | $23.49 | |||
 | 281801 | 129 | M8 X 21MM WASHER | $7.49 | ||
 | 213457 | 130 | M4 X 12MM SLF-TPPNG SCREW | $1.99 | ||
| 394132 | 131 | ADHESIVE TAPE | $22.99 | |||
| 421825 | 132 | RIGHT CONTROL PAD | $43.99 | |||
| 132315 | 133 | CABLE CLAMP TIE | $3.49 | |||
| 397066 | 134 | RIGHT LOWER GRIP | $111.49 | |||
 | 340140 | 135 | CRANK WASHER | $1.49 | ||
| 130286 | 136 | M10 LARGE WASHER | $11.49 | |||
| 421107 | 137 | RIGHT PEDAL HANDLE | $14.49 | |||
 | 325993 | 138 | PEDAL PIN | $19.99 | ||
 | 321268 | 139 | PEDAL SPRING | $3.49 | ||
 | 194653 | 140 | M6 NYLON DOME NUT | $1.99 | ||
| 249933 | 141 | M6 WASHER | $0.99 | |||
| 397053 | 142 | RIGHT PEDAL PLATE | $157.49 | |||
| 397050 | 143 | LEFT PEDAL PLATE | $160.49 | |||
 | 400130 | 144 | M10 X 158MM BOLT | $26.99 | ||
| 351856 | 145 | MOTOR ARM SPACER | $1.99 | |||
| 421497 | 146 | RIGHT EXTENSION WIRE | $134.49 | |||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 436584 | # | HARDWARE KIT, NOTE: | $134.49 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 410314 | # | TABLET HOLDER | $117.49 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 429888 | # | LITPAC, NOTE: | $186.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 266084 | # | DECAL, GENERAL WARNING | $14.49 | |||
 | 104838 | # | GREASE PACK | $8.49 | ||
| 116926 | # | TIE | $0.99 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 421500 | TS17 | 20″ WIRE HRNS, LEFT EXT | $18.49 | |||
| 421499 | TS18 | 20″ WIRE HRNS, RIGHT EXT | $18.49 | |||
| 270274 | TS4 | 18″ WHITE WIRE, M/F | $5.99 | |||
| 203981 | TS5 | 18″ BLUE WIRE, 2F | $40.49 | |||
| 320978 | TS6 | CONTROLLER GROUND WIRE | $5.49 | |||
| 351172 | TS7 | 20″ WIRE HRNS | $50.99 | |||
| 324737 | TS8 | LOWER WIRE HARNESS | $30.49 |
