NORDICTRACK C500 TREADMILL – NETL15815.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
91 Parts Available for NORDICTRACK C500 TREADMILL - NETL15815.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1 | #8 X 1/2″ SCREW | $0.99 | ||
 | 013322 | 2A | #8 X 3/4″ SCREW | $0.99 | ||
 | 013607 | 2B | #8 X 3/4″ SCREW | $0.99 | ||
| 013028 | 2C | #8 X 1″ SCREW | $0.99 | |||
 | 349213 | 3 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
 | 295136 | 4 | 5/16″ X 3/4″ SCREW | $3.49 | ||
 | 014088 | 5 | #10 STAR WASHER | $1.49 | ||
 | 125237 | 7 | 3/8″ X 4″ SCREW | $5.99 | ||
 | 263710 | 8 | KEY/CLIP | $19.99 | ||
 | 167049 | 9 | #10 X 3/4″ SCREW | $0.99 | ||
 | 186819 | 10A | #8 X 1/2″ SCREW | $0.99 | ||
 | 013423 | 10B | #8 X 1/2″ GROUND SCREW | $0.99 | ||
 | 014149 | 11 | 5/16″ STAR WASHER | $0.99 | ||
 | 163045 | 13 | 3/8″ STAR WASHER | $0.99 | ||
 | 364027 | 15 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 346519 | 16 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
 | 381122 | 17 | 3/8″ WHEEL BOLT,NOTE:OM | $2.99 | ||
| 360232 | 18 | CONSOLE FRAME | $93.99 | |||
| 136728 | 19 | #8 X 3/4″ SCREW | $0.99 | |||
| 295759 | 20 | 5/16″ MOTOR SCREW | $2.49 | |||
| 315068 | 21 | 3/8″ PIN | $7.99 | |||
 | 298484 | 23 | 5/16″ X 1 3/4″ BOLT | $2.49 | ||
| 128263 | 24A | 1 3/4″ SCREW | $0.99 | |||
 | 130659 | 24B | #8 X 3/4″ PAN HEAD SCREW | $0.99 | ||
 | 348229 | 25 | WHEEL | $4.99 | ||
| 132315 | 26 | WIRE TIE | $3.49 | |||
 | 360514 | 27 | RIGHT TRAY | $49.99 | ||
 | 150699 | 28 | PULSE BAR BOLT | $3.99 | ||
| 179767 | 29 | 3/8″ X 1 3/4″ BOLT | $61.49 | |||
 | 152478 | 30 | 5/16″ FLAT WASHER | $0.99 | ||
| 267888 | 31 | 1/4″ X 1 1/2″ SCREW | $2.99 | |||
 | 114078 | 32 | INCLINE MOTOR SPACER | $2.49 | ||
 | 119425 | 33 | 3/8″ JAM NUT | $0.99 | ||
 | 100427 | 34 | 5/16″ NUT | $0.99 | ||
 | 121576 | 35 | 1/4″ JAM NUT | $2.49 | ||
 | 360515 | 36 | LEFT TRAY | $49.99 | Unavailable to order | |
 | 291486 | 37 | #8 X 5/8″ SCREW | $0.99 | ||
 | 354800 | 38 | LATCH CROSSBAR | $74.99 | ||
| 366516 | 39 | ISOLATOR | $55.49 | |||
| 365829 | 40 | ELECTRONICS BRACKET | $12.99 | |||
| 351227 | 41 | UPRIGHT CROSSBAR | $76.49 | |||
| 413303 | 43A | WARNING DECAL | $3.99 | |||
| 368151 | 43B | LATCH WARN DECAL, 3 LANG | $99.49 | |||
| 351901 | 44 | WALKING PLATFORM | $190.99 | |||
 | 361795 | 45 | WALKING BELT | $124.99 | ||
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
 | 316204 | 47 | RIGHT REAR FOOT | $12.49 | ||
| 240351 | 48 | PLASTIC TIE | $0.99 | |||
| 303466 | 49 | DRIVE ROLLER/PULLEY | $141.49 | |||
 | 131090 | 51 | CLAMP | $0.99 | ||
 | 157504 | 52 | REED SWITCH | $26.99 | ||
 | 388203 | 53 | STORAGE LATCH | $100.49 | ||
 | 405662 | 54 | DRIVE MOTOR | $281.49 | ||
 | 319256 | 55 | MOTOR BELT | $44.99 | ||
 | 316203 | 57 | LEFT REAR FOOT | $12.49 | Unavailable to order | |
 | 215822 | 58 | CONSOLE GROUND WIRE | $5.99 | ||
 | 298474 | 59 | RUBBER CUSHION | $1.99 | ||
| 312285 | 61 | IDLER ROLLER | $146.49 | |||
 | 347760 | 62 | FRONT WHEEL | $6.99 | ||
 | 164906 | 63 | WHEEL SPACER | $2.49 | ||
| 360510 | 64 | CONSOLE BASE | $136.99 | |||
| 303692 | 65 | MOTOR HOOD | $86.49 | |||
| 368973 | 66 | HOOD ACCENT | $74.99 | |||
 | 331515 | 67 | INCLINE FRAME SPACER | $1.49 | ||
 | 133333 | 68 | #8 CLIP | $0.99 | ||
| 356005 | 69A | INCLINE MOTOR | $166.49 | |||
| 216117 | 69B | LIFT MOTOR WIRE HARNESS | $16.99 | |||
| 343447 | 71 | FRAME SPACER | $6.49 | |||
| 375309 | 72 | CONTROLLER | $198.99 | |||
| 365328 | 73 | CONTROLLER CLAMP | $15.49 | |||
 | 314515 | 74 | BASE CAP | $1.99 | ||
| 250627 | 75 | POWER SWITCH | $16.49 | |||
 | 227199 | 77 | GROMMET | $2.49 | ||
| 356006 | 78 | BELLY PAN | $88.99 | |||
| 360042 | 79 | LEFT HANDRAIL COVER | $19.99 | |||
| 368972 | 80A | CONSOLE | $298.99 | |||
| 356235 | 81 | UPRIGHT WIRE | $103.99 | |||
 | 316177 | 82 | LEFT BASE COVER | $13.99 | ||
 | 347746 | 83 | RIGHT BASE COVER | $11.99 | ||
| 230979 | 84 | HOOD MOUNT | $5.49 | |||
| 360043 | 85 | RIGHT HANDRAIL COVER | $12.49 | |||
| 360030 | 86 | HANDRAIL | $66.99 | |||
| 360040 | 87 | LEFT OUTSIDE HANDRAIL CVR | $34.49 | |||
| 360038 | 88 | LEFT INSIDE HANDRAIL CVR | $40.49 | |||
| 252433 | 91A | CAUTION DECAL | $0.99 | |||
| 368152 | 91B | CAUTION DECAL, 6 LANG | $25.49 | |||
| 243797 | 92 | CONSOLE CLAMP | $26.99 | Unavailable to order | ||
 | 360512 | 93 | PULSE CROSSBAR | $112.49 | ||
| 360039 | 95 | RIGHT INSIDE HANDRAIL CVR | $40.49 | |||
| 360041 | 96 | RT OUTSIDE HANDRAIL COVER | $34.49 | |||
| 313389 | 98 | GROUNDING BRACKET | $13.99 | |||
| 242387 | 99 | RECEPTACLE | $15.49 | |||
| 389952 | 100 | MOTOR BUSHING | $14.99 | |||
| 012152 | 101 | #8 NUT | $0.99 | |||
| 311169 | 103 | FILTER BRACKET | $22.99 | |||
| 210461 | 104A | FILTER | $163.49 | |||
 | 268411 | 104B | 6MM WASHER | $0.99 | ||
| 364361 | 105 | CHEST HEART RATE MONITOR | $135.99 | |||
| 225552 | 106 | MOTOR ISOLATOR | $3.99 | |||
| 349159 | 109 | LEFT FRAME COVER | $17.49 | |||
| 349160 | 110 | RIGHT FRAME COVER | $17.49 | |||
| 313881 | 111 | TRAY | $57.99 | |||
 | 307032 | 112 | FRONT BASE PAD | $3.99 | ||
| 130424 | # | 4″ BLACK WIRE, 2F | $4.99 | |||
| 250472 | # | 8″ GRN/YLLW WIRE,F/R | $12.99 | |||
| 429182 | # | FERRITE BOX | $26.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 368727 | # | HARDWARE KIT, NOTE: | $77.49 | |||
| 145280 | # | 12″ GREEN WIRE, F/RING | $5.49 | |||
 | 128457 | # | ALLEN WRENCH,3/16-7/32 | $25.49 | ||
| 131818 | # | 8″ BLUE WIRE,F/F | $5.49 | |||
 | 286707 | # | INCLN MTR SENSOR WIRE KIT | $70.49 | ||
| 045023 | # | 5/32″ ALLEN WRENCH | $1.99 | |||
| 312106 | # | 20″ G/Y WIRE, F/R, CNTRLR | $20.49 | |||

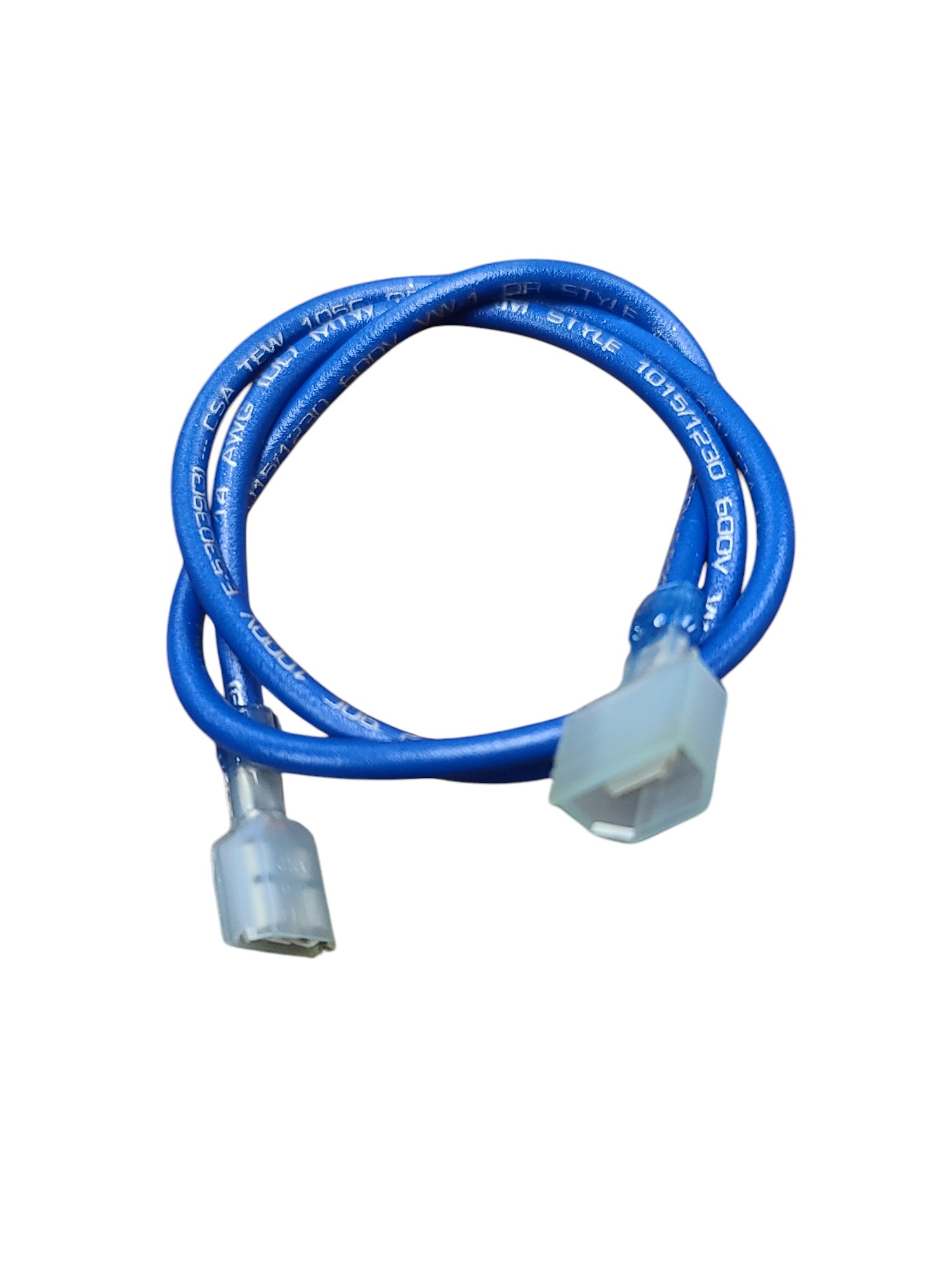

 | 223145 | # | 18″ BLU WIRE, M/F, FILTER | $7.49 | ||
| 260297 | # | 18″ WHITE WIRE, F/F | $7.49 | |||
| 357530 | # | 6″ GREEN WIRE/W/RESISTOR | $6.99 | |||
| 131663 | # | 8″ WHITE WIRE, 2F | $5.49 | |||
 | 356520 | . | ACCESSORY KIT | $62.49 | ||
| EXIF12 | . | IFIT WIFI ACCESSORY KIT | NLA | Unavailable to order | ||
| 146119 | . | FLOOR MAT | $79.99 | |||
| 215823 | . | AUDIO WIRE | $11.99 | |||
 | 219168 | . | 1 TUBE LUBE KIT | $18.99 | ||
 | 219170 | . | 3 TUBE LUBE KIT | $39.49 |
