NORDICTRACK C 950 PRO TREADMILL – 24990.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
130 Parts Available for NORDICTRACK C 950 PRO TREADMILL - 24990.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1 | M4 X 16MM SCREW | $0.99 | ||
 | 013322 | 2A | #8 X 3/4″ SCREW | $0.99 | ||
 | 130659 | 2B | 3/4″ TEK SCREW | $0.99 | ||
 | 013607 | 2C | BASE PAD SCREW | $0.99 | ||
 | 349213 | 3 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
 | 295136 | 4 | 5/16″ X 3/4″ SCREW | $3.49 | ||
 | 014088 | 5 | #10 STAR WASHER | $1.49 | ||
 | 013250 | 6 | LINK ARM BOLT | $2.99 | ||
 | 125237 | 7 | 3/8″ X 4″ SCREW | $5.99 | ||
| 348489 | 8 | 1/4″ X 1″ SCREW | $2.49 | |||
| 103502 | 9 | SCREW | $0.99 | |||
 | 186819 | 10A | CONSOLE GROUND SCREW | $0.99 | ||
 | 013423 | 10B | 1/2″ SCREW | $0.99 | ||
 | 014149 | 11 | 5/16″ STAR WASHER | $0.99 | ||
 | 163045 | 13 | 3/8″ STAR WASHER | $0.99 | ||
 | 013300 | 14 | #8 X 3/4″ SCREW | $0.99 | ||
 | 364027 | 15 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 346519 | 16 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
 | 142622 | 17 | HANDRAIL BOLT | $2.99 | ||
| 136728 | 19 | #8 X 7/16″ SCREW | $0.99 | |||
 | 295758 | 20 | 5/16″ MOTOR BOLT | $3.49 | ||
| 315068 | 21 | 3/8″ PIN | $7.99 | |||
 | 301976 | 22 | 3/8″ X 1″ BOLT | $2.49 | ||
 | 298484 | 23 | 5/16″X1 3/4″ SHOULDERBOLT | $2.49 | ||
| 128263 | 24 | LONG CONSOLE SCREW | $0.99 | |||
| 013028 | 25 | M4 X 25MM SCREW | $0.99 | |||
 | 014132 | 26 | 3/8″ FLAT WASHER | $0.99 | ||
| 324539 | 27 | RIGHT CUP HOLDER | $24.49 | |||
 | 150699 | 28 | 5/16″ X 2 1/2″ SCREW | $3.99 | ||
| 179767 | 29 | 3/8″X1 3/4″ HEX HEAD BOLT | $61.49 | |||
 | 152478 | 30 | 5/16″ FLAT WASHER | $0.99 | ||
 | 174801 | 31 | 1/4″ X 1/2″ BOLT | $0.99 | ||
| 014064 | 32A | BRACKET STAR WASHER | $0.99 | |||
 | 189861 | 32B | 1/4″ STAR WASHER | $1.49 | ||
 | 119425 | 33 | 3/8″ NYLON LOCKNUT * | $0.99 | ||
 | 100427 | 34 | 5/16″ NYLON LOCKNUT | $0.99 | ||
 | 121576 | 35 | 1/4″ NUT | $2.49 | ||
| 324538 | 36 | LEFT CUP HOLDER | $25.49 | |||
 | 291486 | 37 | #8 X 5/8″ SCREW | $0.99 | ||

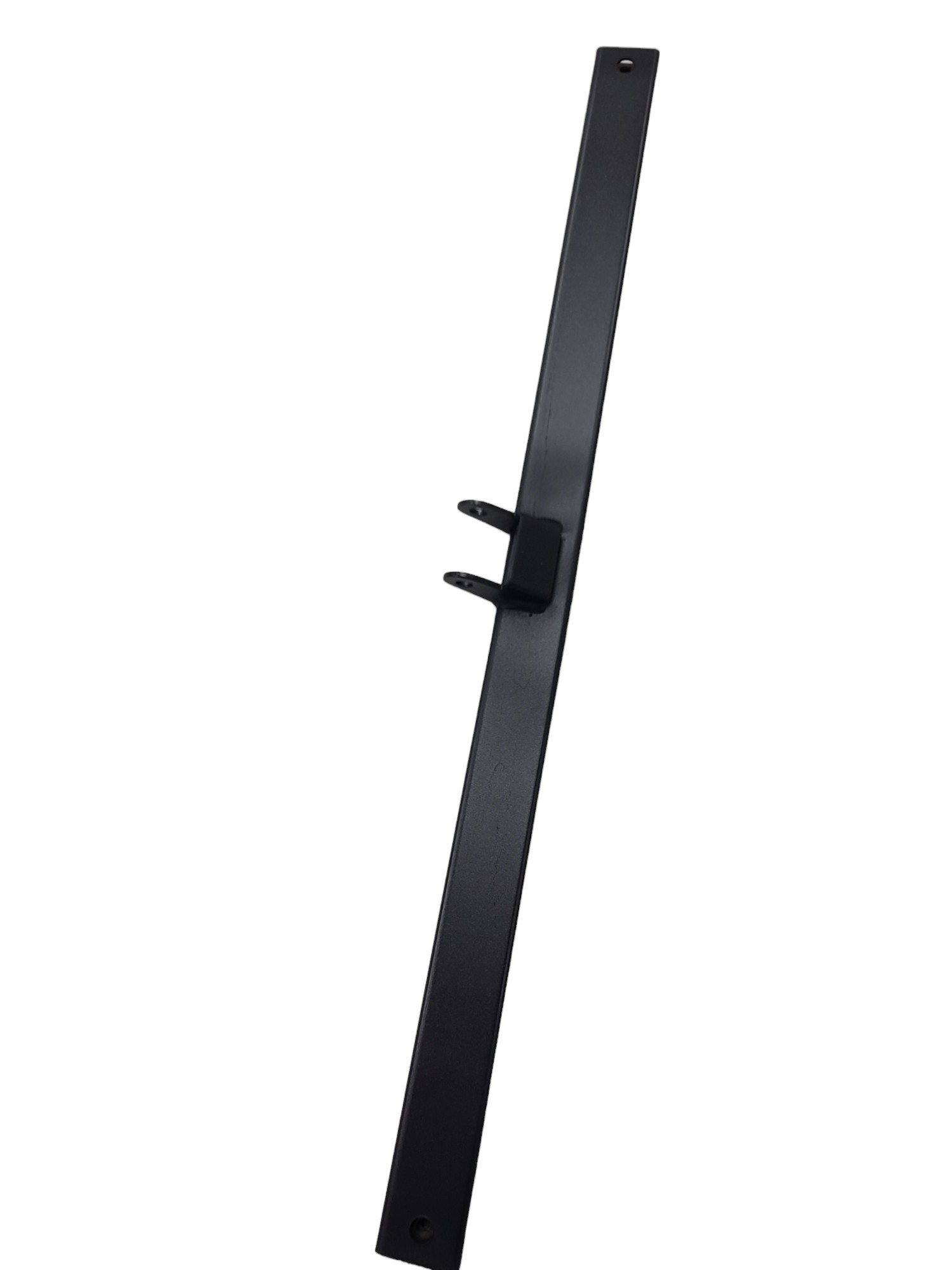

 | 354800 | 38 | LATCH CROSSBAR | $74.99 | ||
| 366516 | 39 | ISOLATOR | $55.49 | |||
| 351227 | 41 | UPRIGHT CROSSBAR | $76.49 | |||
| 413303 | 43 | DECAL,GENERAL WARNING | $3.99 | |||
| 351901 | 44 | WALKING PLATFORM | $190.99 | |||
 | 361795 | 45 | WALKING BELT | $124.99 | ||
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
 | 316204 | 47 | RIGHT REAR FOOT | $12.49 | ||
| 240351 | 48 | CABLE TIE | $0.99 | |||
| 303466 | 49 | DRIVE ROLLER/PULLEY | $141.49 | |||
 | 131090 | 51 | REED SWITCH CLAMP | $0.99 | ||
 | 185207 | 52 | REED SWITCH/WIRE | $27.49 | ||
 | 388203 | 53 | STORAGE LATCH | $100.49 | ||

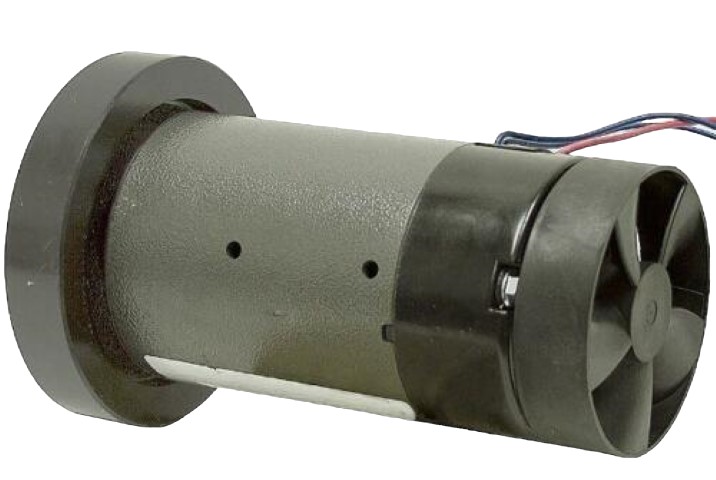

 | 405662 | 54 | DRIVE MOTOR | $281.49 | ||

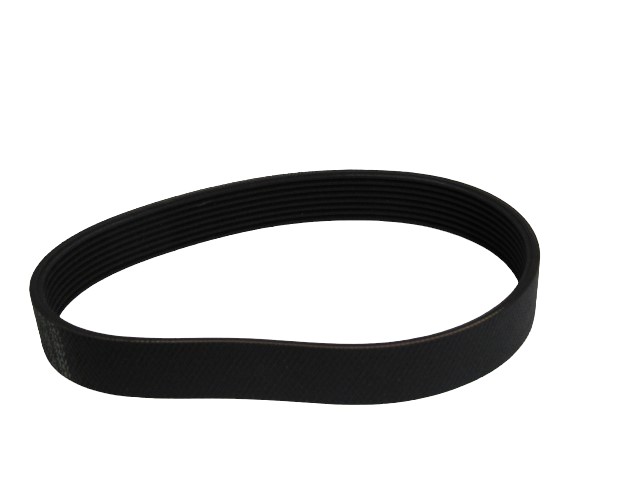

 | 319256 | 55 | MOTOR BELT | $44.99 | ||
 | 316203 | 57 | LEFT REAR FOOT | $12.49 | ||
 | 215822 | 58 | GROUND WIRE | $5.99 | ||
 | 298474 | 59 | RUBBER CUSHION | $1.99 | ||
| 312285 | 61 | IDLER ROLLER | $146.49 | |||
 | 347760 | 62 | FRONT WHEEL | $6.99 | ||
 | 164906 | 63 | BOLT SPACER | $2.49 | ||
| 323334 | 64 | CONSOLE BASE | $81.49 | |||
| 303692 | 65 | MOTOR HOOD | $86.49 | |||
 | 227151 | 67 | FRAME PIVOT SPACER | $0.99 | ||
 | 133333 | 68 | CLIP | $0.99 | ||
 | 223676 | 69A | INCLINE MOTOR | $164.49 | ||
 | 286707 | 69B | INCLN MTR SENSOR WIRE KIT | $70.49 | ||
| 317148 | 71 | FRAME SPACER | $7.49 | |||

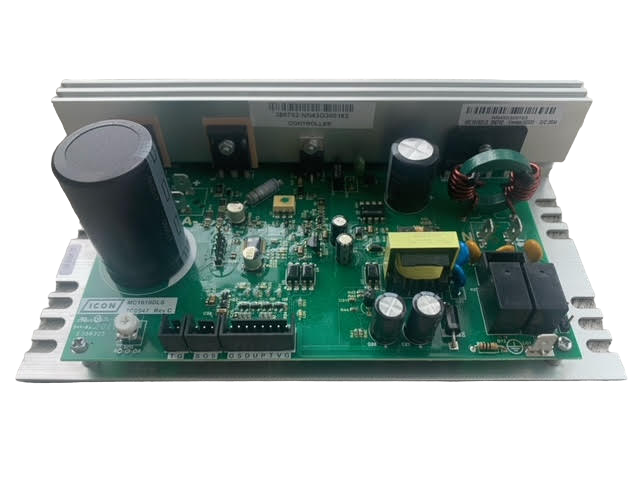

 | 398056 | 72 | CONTROLLER | $169.99 | ||
| 313881 | 73 | TRAY | $57.99 | |||
 | 314515 | 74 | BASE CAP | $1.99 | ||
 | 186726 | 75 | POWER SWITCH | $22.49 | ||
 | 031229 | 76 | POWER CORD | $39.99 | ||
 | 173169 | 77A | GROMMET | $0.99 | ||
 | 227199 | 77B | GROMMET | $2.49 | ||
| 349981 | 79 | LEFT HANDRAIL TOP | $7.99 | |||
| 351900 | 81 | UPRIGHT WIRE | $74.99 | |||
| 349631 | 82 | LEFT BASE COVER | $11.99 | |||
| 349632 | 83 | RIGHT BASE COVER | $11.99 | |||
| 349982 | 84 | RIGHT HANDRAIL BOTTOM | $8.49 | |||
| 353823 | 87 | LEFT SPEAKER COVER | $6.49 | |||
| 319148 | 88 | LEFT SPEAKER BACK COVER | $15.49 | |||
| 351891 | 89 | LEFT UPRIGHT | $126.49 | |||
| 351892 | 90 | RIGHT UPRIGHT | $126.49 | |||
| 252433 | 91 | DECAL,CAUTION BASE LEG | $0.99 | |||
| 319147 | 96 | RIGHT SPEAKER BACK COVER | $15.49 | |||
 | 348229 | 97 | WHEEL | $4.99 | ||
 | 347877 | 98 | KEY | $25.99 | ||
| 132315 | 99 | WIRE TIE | $3.49 | |||
| 267888 | 100 | 1/4″ X 1 1/2″ BOLT | $2.99 | |||
| 230979 | 101 | HOOD MOUNT | $5.49 | |||
| 243797 | 102 | CONSOLE CLAMP | $26.99 | Unavailable to order | ||
| 353822 | 103 | RIGHT SPEAKER COVER | $6.49 | |||
| 349386 | 104 | CONSOLE BASE BACK | $65.99 | |||
| 349387 | 105 | CONSOLE COVER | $7.49 | |||
 | 144985 | 106 | M4 X 16MM SCREW | $0.99 | ||
| 353430 | 107 | SPEAKER | $61.49 | |||
| 349317 | 108A | HEART RATE MONITOR | $130.99 | |||
| 315183 | 108B | CHEST PULSE STRAP | $12.49 | |||
 | 114078 | 109 | INCLINE MOTOR SPACER | $2.49 | ||
| 175284 | 110 | FAN SCREW | $0.99 | |||
| 259011 | 111 | PULSE GRIP SCREW | $0.99 | |||
| 349159 | 114 | LEFT FRAME COVER | $17.49 | |||
| 349160 | 115 | RIGHT FRAME COVER | $17.49 | |||
| 302705 | 116 | ELECTRONICS BRACKET | $12.49 | |||
 | 307032 | 117 | BASE PAD | $3.99 | ||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 355688 | # | USER’S MANUAL,FCA | $23.99 | |||
| 101896 | # | 4″ WHITE WIRE, M/F | $3.49 | |||
| 359040 | # | USER’S MANUAL, SP4 | $8.49 | |||
| 368335 | # | CNSL,OVERLAY SHEET,FCA | $110.99 | |||
| 351832 | # | HARDWARE KIT, NOTE: | $92.49 | |||
| 351369 | # | LITPAC, NOTE: | $170.99 | |||
| 326411 | # | DECAL,REWRK,SHEET 5 | $66.49 | |||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| EXIF12 | # | IFIT WIFI ACCESSORY KIT | NLA | Unavailable to order | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 351370 | # | USER’S MANUAL | $19.99 | |||
 | 102634 | # | 8″ GREEN WIRE | $3.49 | ||
| 351368 | # | TECH SHEET | $1.99 | |||
| 331708 | # | BUMPON,HOOD COWLING | $0.99 | |||
| 131538 | # | TAPE,HOOD COWLING | $4.99 | |||
| 268476 | # | WARNING DECAL | $0.99 | |||
| 191554 | # | INCLINE WIRE | $13.99 | |||
| 045023 | # | 5/32″ HEX KEY | $1.99 | |||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
 | 128457 | # | ALLEN WRENCH | $25.49 | ||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 |
