NORDICTRACK 2500 ARK TREADMILL – NTTL1151.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
102 Parts Available for NORDICTRACK 2500 ARK TREADMILL - NTTL1151.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 135622 | 2 | 3/8″ X 2 3/4″ SCREW | $18.99 | ||
 | 105444 | 5 | REAR ROLLER ADJ BOLT | $0.99 | ||
 | 119425 | 7 | 3/8″ LOCKNUT | $0.99 | ||
| 178437 | 8 | ENDCAP SCREW | $2.49 | |||
| 114261 | 12 | GROUND WIRE | $5.99 | |||
| 413303 | 15 | WARNING DECAL | $3.99 | |||
| 177992 | 16 | LATCH PLATE | $18.99 | |||
| 161922 | 17 | PULLEY BOLT | $1.49 | |||
 | 174320 | 18 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
| 131483 | 27 | 1/4″ X 3/4″ SCREW | $1.49 | |||
| 181463 | 29 | FRONT ROLLER/PULLEY | $137.49 | |||
 | 113842 | 30 | MAGNET | $1.49 | ||
| 160707 | 31 | 2″ BELLY PAN SCREW | $0.99 | |||
 | 102973 | 32 | 3/8″ THRUST WASHER | $0.99 | ||
 | 165798 | 35 | REED SWITCH | $19.49 | ||
 | 220769 | 40 | MOTOR BELT | $22.99 | ||
| 120867 | 41 | MOTOR TENSION NUT | $2.49 | |||
 | 012149 | 42 | 3/8″ NUT | $0.99 | ||
| 122812 | 43 | MOTOR TENSION WASHER | $0.99 | |||
 | 014117 | 48 | STAR WASHER | $0.99 | ||
| 180917 | 49 | GROUND/CHOKE SCREW | $0.99 | |||
| 013601 | 52 | 3/8″ X 2″ BOLT, NOTE: | $8.99 | |||
| 014073 | 53 | WASHER | $1.49 | |||
| 173605 | 54 | STOP BRACKET | $2.99 | |||
 | 100427 | 55 | 5/16″ NUT | $0.99 | ||
| 013547 | 56 | INCLINE LEG/MOTOR BOLT | $0.99 | |||
 | 125819 | 59 | STANDOFF | $3.99 | ||
| 178300 | 60 | ELECTRONICS PLATE | NLA | Unavailable to order | ||
 | 031229 | 63 | POWER CORD | $39.99 | ||
 | 173169 | 64 | SQUARE GROMMET | $0.99 | ||
 | 013529 | 66 | #8 X 1 1/2″ SCREW, NOTE: | $0.99 | ||
| 172822 | 67 | AUDIO NUT | NLA | Unavailable to order | ||
 | 109382 | 68 | CIRCUIT BREAKER | $15.99 | ||
 | 157646 | 70 | 12″ IFIT AUDIO JACK WIRE | $22.99 | ||
| 181469 | 71 | BELLY PAN | $103.49 | Unavailable to order | ||
 | 013423 | 72 | GROUND SCREW | $0.99 | ||
| 315183 | 74 | CHEST PULSE STRAP | $12.49 | |||
| 157607 | 79 | HANDRAIL ENDCAP | $3.99 | |||
| 129851 | 81 | TOP CROSSBAR SCREW | $0.99 | |||
 | 154848 | 82 | HOOD SCREW | $0.99 | ||
| 176294 | 83 | CONSOLE BACK | NLA | Unavailable to order | ||
| 160327 | 85 | BASE CAP | $6.99 | |||
 | 157600 | 90 | BUMPER | $1.99 | ||
| 016057 | 92 | 8″ CABLE TIE | $2.99 | |||
| 116927 | 93 | TIE HOLDER CLAMP | $0.99 | |||
 | 013576 | 94 | CROWN SCREW | $0.99 | ||
| 116926 | 95 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 181111 | 96 | LIFT PIVOT BOLT | $15.99 | |||
| 106879 | 97 | 3/8″ X 3″ BOLT | $2.49 | |||

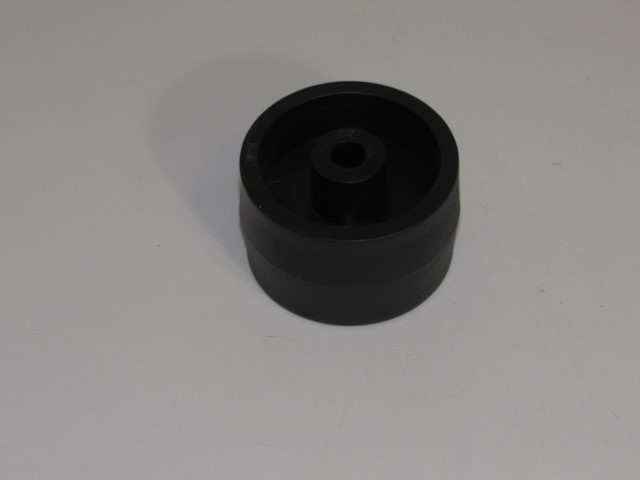

 | 148803 | 98 | WHEEL | $3.49 | ||
| 180611 | 99 | INCLINE MOTOR SHIELD | $14.99 | |||
 | 129004 | 100 | ROUND GROMMET | $1.99 | ||
| 160391 | 101 | UPRIGHT WIRE | $83.99 | |||
 | 100076 | 104 | LARGE SPRING | $2.49 | ||
| 177998 | 110 | UPRIGHT | $191.49 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
 | 155623 | # | 7″ GRN WIRE | $3.99 | ||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
| 109407 | # | 4″ BLACK WIRE,2 FEMALE | $3.99 | |||
| 102246 | # | 8″ WHITE WIRE, 2F | $4.49 | |||
| 165224 | # | INCLN/UPRT GROUND WIRE | $3.99 | |||
| 118201 | # | 8″ RED WIRE,M/F | $4.49 | |||
 | 142711 | # | 4″ GREEN WIRE,F/R | $2.49 | ||
| 107771 | # | 8″ WHITE WIRE, M/F | $4.49 | |||
| 141995 | # | 8″ BLACK WIRE, M/F | $4.49 | |||
| 126146 | # | 4″ BLUE WIRE,F/F | $3.49 | |||
| 177425 | # | TECH SHEET | $0.99 | |||
| 114953 | # | 14″ BLUE WIRE,2 FEMALE | $5.49 | |||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
| 173555 | # | “N” DECAL | NLA | Unavailable to order | ||
 | 160695 | . | KEY/CLIP | $6.99 | ||
 | 157223 | . | UPRIGHT ENDCAP | $1.49 | ||
| 157612 | . | LATCH HOUSING | $2.99 | |||
| 160399 | . | BUSHING | $0.99 | |||
| 180206 | . | USER’S MANUAL | $5.99 | |||
 | 158332 | . | IFIT.COM JACK | $5.99 | ||
| 167079 | . | IFIT.COM WIRE | $19.49 | |||
 | 013300 | . | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
 | 161411 | . | BASE FOOT SPACER | $0.99 | ||
 | 128457 | . | 3/16-7/32″ ALLEN WRENCH | $25.49 | ||
| 126650 | . | BUMPER | $0.99 | |||
| 161695 | . | 5/16″ FLAT WASHER | $0.99 |
