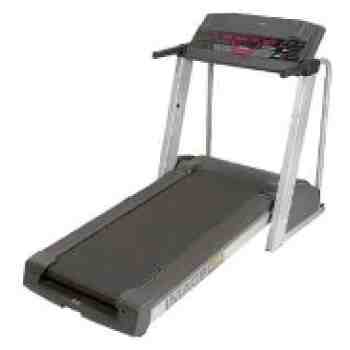

IMAGE 10.2QI/10.2QL TREADMILL - IMTL1199.2

IMAGE 10.2QI/10.2QL TREADMILL – IMTL1199.2

Brand: Image

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

71 Parts Available for IMAGE 10.2QI/10.2QL TREADMILL - IMTL1199.2 ↓

Part #	Diagram #	Title	Price
141858	4	ISOLATOR	$17.99
140828	7	WALKING BOARD SCREW	$0.99
013581	9	SCREW	$1.99
014132	10	FLAT WASHER	$0.99
169121	11	FRONT WHEEL/PULLEY	$163.99
113842	12	MAGNET	$1.49
157337	15	FRAME PIVOT SPACER	Contact for Pricing
131090	16	REED SWITCH CLIP	$0.99
133333	19	HOOD CLIP	$0.99
120867	20	MOTOR TENSION NUT	$2.49
189462	22	BELT	$19.99
121576	25	REAR ROLLER ADJ NUT	$2.49
157338	27	HOOD BRACKET	$0.99
013275	28	FRONT ROLLER ADJ. BOLT	$0.99
149710	29	NYLON WASHER	$4.49
012149	30	MOTOR PIVOT NUT	$0.99
159986	31	3/8″ X 2″ HEX BOLT	$6.49
013547	32	UPRT/MOTOR TENSION BOLT	$0.99
157343	33	OUTLET BRACKET	$27.99
125819	34	PLASTIC STAND-OFF	$3.99
238753	36	POWER SUPPLY BRACKET	$12.99
013607	40	HOOD SCREW	$0.99
013322	43	#8 X 3/4″ SCREW	$0.99
138853	44	CUSHION FASTENER	$0.99
102634	47	GREEN WIRE, F/R	$3.49
014067	49	SUPPORT WASHER	$0.99
012056	50	INCLINE LEG NUT	$0.99
014127	52	ADJUSTMENT WASHER	$0.99
105444	53	ADJUSTMENT BOLT	$0.99
013162	61	REED SWITCH SCREW	$0.99
165829	64	CHEST PULSE RECEIVER	$85.99
100076	69	SPRING	$2.49
013399	73	3/8″ SCREW	$2.49
137290	74	LOCK KNOB WASHER	$0.99
119425	75	3/8″ NUT	$0.99
013501	78	2.5″ BOLT	$4.99
155353	90	LATCH DECAL	$64.99
120630	94	SMALL SCREW	$0.99
116927	95	CABLE TIE CLAMP	$0.99
116926	96	RELEASABLE CABLE TIE	$0.99
016057	97	8″ CABLE TIE	$2.99
126650	98	BASE PAD	$0.99
104621	99	#8 X 3/4″ SCREW	$0.99
109382	101	CIRCUIT BREAKER	$15.99
031229	102	POWER CORD	$39.99
013300	108	CONSOLE SCREW	$0.99
157646	111	12″ IFIT AUDIO JACK WIRE	$22.99
101896	#	4″ WHITE WIRE, M/F	$3.49
112083	#	8″ BLUE WIRE, 2F	$4.49
118204	#	4″ BLUE WIRE,MALE/FEMALE	$4.49
123945	#	TECH SHEET ENVELOPE	$0.99
356520	#	ACCESSORY KIT	$62.49
109407	#	4″ BLACK WIRE,MALE/FLAG	$3.99
157351	#	TECH SHEET	$0.99
118201	#	8″ RED WIRE,MALE/FEMALE	$4.49
127860	#	FASTENER	$0.99
014064	#	ROLLER STAR WASHER	$0.99
107189	#	14″ GREEN WIRE, F/RING	$4.99
141995	#	8″ BLACK WIRE M/F	$4.49
163889	#	RAIL WARNING DECAL	$30.49
101897	#	14″ WHITE WIRE,2 FEMALE	$5.49
172822	#	POTENTIOMETER NUT	Contact for Pricing
225214	#	CD, 10K, INTERMEDIATE	$103.49
225212	#	CD, 5K, BEGINNER	$103.49
219170	#	3 TUBE LUBE KIT	$39.49
225209	#	CD, MARATHON, INTERMEDIAT	$103.49
153161	.	LATCH SLEEVE	Contact for Pricing
158332	.	JACK	$5.99
119038	.	KEY/CLIP	$5.49
167079	.	IFIT WIRE	$19.49
315183	.	CHEST PULSE STRAP	$12.49
167363	.	USER’S MANUAL, VER 2	$9.49
