IMAGE 10.0 TREADMILL – IMTL3952.6
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
90 Parts Available for IMAGE 10.0 TREADMILL - IMTL3952.6 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 224019 | 1 | DRIVE BELT (REPLACES 118016) | $19.99 | ||
| 112825 | 2 | PULLEY/FLYWHEEL/FAN | $80.49 | |||
| 120867 | 3 | MOTOR TENSION NUT | $2.49 | |||
| 159096 | 8 | STOP BRACKET | $1.99 | |||
| 190431 | 9 | LEFT UPRIGHT | $102.99 | |||
| 190430 | 10 | RIGHT UPRIGHT | $106.49 | |||
| 136728 | 16 | SCREW | $0.99 | |||
| 190235 | 17 | WIRE HARNESS | $110.99 | |||
| 148101 | 18 | SHORT HOOD BRACKET | $0.99 | |||
| 157640 | 20 | INCLINE WARNING DECAL | NLA | |||
 | 157504 | 21 | REED SWITCH | $26.99 | ||
| 194959 | 25 | ELECTRONICS BRACKET | $22.99 | |||
 | 186726 | 26 | POWER SWITCH | $22.49 | ||
 | 031229 | 27 | POWER CORD | $39.99 | ||
 | 173169 | 28 | GROMMET | $0.99 | ||
| 119994 | 32 | FRAME PIVOT BOLT | $2.99 | |||
 | 012090 | 37 | FRONT ROLLER ADJ NUT | $0.99 | ||
| 013443 | 38 | MOTOR BOLT | $0.99 | |||
 | 125819 | 39 | PLASTIC STAND-OFF | $3.99 | ||
 | 113842 | 43 | MAGNET | $1.49 | ||
 | 138853 | 46 | BELLYPAN FASTENER | $0.99 | ||
| 189923 | 48 | INCLINE WARNING DECAL | NLA | |||
| 198640 | 49 | BELT GUIDE | $25.49 | |||
| 189396 | 50 | BATTERY COVER | $5.49 | |||
| 186831 | 51 | FRONT BELLYPAN | $61.49 | |||
| 116927 | 53 | CABLE TIE CLAMP | $0.99 | |||
| 116926 | 54 | RELEASABLE CABLE TIE | $0.99 | |||
 | 173063 | 55 | WALKING BELT W/FASTENERS | $135.49 | ||
 | 013282 | 58 | REAR FOOT SCREW | $0.99 | ||
 | 157096 | 59 | REAR FOOT | $4.49 | ||
| 143024 | 61 | FRONT ROLLER GROUND WIRE | $2.99 | |||
| 180917 | 62 | GROUND/CHOKE SCREW | $0.99 | |||
 | 105444 | 65 | SHORT ADJUSTMENT BOLT | $0.99 | ||
| 413303 | 67 | LATCH WARNING DECAL | $3.99 | |||
 | 013316 | 69 | 3/4″ SCREW | $0.99 | ||
| 186341 | 70 | LATCH CATCH | NLA | |||
 | 174320 | 73 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
| 126038 | 74 | MOTOR TENSION BOLT | $2.49 | |||
 | 013162 | 76 | BELLYPAN SCREW | $0.99 | ||
 | 012056 | 80 | NUT | $0.99 | ||
 | 014117 | 81 | STAR WASHER | $0.99 | ||
| 132449 | 83 | INCLINE LEG PIVOT BOLT | $1.99 | |||
| 177910 | 84 | MOTOR TENSION WASHER | $0.99 | |||
| 186437 | 88 | CONSOLE CROSSBAR | $53.99 | |||
| 188426 | 91 | INCLINE MOTOR BELLYPAN | $23.99 | |||
 | 014063 | 92 | 1/4″ WASHER | $0.99 | ||
| 147596 | 93 | BOOK RACK | NLA | |||
| 167775 | 96 | INCLINE MOTOR PLATE | $7.99 | |||
 | 129004 | 99 | WIRE HARNESS GROMMET | $1.99 | ||
| 131221 | 102 | BASE CAP | $1.49 | |||
| 190322 | 103 | POWER BOARD PLATE | $2.99 | |||
| 117544 | 104 | UPRIGHT BASE ENDCAP | $0.99 | |||
| 185582 | 106 | CHOKE | $76.99 | |||
| 191291 | 108 | UNPLG TL WRNG DCL,ECA/FCA | $8.49 | |||
| 189413 | 109 | LIFT SPACER | $0.99 | |||
| 174144 | 111 | SMALL PLATE | $4.49 | |||
 | 157209 | 112 | REAR FOOT SPACER | $2.99 | ||
| 134808 | 113 | TRIM GUARD | $21.49 | |||
| 186483 | 115 | METAL PLATE | $11.99 | |||
| 134690 | 120 | 8″ WIRE HARNESS | $7.49 | |||
| 186839 | # | TECH SHEET | $0.99 | |||
| 101896 | # | 4″ WHITE WIRE, M/F | $3.49 | |||
 | 112083 | # | 8″ JUMPER WIRE, BLUE,2F | $4.49 | ||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
| 153458 | # | GROUND WIRE | $2.99 | |||
| 119445 | # | #8 X 1.25″ SCREW | $0.99 | |||
| 126146 | # | 4″ BLUE WIRE, 2F | $3.49 | |||
| 102246 | # | 8″ WHITE WIRE, 2F | $4.49 | |||
| 219170 | # | 3 TUBE LUBE KIT | $39.49 | |||
| 127860 | # | FASTENER | $0.99 | |||
 | 013529 | . | #8 X 1 1/2″ SCREW | $0.99 | ||
 | 158332 | . | JACK | $5.99 | ||
| 167079 | . | IFIT WIRE | $19.49 | |||

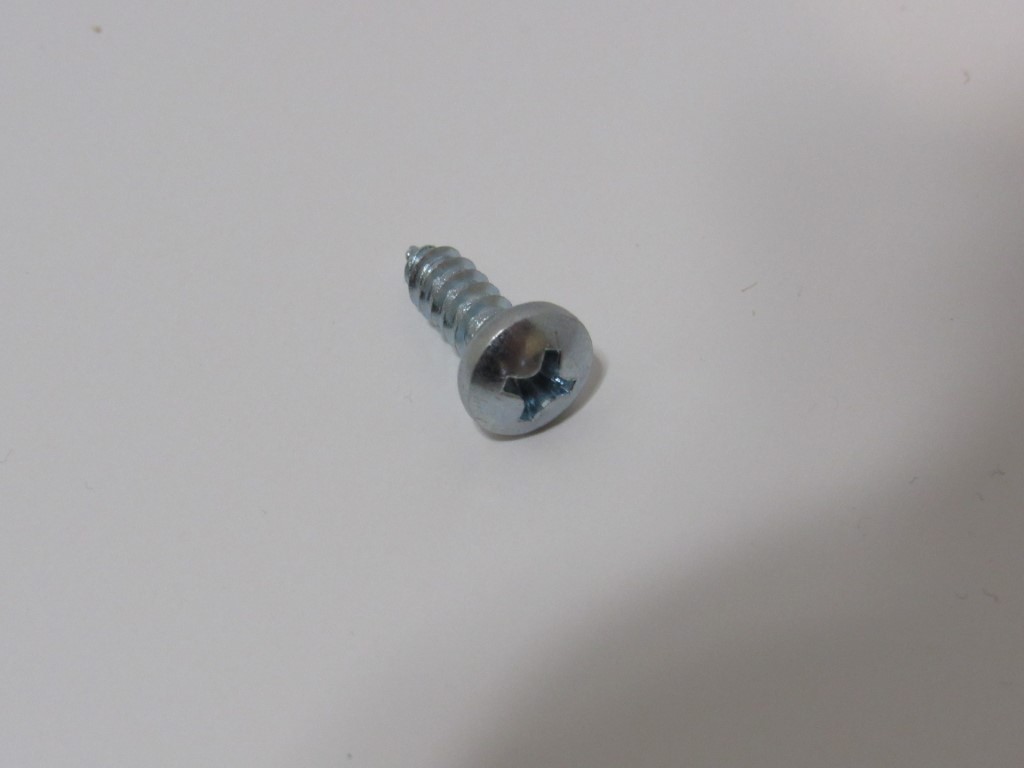

 | 013423 | . | #8 X 1/2″ SCREW | $0.99 | ||
| 014073 | . | 5/16″ FLAT WASHER | $1.49 | |||
| 132315 | . | WIRE TIE | $3.49 | |||
 | 169403 | . | LATCH HOUSING | $6.99 | ||
 | 119425 | . | 3/8″ NUT | $0.99 | ||
 | 157600 | . | BASE PAD | $1.99 | ||
 | 146427 | . | #8 X 1″ FOOT SCREW | $0.99 | ||
| 165009 | . | WHEEL | $2.49 | |||
| 216510 | . | 8″ CABLE TIE | $0.99 | |||
| 104725 | . | HANDRAIL BOLT | $2.49 | |||
 | 119038 | . | KEY/CLIP | $5.49 | ||
| 012179 | . | U-NUT | $34.99 | |||
| 193014 | . | HARDWARE KIT | $38.99 | |||
| 186443 | . | CONSOLE WIRE COVER | NLA | |||
| 211626 | . | USER’S MANUAL | $7.49 | |||
 | 013322 | . | #8 X 3/4″ SCREW | $0.99 |
