IMAGE 10.0 TREADMILL – IMTL3952.1

Brand: Image

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

113 Parts Available for IMAGE 10.0 TREADMILL - IMTL3952.1 ↓

Part #	Diagram #	Title	Price
224019	1	DRIVE BELT (REPLACES 118016)	$19.99
112825	2	PULY/FLWH/FAN	$80.49
120867	3	3/8″ FLANGE NUT	$2.49
159096	8	STOP BRACKET	$1.99
190424	9	LEFT UPRIGHT	$102.99
190419	10	RIGHT UPRIGHT	$107.49
136728	16	#8 X 3/4″ SCREW	$0.99
190235	17	WIRE HARNESS	$110.99
148101	18	SHORT HOOD BRACKET	$0.99
196291	20	WARNING DECAL	Contact for Pricing
157504	21	REED SWITCH	$26.99
134690	23	MOTOR/CONTROLLER WIRE	$7.49
186726	26	POWER SWITCH	$22.49
173169	28	POWER CORD GROMMET	$0.99
185943	31	INCLINE FRAME	$158.49
119994	32	HANDRAIL BOLT	$2.99
012090	37	1/4″ NUT	$0.99
013443	38	MOTOR BOLT	$0.99
113842	43	MAGNET	$1.49
138853	46	PANEL FASTENER	$0.99
198640	49	BELT GUIDE	$25.49
189396	50	BATTERY COVER	$5.49
012179	52	U-NUT	$34.99
116927	53	TIE BLOCK	$0.99
116926	54	RELEASABLE CABLE TIE	$0.99
173063	55	WALKING BELT W/FASTENERS	$135.49
013282	58	ST4.8X12MM SELF-TAP SCRW	$0.99
143024	61	DRIVE ROLLER GROUND WIRE	$2.99
180917	62	SCREW	$0.99
105444	65	REAR ROLLER ADJ BOLT	$0.99
413303	67	WARNING DECAL	$3.99
013316	69	REAR ENDCAP SCREW	$0.99
186341	70	LATCH CATCH	Contact for Pricing
216510	72	8″ CABLE TIE	$0.99
174320	73	3/8″ X 1 1/2″ BOLT	$2.99
126038	74	LONG ADJUSTMENT BOLT	$2.49
013162	76	1/2″ CONSOLE SCREW	$0.99
169403	77	LATCH HOUSING	$6.99
012056	80	MOTOR NUT	$0.99
014117	81	3/8″ STAR WASHER	$0.99
190245	82	BASE	$181.49
132449	83	3/8″ X 1/2″ BOLT, SEE#X	$1.99
177910	84	MOTOR TENSION WASHER	$0.99
190246	87	CONSOLE BASE	$100.49
188425	91	INCLINE MOTOR BELLYPAN	$26.49
014063	92	1/4″ FLAT WASHER	$0.99
147596	93	BOOK HOLDER	Contact for Pricing
185941	96	INCLINE MOTOR SHIELD	$8.49
129004	99	ROUND GROMMET	$1.99
131221	102	HANDRAIL ENDCAP	$1.49
117544	104	BASE ENDCAP	$0.99
185582	106	CHOKE	$76.99
189413	109	LIFT SPACER	$0.99
174144	111	SMALL PLATE	$4.49
134808	113	EDGE GUARD	$21.49
186481	115	METAL PLATE	Contact for Pricing
157209	117	SHIELD	$2.99
125819	#	STANDOFF	$3.99
356520	#	ACCESSORY KIT	$62.49
219170	#	3 TUBE LUBE KIT	$39.49
153458	#	8″ GREEN WIRE, 2 RING	$2.99
112083	#	8″ BLU WIRE, F/F, SWITCH	$4.49
191291	#	HAZARDOUS VOLTAGE DECAL	$8.49
186511	#	TECH SHEET	$1.49
101896	#	RESISTOR WIRE	$3.49
189923	#	INCLINE WARNING DECAL	NLA	Unavailable to order
102246	#	8″ WHITE WIRE, 2F	$4.49
126146	#	4″ BLUE WIRE, 2F	$3.49
119445	#	HOOD SCREW, FRONT	$0.99
123945	#	TECH SHEET ENVELOPE	$0.99
016057	.	8″ CABLE TIE	$2.99

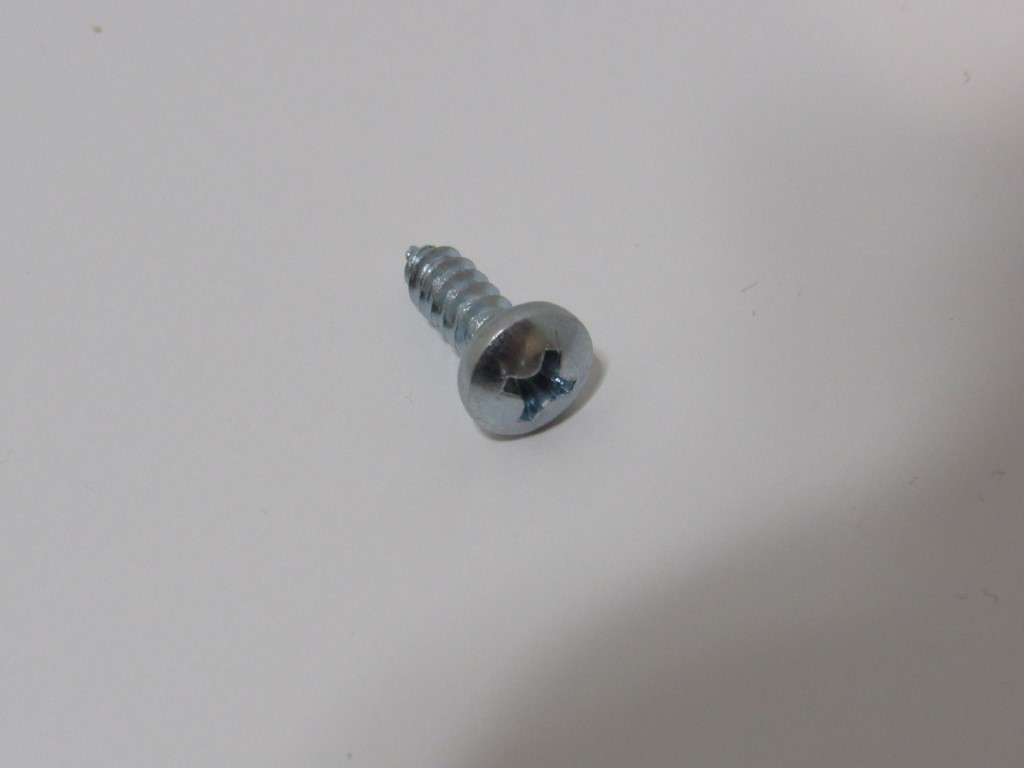

013423	.	#8 X 1/2″ GROUND SCREW	$0.99
190460	.	USER’S MANUAL	$13.99
014073	.	J-BOLT WASHER	$1.49
132315	.	WIRE TIE	$3.49
186443	.	CONSOLE WIRE COVER	Contact for Pricing
146427	.	#8 X 1″ TEK SCREW	$0.99
158332	.	JACK	$5.99
013529	.	#8 X 1 1/2″ SCREW	$0.99
167079	.	15′ WIRE	$19.49
119038	.	KEY/CLIP	$5.49
213623	.	IFIT CD	$12.99
119425	.	3/8″ JAM NUT	$0.99
124614	.	PLATFORM SCREW, REAR	$3.49
157600	.	BASE FOOT	$1.99
165009	.	WHEEL	$2.49
013322	.	#8 X 3/4″ SCREW	$0.99
