IMAGE 10.0 TREADMILL – IMTL3952.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
87 Parts Available for IMAGE 10.0 TREADMILL - IMTL3952.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 224019 | 1 | DRIVE BELT (REPLACES 118016) | $19.99 | ||
| 112825 | 2 | PULLEY/FLYWHEEL/FAN | $80.49 | |||
| 120867 | 3 | MOTOR TENSION NUT | $2.49 | |||
| 159096 | 8 | STOP BRACKET | $1.99 | |||
| 190424 | 9 | LEFT UPRIGHT | $102.99 | |||
| 136728 | 16 | BELT GUIDE SCREW | $0.99 | |||
| 190235 | 17 | WIRE HARNESS | $110.99 | |||
| 148101 | 18 | SHORT HOOD BRACKET | $0.99 | |||
| 196291 | 20 | WARNING DECAL | NLA | |||
 | 157504 | 21 | REED SWITCH | $26.99 | ||
 | 186726 | 26 | RESET/OFF CIRCUIT BREAKER | $22.49 | ||
 | 173169 | 28 | POWER CORD GROMMET | $0.99 | ||
| 185943 | 31 | INCLINE FRAME | $158.49 | |||
| 119994 | 32 | FRAME PIVOT BOLT | $2.99 | |||
 | 012090 | 37 | FRONT ROLLER ADJ NUT | $0.99 | ||
| 013443 | 38 | MOTOR BOLT | $0.99 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 190237 | 45 | ISOLATOR | $42.99 | |||
 | 138853 | 46 | FASTENER | $0.99 | ||
| 198640 | 49 | BELT GUIDE | $25.49 | |||
| 189396 | 50 | BATTERY COVER | $5.49 | |||
| 012179 | 52 | U-NUT | $34.99 | |||
| 116927 | 53 | TIE CLAMP | $0.99 | |||
| 116926 | 54 | RELEASABLE TIE | $0.99 | |||
 | 173063 | 55 | WALKING BELT W/FASTENERS | $135.49 | ||
 | 013282 | 58 | REAR FOOT SCREW | $0.99 | ||
| 143024 | 61 | FRONT ROLLER GROUND WIRE | $2.99 | |||
| 180917 | 62 | 3/4″ SCREW | $0.99 | |||
 | 105444 | 65 | LEFT REAR ADJ BOLT | $0.99 | ||
| 413303 | 67 | WARNING DECAL | $3.99 | |||
 | 013316 | 69 | ENDCAP BRACKET SCREW | $0.99 | ||
| 186341 | 70 | LATCH CATCH | NLA | |||
| 216510 | 72 | 8″ CABLE TIE | $0.99 | |||
 | 174320 | 73 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
| 126038 | 74 | MOTOR TENSION BOLT | $2.49 | |||
 | 013162 | 76 | CABLE TIE/BELLYPAN SCREW | $0.99 | ||
 | 169403 | 77 | LATCH HOUSING | $6.99 | ||
 | 012056 | 80 | NUT | $0.99 | ||
 | 014117 | 81 | STAR WASHER | $0.99 | ||
| 190245 | 82 | BASE | $181.49 | |||
| 132449 | 83 | INCLINE LEG PIVOT BOLT | $1.99 | |||
| 177910 | 84 | MOTOR TENSION WASHER | $0.99 | |||
| 190246 | 87 | CONSOLE BASE | $100.49 | |||
| 188425 | 91 | INCLINE MOTOR BELLYPAN | $26.49 | |||
 | 014063 | 92 | 1/4″ FLAT WASHER | $0.99 | ||
| 147596 | 93 | BOOK RACK | NLA | |||
| 185941 | 96 | INCLINE MOTOR SHIELD | $8.49 | |||
 | 129004 | 99 | UPRIGHT GROMMET | $1.99 | ||
| 131221 | 102 | BASE CAP | $1.49 | |||
| 117544 | 104 | BASE ENDCAP | $0.99 | |||
| 185582 | 106 | CHOKE | $76.99 | |||
| 189413 | 109 | LIFT SPACER | $0.99 | |||
| 174144 | 111 | SMALL PLATE | $4.49 | |||
| 134808 | 113 | TRIM GUARD | $21.49 | |||
| 186481 | 115 | METAL PLATE | NLA | |||
 | 157209 | 117 | REAR FOOT SPACER | $2.99 | ||
| 134690 | 120 | 8″ WIRE HARNESS | $7.49 | |||
| 101896 | # | 4″ WHITE WIRE,M/F | $3.49 | |||
| 219170 | # | 3 TUBE LUBE KIT | $39.49 | |||
| 189923 | # | INCLINE WARNING DECAL | NLA | |||
 | 112083 | # | 8″ BLUE WIRE, 2F | $4.49 | ||
| 191291 | # | UNPLG TL WRNG DCL,ECA/FCA | $8.49 | |||
| 102246 | # | 8″ WHITE WIRE, 2F | $4.49 | |||
| 126146 | # | 4″ BLUE WIRE, 2F | $3.49 | |||
 | 125819 | # | PLASTIC STAND-OFF | $3.99 | ||
| 119445 | # | #8 X 1.25″ SCREW | $0.99 | |||
| 153458 | # | 8″ GREEN WIRE, 2 RING | $2.99 | |||
| 186511 | # | TECH SHEET | $1.49 | |||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
| 016057 | . | CABLE TIE | $2.99 | |||
| 014073 | . | 5/16″ FLAT WASHER | $1.49 | |||
| 132315 | . | CABLE TIE | $3.49 | |||

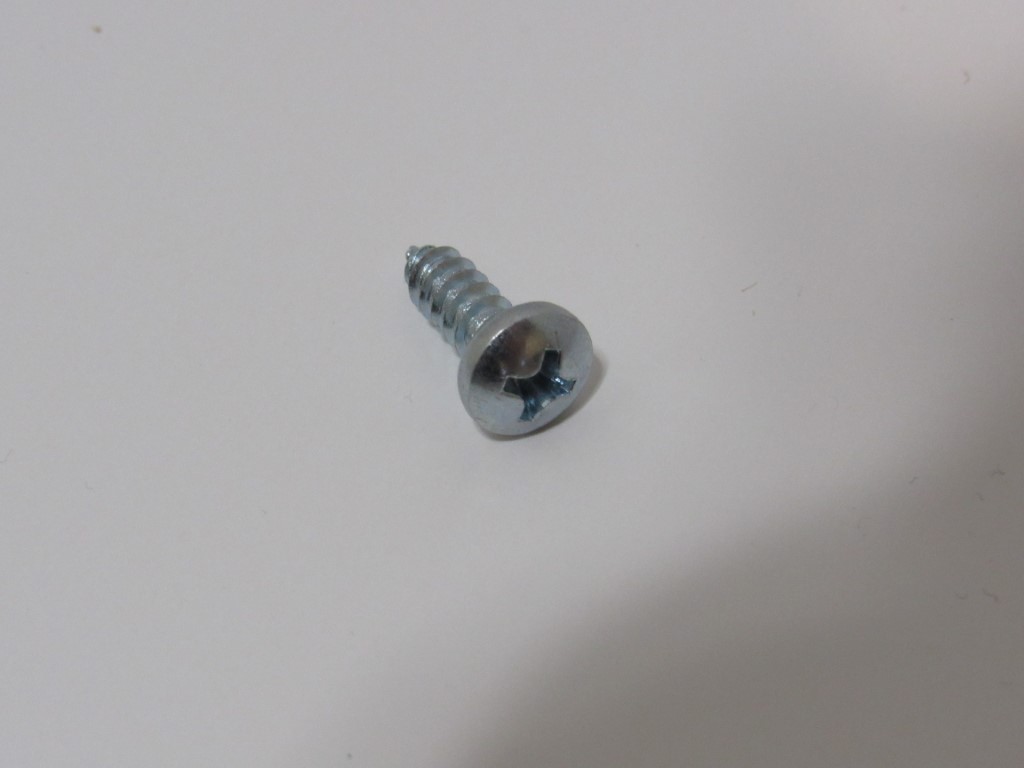

 | 013423 | . | LATCH PLATE SCREW | $0.99 | ||
 | 158332 | . | JACK | $5.99 | ||
| 185951 | . | USER’S MANUAL | $9.99 | |||
 | 013529 | . | 1/8″ X 1 1/2″ CROSBR SCRW | $0.99 | ||
| 167079 | . | WIRE | $19.49 | |||
 | 119425 | . | PIVOT NUT | $0.99 | ||
 | 157600 | . | BUMPER | $1.99 | ||
 | 146427 | . | 1″ SCREW | $0.99 | ||
| 165009 | . | WHEEL | $2.49 | |||
| 213623 | . | IFIT CD | $12.99 | |||
| 104725 | . | HANDRAIL BOLT | $2.49 | |||
 | 119038 | . | KEY/CLIP | $5.49 | ||
| 186443 | . | CONSOLE WIRE COVER | NLA | |||
 | 013322 | . | SCREW | $0.99 |
