GOLD'S GYM GOLD'S GYM TRAINER 480 TREADMILL - GGTL39608.7

GOLD’S GYM GOLD’S GYM TRAINER 480 TREADMILL – GGTL39608.7

Brand: Gold's Gym

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

95 Parts Available for GOLD'S GYM GOLD'S GYM TRAINER 480 TREADMILL - GGTL39608.7 ↓

Part #	Diagram #	Title	Price
013501	1	WHEEL BOLT	$4.99
271383	2	5/16″ X 3/4″ BOLT	$2.49
267888	3	1/4″ X 1 1/2″ SCREW	$2.99
012139	4	RESISTOR COVER NUT	$0.99
014149	5	5/16″ STAR WASHER	$0.99
185159	6	PULLEY SCREW	$2.49
013322	7	#8 X 3/4″ SCREW	$0.99
124123	8B	IDLER ARM BOLT	$3.49
014117	9	UPRIGHT STAR WASHER	$0.99
189861	11	1/4″ STAR WASHER	$1.49
186819	12	#8 X 1/2″ WSHR HD SCREW	$0.99
012149	13	FRAME PIVOT NUT	$0.99
136728	15	#8 X 7/16″ SCREW	$0.99
282655	16	DUMBBELL (SET OF 2)	$13.99
230327	17	REAR ROLLER BOLT	$19.49
137224	18	5/16″ X 1 1/4″ BOLT	$0.99
207753	19	PULSE BAR BOLT	$4.49
013300	20	3/4″ SCREW	$0.99
227199	21	GROMMET	$2.49
236884	22	PLASTIC WASHER (A)	$15.99
231085	23	LIFT FRAME BOLT	$4.99
013607	24	#8 X 3/4″ TRUSS HD SCRW	$0.99
179767	25	3/8″X1 3/4″ HEX HEAD BOLT	$61.49
181979	26	3/8″ X 1 1/4″ SCREW	$3.49
014126	28	REAR ADJ LOCK WASHER	$0.99
014132	29	TENSION WASHER	$0.99
014157	30	#8 STAR WASHER	$0.99
014063	31	ROLLER/SPRING WASHER	$0.99
116926	32	CONSOLE SCREW	$0.99
119425	33	FRAME PIVOT NUT	$0.99

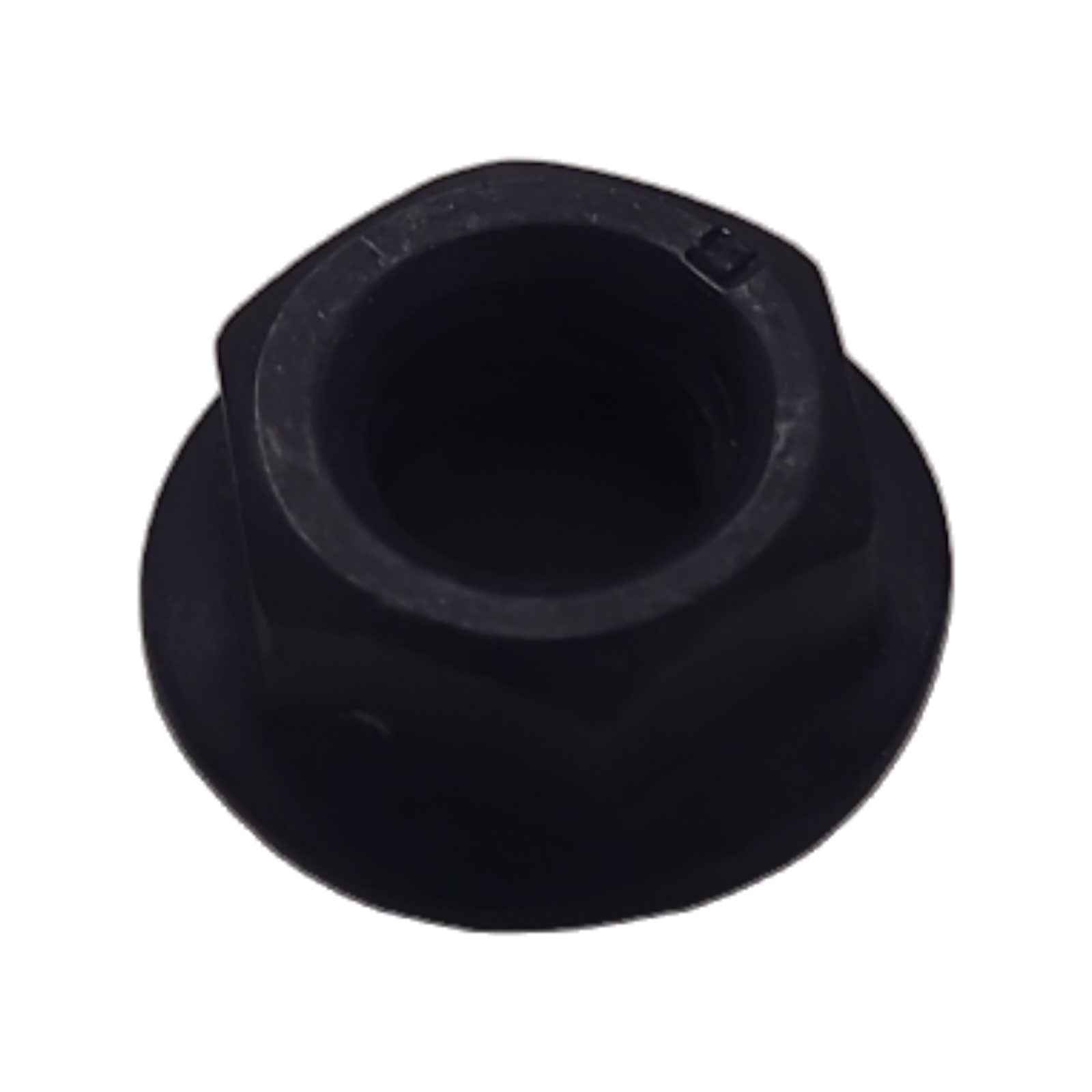

136012	34	5/16″ FLANGE NUT	$0.99
013576	35	IDLER ARM BOLT	$0.99
281604	36	LEFT FOOT RAIL	$69.49
281605	37	RIGHT FOOT RAIL	$69.49
413303	39	LATCH WRNG DECAL	$3.99
198640	41	BELT GUIDE	$25.49
141173	42	FRAME PIVOT SPACER	$3.49
113842	44	MAGNET	$1.49
131090	45	REED SWITCH CLIP	$0.99
185207	46	REED SWITCH	$27.49
405692	47	Drive Motor for ICON Fitness Part Number 302600	$204.49
248753	49	WALKING BELT	$123.99
031229	50	POWER CORD	$39.99
281463	51	POWER CORD BRACKET	$4.99
186726	52	POWER SWITCH	$22.49
173169	53	POWER CORD GROMMET	$0.99
226447	57	LEFT REAR FOOT	$9.49
128457	58	3/16-7/32 ALLEN WRENCH	$25.49
045023	59	5/32″ ALLEN WRENCH	$1.99
227198	60	FRAME/ROLLER GROUND WIRE	$2.49
226448	61	RIGHT REAR FOOT	$9.49
281750	62	MOTOR HOOD	$80.49
226650	63	STOP BRACKET	$1.99
281462	65	LIFT FRAME	$96.99
