GOLD”S GYM GG SYSTEM – GGSY29013.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
104 Parts Available for GOLD''S GYM GG SYSTEM - GGSY29013.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 338214 | 2 | STABILIZER | $175.99 | |||
| 355484 | 3 | Main Upright with Decals | $278.49 | |||
| 338230 | 4 | TOP FRAME | $173.49 | |||
| 338228 | 6 | SEAT TUBE | $148.99 | |||
| 338226 | 7 | FRONT LEG | $181.49 | |||
| 358627 | 8 | LVR,LEG,ARPS,W/DECAL | $151.99 | |||
| 355187 | 9 | Right Butterfly Arm Bracket | $185.49 | |||
| 355186 | 10 | ARM,BTRFLY,LT,BRNKL | $185.49 | |||
| 267615 | 11 | HANDLE | $88.49 | |||
| 224344 | 12 | SQUARE PLATE | $21.99 | |||
| 338212 | 13 | CURL POST | $98.99 | |||
| 355194 | 14 | Pad Wedge with Roll 21.47×12.5″ | $197.49 | |||
| 355190 | 15 | Multi-Purpose Wedge Pad 11.07/15.96″ | $171.99 | |||
| 355192 | 16 | Custom Multi-Purpose Pad – 13.13″ x 24.13″ | $192.99 | |||
| 355486 | 18 | SHROUD,RT,ARPS,W/DECAL | $286.49 | |||
| 301325 | 19 | SHROUD SUPPORT | $25.49 | |||
| 301495 | 20 | CARRIAGE BOLT BUSHING | $1.99 | |||
| 322249 | 21 | WEIGHT GUIDE | $187.99 | |||
| 120294 | 22 | WEIGHT (One 12.5 Plate) | $62.99 | |||
 | 122691 | 23 | WEIGHT TUBE ENDCAP | $3.49 | ||
 | 302064 | 24 | WEIGHT SELECTOR | $91.99 | ||
 | 140950 | 25 | LONG KNOB | $28.99 | ||
 | 193926 | 26 | SELF-LOCK PIN | $19.99 | ||
| 194795 | 27 | WEIGHT BUMPER | $27.49 | |||
 | 208378 | 28 | FOAM PAD | $28.99 | ||
| 265367 | 29 | PAD TUBE | $67.49 | |||
| 172066 | 30 | 50MMX2MM ROUND INNER CAP | $9.49 | |||
| 110913 | 31 | 50MM SQUARE INT ENDCAP | $1.99 | |||
| 224363 | 32 | 38MM SQUARE OUTER CAP | $13.99 | |||
| 014039 | 33 | M4 WASHER | $4.99 | |||
 | 239042 | 34 | PAD CAP | $3.99 | ||
| 267639 | 35 | LAT BAR | $144.49 | |||
| 332404 | 36 | HANDGRIP | $27.49 | |||

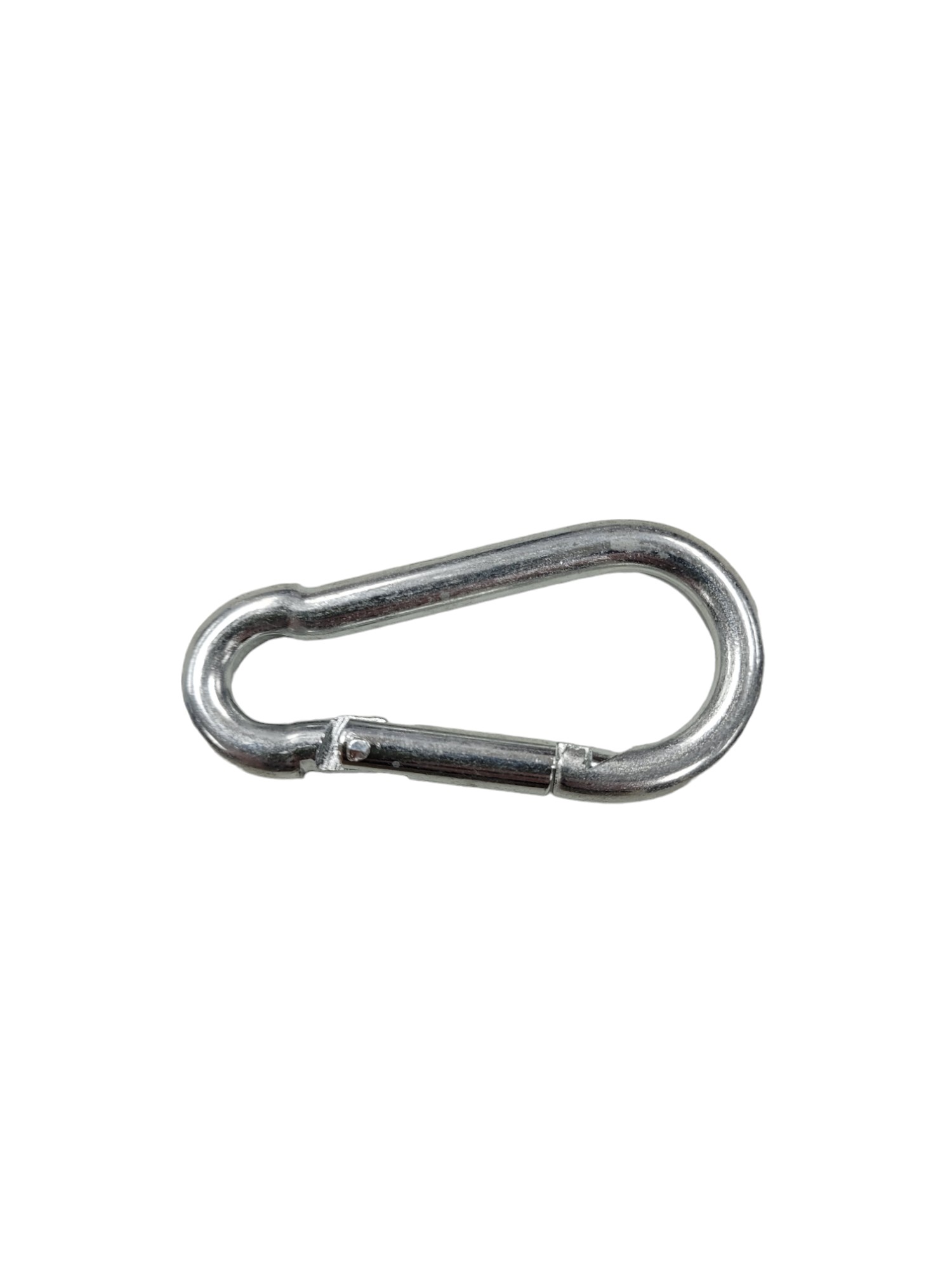

 | 103087 | 37 | CLIP | $20.99 | ||
| 302059 | 38 | FOOT PLATE | $173.99 | |||
| 355188 | 39 | Pivot Cable | $25.49 | |||
 | 270564 | 40 | ARM PIN | $43.49 | ||
| 214126 | 41 | FULL GUARD | $39.99 | |||
| 200877 | 42 | LARGE FOAM PAD | $71.99 | |||
 | 214118 | 43 | HALF GUARD | $10.99 | ||
 | 215142 | 44 | ARM BUSHING | $16.49 | ||
 | 267617 | 45 | U-BRACKET | $73.99 | ||
| 155878 | 46 | V-PULLEY | $81.49 | |||
 | 214226 | 47 | THIN PULLEY | $72.86 | ||
 | 226917 | 48 | 90MM PULLEY | $80.99 | ||

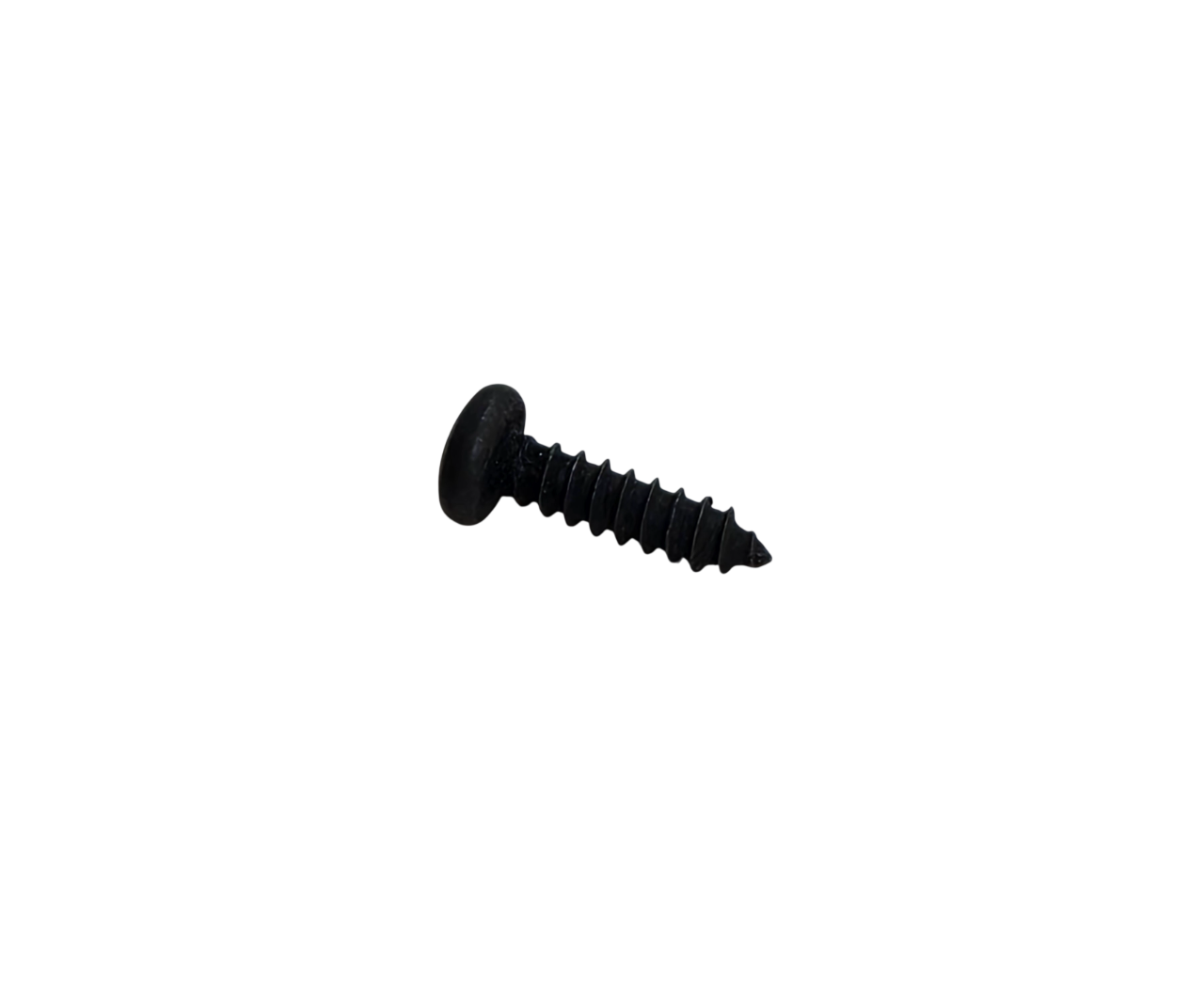

 | 234235 | 49 | M4.2 X 16MM SCREW | $0.99 | ||
 | 194082 | 50 | LONG CABLE TRAP | $9.49 | ||
 | 194081 | 51 | CABLE TRAP | $5.99 | ||
 | 214060 | 52 | SPACER | $5.99 | ||
 | 302110 | 53 | LOW CABLE | $108.99 | ||
 | 305197 | 54 | ARM CABLE | $131.49 | ||
 | 302109 | 55 | HIGH CABLE | $111.99 | ||
 | 148710 | 56 | M10 LOCKNUT | $2.49 | ||
 | 014132 | 57 | M10 FLAT WASHER | $0.99 | ||

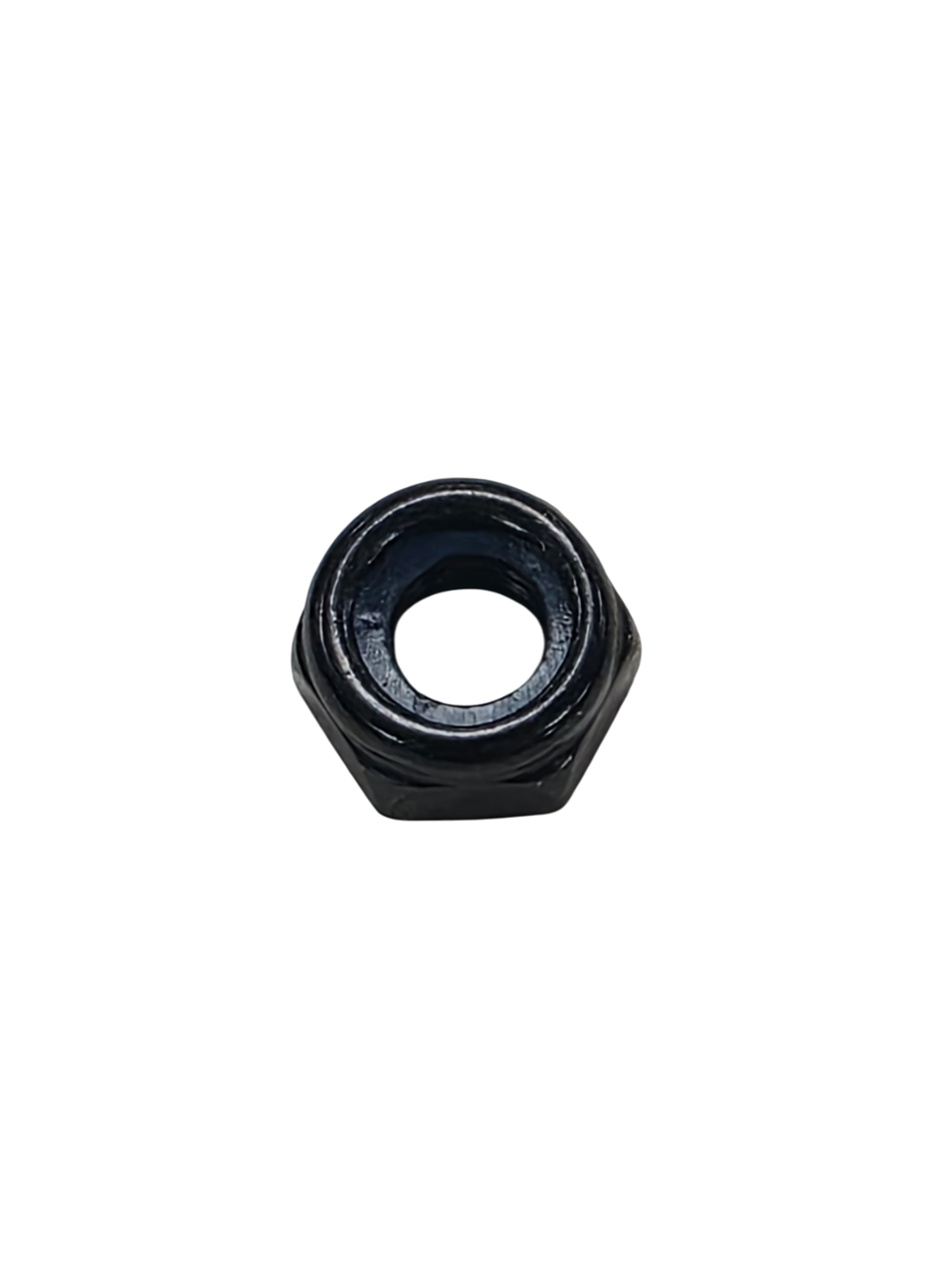

 | 012042 | 58 | M8 LOCKNUT | $1.99 | ||
| 014073 | 59 | CRANK WASHER | $1.49 | |||
| 213899 | 60 | LEG BUMPER | $23.99 | |||
| 338222 | 61 | BACKREST FRAME | $126.49 | |||
| 135884 | 62 | M6 X 16MM SCREW | $1.99 | |||
| 267618 | 63 | DOUBLE U-BRACKET | $76.99 | |||
| 245935 | 64 | M6 X 32MM SCREW | $2.99 | |||
| 200521 | 65 | M8X22MM SHLDR SCRW NOTE: | $6.99 | |||
| 152125 | 66 | M10 X 50MM BOLT | $14.49 | |||
| 306495 | 67 | M10 X 86MM CARRIAGE BOLT | $21.99 | |||
 | 031229 | 67 | POWER CORD | $39.99 | ||
| 129147 | 68 | M8 X 65MM BOLT | $8.99 | |||
 | 194878 | 69 | M4 X 19MM SCREW | $2.99 | ||
| 225226 | 70 | 20MM X 40MM INNER CAP | $0.99 | |||
| 144781 | 71 | M10 X 68MM SCREW | $15.99 | |||
| 247632 | 72 | M10 X 130MM BOLT | $12.99 | |||
| 338224 | 73 | SEAT FRAME | $121.99 | |||
| 165356 | 74 | M10 X 25MM SCREW | $8.99 | |||
| 132889 | 75 | M10 X 63MM BOLT | $12.99 | |||
| 306494 | 76 | M10 X 64MM BOLT SET | $26.99 | |||
 | 208581 | 77 | M10 X 25MM BUTTON SCREW | $5.49 | ||
| 251429 | 78 | M4 X 12MM | $0.99 | |||
| 132654 | 79 | M10 X 77MM BOLT | $19.49 | |||
| 115177 | 80 | STRAP | $56.49 | |||
| 194561 | 81 | M10 X 46MM BOLT | $10.99 | |||
 | 014063 | 82 | ISOLATOR WASHER | $0.99 | ||
| 302139 | 83 | CHAIN | $72.49 | |||
| 194903 | 84 | M12 NUT | $3.99 | |||
| 194746 | 85 | LARGE WASHER | $14.49 | |||
| 198678 | 87 | M8 X 63MM CARRIAGE BOLT | $5.99 | |||
 | 224989 | 88 | LOCK | $7.99 | ||
| 186308 | 89 | LOCK PIN | $18.49 | |||
| 302528 | 90 | SHROUD CLAMP | $10.99 | |||
| 301369 | 91 | SHORT KNOB | $28.49 | |||
| 225227 | 93 | 25MM X40MM THIN INNER CAP | $1.49 | |||

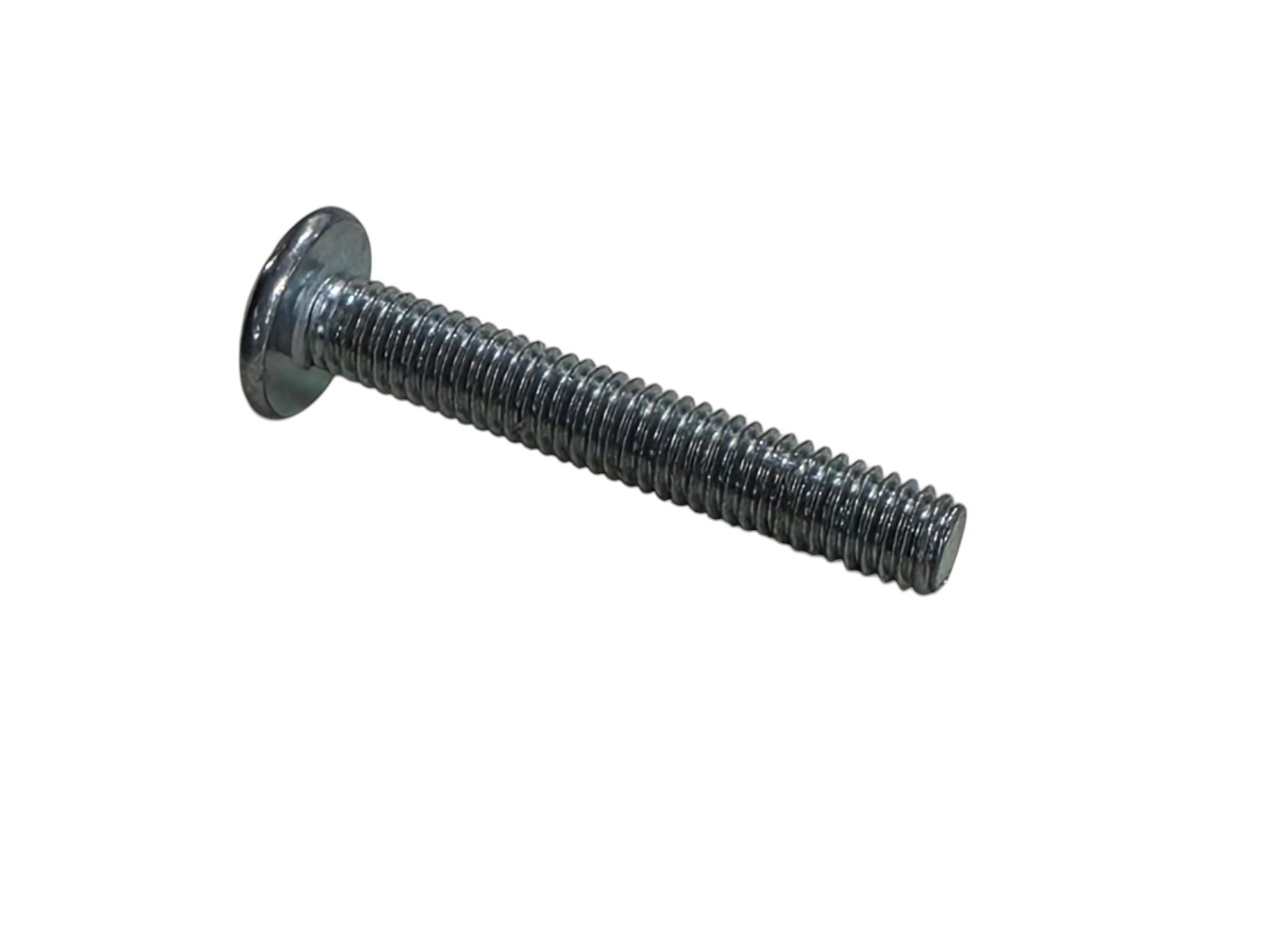

 | 140739 | 95 | M6 X 38MM SCREW | $2.99 | ||
 | 104838 | # | LUBE, GREASE | $8.49 | ||
| 392504 | # | USER’S MANUAL, SPG | $22.49 | |||
 | 201848 | # | EXERCISE GUIDE | $14.99 | ||
| 277043 | # | DECAL, GENERAL WARNING | $4.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 153134 | # | OPTIONAL ANKLE STRAP | $63.99 | |||
| 355483 | # | GENERIC EXERCISE CHART | $42.49 | |||
| 166909 | # | DECAL, SITE WARNING | $2.49 | |||
| 355470 | # | DECAL,GENERAL WRNG, SPNSH | $4.99 | |||
| 355220 | # | USER’S MANUAL, SP2 | $26.49 | |||
| 355219 | # | USER’S MANUAL, ENGLISH | $23.99 | |||
| 045021 | # | ALLEN WRENCH | $7.49 | |||
 | 045008 | # | 5MM HEX KEY | $2.49 | ||
| 420937 | # | USER’S MANUAL,SP4 | $22.49 |
