GOLD''S GYM GG STRIDE TRAINER 510 ELLIPTICAL - GGEL63812.0

GOLD”S GYM GG STRIDE TRAINER 510 ELLIPTICAL – GGEL63812.0

Brand: Gold's Gym

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

166 Parts Available for GOLD''S GYM GG STRIDE TRAINER 510 ELLIPTICAL - GGEL63812.0 ↓

Part #	Diagram #	Title	Price
334039	4	CONSOLE	$176.99
317006	5	ACCESSORY TRAY	$23.49
321678	7A	RESISTANCE CABLE	$46.49
246303	11	1 1/4″ ROUND ENDCAP	$0.99
333439	16	FRONT UPRIGHT COVER	$23.99
256295	17	HANDLEBAR BUSHING (138574)	$4.99
321734	18	#10 X 16MM SCREW	$3.49
281020	23	PEDAL ARM BUSHING	$6.49
333515	25	RIGHT CRANK ARM	$184.49
305948	27	CRANK ARM SPACER	$16.99
018030	29	MEDIUM ROLLER	$19.49
331026	33	M8 LARGE WASHER	$0.99
139703	38	CRANK BRACKET BEARING	$33.49
256148	40	SPACER	$6.49
113842	41	MAGNET	$1.49
014033	43	M6 LARGE WASHER	$1.49
147746	46	DRIVE BELT	$59.99
237631	47	LEVELING FOOT	$34.99
333571	48	STABILIZER CAP	$18.49
363093	52	IDLER	$116.49
193223	54	RESISTANCE MOTOR	$99.99
278165	55	M6 X 18MM WASHER	$1.49
131090	57	CLAMP	$0.99
186070	58	REED SWITCH/WIRE	$28.99
314683	59	M8 X 10MM HEX SCREW	$2.49
281559	60	KEY	$2.49
250961	61	M4 X 19MM SCREW	$0.99
314850	62	M6 X 16MM HEX SCREW	$65.99
284963	63A	LT PULSE GRIP ASSY W/WIRE	$68.49
284964	63B	RT PULSE GRIP ASSY W/WIRE	$68.49
013162	64A	SAFETY COVER SCREW	$0.99
195562	64C	M4 X 16MM SCREW	$1.99
281150	65	IDLER SCREW	$4.49
277369	66	PULLEY	$174.49
168267	69	RESISTANCE MOTOR SCREW	$0.99
013423	71	M4 X 12MM BRIGHT SCREW	$0.99
281149	72	BELT ADJUSTMENT SCREW	$6.49
270796	74	M8 X 15MM SCREW, NOTE:	$2.49

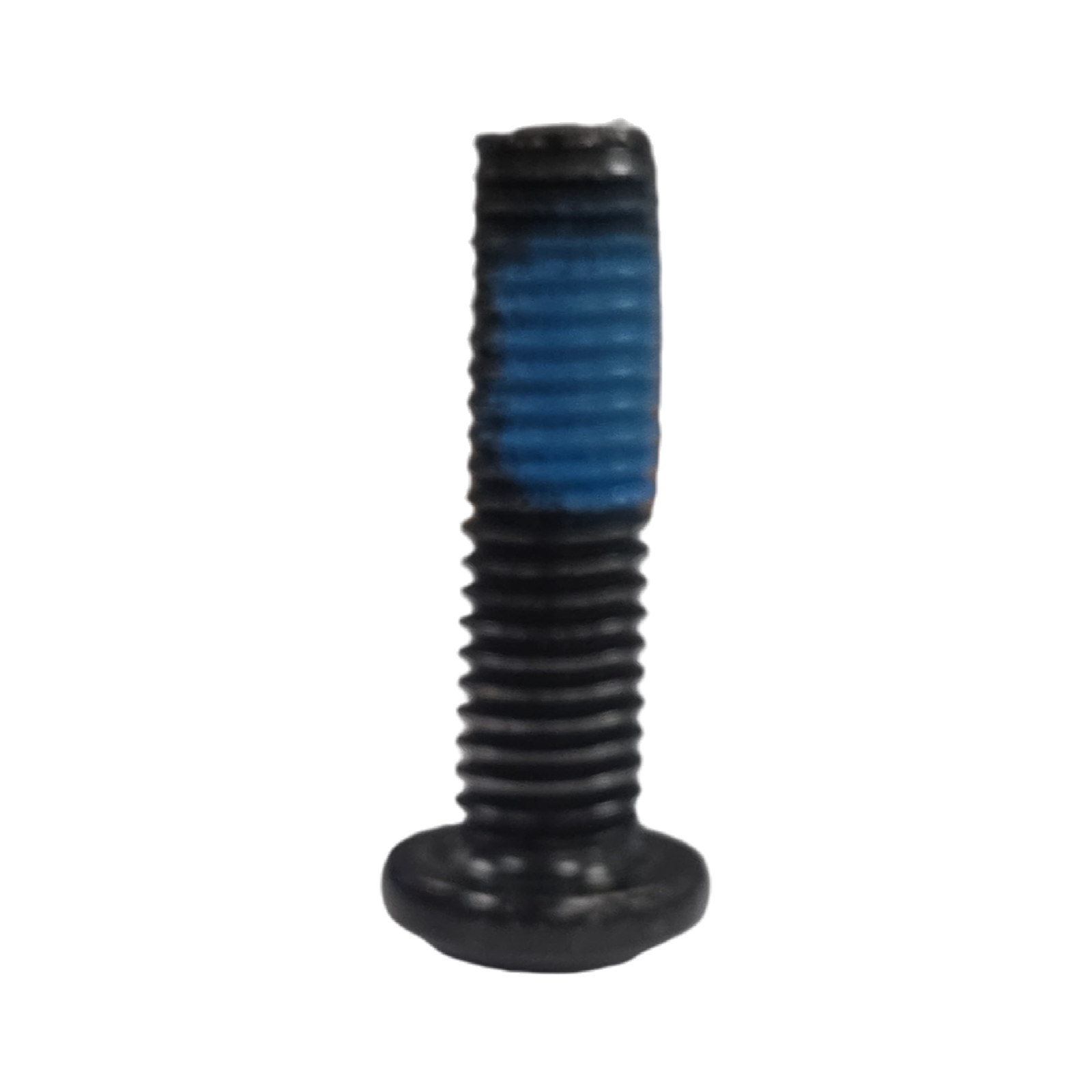

295992	75	M10 X 35MM SCREW	$6.99
183870	76	M8 X 35MM BOLT	$2.49
281558	77A	RT CRANK ARM NUT	$3.49
256446	77B	M8 LOCKNUT	$0.99
262800	78	M10 X 93MM SCREW	$13.99
249930	79	M8 X 20MM SCREW	$2.99
242710	80	M6 X 18MM IDLER SCREW	$0.99
208163	81	PIVOT SCREW	$1.99
331242	#	RECTANGLE GROMMET	$6.49
140069	#	SNAP RING PLIERS	$12.99
116566	#	15 1/2″ CABLE TIE	$0.99
132315	#	CABLE CLAMP	$3.49
333747	#	USER’S MANUAL	$12.49
304951	#	6MM ALLEN WRENCH	$10.99
215823	#	AUDIO WIRE	$11.99
306510	#	5MM ALLEN WRENCH	$6.49
248512	#	OPTIONAL TRANSFORMER / POWER ADAPTER	$18.99
299925	#	WARNING DECAL	$11.49
304974	#	4MM ALLEN WRENCH	$4.49
104838	#	GREASE PACKET	$8.49
146119	#	FLOOR MAT	$79.99
