Freemotion Nordictrack 9600 Tv Nla Treadmill – CTK6502.2 / CTK65022
134 Parts Available for Freemotion Nordictrack 9600 Tv Nla Treadmill - CTK6502.2 / CTK65022 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 188803 | 4 | Drive Roller | NLA | |||
| 185654 | 5 | REAR ROLLER GUARD | $25.99 | |||
| 139451 | 6A | GUARD/ENDCAP SCREW | $0.99 | |||
 | 130853 | 6B | #8 X 12MM SCREW | $0.99 | ||
| GZ1109 | 7A | 1/2″ LOCK NUT | NLA | |||
| 195688 | 8 | REAR PLATFORM SCREW | $4.49 | |||
| 195680 | 9 | INCLINE MOTOR BOLT | $25.49 | |||
| 169015 | 11 | MID FRAME ENDCAP | $7.99 | |||
 | 012149 | 12A | MOTOR PIVOT NUT | $0.99 | ||
| 211708 | 12B | POWER CORD BRACKET | $24.49 | |||
| 195687 | 15 | BRACKET SCREW | NLA | |||
| 104478 | 17 | 3/8″ WASHER | $0.99 | |||
| CC9027 | 21 | OEM WALKING PLATFORM | ||||
 | 119425 | 23 | 3/8″ NUT | $0.99 | ||
| 126963 | 24 | 1/4″ X 4 1/2″ SCREW | $10.99 | |||
| 211703 | 25 | RESISTOR BOX | $75.49 | |||
| CCKT6049 | 26 | CONTROLLER BOX | NLA | |||
| 169021 | 27 | TOP INCLINE MOTOR COVER | $22.49 | |||
| 150605 | 28 | RESISTOR SCREW | $0.99 | |||
| 172258 | 30 | SMALL VOLTAGE DECAL | $18.49 | |||
| 173763 | 31 | #10 X 5/16″ MACHINE SCREW | $0.99 | |||
| 349336 | 33 | 105″ TV CABLE | $116.99 | |||
| 170679 | 34 | BOTTOM INCLINE MTR COVER | $25.49 | |||
| 012139 | 35 | CHOKE NUT | $0.99 | |||
| 139199 | 36 | OUTLET BOLT | $2.49 | |||
 | 195683 | 39 | 3/8″ X 2 1/2″ BOLT | $16.49 | ||
| 169064 | 40 | WHEEL | $3.49 | |||
| 171611 | 41 | CHEST PULSE FOAM | $5.49 | |||
| 012152 | 42 | #8 NUT | $0.99 | |||

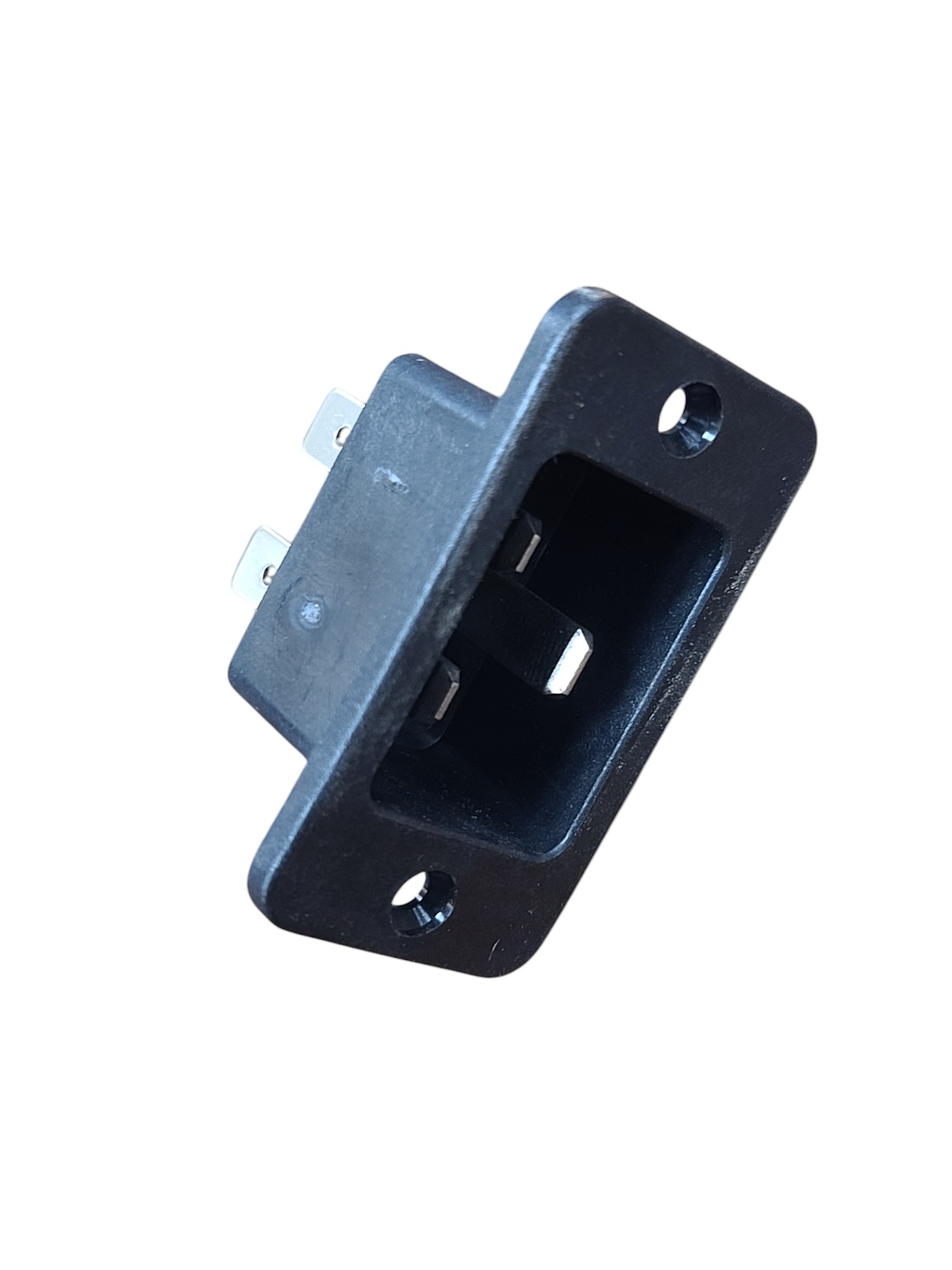

 | 184097 | 44 | RECEPTACLE | $12.99 | ||
| 238751 | 48 | RIGHT WIRING PLATE | NLA | |||
| 174796 | 50 | BOTTOM SPRING BOLT | $0.99 | |||
| 169068 | 51 | FOOT | $24.99 | |||
| 169258 | 53 | LOWER INCLINE MOTOR BOLT | $12.49 | |||
| 169644 | 54 | INCLINE WARNING DECAL | $6.49 | |||
| 128643 | 56 | HANDLE BOLT | $0.99 | |||
| 172256 | 58 | HIGH VOLTAGE DECAL | $7.99 | |||
| 186163 | 60 | RAMP SCREW | $34.49 | |||
| 169062 | 61 | FRAME PIVOT BUSHING | $33.49 | |||
| 169063 | 62 | FRAME SPACER | $0.99 | |||
| 185229 | 63 | J-BOLT WARNING DECAL | $30.99 | |||
| 169014 | 64 | RIGHT FRONT ENDCAP | $11.49 | |||
| 013293 | 67 | 1.75″ BOLT | $1.49 | |||
| 172711 | 68 | MOTOR BUSHING | $0.99 | |||
| 190621 | 69 | Drive Motor | $500.49 | |||
 | 012056 | 70 | NUT | $0.99 | ||
| 169698 | 71 | HAZARDOUS VOLTAGE DECAL | $7.99 | |||
| 171173 | 72 | MOTOR ISOLATOR | $76.49 | |||
| 195682 | 73 | RACK BOLT | NLA | |||
 | 013316 | 74 | 3/4″ SCREW | $0.99 | ||
| 293501 | 75 | SENSOR BRACKET | $25.49 | |||
| 359010 | 76 | REED SWITCH | $134.99 | |||
| 169430 | 80 | IDLER PULLEY BOLT | $25.49 | |||
| 014086 | 82A | CROSSBAR BRACKET WASHER | $0.99 | |||
 | 014132 | 82B | 3/8″ WASHER | $0.99 | ||
| 013547 | 84 | MOTOR TENSION BOLT | $0.99 | |||
| 238672 | 85 | IDLER ARM | $33.99 | |||
| 150991 | 86 | J-BOLT | $9.49 | |||
| 171966 | 87 | SENSOR BRACKET SCREW | $0.99 | |||
| 174784 | 88 | DRIVE MTR GRND WIRE | $16.99 | |||
| 195686 | 91 | UPRIGHT CAP SCREW | $1.49 | |||
| 195685 | 93 | HANDRAIL BOLT | NLA | |||
| 181870 | 94 | HANDRAIL | $249.99 | |||
| 157607 | 95 | HANDRAIL ENDCAP | $3.99 | |||
| 211702 | 96 | LEFT UPRIGHT | $172.49 | |||
| 123883 | 99 | PULSE SENSOR SCREW | $0.99 | |||
 | 013322 | 100 | #8 X 3/4″ SCREW | $0.99 | ||
| 182281 | 102 | PULSE WIRE | $24.49 | |||
| 121671 | 104 | CONTROLLER MTG SCREW | $0.99 | |||
| 195684 | 106 | UPRIGHT BOLT | $5.49 | |||
| 211701 | 107 | RIGHT UPRIGHT | $172.49 | |||
| 045009 | 108 | 5/16″ HEX KEY | $6.49 | |||
| 045017 | 109 | 7/32″ WRENCH | $2.99 | |||
| 045023 | 110 | ALLEN WRENCH | $1.99 | |||
| 016057 | 111 | 8″ CABLE TIE | $2.99 | |||
| 181052 | 112 | ALLEN WRENCH | $5.99 | |||
| 170684 | 113 | PULSE SENSOR BASE | $13.49 | |||
| 171740 | 115 | ELECTRONICS COVER FASTENR | $17.49 | |||
| 169017 | 116 | RIGHT REAR ENDCAP | NLA | |||
| 138504 | 117 | FAN SCREW | $0.99 | |||
| 185159 | 118 | 1/4 X 1/2″ SCREW | $2.49 | |||
| 169267 | 119 | BASE PAD U-NUT | $8.99 | |||
| 211707 | 120 | COVER PLATE | $13.49 | |||
| 185652 | 121 | FRONT ROLLER GUARD | $16.99 | |||
| 195689 | 122 | FRONT PLATFORM BOLT | $4.99 | |||
| 175165 | 123 | ISOLATOR | $28.99 | |||
| 169018 | 124 | LEFT PULLEY ENDCAP | $1.99 | |||
| 174573 | 125 | CENTER ISOLATOR | $27.99 | |||
| 172737 | 129 | RESISTOR WIRE HARNESS | NLA | |||
| 172257 | 132 | STATIC DECAL | NLA | |||
| 014073 | 133 | 5/16″ FLAT WASHER | $1.49 | |||
| 169309 | 135 | FOAM PAD | $78.49 | |||
| 172702 | 136 | RESISTOR | $109.49 | |||
| 163687 | 137 | FAN | $150.49 | |||
| 172703 | 138 | FAN GUARD | $26.99 | |||
| 169146 | 146 | ROLL PIN | $0.99 | |||
| 169265 | 148 | SMALL INSERT | $0.99 | |||
 | 133333 | 149 | #8 HOOD CLIP | $0.99 | ||
| 101896 | 150 | 4″ WHITE WIRE, M/F | $3.49 | |||
| 169431 | 151 | SENSOR BRACKET NUT | $2.49 | |||
| 169726 | 153 | FASTENER RECEPTACLE | $27.99 | |||
| 185408 | 154 | PLASTIC PLATFORM SPACER | $8.99 | |||
| 185410 | 157 | LONG INCLINE BUSHING | $79.49 | |||
| 136018 | 158 | PLASTIC BUSHING | $0.99 | |||
| 169724 | 159 | FASTENER SPRING | $2.99 | |||
| 169725 | 160 | FASTENER RETAINER | $1.49 | |||
| 169661 | 161 | #10 X 14MM SCREW | $0.99 | |||
| 177488 | 162 | BREAKER SCREW | $0.99 | |||
| 172496 | 163 | M4 X 30MM SCREW | $2.99 | |||
| 014126 | 164 | 1/4″ LOCK WASHER | $0.99 | |||
| 211700 | 165 | SWAY BAR | $191.49 | |||
| 174754 | 166 | NYLON WASHER | $5.49 | |||
| 186162 | 167 | SWAY BAR BOLT | $61.49 | |||
| 211704 | 168 | LARGE COVER PLATE | $73.99 | |||
 | 100427 | 169 | 5/16″ NUT | $0.99 | ||
| 429182 | 172 | FERRITE CLAMP | $26.99 | |||
| 172736 | 173 | 7″ FILTER WIRE | $41.99 | |||
| 172420 | 174 | HEADPHONE JACK | $59.99 | |||
| 172738 | # | 4-Inch Blue Wire | NLA | |||
| 116926 | # | RELEASABLE CABLE TIE | $0.99 | |||
| 211861 | # | USER’S MANUAL | $93.99 | |||
| 172494 | # | RESISTOR NUT | $9.49 | |||
| 014157 | # | #8 STAR WASHER | $0.99 | |||
| 190620 | # | STRAIN RELIEF KIT | $39.99 | |||
| 190631 | # | Console Upgrade Kit | $876.49 | |||
| 190622 | # | Bookrack Kit | $69.49 | |||
| 190618 | # | Membrane Switch Kit | $116.49 | |||
| 012135 | # | OUTLET NUT | $0.99 | |||
| 142711 | # | GROUND WIRE | $2.49 | |||
| 172459 | # | PULSE SENSOR BASE | $23.99 | |||
| 120630 | # | GROUND SCREW | $0.99 | |||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
 | 149072 | # | 3/8″ X 1 3/4″ BOLT | $3.99 | ||
| 186164 | # | SWAY BAR NUT | $4.99 |
