FREEMOTION 800 TREADMILL – SFTL99514.1

Brand: Freemotion

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

103 Parts Available for FREEMOTION 800 TREADMILL - SFTL99514.1 ↓

Part #	Diagram #	Title	Price
295136	1	5/16″ X 3/4″ SCREW	$1.49
203283	2	5/16″ X 2″ BOLT	$2.99
349213	4	5/16″ X 2 1/4″ BOLT	$4.49
013300	5A	FINGER GUARD SCREW	$0.99
013322	5B	#8 X 3/4″ SCREW	$0.99
167049	6	#10 X 3/4″ SCREW	$0.99
014149	8	STAR WASHER	$0.99
100427	9	5/16″ INC MTR JAM NUT	$0.99
013576	11A	#8 X 1/2″ AB SCREW	$0.99
194646	11B	1/4″ X 1″ FLAT HEAD SCREW	$0.99
364027	12	1/4″ X 2 1/2″ SCREW	$2.99
186819	13	ELECTRONICS SCREW	$0.99
346519	14	3/8″ X 1 1/2″ BOLT	$3.99
159986	15	3/8″ X 2″ BOLT	$6.49
291486	16	#8 X 5/8″ SCREW	$0.99
128263	17	M4 X 42MM SCREW	$0.99
136728	18	BELT GUIDE SCREW	$0.99
295758	19	5/16″ MOTOR SCREW	$3.49
298484	20	5/16″ X 1 3/4″ SHLDR BOLT	$2.49
360378	21	CONTROLLER CLAMP	$10.99
149072	22	TENSION BOLT	$3.99
162344	23	INCLINE STOP BRACKET	$4.49
013607	24	RSW CLAMP SCREW	$0.99
132315	25	CABLE CLAMP	$3.49
372109	26	1/2″ X 2 1/4″ BOLT	$3.99
298474	27	RUBBER CUSHION	$1.99
372033	28	3/8″ X 1 1/8″ SCREW	$5.49
175284	29	#6 X 13MM SCREW	$0.99
121576	30	SPRING NUT	$2.49
152478	31	5/16″ FLAT WASHER	$0.99
100553	34	1/2″ LOCKNUT	$1.49
119425	35	NUT	$0.99
133333	36	COVER CLIP	$0.99
380930	37	CUSHION	$27.49
413303	38	WARNING DECAL	$3.99
358589	39	WALKING PLATFORM	$191.99

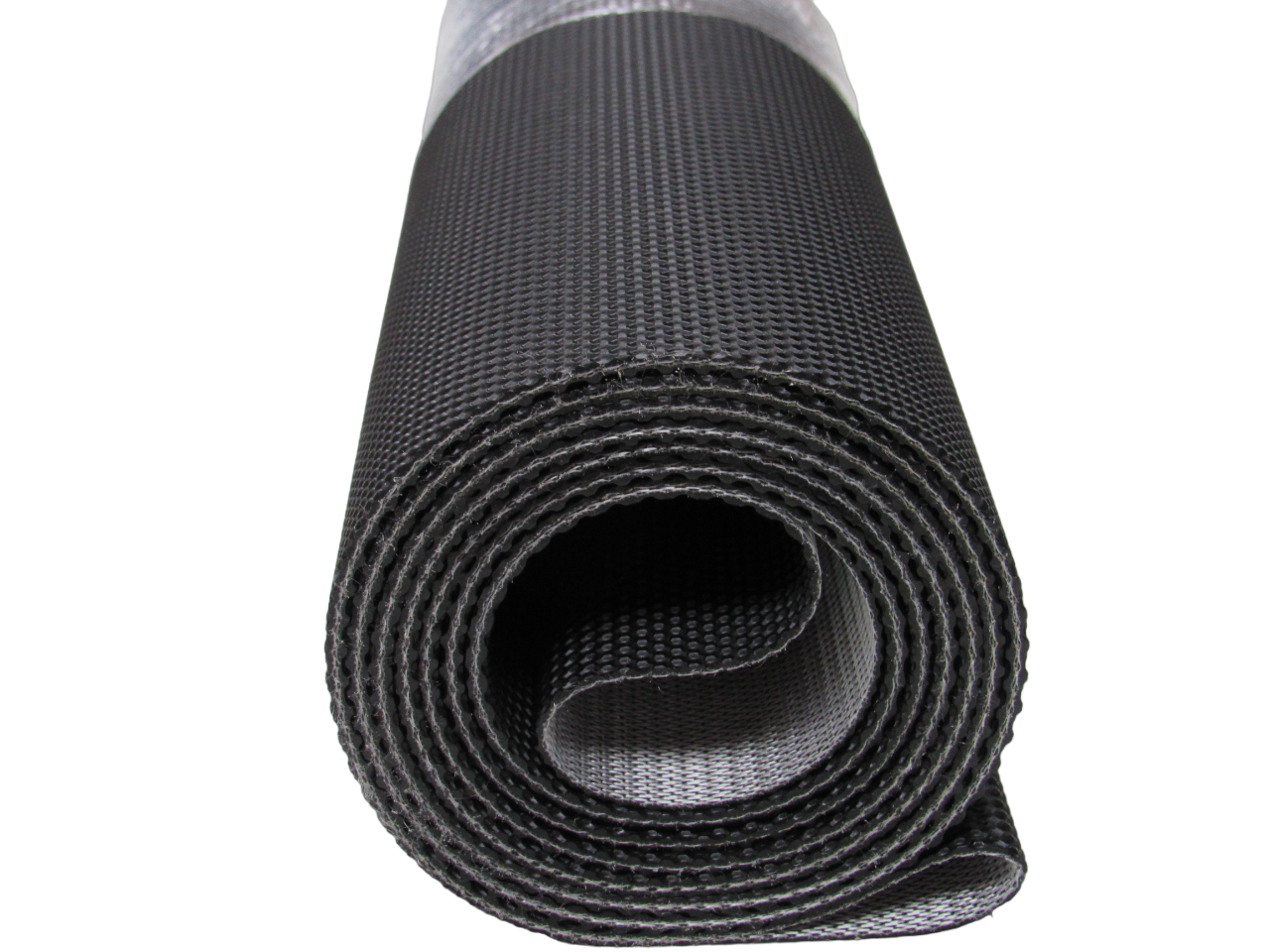

354774	40	WALKING BELT	$163.99
364685	41	LEFT FOOT RAIL	$62.99
364684	42	RIGHT FOOT RAIL	$55.99
198639	43	BELT GUIDE	$5.99
355609	44	LEFT FRAME COVER	$65.99
372092	45	3/8″ PLASTIC BUSHING	$4.99
102973	46	3/8″ THRUST WASHER	$0.99
129144	47	CABLE PULLEY WASHER	$3.49
398074	48	CONTROLLER (376695)	$196.99
014157	49	#8 STAR WASHER	$0.99
361845	50	CONTROLLER BRACKET	$26.99
352011	51	DRIVE ROLLER/PULLEY	$148.49
240351	53	ANCHORED CABLE TIE	$0.99
405597	54	DRIVE MOTOR	$366.49
319256	55	MOTOR BELT	$44.99
388199	56	STORAGE LATCH	$119.49
355610	57	RIGHT FRAME COVER	$65.99
223662	59	IDLER ROLLER	$165.99
358780	61	RIGHT REAR FOOT	$24.99
364683	62	MOTOR HOOD	$126.99
372106	63	INCLINE FRAME SPACER	$2.99
372107	64	FRAME SPACER	$2.99

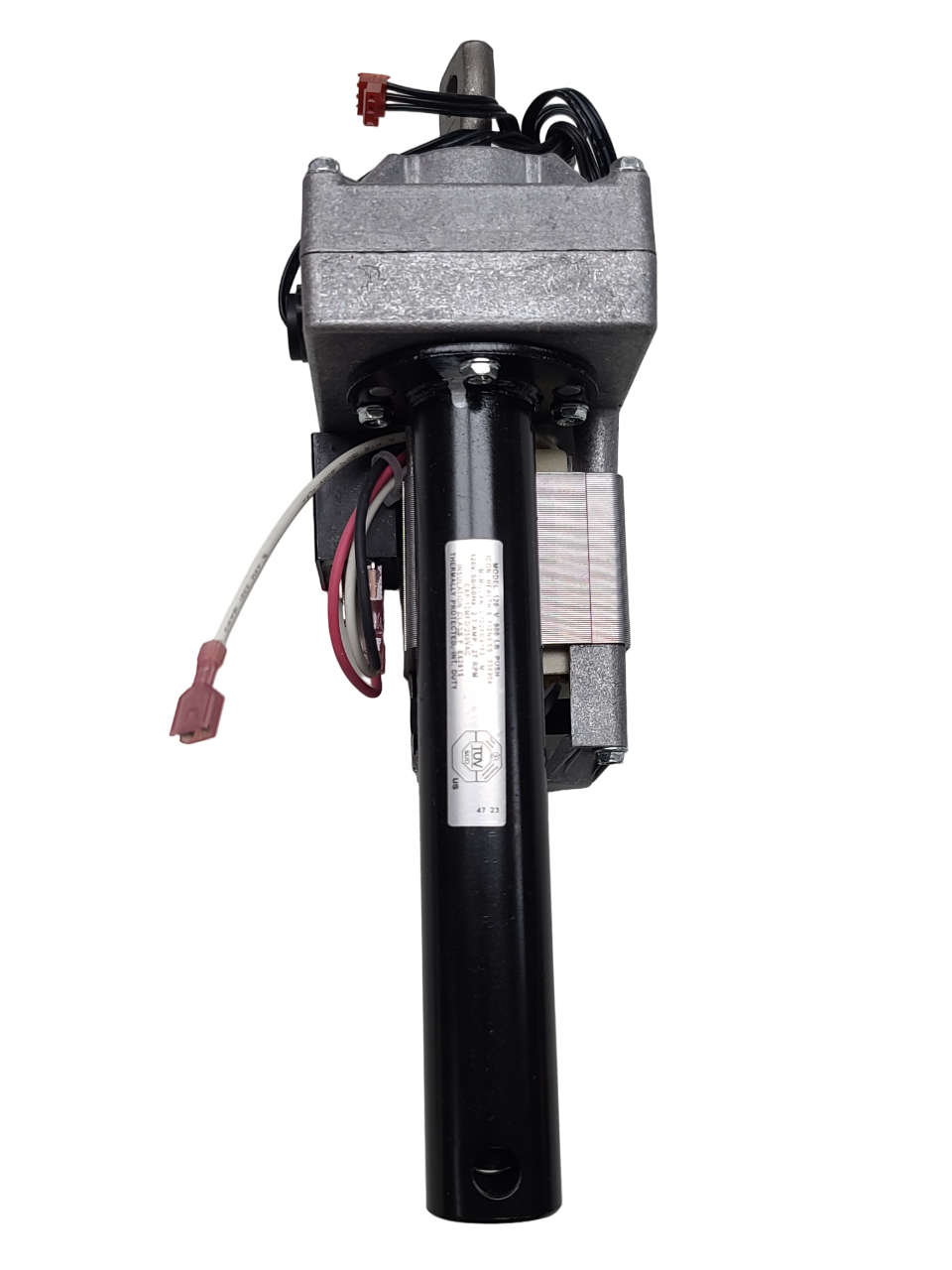

352008	66	INCLINE MOTOR	$156.49
114078	67	INCLINE MOTOR SPACER	$2.49
230979	68	BELLY PAN POST	$5.49
031229	69	POWER CORD	$39.99
331708	70	BUMPON, CNSL SUPPORT	$0.99
186726	71	POWER SWITCH	$22.49
351693	72	BELLY PAN	$99.99
351952	73	LEFT HANDRAIL TOP COVER	$18.99
357773	74	HANDRAIL	$54.49
351951	75	LEFT HANDRAIL BTTM CER	$16.99
364605	76	UPRIGHT CROSSBAR	$52.49
104794	77	CARRIAGE CAP	$1.99
186253	78	SQUARE CAP	$1.99
347877	79	KEY/CLIP	$25.99
351954	81	RIGHT HANDRAIL TOP COVER	$18.99
351953	82	RIGHT HANDRAIL BTTM CVR	$16.49
352053	83	UPRIGHT WIRE	$65.99
252433	85	CAUTION DECAL, NOTE:	$0.99
227199	86	GROMMET	$2.49
353073	87	CONSOLE BASE	$84.49
353430	88	SPEAKER	$61.49
364682	89	LEFT UPRIGHT COVER	$25.99
364654	90	RIGHT UPRIGHT COVER	$25.99
361522	91	RIGHT EXTENSION LEG	$51.49
139090	92	WHEEL	$2.99
361521	93	LEFT EXTENSION LEG	$51.49
351787	94	LEFT TRAY	$11.99
353324	95	FAN	$49.49
372108	97	1/2″ PLASTIC BUSHING	$4.99
116566	#	15 1/2″ CABLE TIE	$0.99
215823	#	AUDIO WIRE	$11.99
016057	#	8″ CABLE TIE	$2.99
209460	#	HEX KEY	$7.99
219168	#	1 TUBE LUBE KIT	$18.99
ARC14	#	WALL ARC FILTER	$42.99
356520	#	ACCESSORY KIT	$62.49
214773	#	6″ JUMPER WIRE	$2.99
146119	#	FLOOR MAT	$79.99
101896	#	4″ WHITE WIRE, M/F	$3.49
EXIF12	#	IFIT WIRI ACCESSORY KIT	NLA
286707	#	LIFT MTR SENSOR WIRE KIT	$70.49
215822	#	4″ WIRE	$5.99
211260	#	12″ WIRE HRNS	$12.99
219170	#	3 TUBE LUBE KIT	$39.49
373500	#	USER’S MANUAL	$24.99
