FREEMOTION 550 E ELLIPTICAL – SFEVEL13713.2
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
144 Parts Available for FREEMOTION 550 E ELLIPTICAL - SFEVEL13713.2 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 332150 | 2 | STBLZR,RR,DELGY | $115.49 | |||
| 373317 | 3 | RAMP | $195.99 | |||
| 337502 | 4 | UPRIGHT | $195.49 | |||
| 332149 | 6 | FRONT STABILIZER | $137.49 | |||
| 347204 | 7A | CONSOLE | $387.99 | |||
| 332155 | 8 | LEFT HANDLEBAR | $73.99 | |||
| 332156 | 9 | RIGHT HANDLEBAR | $73.99 | |||
| 342866 | 11A | INCLINE MOTOR | $146.99 | |||
| 322471 | 11B | INCLINE MOTOR WIRE | $32.49 | |||
| 332165 | 12 | INCLINE MOTOR ARM | $72.49 | |||
| 332166 | 13 | RAMP ARM | $87.49 | |||
 | 320336 | 14 | RAMP ROLLER | $8.49 | ||
| 347205 | 15 | REAR STABILIZER COVER | $152.99 | |||
 | 371314 | 16A | TRACK | $39.99 | ||
| 317273 | 16B | TRACK FOAM TAPE | $13.49 | |||
 | 320335 | 17 | LARGE FRAME BUSHING | $16.99 | ||
| 336715 | 18 | CRANK | $97.99 | |||
| 277369 | 19 | PULLEY | $174.49 | |||
| 332164 | 20 | CRANK ARM | $191.99 | |||
 | 213457 | 21 | M4 X 12MM SCREW | $1.99 | ||
 | 363093 | 22 | IDLER | $116.49 | ||
| 332581 | 23 | M8 X 13MM SCREW,SWINGARM | $6.49 | |||
| 332579 | 24 | M10 X 95MM BOLT | $14.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
| 195975 | 26 | M10 X 42MM BOLT | $12.49 | |||
 | 125819 | 27 | STANDOFF | $3.99 | ||
| 364321 | 28A | EDDY MECHANISM | $403.99 | |||
 | 321678 | 28B | RESISTANCE CABLE | $46.49 | ||
| 362682 | 29 | MECHANISM AXLE | $23.99 | |||
| 332204 | 30 | STABILIZER CAP | $19.99 | |||
 | 316981 | 31A | CONTROLLER W/STANDOFFS | $124.99 | ||
| 144079 | 31B | 6″ GRN/YEL WIRE,F/R | $4.49 | |||
| 250627 | 32A | POWER SWITCH | $16.49 | |||
| 130424 | 32C | 4″ BLACK WIRE,F/F | $4.99 | |||
 | 148803 | 34 | WHEEL | $3.49 | ||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||
 | 143426 | 36 | RAMP BUSHING | $8.99 | ||
| 332176 | 37 | ACCESSORY TRAY | $46.49 | |||
 | 186070 | 38 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 39 | CLAMP | $0.99 | ||
 | 295804 | 40 | PEDAL ARM BEARING | $66.99 | ||
 | 362905 | 41 | SMALL SNAP RING | $1.49 | ||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 332157 | 44 | LEFT PEDAL ARM | $172.49 | |||
| 341023 | 46 | LEFT UPPER BODY LEG | $156.49 | |||
| 332153 | 47 | LEFT UPPER BODY ARM | $100.49 | |||
| 250210 | 48 | HAIRPIN COTTER PIN | $1.99 | |||
| 332195 | 49 | RIGHT PEDAL | $195.49 | |||
 | 275907 | 50A | M10 LOCKNUT, CRANK | $4.49 | ||
 | 148710 | 50B | M10 LOCKNUT | $2.49 | ||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 316468 | 52 | RIGHT GRIP | $80.99 | |||
| 332178 | 53 | LARGE AXLE COVER | $5.49 | |||
 | 287202 | 54 | SMALL WAVE WASHER | $1.99 | ||
 | 308523 | 56 | ROLLER ARM BUSHING | $19.99 | ||
 | 290729 | 57 | PEDAL ARM BEARING ASSY | $43.49 | ||
| 332158 | 58 | RIGHT PEDAL ARM | $172.49 | |||
| 341024 | 60 | RIGHT UPPER BODY LEG | $156.49 | |||
| 332154 | 61 | RIGHT UPPER BODY ARM | $100.49 | |||
| 316467 | 62 | LEFT GRIP | $107.99 | |||
| 333257 | 63A | RIGHT SENSOR ASSY/WIRE | $93.99 | |||
| 399565 | 63B | RIGHT GRIP WIRE | $43.99 | |||
 | 316835 | 64 | PEDAL ARM AXLE | $43.49 | Unavailable to order | |
| 332171 | 65 | RT UPER BDY ARM FR CVR | $68.49 | |||
| 332172 | 66 | RT UPER BDY ARM RR CVR | $54.99 | |||
| 332168 | 67 | LT UPER BODY ARM FR CVR | $65.49 | |||
| 332170 | 68 | LT UPER BODY ARM RR CVR | $54.99 | |||
| 335740 | 69 | RT UPER BDY LEG OUTER CVR | $46.49 | |||
| 335739 | 70 | LT UPER BDY LEG OUTER CVR | $44.99 | |||
| 332169 | 71 | DISC | $25.49 | |||
| 335738 | 72 | LT UPER BDY LEG INNER CVR | $44.99 | |||
| 332394 | 73 | LEFT SHIELD | $153.49 | |||
| 332395 | 74 | RIGHT SHIELD | $153.49 | |||
| 332396 | 75 | SHIELD COVER | $138.99 | |||
| 332216 | 76 | LEFT PEDAL ARM SIDE CAP | $11.99 | |||
| 316841 | 77 | AXLE SPACER | $17.99 | Unavailable to order | ||
| 317196 | 78 | KEY | $5.99 | |||
| 332203 | 79 | FRONT CONSOLE COVER | $25.49 | |||
| 332202 | 80 | REAR CONSOLE COVER | $32.49 | |||
| 333634 | 81A | FR UPRIGHT COVER/RECEIVER | $187.99 | |||
| 361996 | 81B | RECEIVER/WIRE | $87.49 | |||
 | 191032 | 82 | M8 X 13MM SCREW, PULLEY | $1.99 | ||
| 335737 | 83 | RT UPER BDY LEG INNER CVR | $46.49 | |||
| 238278 | 84A | M10 LIFT ARM WASHER | $1.49 | |||
| 248342 | 84B | M10 WASHER | $1.99 | |||
| 310664 | 85 | M4 X 14MM SCREW | $2.99 | |||
| 310999 | 86 | M10 X 58MM HEX BOLT | $8.49 | |||
| 332217 | 87 | RIGHT PEDAL ARM SIDE CAP | $11.99 | |||
 | 208163 | 88 | IDLER SCREW | $1.99 | ||
 | 281150 | 89 | IDLER PIVOT SCREW | $4.49 | ||
 | 014033 | 90 | IDLER WASHER | $1.49 | ||
| 281156 | 91 | BELT ADJUSTMENT SCREW | $8.49 | |||
| 248334 | 92 | M10 X 19MM PATCH SCREW | $5.49 | |||
 | 168267 | 93 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 234930 | 94 | M5 WASHER | $0.99 | |||
 | 206321 | 95 | M8 X 19MM SCREW, NOTE | $3.49 | ||
 | 234732 | 96 | M8 X 37MM PTH SCRW,NOTE: | $4.49 | ||
 | 248349 | 97A | CRANK PVT CAP WSHR | $6.49 | ||
 | 223812 | 97B | M8 X 28MM WASHER | $1.99 | ||
 | 224113 | 98 | M8 X 18MM WASHER | $2.49 | ||
 | 232289 | 99 | M10 X 25MM SCREW | $28.49 | ||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 013162 | 101A | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 194878 | 101B | M4 X 20MM SCREW | $2.99 | ||
 | 195562 | 101C | M4 X 16MM SCREW | $1.99 | ||
 | 256446 | 102A | M8 LOCKNUT | $0.99 | ||
 | 012042 | 102B | M8 LOCKNUT | $1.99 | ||
 | 262341 | 103 | M6 X 12MM SCREW | $3.49 | ||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 252795 | 105 | M10 SPLIT WASHER | $0.99 | |||
 | 286527 | 106A | SNAP MOUNT ONLY | $2.49 | ||
| 303479 | 106B | SNAP MOUNT SCREW | $3.99 | |||
 | 275248 | 107 | M4 X 48MM SCREW | $0.99 | ||

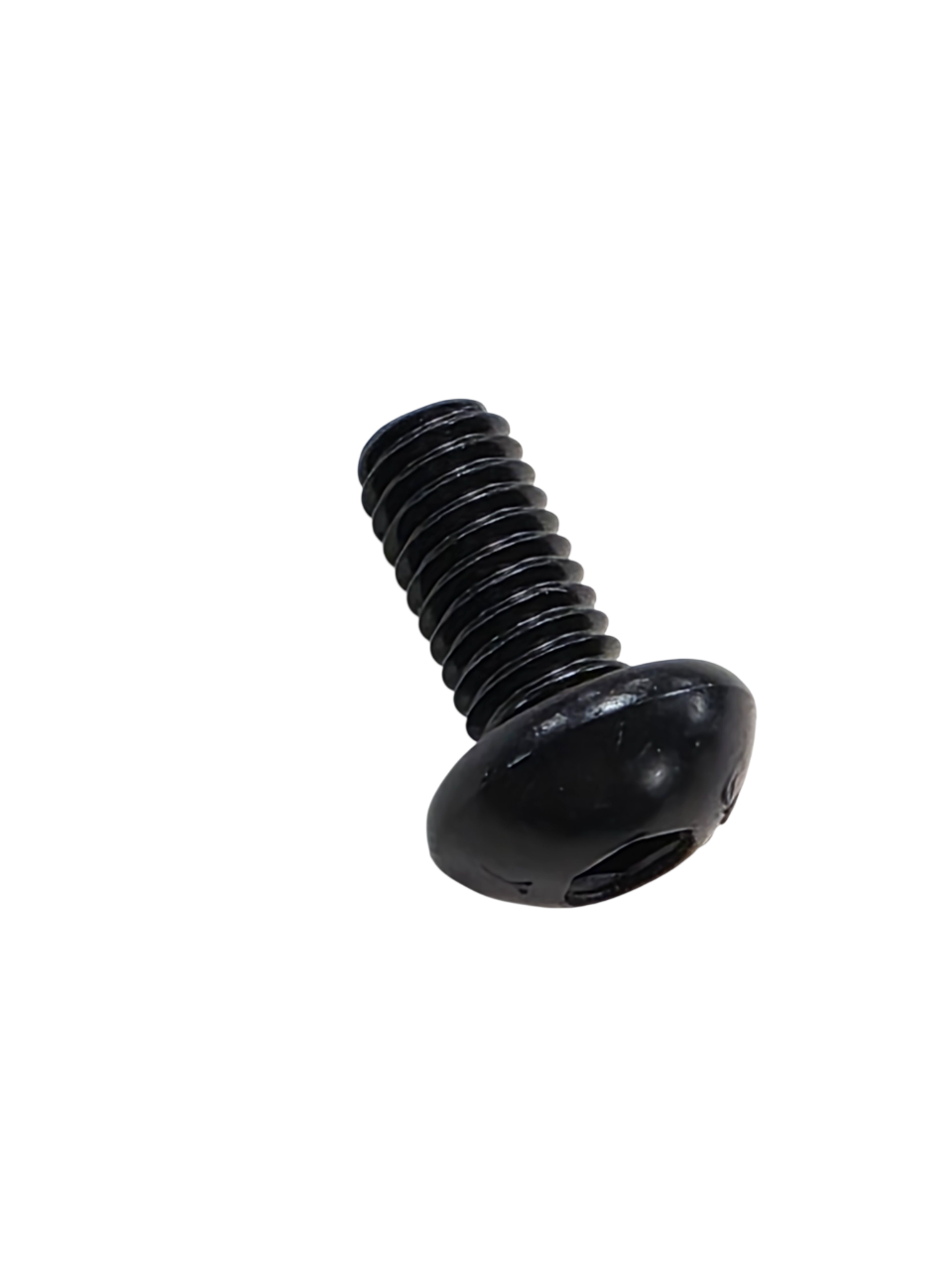

 | 174108 | 108A | M6 X 13MM SCREW | $5.99 | ||
| 153274 | 108B | M8 X 25MM BUTTON SCREW | $3.49 | |||
| 208938 | 109 | M10 X 60MM BUTTON SCREW | $5.99 | |||
| 302755 | 110 | UPPER WIRE | $56.49 | |||
| 324737 | 111 | 20″ WIRE HRNS, RESIST MTR | $30.49 | |||
 | 109231 | 112A | RECEPTACLE | $18.49 | ||
| 342904 | 112B | RECEPTACLE WHITE WIRE | $4.99 | |||
 | 119199 | 113 | DRIVE BELT | $59.99 | ||
 | 322839 | 114 | M4 X 40MM SCREW | $1.49 | ||
| 300804 | 115 | CONTROLLER BRACKET | $29.99 | |||
| 332173 | 116 | DISC RING | $143.49 | |||
| 332174 | 117 | FRONT UPRIGHT COVER | $54.99 | |||
| 332210 | 118 | SHIELD COVER CAP | $87.49 | |||
| 316836 | 120 | RAMP AXLE | $54.99 | |||
 | 237616 | 121 | SMALL FRAME BUSHING | $4.99 | ||
| 320499 | 122 | CLEVIS PIN | $10.99 | |||
| 306635 | 123 | PLASTIC SPACER | $3.49 | |||
| 293639 | 124 | M4 X 19MM SELF-TAP SCREW | $3.49 | |||
 | 157600 | 125 | BUMPER | $1.99 | ||
| 332163 | 127 | CRANK ARM SPACER | $61.49 | |||
| 332183 | 128 | LEFT PEDAL PLATE | $127.99 | |||
| 332224 | 129 | LEFT PEDAL HANDLE | $26.99 | |||
 | 325993 | 130 | PEDAL PIN | $19.99 | ||
 | 321268 | 131 | PEDAL SPRING | $3.49 | ||
| 223084 | 132 | M10 X 140MM BOLT | $14.99 | |||
 | 194653 | 133 | M6 ACORN NUT | $1.99 | ||
| 344180 | 134 | EXTENSION WIRE | $63.49 | |||
| 332223 | 135 | RIGHT PEDAL HANDLE | $26.99 | |||
| 333256 | 136A | LEFT SENSOR ASSEMBLY/WIRE | $102.99 | |||
| 399567 | 136B | LEFT GRIP WIRE | $43.99 | |||
| 332188 | 137 | LEFT PEDAL | $195.49 | |||
| 332186 | 138 | RIGHT PEDAL PLATE | $127.99 | |||
 | 347975 | 139 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
| 371320 | 141 | ROLLER GUIDE | $43.49 | |||
 | 224606 | 142 | M4 X 25MM SCREW | $0.99 | ||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 132315 | # | ZIP TIE | $3.49 | |||
 | 143742 | # | SMALL SNAP RING | $3.99 | ||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| 234276 | # | M4 X 12MM GROUND SCREW | $0.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 331242 | # | RECTANGLE GROMMET | $6.49 | |||
| 273032 | # | SMALL LEVELING FOOT | $17.99 | |||
| 266089 | # | DECAL, GENERAL WRNG,9LANG | $13.99 | |||
 | 268411 | # | M6 SMALL WASHER | $0.99 | ||
| EXIF12 | # | IFIT WIRI ACCESSORY KIT | NLA | Unavailable to order | ||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 116926 | # | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 266084 | # | DECAL, GENERAL WARNING | $14.49 |
