FREEMOTION 545 ELLIPTICAL – SFEL59912.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
158 Parts Available for FREEMOTION 545 ELLIPTICAL - SFEL59912.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 332150 | 2 | STBLZR,RR,DELGY | $115.49 | |||
| 332397 | 3 | RAMP,MAIN,ARPS,W/BSHG | $179.49 | |||
| 332219 | 4 | UPRIGHT | $195.49 | |||
 | 194878 | 5 | M4 X 20MM SCREW | $2.99 | ||
| 332149 | 6 | FRONT STABILIZER | $137.49 | |||
| 332218 | 7B | CNSL REPROG MODULE | $203.49 | |||
| 332155 | 8 | LEFT HANDLEBAR | $73.99 | |||
| 332156 | 9 | RIGHT HANDLEBAR | $73.99 | |||
| 332222 | 10 | RAMP COVER | $108.99 | |||
| 320496 | 11 | INCLINE MOTOR | $156.49 | |||
| 332165 | 12 | INCLINE MOTOR ARM | $72.49 | |||
| 332166 | 13 | RAMP ARM | $87.49 | |||
 | 320336 | 14 | RAMP ROLLER | $8.49 | ||
| 332221 | 15 | REAR STABILIZER COVER | $127.99 | |||
| 320335 | 17 | LARGE FRAME BUSHING | $16.99 | |||
| 336715 | 18 | CRANK | $97.99 | |||
| 277369 | 19 | PULLEY | $174.49 | |||
| 332164 | 20 | CRANK ARM | $191.99 | |||
 | 363093 | 22 | IDLER | $116.49 | ||
| 332581 | 23 | M10 X 15MM SCREW | $6.49 | |||
| 332579 | 24 | M10 X 95MM BOLT | $14.99 | |||
 | 371887 | 25 | RESISTANCE MTR,W/TCD CBL | $105.99 | ||
| 195975 | 26 | M10 X 42MM BOLT | $12.49 | |||
 | 125819 | 27 | STANDOFF | $3.99 | ||
| 325938 | 29 | MECHANISM AXLE | $22.49 | |||
| 332204 | 30 | STABILIZER CAP | $19.99 | |||
 | 316981 | 31 | CONTROLLER | $124.99 | ||
 | 186726 | 32 | POWER SWITCH | $22.49 | ||
 | 148803 | 34 | WHEEL | $3.49 | ||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||
 | 143426 | 36 | UPRIGHT BUSHING | $8.99 | ||
| 332176 | 37 | ACCESSORY TRAY | $46.49 | |||
 | 186070 | 38 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 39 | CLAMP | $0.99 | ||
 | 295804 | 40 | BEARING | $66.99 | ||
| 322163 | 41 | MECHANISM SPACER | $0.99 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 332157 | 44 | LEFT PEDAL ARM | $172.49 | |||
| 332159 | 45 | LEFT ROLLER ARM | $149.99 | |||
| 341023 | 46 | LEFT UPPER BODY LEG | $156.49 | |||
| 332153 | 47 | LEFT UPPER BODY ARM | $100.49 | |||
| 250210 | 48 | HAIRPIN COTTER PIN | $1.99 | |||
| 332195 | 49 | RIGHT PEDAL | $195.49 | |||
 | 275907 | 50A | CRANK ARM M10 LOCKNUT | $4.49 | ||
 | 148710 | 50B | M10 LOCKNUT | $2.49 | ||
 | 390204 | 51 | ROLLER / COVER FIXKIT | $199.99 | ||
| 316468 | 52 | RIGHT GRIP | $80.99 | |||
| 332178 | 53 | LARGE AXLE COVER | $5.49 | |||
 | 287202 | 54 | 16MM WAVE WASHER | $1.99 | ||
 | 308523 | 56 | ROLLER ARM BUSHING | $19.99 | ||
 | 290729 | 57 | ARM BEARING | $43.49 | ||
| 332158 | 58 | RIGHT PEDAL ARM | $172.49 | |||
| 332160 | 59 | RIGHT ROLLER ARM | $149.99 | |||
| 341024 | 60 | RIGHT UPPER BODY LEG | $156.49 | |||
| 332154 | 61 | RIGHT UPPER BODY ARM | $100.49 | |||
| 316467 | 62 | LEFT GRIP | $107.99 | |||
| 333257 | 63A | RIGHT SENSOR ASSY/WIRE | $93.99 | |||
| 399565 | 63B | RIGHT GRIP WIRE | $43.99 | |||
 | 316835 | 64 | PEDAL ARM AXLE | $43.49 | ||
| 332171 | 65 | RT UPER BDY ARM FR CVR | $68.49 | |||
| 332172 | 66 | RT UPER BDY ARM RR CVR | $54.99 | |||
| 332168 | 67 | LT UPER BODY ARM FR CVR | $65.49 | |||
| 332170 | 68 | LT UPER BODY ARM RR CVR | $54.99 | |||
| 335740 | 69 | RT UPER BDY LEG OUTER CVR | $46.49 | |||
| 335739 | 70 | LT UPER BDY LEG OUTER CVR | $44.99 | |||
| 332169 | 71 | DISC | $25.49 | |||
| 335738 | 72 | LT UPER BDY LEG INNER CVR | $44.99 | |||
| 332394 | 73 | LEFT SHIELD | $153.49 | |||
| 332395 | 74 | RIGHT SHIELD | $153.49 | |||
| 332396 | 75 | SHIELD COVER | $138.99 | |||
| 332216 | 76 | LEFT PEDAL ARM SIDE CAP | $11.99 | |||
| 316841 | 77 | AXLE SPACER | $17.99 | |||
| 317196 | 78 | KEY | $5.99 | |||
| 332203 | 79 | FRONT CONSOLE COVER | $25.49 | |||
| 332202 | 80 | REAR CONSOLE COVER | $32.49 | |||
| 333634 | 81 | FR UPRIGHT COVER/RECEIVER | $187.99 | |||
 | 191032 | 82 | M8 X 13MM SCREW | $1.99 | ||
| 335737 | 83 | RT UPER BDY LEG INNER CVR | $46.49 | |||
| 248342 | 84 | M10 RAMP PVT WASHER | $1.99 | |||
| 310664 | 85 | M4 X 14MM SCREW | $2.99 | |||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
| 332217 | 87 | RIGHT PEDAL ARM SIDE CAP | $11.99 | |||
 | 208163 | 88 | PIVOT SCREW | $1.99 | ||
 | 281150 | 89 | IDLER SCREW | $4.49 | ||
 | 014033 | 90 | AXLE WASHER | $1.49 | ||
| 281156 | 91 | BELT ADJUSTMENT SCREW | $8.49 | |||
| 248334 | 92 | M10 X 19MM SCREW | $5.49 | |||
 | 168267 | 93 | M4 X 12MM SCREW | $0.99 | ||
| 234930 | 94 | M5 WASHER | $0.99 | |||
 | 206321 | 95 | M8 X 16MM SCREW | $3.49 | ||
 | 234732 | 96 | M8 X 38MM BOLT | $4.49 | ||
 | 223812 | 97 | M8 WASHER | $1.99 | ||
 | 289434 | 98 | SNAP RING | $1.99 | ||
 | 232289 | 99 | M10 X 25MM SCREW | $28.49 | ||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 013162 | 101A | RSW CLAMP SCREW | $0.99 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 012042 | 102A | M8 NYLON LOCKNUT | $1.99 | ||

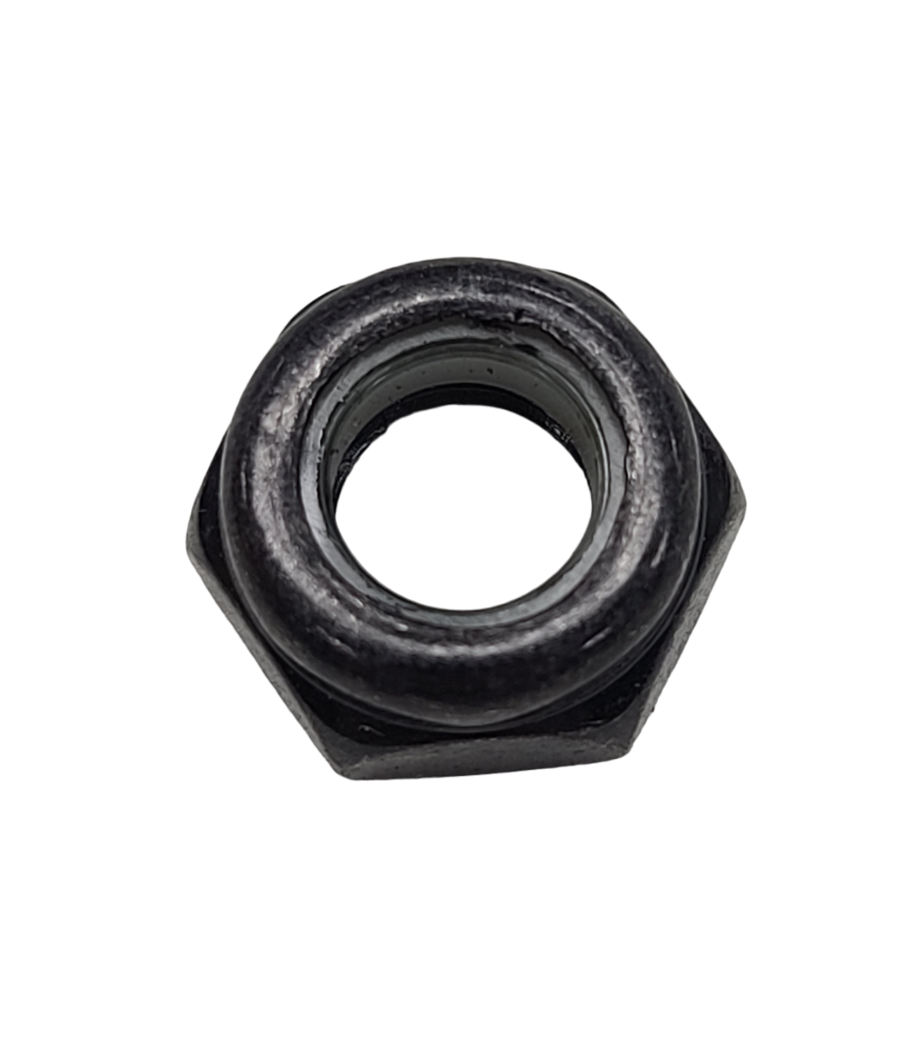

 | 256446 | 102B | M8 FLWL AXLE NUT | $0.99 | ||
| 262341 | 103 | M6 X 12MM SCREW | $3.49 | |||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 252795 | 105 | M10 SPLIT WASHER | $0.99 | |||
 | 286527 | 106A | COVER MOUNT | $2.49 | ||
| 303479 | 106B | COVER MOUNT SCREW | $3.99 | |||
 | 275248 | 107 | M4 X 48MM SCREW | $0.99 | ||
| 153274 | 108 | M8 X 25MM SCREW | $3.49 | |||
| 208938 | 109 | M10 X 60MM BOLT | $5.99 | |||
| 302755 | 110 | UPPER WIRE | $56.49 | |||
| 324737 | 111 | LOWER WIRE HARNESS | $30.49 | |||
 | 313668 | 112 | STRAIN RELIEF,NOTE: | $9.49 | ||
 | 119199 | 113 | DRIVE BELT | $59.99 | ||
 | 322839 | 114 | M4 X 40MM SCREW | $1.49 | ||
| 300804 | 115 | CONTROLLER BRACKET | $29.99 | |||
| 332173 | 116 | DISC RING | $143.49 | |||
| 332174 | 117 | FRONT UPRIGHT COVER | $54.99 | |||
| 332210 | 118 | SHIELD COVER CAP | $87.49 | |||
 | 342275 | 119 | POWER CORD | $49.99 | ||
| 316836 | 120 | RAMP AXLE | $54.99 | |||
 | 237616 | 121 | SMALL FRAME BUSHING | $4.99 | ||
| 320499 | 122 | CLEVIS PIN | $10.99 | |||
| 306635 | 123 | PLASTIC SPACER | $3.49 | |||
 | 157600 | 125 | BUMPER | $1.99 | ||
| 332163 | 127 | CRANK ARM SPACER | $61.49 | |||
| 332183 | 128 | LEFT PEDAL PLATE | $127.99 | |||
| 332224 | 129 | LEFT PEDAL HANDLE | $26.99 | |||
 | 325993 | 130 | PEDAL PIN | $19.99 | ||
| 321268 | 131 | PEDAL SPRING | $3.49 | |||
| 223084 | 132 | M10 X 140MM BOLT | $14.99 | |||
 | 194653 | 133 | M6 ACORN NUT | $1.99 | ||
| 344180 | 134 | EXTENSION WIRE | $63.49 | |||
| 332223 | 135 | RIGHT PEDAL HANDLE | $26.99 | |||
| 333256 | 136A | LEFT SENSOR ASSEMBLY/WIRE | $102.99 | |||
| 399567 | 136B | LEFT GRIP WIRE | $43.99 | |||
| 332188 | 137 | LEFT PEDAL | $195.49 | |||
| 332186 | 138 | RIGHT PEDAL PLATE | $127.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 143742 | # | 3/4″ SNAP RING | $3.99 | ||
 | 214773 | # | 6″ JUMPER WIRE | $2.99 | ||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 132315 | # | CABLE TIE CLAMP | $3.49 | |||
| 266083 | # | DECAL, GENERAL WARNING | $6.49 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
 | 268411 | # | M6 PDL ADT WASHER | $0.99 | ||
| 302754 | # | LIFT MOTOR WIRE HARNESS | $27.49 | |||
| 320644 | # | 30″ BLUE WIRE, F/F | $25.49 | |||
| 331242 | # | RECTANGLE GROMMET | $6.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| 234276 | # | M4 X 10MM GRND SCREW | $0.99 | |||
| 320643 | # | 26″ WHITE WIRE, M/F | $34.99 | |||
| 116926 | # | RELEASABLE CABLE TIE | $0.99 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 332213 | # | USER’S MANUAL | $12.49 | |||
 | 248349 | # | CRANK PVT CAP WSHR | $6.49 | ||
| EXIF12 | # | IFIT WIFI ACCESSORY KIT | NLA | |||
| 361996 | # | PULSE RECEIVER WIRE | $87.49 |
