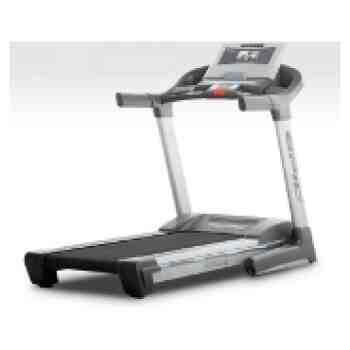

EPIC VIEW 550 TREADMILL – EPTL09706.2
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
108 Parts Available for EPIC VIEW 550 TREADMILL - EPTL09706.2 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 230965 | 1 | FOOT RAIL COVER | NLA | Unavailable to order | ||
 | 013607 | 3 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 013322 | 4A | #8 X 3/4″ SCREW | $0.99 | ||
 | 130659 | 4C | #8 X 3/4″ BLACK SCREW | $0.99 | ||
| 013028 | 4D | #8 X 1″ TRUSS HD SCREW | $0.99 | |||
 | 248927 | 6 | WALKING PLATFORM | $180.49 | ||
| 136728 | 8 | #8 BELT GUIDE SCREW | $0.99 | |||
| 248933 | 9 | ISOLATOR | $29.49 | |||
| 128272 | 10 | TOP ISOLATOR BOLT | $0.99 | |||
 | 246242 | 11 | FRONT ROLLER/PULLEY | $137.99 | ||
| 195476 | 12 | MAGNET | $16.49 | |||
 | 013576 | 13 | CROWN SCREW | $0.99 | ||
 | 131090 | 14 | CLAMP | $0.99 | ||
 | 232962 | 15 | INCLINE ROD BUSHING | $7.49 | ||
| 230979 | 18 | BELLY PAN POST | $5.49 | |||
 | 129542 | 19 | UPRIGHT SPACER | $2.99 | Unavailable to order | |
 | 157504 | 20 | REED SWITCH | $26.99 | ||
 | 100427 | 21 | 5/16″ NUT | $0.99 | ||
 | 162866 | 23 | REAR WALKING BOARD SCREW | $1.49 | ||
| 179767 | 24 | 3/8″ 1 3/4″ BOLT | $61.49 | |||
| 230966 | 25 | IDLER ARM SPACER | $7.49 | |||
 | 227298 | 27 | IDLER ARM SPRING | $2.49 | Unavailable to order | |
 | 248094 | 28 | MOTOR BELT | $38.99 | ||
 | 013300 | 29 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
 | 187160 | 30 | 3/8″ X 1 7/8″ BOLT | $5.49 | ||
 | 287483 | 31 | MOTOR | $289.99 | ||
| 259500 | 32 | MOTOR BOLT | $2.99 | Unavailable to order | ||
| 119439 | 33 | PULLEY NUT | $0.99 | |||
| 238738 | 34 | ELECTRONIC BRACKET | $29.99 | |||
 | 119425 | 38 | 3/8″ LOCKNUT | $0.99 | ||
| 243223 | 41 | AV COVER | $2.99 | |||
 | 133333 | 45 | CLIP NUT | $0.99 | ||
 | 227199 | 46 | GROMMET | $2.49 | ||
 | 248925 | 47 | WALKING BELT | $247.99 | ||
| 169663 | 53 | 3/8″ X 3 3/4″ WHEEL BOLT | $7.99 | |||
| 014064 | 55 | 1/4″ EXTERNAL STAR WASHER | $0.99 | |||
 | 305744 | 56 | SINGLE IDLER ROLLER BOLT | $5.99 | ||
 | 128457 | 57 | 3/16-7/32″ ALLEN WRENCH | $25.49 | ||
 | 248923 | 60 | REAR ROLLER | $146.49 | ||
 | 136012 | 61 | WALKING BOARD NUT | $0.99 | ||
| 137224 | 62 | PLATFORM BOLT, REAR | $0.99 | |||
 | 243861 | 63 | FAN | $91.99 | ||
 | 142622 | 64 | 3/8″ X 1 1/2″ SCREW | $2.99 | ||
| 243208 | 65 | CONSOLE BASE | $150.49 | |||
 | 186819 | 69A | #8 X 1/2″ SCREW | $0.99 | ||
 | 013423 | 69B | GROUND SCREW | $0.99 | ||
| 244406 | 70 | PULSE RECEIVER COVER | NLA | Unavailable to order | ||
 | 243855 | 71 | 30″ RT CNSL WIRE HRNS | $31.49 | ||
| 248879 | 73 | LEFT UPRIGHT | $153.99 | |||
| 248880 | 74 | RIGHT UPRIGHT | NLA | Unavailable to order | ||
| 252954 | 75 | WIRE HARNESS | $92.99 | |||
| 248883 | 76 | LEFT BASE COVER | $116.99 | |||
| 248918 | 77 | RIGHT BASE COVER | $128.99 | |||
 | 014132 | 79 | 3/8″ WASHER | $0.99 | ||
| 014157 | 80 | #8 STAR WASHER | $0.99 | |||
 | 157600 | 81 | BUMPER | $1.99 | ||
 | 146427 | 82 | #8 X 1″ TEK SCREW | $0.99 | ||
| 248917 | 83 | BASE | $265.99 | |||
| 150148 | 85 | 3/8″ X 2 3/8″ SCREW | $4.49 | |||
| 169064 | 86 | WHEEL | $3.49 | Unavailable to order | ||
 | 163045 | 90 | 3/8″ STAR WASHER | $0.99 | ||
| 116926 | 91 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 116927 | 92 | TIE HOLDER CLAMP | $0.99 | |||
| 016057 | 93 | 8″ CABLE TIE | $2.99 | |||
| 254333 | 94 | HANDRAIL COVER | $71.49 | |||
| 287638 | 96 | RIGHT UPRIGHT SLEEVE | $23.99 | |||
| 244789 | 97 | AV CABLE | $26.49 | |||
| 012152 | 98 | PHOTO SWITCH NUT | $0.99 | |||
| 274498 | 99 | HANDRAIL | $139.49 | |||
| 413303 | 101 | WARNING DECAL | $3.99 | |||
| 246337 | 102 | POWER JACK NUT | $2.49 | |||
 | 189813 | 103 | FILTER WIRE | $23.99 | ||
| 142276 | 104A | INCLINE MOTOR BOLT | $1.99 | |||
 | 014126 | 105 | TRACK WASHER | $0.99 | ||
| 223520 | 106 | MOTOR CONTROLLER WIRE | $12.99 | |||
| 241898 | 107 | INCLINE STOP BRACKET | $6.99 | |||
| 245901 | 110 | CONSOLE PLATE | $80.49 | |||
| 012151 | 111 | CABLE NUT | $0.99 | |||
 | 104345 | 112 | VIDEO JACK STAR WASHER | $0.99 | ||
 | 013544 | 113 | 3/8″ X 2″ BOLT | $3.99 | ||
 | 138853 | 114 | PLASTIC FASTENER | $0.99 | ||
 | 244788 | 115 | 96″ A/V HARNESS | $26.99 | ||
| 243797 | 116 | CONSOLE CLAMP | $26.99 | Unavailable to order | ||
 | 149072 | 117 | TENSION BOLT | $3.99 | ||
| 245900 | 120 | LEFT GRIP, NOTE: FOR | $17.99 | |||
| 245899 | 121 | RIGHT GRIP, NOTE: FOR | $17.99 | |||
 | 215822 | 122 | 4″ GRN WIRE | $5.99 | ||
| 243209 | 124 | SPEAKER COVER | NLA | Unavailable to order | ||
| 252433 | 127 | DECAL, CAUTION, BASE LEG | $0.99 | |||
| 246735 | # | DECAL, CNSL LOGO, EPIC | NLA | Unavailable to order | ||
| 221100 | # | TAPE, FRAME | $0.99 | |||
| 243468 | # | USER’S MANUAL | $69.49 | |||
| 243584 | # | DECAL, FRM, COMFORT | $31.99 | |||
| 243469 | # | HARDWARE KIT, NOTE: | $64.99 | |||
| 016063 | # | CLAMP, TWIST TIE | $0.99 | |||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| 248779 | # | CN, LATCH NOT LATCHING | NLA | Unavailable to order | ||
| 243466 | # | TECH SHEET | $0.99 | |||
| 243794 | # | BOOK RACK | NLA | Unavailable to order | ||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
 | 186726 | # | POWER SWITCH | $22.49 | ||
| 243583 | # | DECAL, UPRIGHT LOGO, EPIC | NLA | Unavailable to order | ||
 | 112083 | # | 8″ BLUE WIRE, F/F | $4.49 | ||
| 216738 | # | DECAL, SPACE SAVER | NLA | Unavailable to order | ||
| 158013 | # | FELT PAD. HOOD | $0.99 | |||
 | 161411 | # | BASE FOOT SPACER | $0.99 |
