Weslo Cadence 200Cs Treadmill – WLTL1901.3 / WLTL19013
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
55 Parts Available for Weslo Cadence 200Cs Treadmill - WLTL1901.3 / WLTL19013 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013322 | 5 | #8 X 3/4″ SCREW | $0.99 | ||
| 186496 | 6 | Right Black 3 Bend Handlebar for Fitness Equipment | $77.49 | |||
| 186494 | 7 | 3 Bend Handlebar for Fitness Equipment | $77.49 | |||
| 129639 | 8 | Battery Cover | NLA | Unavailable to order | ||
| 013547 | 9 | INCLINE LEG/MOTOR BOLT | $0.99 | |||
| 118522 | 10 | 6-Inch Screw | NLA | Unavailable to order | ||
 | 014132 | 11 | 3/8″ WASHER | $0.99 | ||
 | 013544 | 12 | 3/8″ X 2″ BOLT | $3.99 | ||
| 155120 | 13 | WHEEL SPACER | NLA | Unavailable to order | ||
 | 139090 | 15 | WHEEL | $2.99 | ||
| 131221 | 16 | HANDRAIL CAP | $1.49 | |||
 | 119425 | 17 | 3/8″ LOCKNUT | $0.99 | ||
| 124695 | 18 | Power Cord Grommet | NLA | Unavailable to order | ||
 | 155030 | 19 | BASE PAD | $1.99 | ||
 | 013162 | 20 | REED SWITCH CLAMP SCRW | $0.99 | ||
| 256836 | 21 | Warning Decal | NLA | Unavailable to order | ||
 | 013300 | 24 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
| 136728 | 26 | #8 BELT GUIDE SCREW | $0.99 | |||
| 198640 | 27 | BELT GUIDE | $25.49 | |||
| 163160 | 28 | ROLLER SPACER | NLA | Unavailable to order | ||
 | 128457 | 29 | 3/16-7/32″ ALLEN WRENCH | $25.49 | ||
| 127890 | 31 | 3/8″ FORMED WASHER | $2.49 | |||
| 238759 | 32 | CONTROLLER BRACKET | NLA | Unavailable to order | ||
 | 014117 | 33 | STAR WASHER | $0.99 | ||
| 116926 | 34 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 107503 | 36 | Motor Bolt | NLA | Unavailable to order | ||
| 188478 | 37 | LEFT FOOT PAD | NLA | Unavailable to order | ||
| 120867 | 38 | MOTOR TENSION NUT | $2.49 | |||
| 147321 | 39 | M10 SPLIT WASHER | $0.99 | |||
| 122812 | 40 | MOTOR TENSION WASHER | $0.99 | |||
 | 012149 | 42 | 3/8″ NUT | $0.99 | ||
| 155353 | 45 | LATCH DECAL | $64.99 | |||
 | 185207 | 46 | REED SWITCH/WIRE | $27.49 | ||
| 116927 | 47 | TIE HOLDER CLAMP | $0.99 | |||
 | 131090 | 48 | CLAMP | $0.99 | ||
 | 113842 | 49 | MAGNET | $1.49 | ||
| 155048 | 50 | BELT,V4,STD,21″L,J-SEC | NLA | Unavailable to order | ||
| 100606 | 51 | 1/4″ X 3″ Screw | NLA | Unavailable to order | ||
| 157498 | 52 | REAR PLATFORM SCREW | $0.99 | |||
| 171462 | 53 | Drive Roller for ProForm 1.6 | $145.99 | |||
| 188479 | 54 | RIGHT FOOT PAD | NLA | Unavailable to order | ||

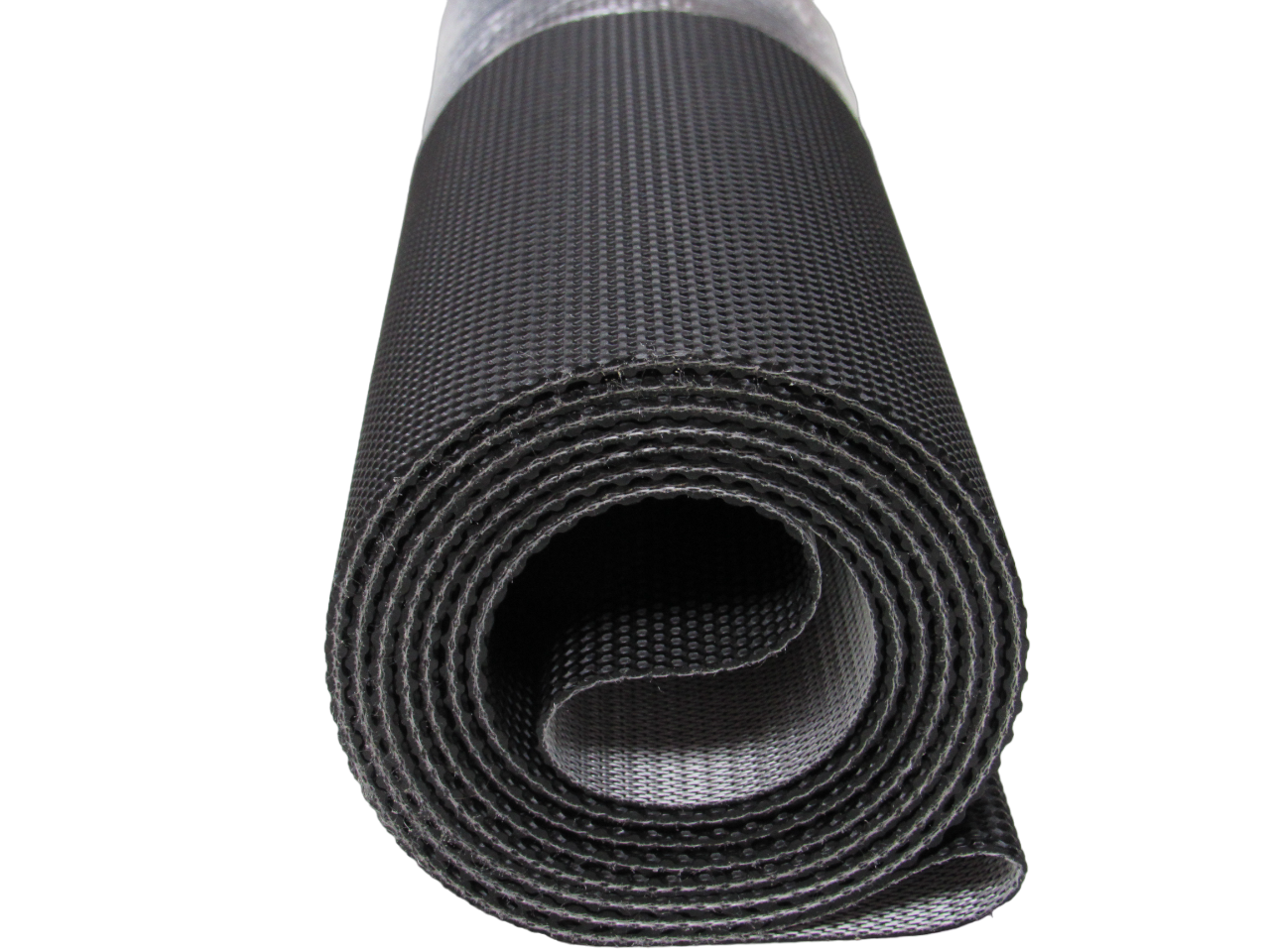

 | 158435 | 56 | OEM Walking Belt | |||
| 132317 | 58 | Incline Pin | NLA | Unavailable to order | ||
| 104621 | 59 | LONG BELLYPAN SCREW | $0.99 | |||
| 155433 | 60 | LIFT FRAME/RLR GRND WIRE | $2.49 | |||
| 216510 | 61 | 8″ CABLE TIE | $0.99 | |||
 | 129004 | 62 | ROUND GROMMET | $1.99 | ||
| 014087 | 64 | WASHER | $0.99 | |||
| 125283 | 65 | Endcap | NLA | Unavailable to order | ||
 | 014063 | 66 | 1/4″ FLAT WASHER | $0.99 | ||
 | 013576 | 68 | CROWN SCREW | $0.99 | ||
| 202561 | 70 | FRAME U-NUT | $4.99 | |||
 | 177655 | 72 | RLR,IDLER,ARPS,1.6 | Unavailable to order | ||
| 111869 | 73 | UPRIGHT CAGE NUT | $2.99 | |||
| 188151 | 74 | WARNING DECAL CONSOLE | $0.99 |
