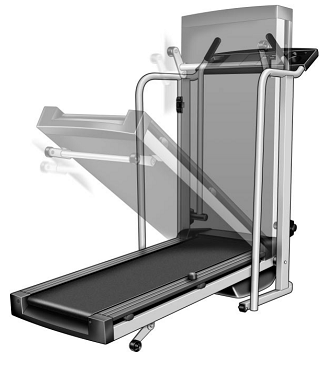

Proform Crosswalk Xl Treadmill – 29921.5 / 299215
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
62 Parts Available for Proform Crosswalk Xl Treadmill - 29921.5 / 299215 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 129639 | 4 | Battery Cover | NLA | Unavailable to order | ||
| 141364 | 6 | Lift Motor | NLA | Unavailable to order | ||
| 166896 | 9 | SPEED CONTROL KNOB | NLA | Unavailable to order | ||
| 166505 | 10 | Fitness Equipment Console Assembly | $147.99 | |||
 | 224019 | 12 | DRIVE BELT (REPLACES 118016) | $19.99 | ||
 | 013322 | 13 | #8 X 3/4″ SCREW | $0.99 | ||
 | 013423 | 15 | GROUND SCREW | $0.99 | ||
| 016057 | 16 | 8″ CABLE TIE | $2.99 | |||
| 112825 | 18 | PULLEY/FLYWHEEL/FAN | $80.49 | |||
| 120630 | 25 | SCREW | $0.99 | |||
| 107503 | 27 | Motor Bolt | NLA | Unavailable to order | ||
| 120867 | 28 | MOTOR TENSION NUT | $2.49 | |||
 | 014117 | 29 | STAR WASHER | $0.99 | ||
| 122812 | 30 | MOTOR TENSION WASHER | $0.99 | |||
| 013547 | 31 | INCLINE LEG/MOTOR BOLT | $0.99 | |||
| 013500 | 33 | 5/16″ X 1 1/2″ SCREW | $2.49 | |||
| 130868 | 36 | SIDERAIL BOLT | $1.49 | |||
| 132314 | 37 | BASE WHEEL | $1.49 | |||
 | 119425 | 38 | 3/8″ LOCKNUT | $0.99 | ||
 | 014063 | 39 | 1/4″ FLAT WASHER | $0.99 | ||
| 126650 | 40 | BUMPER | $0.99 | |||
 | 116980 | 41 | INCLINE LEG CAP | $0.99 | ||
 | 131090 | 43 | CLAMP | $0.99 | ||
| 138680 | 44 | Reed Switch | NLA | Unavailable to order | ||
 | 113842 | 45 | MAGNET | $1.49 | ||
 | 129542 | 47B | UPRIGHT SPACER | $2.99 | Unavailable to order | |
| 128272 | 48 | TOP ISOLATOR BOLT | $0.99 | |||
| 147990 | 50 | FRONT ROLLER/PULLEY | $141.99 | |||
| 013427 | 51 | 1/4″ X 1.5″ Bolt | $0.99 | |||
 | 109382 | 56 | CIRCUIT BREAKER | $15.99 | ||
| 013581 | 58 | IDLER ARM BOLT | $1.99 | |||
| 137873 | 60 | MOTOR BELLYPAN | NLA | Unavailable to order | ||
| 116927 | 61 | TIE HOLDER CLAMP | $0.99 | |||
| 157498 | 62 | REAR PLATFORM SCREW | $0.99 | |||
| 116926 | 63 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 185582 | 64 | CHOKE | $76.99 | |||
| 198640 | 65 | BELT GUIDE | $25.49 | |||
 | 138853 | 66 | PLASTIC FASTENER | $0.99 | ||
| 157150 | 69 | Belly Pan | NLA | Unavailable to order | ||
| 136728 | 70 | #8 BELT GUIDE SCREW | $0.99 | |||
| 149246 | 71 | Incline Wire Harness | NLA | Unavailable to order | ||
| 126996 | 73 | LATCH SCREW | $0.99 | |||
| 117806 | 77 | Incline Wheel Bolt | NLA | Unavailable to order | ||
| 155488 | 78 | Right Front Endcap | NLA | Unavailable to order | ||
 | 012056 | 79 | WHEEL NUT | $0.99 | ||
| 155433 | 80 | LIFT FRAME/RLR GRND WIRE | $2.49 | |||
| 165102 | 82 | Incline Leg | $111.49 | |||
 | 105444 | 83 | REAR ROLLER ADJ BOLT | $0.99 | ||
 | 155809 | 84 | REAR ROLLER ENDCAP | $65.49 | ||
| 155353 | 85 | LATCH DECAL | $64.99 | |||
 | 141089 | 86 | REAR ROLLER | $130.99 | Unavailable to order | |
 | 129004 | 88 | ROUND GROMMET | $1.99 | ||
| 105500 | 89 | FOAM GRIP | NLA | Unavailable to order | ||
| 126970 | 90 | 3 1/2″ BOLT | $2.49 | |||
| 126644 | 91 | RESISTANCE BOLT | $3.99 | Unavailable to order | ||
 | 316450 | 92 | Resistance Bracket | NLA | Unavailable to order | |
 | 126827 | 93 | RESISTANCE SLEEVE | $4.49 | Unavailable to order | |
 | 014132 | 95 | 3/8″ WASHER | $0.99 | ||
 | 102973 | 96 | 3/8″ THRUST WASHER | $0.99 | ||
 | 128005 | 97 | SPRING WASHER | $0.99 | ||
 | 106896 | 98 | THRUST BEARING | $4.49 | ||
| 126843 | 99 | Resistance Knob | NLA | Unavailable to order |
