Nordictrack T 7.0 Treadmill – 24977.0 / 249770
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
93 Parts Available for Nordictrack T 7.0 Treadmill - 24977.0 / 249770 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1 | CROWN SCREW | $0.99 | ||
 | 167049 | 4 | #10 X 3/4″ SCREW | $0.99 | ||
 | 014088 | 5 | #10 STAR WASHER | $1.49 | ||
 | 186819 | 6 | #8 X 1/2″ SCREW | $0.99 | ||
 | 195683 | 7 | 3/8″ X 2 1/2″ BOLT | $16.49 | ||
 | 014149 | 8 | 5/16″ STAR WASHER | $0.99 | ||
 | 012149 | 9 | 3/8″ NUT | $0.99 | ||
 | 163045 | 10 | 3/8″ STAR WASHER | $0.99 | ||
| 292421 | 11 | 5/16″ X 5/8″ SCREW | $1.99 | |||
| 264373 | 12 | 5/16″ X 2 3/4″ Bolt | NLA | Unavailable to order | ||
 | 013300 | 13 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
 | 013322 | 14 | #8 X 3/4″ SCREW | $0.99 | ||
 | 013607 | 15 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 364027 | 16 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 013423 | 17A | GROUND SCREW | $0.99 | ||
 | 256790 | 17B | KEY/CLIP | $19.99 | ||
| 128263 | 18 | M4 X 42MM SCREW | $0.99 | |||
| 136728 | 19 | #8 BELT GUIDE SCREW | $0.99 | |||
 | 295758 | 20 | 5/16″ DRIVE MOTOR SCREW | $3.49 | ||
| 267888 | 21 | 1/4″ X 1 1/2″ SCREW | $2.99 | |||
 | 301976 | 22 | 3/8″ X 1″ BOLT | $2.49 | ||
| 228465 | 24 | 1/4″ X 1 3/4″ SCREW | $2.49 | |||
| 013028 | 25 | #8 X 1″ TRUSS HD SCREW | $0.99 | |||
 | 130659 | 26 | #8 X 3/4″ BLACK SCREW | $0.99 | ||
 | 174320 | 27 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
| 159986 | 28 | TOP INCLINE BOLT | $6.49 | Unavailable to order | ||
| 321855 | 29 | Base | NLA | Unavailable to order | ||
| 014064 | 30 | 1/4″ EXTERNAL STAR WASHER | $0.99 | |||
 | 152478 | 31 | 5/16″ FLAT WASHER | $0.99 | ||
 | 227151 | 32 | FRAME WASHER | $0.99 | ||
 | 100427 | 33 | 5/16″ NUT | $0.99 | ||
 | 133333 | 34 | CLIP NUT | $0.99 | ||
 | 298474 | 35 | SMALL CUSHION | $1.99 | ||
 | 119425 | 36 | 3/8″ LOCKNUT | $0.99 | ||
| 303429 | 38 | ISOLATOR TOP | $2.99 | |||
| 316846 | 39 | ISOLATOR | $26.49 | |||
| 322142 | 40 | CUSHION SPRING | $11.99 | |||

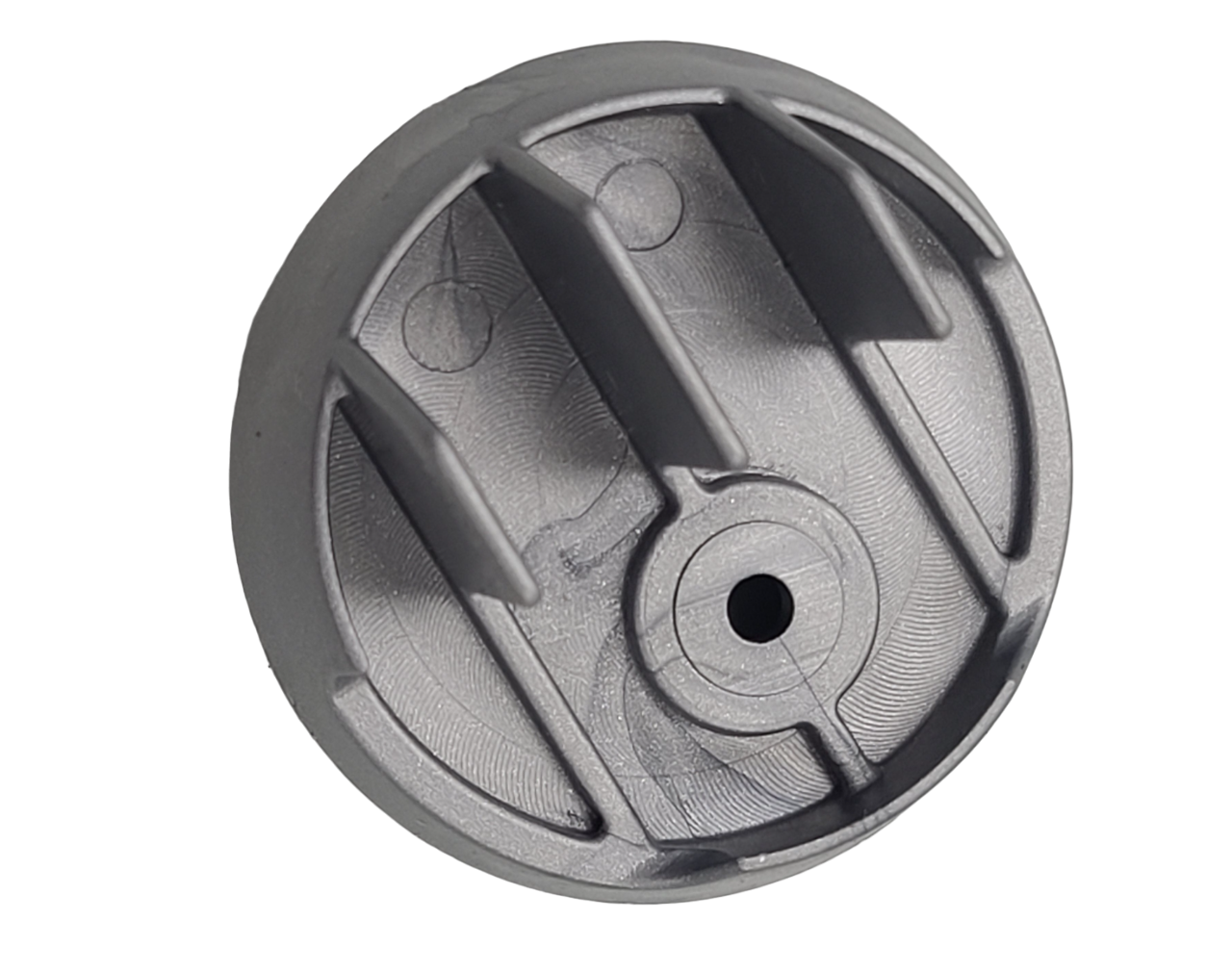

 | 316199 | 41 | ISOLATOR BOTTOM | $2.49 | ||
| 322336 | 42 | Left Foot Rail | NLA | Unavailable to order | ||
| 256836 | 43 | Warning Decal | NLA | Unavailable to order | ||
| 322214 | 44 | WALKING PLATFORM | $137.49 | |||
 | 361794 | 45 | Walking Belt | $179.99 | ||
| 322335 | 46 | Right Foot Rail | NLA | Unavailable to order | ||
 | 198639 | 47 | BELT GUIDE | $5.99 | ||
| 315068 | 48 | 1/2″ PIN | $7.99 | |||
 | 131090 | 49 | CLAMP | $0.99 | ||
| 322216 | 50 | DRIVE ROLLER/PULLEY | $130.49 | |||
 | 157504 | 52 | REED SWITCH | $26.99 | ||
| 240351 | 53 | 8″ WIRE TIE | $0.99 | |||
| 328544 | 54 | Storage Latch | NLA | Unavailable to order | ||
| 319255 | 55 | Part # 319255 | NLA | Unavailable to order | ||
 | 319256 | 56 | MOTOR BELT | $44.99 | ||
 | 316204 | 58 | RIGHT REAR FOOT | $12.49 | ||
 | 316203 | 59 | LEFT REAR FOOT | $12.49 | Unavailable to order | |
| 311127 | 60 | RIGHT REAR COVER | $20.49 | |||
| 311126 | 61 | Left Rear Cover | NLA | Unavailable to order | ||
 | 311588 | 62 | IDLER ROLLER | $114.99 | ||
 | 209460 | 63 | HEX KEY | $7.99 | ||
| 303692 | 65 | MOTOR HOOD | $86.49 | |||
| 322334 | 66 | HOOD ACCENT | $59.49 | |||
 | 223676 | 67 | INCLINE MOTOR | $164.49 | ||
| 343549 | 69 | Incline Frame | $159.49 | |||
| 263165 | 70 | Part # 263165 | NLA | Unavailable to order | ||
| 302705 | 71 | CONTROLLER BRACKET | $12.49 | |||
| 230979 | 72 | BELLY PAN POST | $5.49 | |||
 | 186726 | 73 | POWER SWITCH | $22.49 | ||
 | 031229 | 74 | POWER CORD | $39.99 | ||
 | 173169 | 75 | SQUARE GROMMET | $0.99 | ||
| 332891 | 76 | Belly Pan | NLA | Unavailable to order | ||
| 316358 | 77 | RIGHT HANDRAIL COVER | Unavailable to order | |||
| 316355 | 78 | LEFT HANDRAIL INSERT | $19.49 | |||
| 332432 | 79 | HANDRAIL | $63.49 | |||
 | 215822 | 80 | 4″ GRN WIRE | $5.99 | ||
| 316353 | 81 | Pulse Crossbar | NLA | Unavailable to order | ||
| 316356 | 82 | RIGHT HANDRAIL INSERT | $14.99 | Unavailable to order | ||
| 316526 | 84 | LEFT UPRIGHT | $156.99 | |||
| 316527 | 85 | RIGHT UPRIGHT | Unavailable to order | |||
 | 314515 | 87 | BASE CAP | $1.99 | ||
| 316201 | 88 | LEFT BASE COVER | $15.49 | |||
| 316202 | 89 | RIGHT BASE COVER | $15.49 | |||
 | 227199 | 90 | GROMMET | $2.49 | ||
 | 310717 | 91 | UPRIGHT WIRE | $93.49 | ||
 | 307032 | 92A | BASE PAD | $3.99 | ||
 | 307031 | 92B | STABILIZER FOOT | $2.99 | ||
 | 139090 | 93 | WHEEL | $2.99 | ||
| 252433 | 94 | DECAL, CAUTION, BASE LEG | $0.99 | |||
| 315961 | 95 | LEFT TRAY | NLA | Unavailable to order | ||
| 315962 | 96 | RIGHT TRAY | NLA | Unavailable to order | ||
| 315960 | 98 | CONSOLE BASE | $102.49 | |||
| 132315 | 99 | ZIP TIE | $3.49 | |||
| 317468 | 100 | Fitness Equipment Console | NLA | Unavailable to order | ||
| 321659 | 101 | CONSOLE FRAME | $99.99 | |||
| 243797 | 102 | CONSOLE CLAMP | $26.99 | Unavailable to order |
