Nordictrack T 5.3 Treadmill - 24965.2 / 249652

Nordictrack T 5.3 Treadmill – 24965.2 / 249652

Brand: NordicTrack

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

101 Parts Available for Nordictrack T 5.3 Treadmill - 24965.2 / 249652 ↓

Part #	Diagram #	Title	Price
013322	1	M4 X 19MM SCREW	$0.99
183025	4	5/16″ X 1″ SCREW	$7.49
146427	5	#8 X 1″ TEK SCREW	$0.99
266622	6	3/8″ X 1 3/4″ BOLT	$40.49
215482	7	3/8X4″ SKT HEAD BOLT	$6.49
013544	8	3/8-16 X 2″ SCREW	$3.99
183246	9	LEFT PLATFORM PIVOT BOLT	$1.49
012149	10	3/8″ NYLON LOCKNUT	$0.99
163045	11	3/8″ STAR WASHER	$0.99
014088	12	SENSOR CLAMP WASHER	$1.49
014149	13	5/16″ STAR WASHER	$0.99
135711	14	5/16″X 1″FLT HD PTCH BOLT	$1.99
013300	15	CONSOLE PLATE SCREW	$0.99
125214	16	LONG HOOD SCREW	$0.99
013576	17	#8 X 1/2″ PAN HEAD SCREW	$0.99
013607	18	#8 X 3/4″ TRUSS HD SCREW	$0.99
013529	19	SMALL SCREW	$0.99
162866	20	PLATFORM SCREW, FRONT	$1.49
227191	21	5/16″ X 3 5/8″ BOLT	$2.49
145509	22	3/8″ X 1″ PATCH BOLT	$2.49
364027	24	1/4″ X 2 1/2″ SCREW	$2.99
179767	25	3/8″ X 1 3/4″ BOLT	$61.49
174320	26	3/8″ X 1 1/2″ BOLT	$2.99
141225	27	IDLER ARM PIVOT BOLT	$12.99
186819	28	#8 X 1/2″ GROUND SCREW	$0.99
013423	29	M4 X 16MM PHILLIPS SCREW	$0.99
251607	30	Deckrail Screw	Contact for Pricing
295756	31	1/4″ X 3/8″ SCREW	$0.99
136728	32	#8 X 1/2″ SCREW	$0.99
014129	33	CYLINDER WASHER	$0.99
119425	35	CARRIAGE WHEEL NUT	$0.99
136012	36	PLATFORM NUT	$0.99
133333	37	CLIP NUT	$0.99
203451	38	5/16″ CAGE NUT	$3.99
303196	39	Foot Rail Decal	Contact for Pricing
300376	40	LEFT FOOT RAIL	$62.99
256836	41	Warning Decal	Contact for Pricing
288539	42	Platform Cushion	Contact for Pricing
198639	43	BELT GUIDE	$5.99
266762	44	WALKING PLATFORM	$172.49
252928	45	FRAME CAP	$1.49
251133	46	FRAME SPACER	$1.49
113842	47	MAGNET	$1.49
273189	48	DRIVE ROLLER/PULLEY	$150.49
262854	49	WALKING BELT	$135.99
215823	50	AUDIO WIRE	$11.99
328547	51	Storage Latch	Contact for Pricing
215822	52	4″GRN WIRE M/R, CNTLR GND	$5.99
284929	53	#8 X 1″ SCREW	$0.99
300375	54	RIGHT FOOT RAIL	$66.99
288543	56	Roller Bracket	Contact for Pricing
283024	58	Right Rear Foot	Contact for Pricing
283018	59	Left Rear Foot	Contact for Pricing
249525	60	IDLER ROLLER	$132.49
128457	61	ALLEN WRENCH	$25.49
298775	62	MOTOR HOOD	$74.99
304039	63	Hood Accent	Contact for Pricing
156526	65	8″ GREEN WIRE, 2 RING	$2.99
264179	66	DRIVE BELT	$44.99
286075	67	DRIVE MOTOR	$219.99
102634	68	8″ GRN WIRE F/R, CNTRLR	$3.49
031229	69	POWER CORD	$39.99
173169	70	POWER CORD GROMMET	$0.99
186726	71	POWER SWITCH	$22.49
259522	72	Motor Control Board	Contact for Pricing
165798	73	REED SWITCH	$19.49
131090	74	CLAMP	$0.99
257285	75	BELLY PAN	$86.99
240351	76	CABLE CLAMP	$0.99
016057	77	8″ CABLE TIE	$2.99
116566	78	15.5″ CABLE TIE	$0.99
116926	79	8″ 50 LB CABLE TIE	$0.99
284248	80	Left Upright Cover	Contact for Pricing
257191	81	REAR HANDRAIL ENDCAP	$2.99
288541	82	Left Handrail	Contact for Pricing
288542	83	RIGHT HANDRAIL	$81.49
308057	84	Left Upright	NLA	Unavailable to order
308060	85	RIGHT UPRIGHT	~~$110.99~~ $96.416	Unavailable to order
284247	86	RIGHT UPRIGHT COVER	$16.49
248079	87	WIRE HARNESS	$71.49
298686	88	LEFT BASE COVER	$19.49
251437	89	BASE ENDCAP	$1.49
157600	90	FOOT/BUMPER	$1.99
298685	91	RIGHT BASE COVER	$19.49
252433	92	CAUTION DECAL	$0.99
201563	93	INCLINE WIRE	$12.49
161411	94	EXTENSION LEG SPACER	$0.99
300123	95	BASE	$168.99
139090	96	WHEEL	$2.99
249516	97	INCLINE MOTOR	$160.99
252990	98	INCLINE MOTOR SPACER	Contact for Pricing

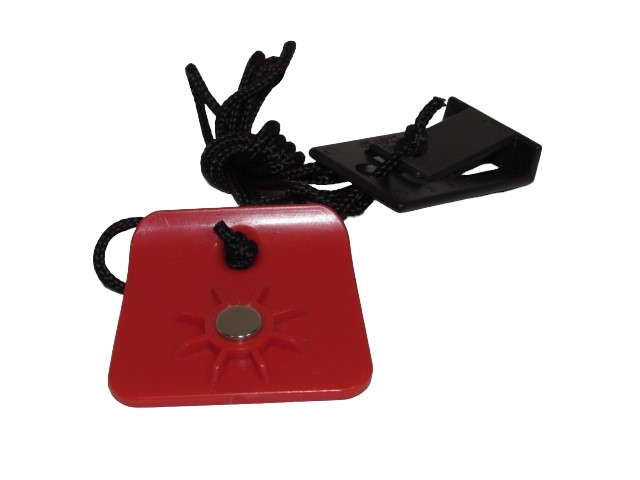

290776	99	KEY/CLIP	$24.49
132315	100	WIRE CLAMP	$3.49
315449	101	Fitness Equipment Console	Contact for Pricing
306298	102	CONSOLE FRAME	$44.99
283674	103	LEFT TRAY	Contact for Pricing
283675	104	RIGHT TRAY	Contact for Pricing
243797	105	CONSOLE CLAMP	$26.99	Unavailable to order
284022	106	CONSOLE BASE	$95.99
296054	107	Crossbar	Contact for Pricing
215158	108	ACCESS DOOR	$1.99
