Nordictrack Elite 3200 Treadmill – NTL21905.2 / NTL219052
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
108 Parts Available for Nordictrack Elite 3200 Treadmill - NTL21905.2 / NTL219052 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 234072 | 1 | FOOT RAIL COVER | $46.49 | |||
 | 013322 | 4 | #8 X 3/4″ SCREW | $0.99 | ||
| 234069 | 5 | Latch Catch | NLA | |||
| 238711 | 6 | WALKING PLATFORM | $177.49 | |||
 | 198641 | 7 | BELT GUIDE | NLA | ||
| 136728 | 8 | BELT GUIDE SCREW | $0.99 | |||
| 248933 | 9 | ISOLATOR | $29.49 | |||
| 128272 | 10 | PLATFORM SCREW | $0.99 | |||
 | 246242 | 11 | FRONT ROLLER/PULLEY | $137.99 | ||
| 195476 | 12 | MAGNET | $16.49 | |||
| 239832 | 13 | CUSHION ADJUSTOR RIGHT | $82.49 | |||
 | 131090 | 14 | CLAMP | $0.99 | ||

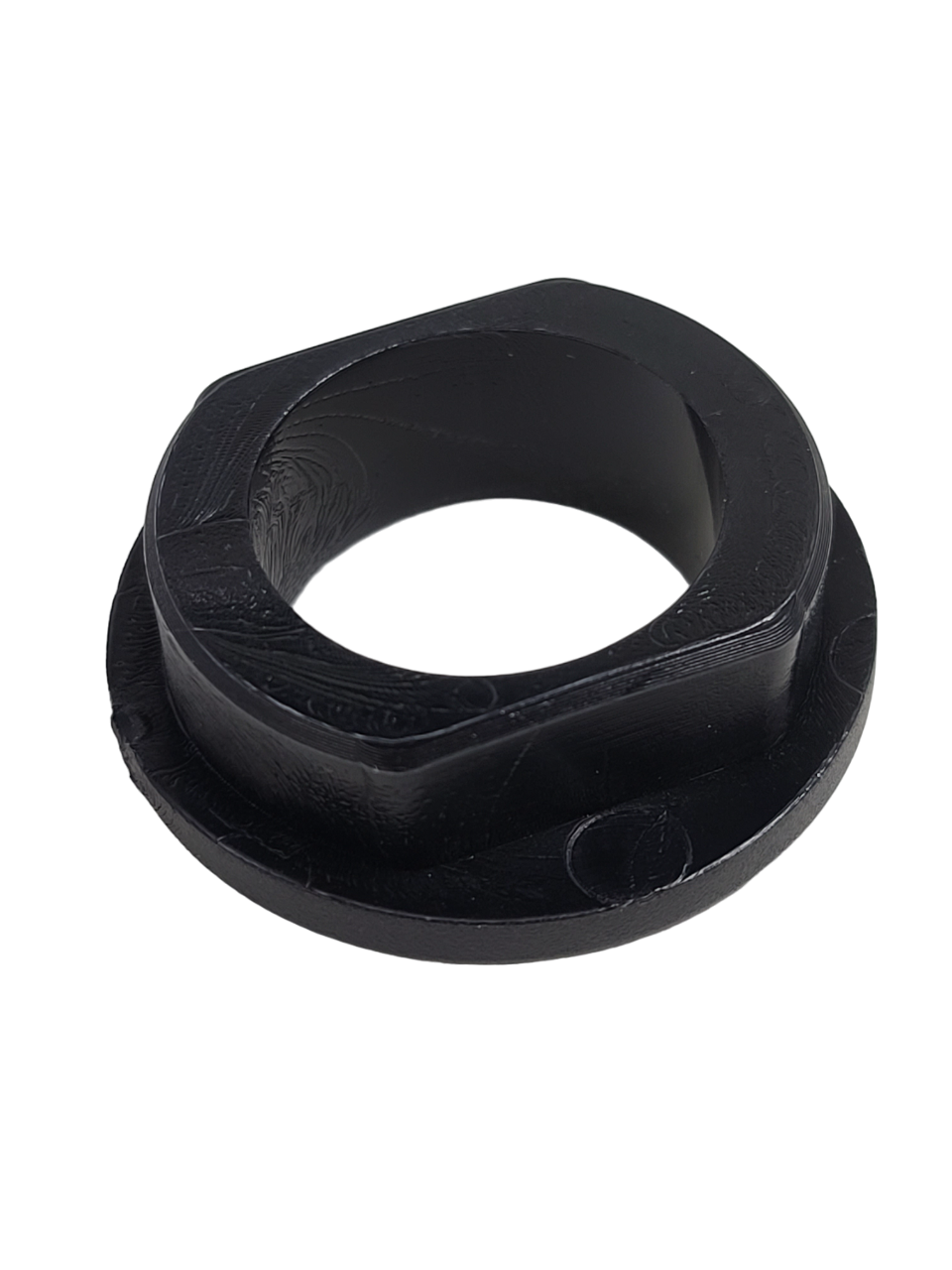

 | 232962 | 15 | INCLINE ROD BUSHING | $7.49 | ||
| 201199 | 17 | Lift Pivot Bolt | NLA | |||
| 230979 | 18 | BELLY PAN POST | $5.49 | |||
 | 129542 | 19 | UPRIGHT SPACER | $2.99 | ||
 | 157504 | 20 | REED SWITCH | $26.99 | ||
 | 100427 | 21 | 5/16″ INC MTR JAM NUT | $0.99 | ||
| 179767 | 24 | 3/8″ X 1 3/4″ BOLT | $61.49 | |||
| 230966 | 25 | IDLER ARM SPACER | $7.49 | |||
| 238665 | 26 | Idler Arm | NLA | |||
 | 227298 | 27 | IDLER ARM SPRING | $2.49 | ||
 | 248094 | 28 | MOTOR BELT | $38.99 | ||
 | 013300 | 29 | FINGER GUARD SCREW | $0.99 | ||
 | 187160 | 30 | 3/8″ X 1 7/8″ BOLT | $5.49 | ||
 | 287483 | 31 | MOTOR | $289.99 | ||
| 175162 | 32 | TENSION BOLT | $2.99 | |||
| 119439 | 33 | PULLEY NUT | $0.99 | |||
| 238738 | 34 | ELECTRONIC BRACKET | $29.99 | |||
| 234115 | 35 | Front Endcap | NLA | |||
 | 252234 | 36 | Fitness Equipment Controller | NLA | ||
 | 119425 | 38 | NUT | $0.99 | ||
| 176305 | 40 | Incline Motor Bolt | $4.49 | |||
 | 013576 | 41 | #8 X 1/2″ AB SCREW | $0.99 | ||
| 238769 | 42 | CUSHION ADJUSTOR LEFT | $80.99 | |||
 | 031229 | 43A | POWER CORD | $39.99 | ||
 | 173169 | 43B | POWER CORD PLATE | $0.99 | ||
| 235151 | 43C | Power Bracket | NLA | |||
| 249464 | 44 | Hood for Fitness Equipment | NLA | |||
 | 133333 | 45 | COVER CLIP | $0.99 | ||
 | 227199 | 46 | GROMMET | $2.49 | ||
 | 240567 | 47 | OEM WALKING BELT | $296.99 | ||
| 153210 | 49 | M4.2 X 18MM SCREW | $0.99 | |||
| 248311 | 50 | TRANSFORMER | $106.99 | |||
| 234032 | 51 | RIGHT REAR FOOT | $23.49 | |||
| 191892 | 52 | Rear Wheel | NLA | |||
| 169663 | 53 | 3/8″ X 3 3/4″ WHEEL BOLT | $7.99 | |||
| 234030 | 54 | RIGHT REAR ENDCAP | $25.49 | |||
| 014126 | 55 | TRACK WASHER | $0.99 | |||
 | 305744 | 56 | SINGLE IDLER ROLLER BOLT | $5.99 | ||
 | 128457 | 57 | 3/16″-7/32″ ALLEN WRENCH | $25.49 | ||
| 234031 | 58 | LEFT REAR FOOT | $23.49 | |||
| 234029 | 59 | Left Rear Endcap | NLA | |||
 | 248923 | 60 | REAR ROLLER | $146.49 | ||
| 136012 | 61 | WALKING PLATFORM NUT | $0.99 | |||
| 137224 | 62 | PLATFORM BOLT, REAR | $0.99 | |||
| 248530 | 63 | HOOD COVER | $113.49 | |||
 | 142622 | 64 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
| 240442 | 65 | Console Base | $113.49 | |||
| 158157 | 68 | Static Decal | NLA | |||
 | 186819 | 69 | ELECTRONICS SCREW | $0.99 | ||
| 200028 | 70 | ACCESS DOOR | $1.99 | |||
 | 163045 | 71 | 3/8″ STAR WASHER | $0.99 | ||
| 013438 | 72 | CROSSBAR BOLT | $1.49 | |||
| 249625 | 73 | LEFT UPRIGHT | $203.49 | |||
| 249626 | 74 | RIGHT UPRIGHT | $203.49 | |||
| 249627 | 75 | Upright Wire | NLA | |||
| 111869 | 76 | UPRIGHT CAGE NUT | $2.99 | |||
 | 186726 | 77 | POWER SWITCH | $22.49 | ||
 | 014132 | 78 | IDLER PULLEY WASHER | $0.99 | ||
 | 121204 | 79 | #8 X 1 1/4″ SCREW | $0.99 | ||
 | 157600 | 81 | BASE PAD | $1.99 | ||
 | 146427 | 82 | #8 X 1″ TEK SCREW | $0.99 | ||
| 248325 | 83 | BASE | $209.99 | |||
| 014064 | 84 | STAR WASHER | $0.99 | |||
| 150148 | 85 | WHEEL BOLT | $4.49 | |||
| 169064 | 86 | WHEEL | $3.49 | |||
| 252433 | 87 | CAUTION DECAL, NOTE: | $0.99 | |||
| 230063 | 88 | SHOCK | $103.99 | |||
 | 208603 | 89 | KEY/CLIP | $19.99 | ||
 | 014117 | 90 | STAR WASHER | $0.99 | ||
| 116926 | 91 | RELEASABLE TIE | $0.99 | |||
| 116927 | 92 | CABLE TIE CLAMP | $0.99 | |||
| 016057 | 93 | 8″ CABLE TIE | $2.99 | |||
| 234066 | 94 | HANDRAIL ENDCAP | $2.99 | |||
| 234071 | 95 | Handrail Spacer | NLA | |||
| 219610 | 96 | LATCH SLEEVE | $2.49 | |||
| 234067 | 97 | TOP HANDRAIL ENDCAP | $3.49 | |||
| 012152 | 98 | GROUND NUT | $0.99 | |||
| 249972 | 99 | HANDRAIL | $235.49 | |||
| 256836 | 101 | Warning Decal | NLA | |||
| 228061 | 102 | GAS SPRING CLIP KIT | $3.49 | |||
 | 189813 | 103 | 6″ FILTER WIRE | $23.99 | ||
| 142276 | 104 | INCLINE BOLT | $1.99 | |||
| 211260 | 106 | 12″ WIRE HRNS | $12.99 | |||
| 241898 | 107 | INCLINE STOP BRACKET | $6.99 | |||
| 223505 | 108 | Wheel Spacer | NLA | |||
| 132315 | 109 | CABLE CLAMP | $3.49 | |||
| 179151 | 110 | TV CABLE | $19.99 | |||
| 012151 | 111 | CABLE NUT | $0.99 | |||
| 165831 | 113 | Pulse Strap | NLA | |||
| 165829 | 114 | CHEST PULSE RECEIVER | $85.99 | |||
| 194020 | 115 | BATTERY DOOR SCREW | $0.99 | |||
| 215823 | 116 | AUDIO WIRE | $11.99 | |||
| 227757 | 117 | Ground Wire Cable | NLA | |||
| 216122 | 118 | CONSOLE GROUND WIRE | $3.99 | |||
| 252235 | 119 | Console Fan | $66.99 | |||
| 237006 | 120 | Console Lens | $68.99 |
