Nordictrack C 700 Treadmill – NTL79012.1 / NTL790121
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
94 Parts Available for Nordictrack C 700 Treadmill - NTL79012.1 / NTL790121 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1 | M4 X 16MM FLAT HEAD SCREW | $0.99 | ||
 | 167049 | 4 | #10 X 3/4″ SCREW | $0.99 | ||
 | 014088 | 5 | #10 STAR WASHER | $1.49 | ||
 | 186819 | 6 | 1/2″ SCREW | $0.99 | ||
 | 195683 | 7 | 3/8″ X 2 1/2″ BOLT | $16.49 | ||
 | 014149 | 8 | 5/16″ STAR WASHER | $0.99 | ||
 | 012149 | 9 | LATCH SHOCK NUT | $0.99 | ||
 | 163045 | 10 | 3/8″ STAR WASHER | $0.99 | ||
| 013470 | 11 | 5/16″ X 5/8″ SCREW | $1.49 | |||

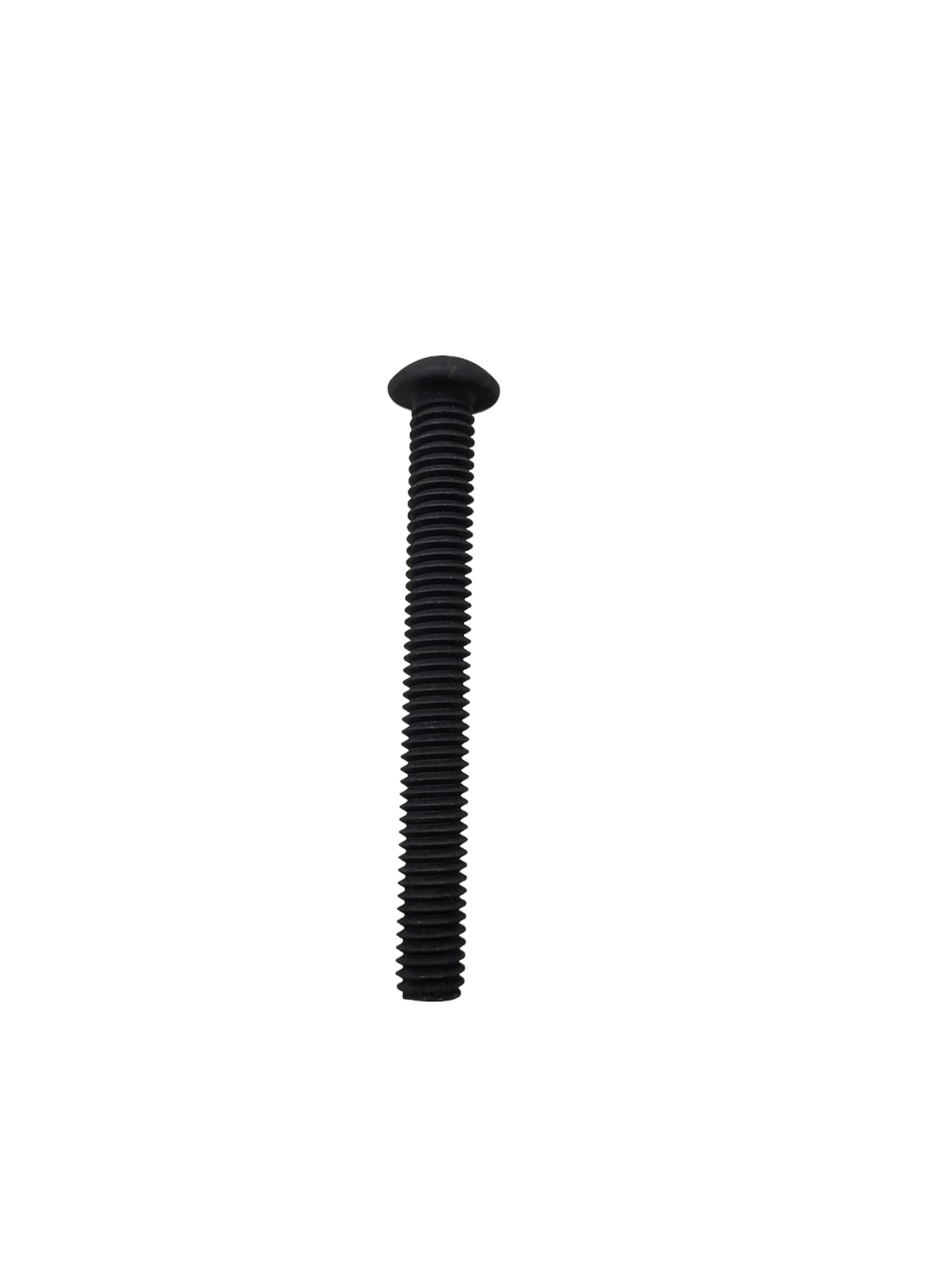

 | 227496 | 12 | 2 x 3/4″ Bolt | NLA | ||
 | 013300 | 13 | 3/4″ SCREW | $0.99 | ||
 | 013322 | 14 | SCREW | $0.99 | ||
 | 013607 | 15 | #8 X 3/4″ SCREW | $0.99 | ||
 | 364027 | 16 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 256790 | 17 | KEY/CLIP | $19.99 | ||
| 128263 | 18 | LONG CONSOLE SCREW | $0.99 | |||
| 136728 | 19 | BELT GUIDE SCREW | $0.99 | |||
| 295758 | 20 | 1/4″ MOTOR BOLT | $3.49 | |||
| 267888 | 21 | 1/4″ X 1 1/2″ SCREW | $2.99 | |||
 | 301976 | 22 | 3/8″ X 1″ BOLT | $2.49 | ||
| 228465 | 24 | 1/4″ X 1 3/4″ SCREW | $2.49 | |||
| 013028 | 25 | FRONT CAP SCREW | $0.99 | |||
 | 130659 | 26 | BELLY PAN SCREW | $0.99 | ||
 | 174320 | 27 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
| 159986 | 28 | LIFT MOTOR BOLT | $6.49 | |||
| 321855 | 29 | Base | NLA | |||
| 014064 | 30 | REAR ROLLER STAR WASHER | $0.99 | |||
 | 152478 | 31 | 5/16″ FLAT WASHER | $0.99 | ||
 | 227151 | 32 | INCLINE FRAME WASHER | $0.99 | ||
 | 100427 | 33 | IDLER ARM NUT | $0.99 | ||
 | 133333 | 34 | CLIP | $0.99 | ||
 | 298474 | 35 | RUBBER CUSHION | $1.99 | ||
 | 119425 | 36 | LOCK NUT | $0.99 | ||
 | 307032 | 37 | BASE PAD | $3.99 | ||
| 303429 | 38 | ISOLATOR TOP | $2.99 | |||
| 316846 | 39 | ISOLATOR | $26.49 | |||
| 322142 | 40 | RAMP SPRING | $11.99 | |||
 | 332349 | 41 | ISOLATOR BOTTOM | $3.99 | ||
| 322336 | 42 | Left Foot Rail | NLA | |||
| 256836 | 43 | Warning Decal | NLA | |||
| 322214 | 44 | WALKING PLATFORM | $137.49 | |||
 | 361794 | 45 | Walking Belt | $179.99 | ||
| 322335 | 46 | Right Foot Rail | NLA | |||
 | 198639 | 47 | BELT GUIDE | $5.99 | ||
| 315068 | 48 | 3/8″ PIN | $7.99 | |||
 | 131090 | 49 | REED SWITCH CLIP | $0.99 | ||
| 322216 | 50 | DRIVE ROLLER/PULLEY | $130.49 | |||
 | 157504 | 52 | REED SWITCH | $26.99 | ||
| 240351 | 53 | 50# WIRE CLAMP | $0.99 | |||
| 328544 | 54 | Storage Latch | NLA | |||
| 319255 | 55 | Part # 319255 | NLA | |||
 | 284711 | 56 | MOTOR BELT | $43.49 | ||
 | 316204 | 58 | RIGHT REAR FOOT | $12.49 | ||
 | 316203 | 59 | LEFT REAR FOOT | $12.49 | ||
| 311127 | 60 | RIGHT REAR COVER | $20.49 | |||
| 311126 | 61 | Left Rear Cover | NLA | |||
| 311588 | 62 | IDLER ROLLER | $114.99 | |||
| 316219 | 63 | Console Frame | NLA | |||
| 337721 | 64 | Fitness Equipment Console | NLA | |||
| 303692 | 65 | MOTOR HOOD | $86.49 | |||
| 322515 | 66 | Hood Accent | NLA | |||
 | 223676 | 67 | INCLINE MOTOR | $164.49 | ||
| 343447 | 68 | FRAME SPACER | $6.49 | |||
| 343393 | 69 | Incline Frame | NLA | |||
| 263165 | 70 | Part # 263165 | NLA | |||
| 302705 | 71 | ELECTRONICS PLATE | $12.49 | |||
| 230979 | 72 | HOOD MOUNT | $5.49 | |||
 | 186726 | 73 | RESET/OFF CIRCUIT BREAKER | $22.49 | ||
 | 031229 | 74 | POWER CORD | $39.99 | ||
 | 173169 | 75 | POWER CORD GROMMET | $0.99 | ||
| 332891 | 76 | Belly Pan | NLA | |||
| 316357 | 77 | LEFT HANDRAIL COVER | $54.49 | |||
| 316355 | 78 | LEFT HANDRAIL INSERT | $19.49 | |||
| 332432 | 79 | HANDRAIL | $63.49 | |||
 | 215822 | 80 | 4″ GREEN WIRE, M/RING | $5.99 | ||
| 316353 | 81 | Pulse Crossbar | NLA | |||
| 316356 | 82 | RIGHT HANDRAIL INSERT | $14.99 | |||
| 316358 | 83 | RIGHT HANDRAIL COVER | ||||
| 338012 | 84 | Left Upright | $172.99 | |||
| 338013 | 85 | RIGHT UPRIGHT | $155.49 | |||
| 243797 | 86 | CONSOLE CLAMP | $0.99 | |||
 | 314515 | 87 | BASE CAP | $1.99 | ||
| 316201 | 88 | LEFT BASE COVER | $15.49 | |||
| 316202 | 89 | RIGHT BASE COVER | $15.49 | |||
 | 227199 | 90 | UPRIGHT WIRE GROMMET | $2.49 | ||
 | 310717 | 91 | UPRIGHT WIRE | $93.49 | ||
| 307031 | 92 | BASE PAD 1/4″ THICK | $2.99 | |||
 | 139090 | 93 | WHEEL | $2.99 | ||
| 252433 | 94 | CAUTION DECAL | $0.99 | |||
| 315961 | 95 | LEFT TRAY | NLA | |||
| 315962 | 96 | RIGHT TRAY | NLA | |||
 | 013423 | 97 | LATCH PLATE SCREW | $0.99 | ||
| 332583 | 98 | CONSOLE BASE | $132.49 | |||
| 132315 | 99 | WIRE TIE | $3.49 |
