Nordictrack A2105 Treadmill – 24766.3 / 247663
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
103 Parts Available for Nordictrack A2105 Treadmill - 24766.3 / 247663 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1B | CROWN SCREW | $0.99 | ||
 | 013544 | 4 | 3/8″ X 2″ BOLT | $3.99 | ||
| 119994 | 5 | 1.25″ SCREW | $2.99 | |||
 | 135621 | 6 | 3/8″ X 4 1/2″ BOLT | $12.99 | ||
 | 183246 | 7 | 1/4″ X 1/2″ SCREW | $1.49 | ||
 | 012149 | 8 | 3/8″ NUT | $0.99 | ||
 | 163045 | 9 | 3/8″ STAR WASHER | $0.99 | ||
 | 188958 | 10 | 1/4″ STAR WASHER | $0.99 | ||
 | 013300 | 11 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
 | 013322 | 12 | #8 X 3/4″ SCREW | $0.99 | ||
 | 161411 | 13 | BASE FOOT SPACER | $0.99 | ||
 | 013162 | 14 | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 013607 | 15 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
| 128263 | 16 | M4 X 42MM SCREW | $0.99 | |||
 | 162866 | 17 | REAR WALKING BOARD SCREW | $1.49 | ||
 | 227191 | 18 | 5/16″ X 3 5/8″ BOLT | $2.49 | ||
| 259140 | 19 | 3/8″ X 1 1/4″ BOLT | $2.49 | |||
 | 305744 | 20 | SINGLE IDLER ROLLER BOLT | $5.99 | ||
| 179767 | 21 | 3/8″ 1 3/4″ BOLT | $61.49 | |||
 | 174320 | 22 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
 | 186819 | 24 | #8 X 1/2″ SCREW | $0.99 | ||
| 251607 | 25 | Deckrail Screw | NLA | Unavailable to order | ||
| 215360 | 26 | Motor Bracket Bolt | NLA | Unavailable to order | ||
 | 117332 | 27 | 3/8″ X 3/4″ SCREW | $4.49 | ||
| 101263 | 28 | MOTOR PIVOT BOLT | $4.99 | |||
| 136728 | 29 | #8 BELT GUIDE SCREW | $0.99 | |||
| 014129 | 30 | 1/4″ FLAT WASHER | $0.99 | |||
 | 014126 | 31 | TRACK WASHER | $0.99 | ||
 | 014117 | 32 | STAR WASHER | $0.99 | ||
| 125708 | 33 | 1/4″ CAGE NUT | $2.49 | |||
 | 119425 | 34 | 3/8″ LOCKNUT | $0.99 | ||
| 120867 | 35 | MOTOR TENSION NUT | $2.49 | |||
 | 136012 | 36 | WALKING BOARD NUT | $0.99 | ||
 | 133333 | 37 | CLIP NUT | $0.99 | ||
 | 236089 | 38 | UPRIGHT WIRE | $71.49 | ||
| 111869 | 39 | UPRIGHT CAGE NUT | $2.99 | |||
| 252656 | 40 | FOOT RAIL DECAL | $8.49 | |||
| 263085 | 41 | Left Foot Rail | $98.99 | |||
| 256836 | 42 | Warning Decal | NLA | Unavailable to order | ||
| 261768 | 43 | WALKING PLATFORM CUSHION | $21.99 | |||
| 259580 | 44 | WALKING PLATFORM | $167.99 | |||
 | 261695 | 45 | Walking Belt for Fitness Equipment | NLA | Unavailable to order | |
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
| 252928 | 47 | FRONT FRAME ENDCAP | $1.49 | |||
 | 251133 | 48 | FRAME SPACER | $1.49 | ||
| 251132 | 49 | DRIVE ROLLER SPACER | $0.99 | |||
 | 113842 | 50 | MAGNET | $1.49 | ||
| 273189 | 51 | DRIVE ROLLER/PULLEY | $150.49 | |||
 | 254134 | 52 | BRIDGE WIRE | $33.49 | ||
| 328546 | 53 | Latch Assembly | NLA | Unavailable to order | ||
| 263086 | 55 | Right Foot Rail | NLA | Unavailable to order | ||
 | 249525 | 58 | REAR ROLLER | $132.49 | ||
 | 252977 | 59 | LEFT REAR FOOT | $9.49 | Unavailable to order | |
| 252976 | 60 | RIGHT REAR FOOT | $9.49 | Unavailable to order | ||
| 259550 | 61 | HOOD | $107.49 | |||
 | 254303 | 62 | DRIVE BELT | $38.99 | ||
| 241040 | 63 | Motor Bracket | NLA | Unavailable to order | ||
 | 286075 | 64 | DRIVE MOTOR ASSEMBLY | $219.99 | ||
| 264253 | 65 | LIFT FRAME | $135.99 | |||
| 240351 | 66 | 8″ WIRE TIE | $0.99 | |||
| 227198 | 67 | REAR ROLLER GROUND WIRE | $2.49 | |||
 | 031229 | 68 | POWER CORD | $39.99 | ||
 | 173169 | 69 | SQUARE GROMMET | $0.99 | ||
 | 241697 | 70 | Controller | $189.99 | ||
 | 165798 | 71 | REED SWITCH | $19.49 | ||

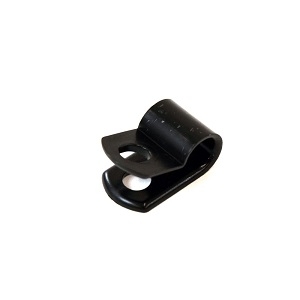

 | 131090 | 72 | CLAMP | $0.99 | ||
| 252866 | 73 | BELLY PAN | $109.49 | |||
| 252876 | 74 | LEFT UPRIGHT | $100.99 | |||
| 253140 | 76 | Left Upright Spacer | NLA | Unavailable to order | ||
| 251437 | 77 | BASE ENDCAP | $1.49 | |||
| 252880 | 78 | RIGHT UPRIGHT | Unavailable to order | |||
| 253141 | 79 | RIGHT UPRIGHT SPACER | $30.49 | |||
| 153127 | 80 | BOLT SPACER | $2.49 | |||
 | 157600 | 81 | BUMPER | $1.99 | ||
| 252433 | 82 | DECAL, CAUTION, BASE LEG | $0.99 | |||
| 263087 | 83 | Base | $174.99 | |||
 | 139090 | 84 | WHEEL | $2.99 | ||
| 116926 | 85 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 016057 | 86 | 8″ CABLE TIE | $2.99 | |||
| 253600 | 87 | ACCESS DOOR | $3.99 | |||
| 259590 | 88 | Book Holder | NLA | Unavailable to order | ||
| 252999 | 91 | CONSOLE BACK | $66.49 | |||
| 132315 | 92 | ZIP TIE | $3.49 | |||
| 259596 | 93 | CONSOLE FRAME | $107.49 | |||
| 252981 | 94 | CUP HOLDER | $25.49 | |||
| 258161 | 95 | Bridge | $73.99 | |||
| 261767 | 96 | Handrail Base | $107.49 | |||
| 259585 | 98 | RIGHT HAND GRIP | $64.49 | |||
| 253429 | 99 | CONSOLE BRACKET | $0.99 | |||
 | 208603 | 100 | KEY/CLIP | $19.99 | ||
| 216122 | 101 | CONSOLE GROUND WIRE | $3.99 | |||
| 252978 | 102 | Left Rear Foot Insert | NLA | Unavailable to order | ||
| 252979 | 103 | Right Rear Foot Insert | NLA | Unavailable to order | ||
| 252990 | 104 | INCLINE MOTOR SPACER | NLA | Unavailable to order | ||
 | 189813 | 105 | FILTER WIRE | $23.99 | ||
 | 186726 | 106 | POWER SWITCH | $22.49 | ||
| 200747 | 107 | GROUND WIRE | $3.49 | Unavailable to order | ||
| 045023 | 108 | 5/32″ ALLEN WRENCH, HEX | $1.99 | |||
| 258017 | 109 | Latch Bracket | $18.49 | |||
| 116566 | 110 | 15 1/2″ CABLE TIE | $0.99 | |||
 | 014088 | 112 | #10 STAR WASHER | $1.49 | ||
| 183824 | 113 | #8 X 3/8″ SCREW | $0.99 | |||
 | 013529 | 114 | #8 X 1 1/2″ SCREW, NOTE: | $0.99 |
