Golds Gym Golds Gym 735 Treadmill – GETL80815.2 / GETL808152
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
111 Parts Available for Golds Gym Golds Gym 735 Treadmill - GETL80815.2 / GETL808152 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1 | CROWN SCREW | $0.99 | ||
 | 013322 | 4 | #8 X 3/4″ SCREW | $0.99 | ||
| 324280 | 5 | PULSE CROSSBAR | $119.99 | |||
| 210461 | 6 | FILTER | $163.49 | |||
 | 215482 | 7 | 3/8″ X 4″ SCREW | $6.49 | ||
| 324274 | 8 | RIGHT HANDRAIL COVER | $25.99 | Unavailable to order | ||
| 013324 | 9 | #10X3/4″ SCREW, PULSE BAR | $0.99 | |||
| 138438 | 10A | #8 X 1/2″ PEDAL SCREW | $0.99 | |||
 | 186819 | 10B | #8 X 1/2″ SCREW | $0.99 | ||
 | 013423 | 10C | GROUND SCREW | $0.99 | ||
 | 014149 | 11 | 5/16″ STAR WASHER | $0.99 | ||
 | 146427 | 12 | #8 X 1″ TEK SCREW | $0.99 | ||
 | 163045 | 13 | 3/8″ STAR WASHER | $0.99 | ||
 | 013607 | 14 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 364027 | 15 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 346519 | 16 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
 | 381122 | 17 | 3/8″ X 1 3/8″ BOLT | $2.99 | ||
| 333649 | 18 | CONSOLE FRAME | $56.49 | |||
| 136728 | 19 | #8 BELT GUIDE SCREW | $0.99 | |||
| 295757 | 20 | 5/16″ MOTOR SCREW | $1.49 | |||
| 315068 | 21 | 1/2″ PIN | $7.99 | |||
 | 301976 | 22 | 3/8″ X 1″ BOLT | $2.49 | ||
| 014157 | 24 | #8 STAR WASHER | $0.99 | |||
 | 188958 | 26 | 1/4″ STAR WASHER | $0.99 | ||
| 324278 | 27 | RIGHT TRAY | $28.99 | |||
 | 242417 | 28 | 5/16″ X 2 1/4″ SCREW | $9.99 | ||
| 179767 | 29 | 3/8″ 1 3/4″ BOLT | $61.49 | |||
 | 152478 | 30 | 5/16″ FLAT WASHER | $0.99 | ||
| 324276 | 31 | RIGHT HANDRAIL INSERT | $20.99 | |||
 | 114078 | 32 | LIFT SPACER | $2.49 | ||
 | 119425 | 33 | 3/8″ LOCKNUT | $0.99 | ||
 | 100427 | 34 | 5/16″ NUT | $0.99 | ||
| 225696 | 35 | 1/4″ X 1 1/4″ SCREW | $1.49 | |||
| 324277 | 36 | LEFT TRAY | $28.99 | |||
 | 291486 | 37 | #8 X 5/8″ SCREW | $0.99 | ||
 | 372591 | 38 | WHEEL | $7.49 | ||
| 359084 | 39 | ISLATR,CENTER,YELLOW,PMS123 | $22.99 | |||
 | 348118 | 40 | REAR FOOT | $27.99 | ||
| 242387 | 41 | RECEPTACLE | $15.49 | |||
| 305284 | 43 | Latch Warning Decal | NLA | Unavailable to order | ||
| 359714 | 44 | WALKING PLATFORM | $214.99 | |||
 | 263241 | 45 | OEM WALKING BELT | $119.99 | ||
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
 | 348439 | 47 | Right Rear Foot | NLA | Unavailable to order | |
| 240351 | 48 | 8″ WIRE TIE | $0.99 | |||
 | 349566 | 49 | DRIVE ROLLER/PULLEY | $148.49 | ||
 | 113842 | 50 | MAGNET | $1.49 | ||

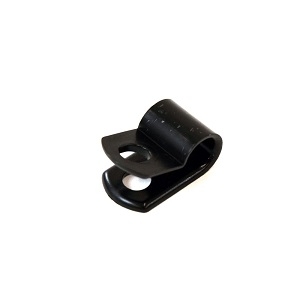

 | 131090 | 51 | CLAMP | $0.99 | ||
 | 185207 | 52 | REED SWITCH/WIRE | $27.49 | ||
| 265234 | 53 | 1/4″ X 1 1/4″ PATCH SCREW | $1.99 | |||
 | 260687 | 55 | MOTOR BELT | $61.99 | ||
| 348438 | 57 | Left Rear Foot | NLA | Unavailable to order | ||
 | 215822 | 58 | 4″ GRN WIRE | $5.99 | ||
 | 298474 | 59 | SMALL CUSHION | $1.99 | ||
 | 263724 | 61 | IDLER ROLLER | $114.99 | ||
| 224346 | 62 | MOTOR SPACER | $2.99 | |||
| 219527 | 63 | MOTOR ISOLATOR | $1.49 | |||
| 350457 | 64 | CONSOLE BASE | NLA | Unavailable to order | ||
| 359093 | 66 | CUSHION BOTTOM | $28.49 | |||
| 302527 | 67 | INCLINE FRAME SPACER | $1.49 | |||
 | 133333 | 68 | CLIP NUT | $0.99 | ||
| 325789 | 69 | INCLINE MOTOR | $198.49 | |||
| 347780 | 70 | INCLINE FRAME | $136.99 | |||
| 343447 | 71 | FRAME SPACER | $6.49 | |||
| 375307 | 72 | CNTRLR,MC2100ELS-18W-2Y,ARPS | $198.99 | |||
| 365332 | 73 | ELECTRONICS BRACKET | $33.49 | |||
 | 314515 | 74 | BASE CAP | $1.99 | ||
| 250627 | 75 | POWER SWITCH | $16.49 | |||
| 327046 | 76 | Power Cord Drawing | NLA | Unavailable to order | ||
 | 227199 | 77 | GROMMET | $2.49 | ||
| 348403 | 78 | BELLY PAN | $148.49 | |||
 | 324275 | 79 | LEFT HANDRAIL INSERT | $20.99 | ||
| 355833 | 81 | UPRIGHT WIRE | $90.49 | |||
 | 316177 | 82 | LEFT BASE COVER | $13.99 | ||
 | 347746 | 83 | RIGHT BASE COVER | $11.99 | ||
| 339183 | 84 | HANDRAIL | $79.49 | |||
| 132315 | 86 | ZIP TIE | $3.49 | |||
 | 324273 | 87 | LEFT HANDRAIL COVER | $25.99 | Unavailable to order | |
 | 263710 | 88 | KEY | $19.99 | ||
| 355094 | 89 | UPRT,LT,STLGS | $172.49 | |||
| 350070 | 90 | RIGHT UPRIGHT | $200.49 | |||
| 252433 | 91 | DECAL, CAUTION, BASE LEG | $0.99 | |||
| 243797 | 92 | CONSOLE CLAMP | $26.99 | Unavailable to order | ||
 | 271383 | 93 | 5/16″ X 3/4″ PATCH BOLT | $2.49 | ||
 | 298484 | 94 | 5/16″ X 1 3/4″ BOLT | $2.49 | ||
 | 349213 | 95 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
 | 388201 | 96 | STORAGE LATCH | $133.49 | ||
 | 347756 | 97 | LATCH CROSSBAR | $54.49 | ||
| 331739 | 98 | Plastic Spacer 0.295″ x 0.256″ | $6.49 | |||
 | 121576 | 99 | 1/4″ NUT | $2.49 | ||
| 198101 | TS10 | 14 Inch Red Jumper Wire, Male to Female | $6.49 | |||
| 198109 | TS11 | 12 Inch Black Jumper Wire, Male to Female | $5.99 | |||
| 255997 | TS12 | CONTROLLER GROUND WIRE | $32.99 | |||
| 144079 | TS13 | 6″ GRN/YEL WIRE,F/R | $4.49 | |||
| 250472 | TS14 | GROUND WIRE W/DECAL | $12.99 | |||
| 216117 | TS18 | LIFT MOTOR WIRE HRNS | $16.99 | |||
 | 184873 | TS25 | FERRITE | $26.99 | ||
| 357530 | TS27 | 6″ GRN WIRE | $6.99 | |||
| 130424 | TS3 | 4″ BLACK WIRE,F/F | $4.99 | |||
| 198089 | TS4 | 6″ BLUE WIRE,F/F | $4.99 | |||
| 136346 | TS5 | 10″ WHITE WIRE,F/F | $5.99 | |||
| 198091 | TS6 | 6″ WHITE WIRE, F/F | $4.99 | |||
| 198095 | TS7 | 10″ BLUE WIRE M/F | $5.49 | |||
| 131818 | TS8 | 8″ BLUE WIRE | $5.49 | |||
| 198094 | TS9 | 6″ BLUE WIRE, M/F | $4.99 |
