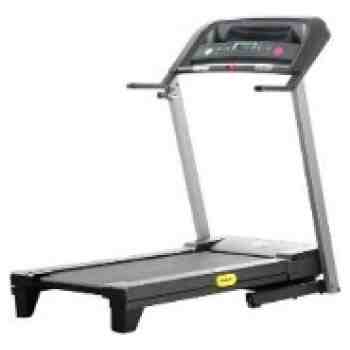

Golds Gym Advantage Treadmill – GGTL1292.1 / GGTL12921
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
74 Parts Available for Golds Gym Advantage Treadmill - GGTL1292.1 / GGTL12921 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 181211 | 4 | ISOLATOR KIT | $42.49 | |||
| 140828 | 7 | WALKING BOARD SCREW | $0.99 | |||
 | 181363 | 8 | Walking Belt | NLA | Unavailable to order | |
 | 219170 | 8A | 3 TUBE LUBE KIT | $39.49 | ||
| 013399 | 9 | 3/8″ X 1.75″ BOLT | $2.49 | |||
| 181216 | 11 | FRONT WHEEL/PULLEY | $165.99 | |||
 | 113842 | 12 | MAGNET | $1.49 | ||
 | 119425 | 13 | 3/8″ LOCKNUT | $0.99 | ||
| 157337 | 15 | FRAME PIVOT SPACER | NLA | Unavailable to order | ||
 | 131090 | 16 | CLAMP | $0.99 | ||
 | 157504 | 17 | REED SWITCH | $26.99 | ||
| 178204 | 18 | LIFT FRAME | $172.49 | |||
| 124963 | 19 | FRAME PIVOT WASHER | $0.99 | |||
| 120867 | 20 | MOTOR TENSION NUT | $2.49 | |||
| 121421 | 21 | Upright Bracket Bolt | NLA | Unavailable to order | ||
 | 189462 | 22 | MOTOR BELT | $19.99 | ||
| 158370 | 25 | Pulley Spacer | NLA | Unavailable to order | ||
| 158157 | 26 | Static Decal | NLA | Unavailable to order | ||
| 157338 | 27 | HOOD BRACKET | $0.99 | |||
| 113278 | 28 | Flywheel | NLA | Unavailable to order | ||
 | 012149 | 30 | 3/8″ NUT | $0.99 | ||
| 159986 | 31 | TOP INCLINE BOLT | $6.49 | Unavailable to order | ||
| 013547 | 32 | INCLINE LEG/MOTOR BOLT | $0.99 | |||
| 178205 | 33 | OUTLET BRACKET | $24.49 | |||
 | 125819 | 34 | STANDOFF | $3.99 | ||
| 238753 | 36 | POWER SUPPLY BRACKET | $12.99 | |||
| 182486 | 38 | CONTROLLER BRACKET | $16.49 | |||
 | 013607 | 40 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
| 124318 | 42 | BELT GUIDE | NLA | Unavailable to order | ||
| 180917 | 43 | GROUND/CHOKE SCREW | $0.99 | |||
 | 138853 | 44 | PLASTIC FASTENER | $0.99 | ||
| 177575 | 45 | FRAME BELLYPAN | $125.49 | |||
 | 102634 | 47 | 8″ GREEN WIRE | $3.49 | ||
 | 136121 | 49 | REAR ROLLER STAR WASHER | $0.99 | ||
 | 012056 | 50 | WHEEL NUT | $0.99 | ||
| 014127 | 52 | ROLLER ADJUSTMENT WASHER | $0.99 | Unavailable to order | ||
 | 105444 | 53 | REAR ROLLER ADJ BOLT | $0.99 | ||
| 177576 | 57 | REAR PLATFORM SCREW | $0.99 | |||
| 014067 | 60 | WASHER | $0.99 | |||
| 177485 | 63 | HANDRAIL ENDCAP | $12.49 | |||
| 172822 | 64 | AUDIO NUT | NLA | Unavailable to order | ||
| 014157 | 68 | #8 STAR WASHER | $0.99 | |||
| 177175 | 72 | LOCK PIN | $3.99 | |||
| 013581 | 73 | IDLER ARM BOLT | $1.99 | |||
| 124695 | 74 | Power Cord Grommet | NLA | Unavailable to order | ||
| 158925 | 75 | CONSOLE BACK SCREW | $0.99 | |||
| 103160 | 76 | 1/2″ Silver Screw | NLA | Unavailable to order | ||
| 013501 | 78 | 3/8″ X 2 1/2″ SCREW | $4.99 | |||
 | 119038 | 82 | KEY/CLIP | $5.49 | ||
 | 014132 | 88 | 3/8″ WASHER | $0.99 | ||
| 155353 | 90 | LATCH DECAL | $64.99 | |||
| 137381 | 92 | MOTOR CONTROLLER WIRE | $8.49 | |||
 | 136176 | 93 | 3/8″ X 3″ Screw | NLA | Unavailable to order | |
| 144780 | 94 | #8 X 1 1/2″ SCREW NOTE: | $0.99 | |||
| 116927 | 95 | TIE HOLDER CLAMP | $0.99 | |||
| 116926 | 96 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 016057 | 97 | 8″ CABLE TIE | $2.99 | |||
 | 157600 | 98 | BUMPER | $1.99 | ||
 | 013300 | 99 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
 | 109382 | 101 | CIRCUIT BREAKER | $15.99 | ||
 | 031229 | 102 | POWER CORD | $39.99 | ||
 | 173169 | 103 | SQUARE GROMMET | $0.99 | ||
| 252433 | 104 | DECAL, CAUTION, BASE LEG | $0.99 | |||
 | 013322 | 105 | #8 X 3/4″ SCREW | $0.99 | ||
 | 158332 | 106 | IFIT.COM JACK | $5.99 | ||
| 167079 | 107 | IFIT.COM WIRE | $19.49 | |||
 | 013316 | 108 | #10 X 3/4″ SCREW | $0.99 | ||
| 158741 | 109 | 2 LB WEIGHT | NLA | Unavailable to order | ||
 | 157646 | 111 | 12″ IFIT AUDIO JACK WIRE | $22.99 | ||
| 128263 | 112 | M4 X 42MM SCREW | $0.99 | |||
 | 130659 | 113 | #8 X 3/4″ BLACK SCREW | $0.99 | ||
 | 014117 | 114 | STAR WASHER | $0.99 | ||
 | 155623 | 115 | 7″ GRN WIRE | $3.99 |
