Nordictrack Elite 7.4 Bike – 21987.0 / 219870
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
112 Parts Available for Nordictrack Elite 7.4 Bike - 21987.0 / 219870 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 376118 | 4 | Fitness Equipment Console | NLA | Unavailable to order | ||
| 335018 | 5 | RAIL,SEAT,ARPS | $213.99 | |||
| 299633 | 6 | ADJUSTMENT BAR | $54.99 | |||
| 375388 | 7 | RIGHT HANDLEBAR | $52.99 | |||
| 317080 | 8 | Adjustable Backrest | NLA | Unavailable to order | ||
| 317079 | 9 | SEAT | $228.99 | |||
| 376884 | 10 | SEAT FRAME | $119.49 | |||
| 227606 | 11 | Seat Frame Cap | NLA | Unavailable to order | ||
 | 263595 | 12 | BRAKE PAD | $9.49 | ||
| 376120 | 13 | Left Front Shield | $164.49 | |||
| 376121 | 14 | Right Front Shield | $164.49 | |||
| 334778 | 15 | Front Stabilizer | $108.99 | |||
| 334779 | 16 | REAR STABILIZER | $124.49 | |||
 | 148803 | 17 | WHEEL | $3.49 | ||
| 300920 | 18 | BRAKE | $69.99 | |||
 | 190983 | 19 | LEVELING FOOT | $32.49 | ||
| 334784 | 20 | RIGHT HANDLEBAR GRIP | $57.49 | |||
 | 376163 | 21 | RIGHT PEDAL/STRAP | $184.49 | ||
 | 376162 | 22 | LEFT PEDAL/STRAP | $119.99 | ||
 | 322861 | 24 | LEFT CRANK ARM | $80.99 | ||
| 376125 | 25 | SEAT HANDLEBAR | $212.49 | |||
| 361238 | 26 | SEAT HANDLE | $7.49 | |||
| 267014 | 27 | BRAKE BRACKET | $13.99 | |||
 | 143742 | 28 | SMALL SNAP RING | $3.99 | ||
| 255072 | 29 | LARGE PULLEY | $91.99 | |||
 | 113842 | 30 | MAGNET | $1.49 | ||
 | 280426 | 31 | CRANK | $92.49 | ||
| 300921 | 32 | BRAKE AXLE | $19.99 | |||
 | 139703 | 33 | SMALL BEARING / FOLDING FRAME BEARING | $33.49 | ||
| 364668 | 34 | Eddy Mechanism | NLA | Unavailable to order | ||
 | 362905 | 35 | SMALL SNAP RING | $1.49 | ||
| 333891 | 36 | Front Rail Cover | NLA | Unavailable to order | ||
 | 193223 | 37A | RESISTANCE MOTOR | $99.99 | ||
| 356546 | 37B | RESISTANCE CABLE | $39.49 | |||
 | 286527 | 38A | SNAP MOUNT ONLY | $2.49 | ||
| 303479 | 38B | SNAP MOUNT SCREW | $3.99 | |||
 | 363093 | 39 | IDLER | $116.49 | ||
| 335321 | 40 | ACCESS COVER | $13.49 | |||
| 299601 | 41 | Seat Carriage | NLA | Unavailable to order | ||
| 334028 | 42 | FRM PULSE WIRE/RECEPTACLE | $141.99 | |||
| 373622 | 43 | MAIN WIRE | $62.99 | |||
| 376122 | 44 | TOP SHIELD | $55.99 | |||
 | 282277 | 45 | REED SWITCH CLAMP | $3.49 | ||
 | 372087 | 46 | REED SWITCH/WIRE | $23.49 | ||
 | 153283 | 47 | DRIVE BELT | $123.99 | ||

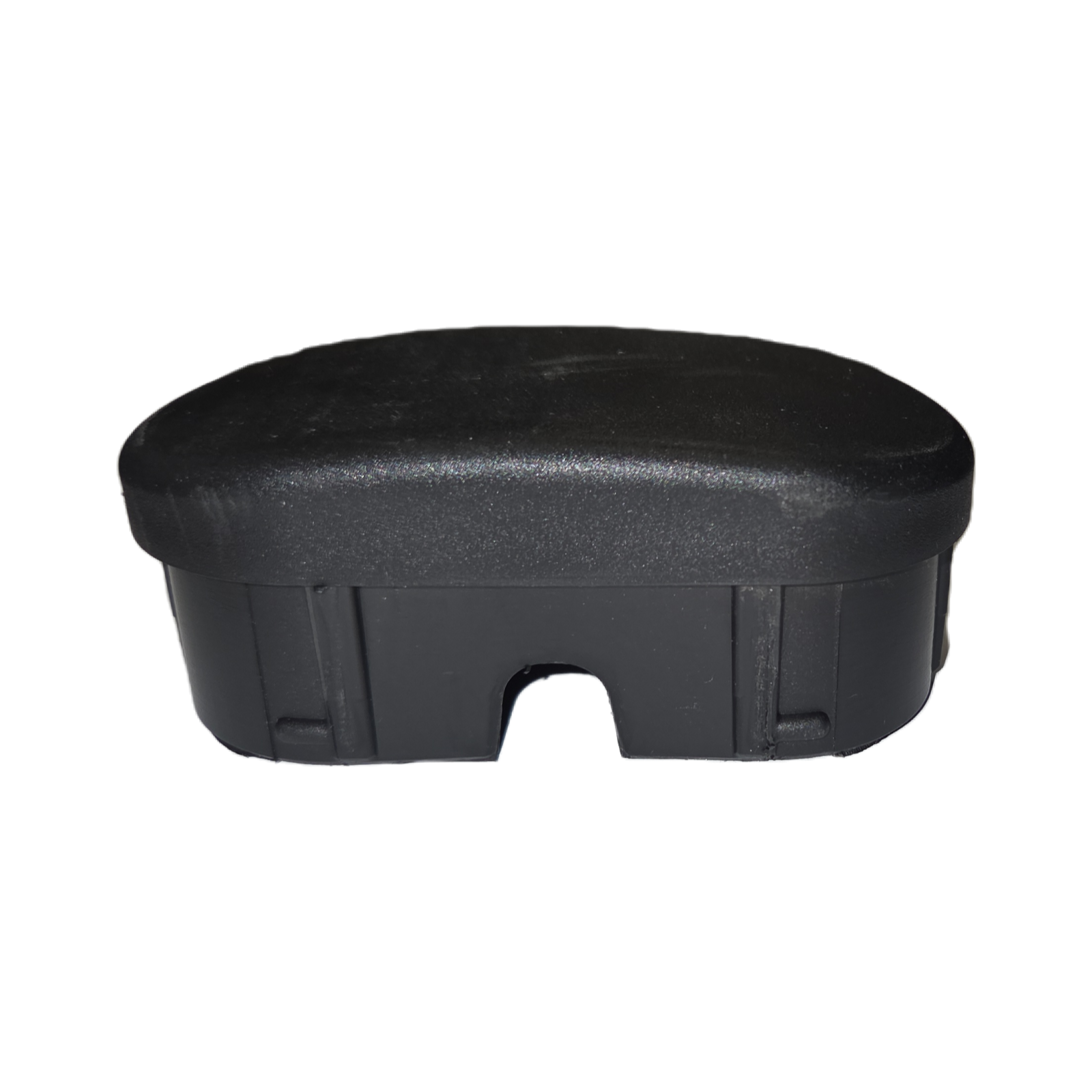

 | 320579 | 48 | CAP | $14.49 | ||
| 334785 | 49 | LEFT HANDLEBAR GRIP | $57.49 | |||
 | 291494 | 50 | FLANGE SCREW | $17.49 | ||
 | 337717 | 51 | Power Adapter | |||
| 333728 | 52 | SHIELD DISC | $65.99 | |||
| 326088 | 53 | CONSOLE BRACKET BUSHING | $6.49 | |||
| 326087 | 54 | UPRIGHT BRACKET BUSHING | $9.49 | |||
| 018009 | 55 | SEAT BEARING | $11.99 | |||
| 376016 | 56 | Left Accessory Tray | $59.49 | |||
| 375370 | 57 | UPPER BRACKET COVER | $34.99 | |||
| 369381 | 58 | FRONT SHIELD | $58.49 | |||
| 259546 | 59 | CARRIAGE BUSHING | $4.49 | |||
| 259554 | 60 | RAIL ROD | $3.49 | |||
 | 281150 | 61 | IDLER PIVOT SCREW | $4.49 | ||
| 259555 | 62 | ROD CAP | $5.49 | |||
| 299905 | 63 | BRAKE SPACER | $0.99 | |||
 | 199493 | 64 | M6 X 16MM TAPRD BTN SCREW | $4.62 | ||
 | 328293 | 65 | M10 X 122MM SCREW | $18.99 | ||
| 237573 | 66 | WHEEL BOLT | $5.49 | |||
 | 237612 | 67 | M8 X 16MM PATCH SCREW | $1.49 | ||
 | 340140 | 68 | M6 X 26MM WASHER | $1.49 | ||
| 327243 | 69 | M8 X 14MM SCREW | $0.99 | |||
| 268400 | 70 | M10 X 62MM PATCH SCREW | $13.99 | |||
| 246116 | 71 | M6 X 65MM BOLT | $4.49 | |||
| 331242 | 72 | RECTANGLE GROMMET | $6.49 | |||
| 185159 | 73 | 1/4 X 1/2″ SCREW | $2.49 | |||
| 217779 | 74 | M8 X 28MM BOLT/SCREW | $4.49 | |||
| 263773 | 75 | M6 x 38mm Screw | NLA | Unavailable to order | ||
| 310617 | 76 | M8 WASHER | $0.99 | |||
 | 195562 | 77 | M4 X 16MM SCREW | $1.99 | ||
| 249928 | 78 | M8X20MM SCREW,RAMP WHEELS | $1.99 | |||
 | 013423 | 79 | GROUND SCREW | $0.99 | ||
| 308965 | 80 | RAIL SCREW | $3.49 | |||
| 317067 | 81 | BACKREST COVER | $100.49 | |||
 | 168267 | 82 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 281156 | 83 | BELT ADJUSTMENT SCREW | $8.49 | |||
 | 208163 | 84 | IDLER SCREW | $1.99 | ||
| 292368 | 85 | #8 X 1″ SCREW | $1.99 | |||
 | 244821 | 86 | POWER RECEPTACLE/WIRE | $99.99 | ||
 | 148710 | 87 | M10 LOCKNUT | $2.49 | ||
 | 014033 | 88 | IDLER WASHER | $1.49 | ||
 | 256446 | 89 | M8 LOCKNUT | $0.99 | ||
| 333892 | 90 | Rear Rail Cover | $22.49 | |||
 | 014174 | 91 | M8 SPLIT WASHER | $1.99 | ||
 | 153209 | 92 | CRANK ARM CAP | $8.99 | ||
| 012022 | 93 | LOCKNUT | $0.99 | |||
| 301390 | 94 | TREE FASTENER | $0.99 | |||
 | 242710 | 95 | M6 X 18MM IDLER SCREW | $0.99 | ||
 | 014018 | 96 | M6 SPLIT WASHER | $0.99 | ||
| 376124 | 97 | RIGHT REAR SHIELD | $145.99 | |||
| 376123 | 98 | Left Rear Shield | $160.99 | |||
| 375371 | 100 | Lower Bracket Cover | $39.49 | |||
| 375369 | 101 | TABLET HOLDER | $113.49 | |||
| 376015 | 102 | Right Accessory Tray | $59.49 | |||
| 375393 | 103 | LEFT CONTROL/PULSE GRIP | $84.99 | |||
| 375395 | 104 | Right Control/Pulse Grip | $91.49 | |||
| 302928 | 105 | M8 X 40MM SCREW | $3.49 | |||
 | 333350 | 106 | M8 LOCKNUT | $1.99 | ||
| 399569 | 107 | Pulse Wire | $107.99 | |||
| 376161 | 108 | Console Bracket | $97.99 | |||
 | 130853 | 109 | #8 X 1/2″ SCREW | $0.99 | ||
| 375378 | 110 | Pivot Axle | $25.99 | |||
| 375389 | 114 | Left Handlebar | $67.49 | |||
 | 191032 | 116 | M8 X 13MM SCREW, PULLEY | $1.99 | ||
 | 194878 | 117 | M4 X 20MM SCREW | $2.99 | ||
| 378126 | 118 | M4 X 19MM SELF-TAP SCREW | $3.49 |
