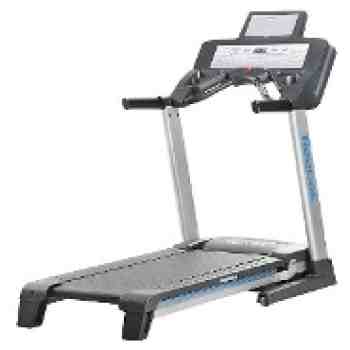

Reebok 8100 Es Treadmill - RBTL79607.1 / RBTL796071

Reebok 8100 Es Treadmill – RBTL79607.1 / RBTL796071

Brand: Reebok

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

108 Parts Available for Reebok 8100 Es Treadmill - RBTL79607.1 / RBTL796071 ↓

Part #	Diagram #	Title	Price
146427	1	#8 X 1″ FOOT SCREW	$0.99
013438	4	3/8″X 1″ BOLT	$1.49
135622	5	3/8″ X 2 3/4″ SCREW	$18.99
013322	6	#8 X 3/4″ SCREW	$0.99
247323	7	Screw #8 X 2.25″	$0.99
104345	8	3/8″ STAR WASHER	$0.99
014149	9	5/16″ STAR WASHER	$0.99
223547	10	Weldnut	NLA
119425	11	3/8″ NUT	$0.99
198639	12	BELT GUIDE	$5.99
136728	13	SCREW	$0.99
142622	14	3/8″ X 1 1/2″ BOLT	$2.99
260489	16	OEM WALKING BELT	~~$126.99~~ $110.15
260487	17	DRIVE ROLLER/PULLEY	$148.49
222902	18	MAG,CUST,.39X.15″	NLA
214851	19	Frame Spacer	NLA
216626	21	REED SWITCH CLIP	$0.99
165798	22	REED SWITCH	$19.49
132315	24	WIRE TIE	$3.49
287483	25	DRIVE MOTOR	$289.99
249535	26	MOTOR BELT	$39.49
122794	27	1/4″ X 1 3/4″ BOLT	$1.49
227258	28	RIGHT REAR FOOT	$20.99
227257	29	LEFT REAR FOOT	$20.99
128742	30	LIFT FRAME NUT	$0.99
175162	31	TENSION BOLT	$2.99
260484	32	ISLATR,DECK,PVC,RT,ARPS	$83.99
260496	33	Hood for Reebok RBTL79607	NLA
133333	34	#8 HOOD CLIP	$0.99
173169	35	GROMMET	$0.99
215942	36	COTTER PIN, TOP	$4.99
015044	37	HAIR PIN COTTER PIN	$0.99
165220	38	Front Roller Adjustment Bolt	NLA
142686	39	FRONT ROLLER NUT	$0.99
249516	40	INCLINE MOTOR	$160.99
194343	41	INCLINE MOTOR PIN, LOWER	$4.49
259522	43	Motor Control Board	NLA
186726	44	POWER SWITCH	$22.49
239835	45	Belly Pan	NLA
013423	46	#8 X 1/2″ SCREW	$0.99
031229	47	POWER CORD	$39.99
201563	48	INCLINE MOTOR WIRE	$12.49
128457	49	ALLEN WRENCH	$25.49
016063	50	CLAMP 50 LB TIE	$0.99
116926	51	RELEASABLE CABLE TIE	$0.99
016057	52	8″ CABLE TIE	$2.99
260486	54	RAIL,DECK,RT,ARPS	$72.99
227198	56	REAR ROLLER GROUND WIRE	$2.49
136012	57	WALKING BOARD NUT	$0.99
014132	58	3/8″ WASHER	$0.99
014126	60	1/4″ LOCK WASHER	$0.99
305744	62	SINGLE IDLER ROLLER BOLT	$5.99
233598	63	Foot Rail Screw	NLA
249525	64	REAR ROLLER	$132.49
162866	66	REAR WALKING BOARD SCREW	$1.49
013547	68	MOTOR TENSION BOLT	$0.99
013300	71	ANCHOR/BASE LEG SCREW	$0.99
203945	72	KEY BOARD	$0.99
249612	73	UPRIGHT WIRE	$76.49
238669	74	Idler Arm	NLA
227298	75	IDLER ARM SPRING	$2.49
328554	76	Latch Assembly	NLA
124280	77	5/16″ X 4 1/2″ BOLT	$3.99
128272	79	TOP ISOLATOR BOLT	$0.99
204429	80	LIFT FRAME BOLT	$2.99
157600	81	BASE PAD	$1.99
260492	82	Lightweight Base Cover	$67.99
260493	83	Right Base Cover	$86.49
252433	84	BASE LEG DECAL	$0.99
287185	85	Rear Roller Bracket for Deck	$27.99
129101	86	SENSOR SCREW	$0.99
013607	87	FRAME GUIDE SCREW	$0.99
119221	88	WHEEL SPACER	NLA
239698	89	Wheel for Fitness Equipment	NLA
123883	90	PULSE SENSOR SCREW	$0.99
161411	91	BASE PAD SPACER	$0.99
260485	93	RAIL,DECK,LT,ARPS	NLA
257174	94	Frame Lift for EUSTX	$137.49
216456	95	ACCESS DOOR	NLA
200747	96	LIFT FRAME GROUND WIRE	$3.49
013576	99	WEIGHT RACK SCREW	$0.99
256836	100	Warning Decal	NLA
260480	101	Console for Reebok XTRB79607	$148.49
014063	102	1/4″ WASHER	$0.99
245920	103	Key/Clip for ICON Fitness Part Number 245920	NLA
116566	104	15 1/2″ WIRE TIE	$0.99
171915	105	CD Holder	NLA
260483	106	ISLATR,DECK,PVC,LT,ARPS	$83.99
216123	107	INCLINE MTR STOP BRACKET	$1.49
100427	109	5/16″ NUT	$0.99
014105	110	PULLEY WASHER	$0.99
287183	111	UPRT,LT,ARPS	$162.49
260490	112	CNSL,BASE,KING,BTTM,ARPS	$189.49
172030	114	CUP HOLDER	NLA
172459	115	PULSE SENSOR BASE	$23.99
222385	116	Pulse Sensor	NLA
260481	117	PULSE,BAR,LT,ARPS	$72.49
260497	118	PULSE,BAR,HAND,RT,ARPS	$56.99
257195	119	WIRE,HRNS,040″	$26.99
169734	120	28″ WIRE HRNS, 3 WIRE	NLA
215823	121	AUDIO WIRE	$11.99
184873	122	FERRITE CLAMP	$26.99
251607	123	Deckrail Screw	NLA
019173	124	FRAME BUMPER	$2.99
260254	125	ISOLATOR	$26.99
