Reebok Trainer Rx 3.5 Bike – RBEX13911.0 / RBEX139110
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
90 Parts Available for Reebok Trainer Rx 3.5 Bike - RBEX13911.0 / RBEX139110 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 294597 | 4 | UPRT,CNSL,ARPS,W/DECAL&BSHGS | $80.99 | |||
| 300811 | 5 | SHIELD COVER | Unavailable to order | |||
| 294134 | 10 | SEAT BRACKET | $105.49 | |||
| 294137 | 11 | SEAT CARRIAGE | $125.99 | |||
| 184148 | 16 | Part # 184148 | NLA | Unavailable to order | ||
| 322862 | 17 | RIGHT CRANK ARM | $80.99 | |||
| 184147 | 18 | Part # 184147 | NLA | Unavailable to order | ||
 | 322861 | 19 | LEFT CRANK ARM | $80.99 | ||
| 294159 | 20 | CRANK | $98.49 | |||
| 282057 | 25 | WHEEL | $12.99 | |||
| 304232 | 26 | RIGHT STABILIZER CAP | $29.49 | |||
| 304231 | 27 | LEFT STABILIZER CAP | $22.99 | |||
| 304233 | 28 | REAR STABILIZER CAP | $30.49 | |||
| 304234 | 29 | LEVELING KNOB | $30.49 | |||
 | 157600 | 31 | BUMPER | $1.99 | ||
 | 263595 | 33 | BRAKE PAD | $9.49 | ||

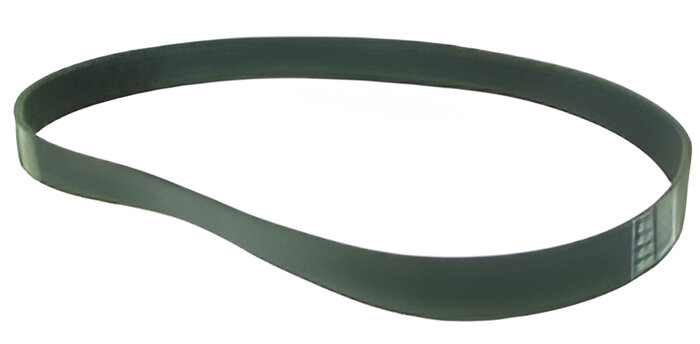

 | 308040 | 34 | Drive Belt | $103.99 | ||
| 323471 | 37 | SEAT LEVER BRACKET | $7.49 | |||
| 263586 | 38 | ROLLER AXLE | $5.49 | Unavailable to order | ||
| 269300 | 39 | Upper Roller | NLA | Unavailable to order | ||
| 263587 | 40 | Lower Roller | NLA | Unavailable to order | ||
 | 121642 | 42 | 1.25″ ROUND ENDCAP | $1.49 | ||

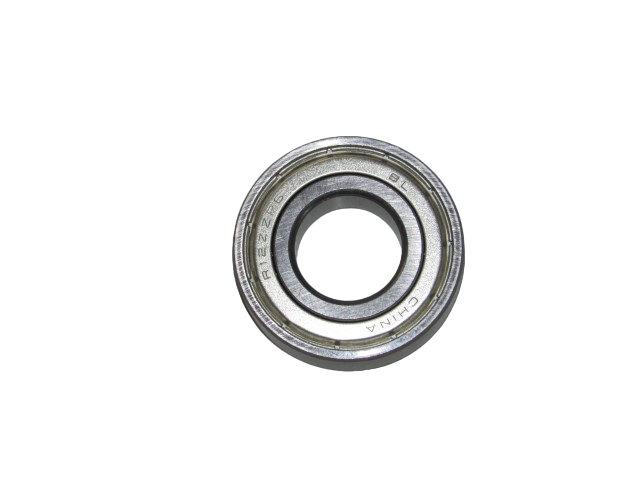

 | 139703 | 43 | FOLDING FRAME BEARING | $33.49 | ||

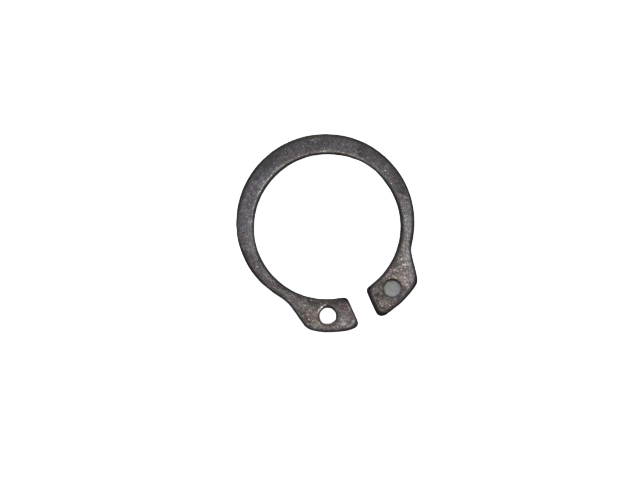

 | 143742 | 44 | SMALL SNAP RING | $3.99 | ||
 | 131090 | 45 | CLAMP | $0.99 | ||
| 164675 | 46 | REED SWITCH/WIRE | $29.99 | |||
 | 363093 | 47 | IDLER | $116.49 | ||
| 321860 | 48 | Eddy Mechanism | NLA | Unavailable to order | ||
 | 324966 | 49 | MECHANISM AXLE | $21.99 | ||
| 104622 | 50 | M8 X 5/8″ Screw | NLA | Unavailable to order | ||
 | 193223 | 51 | RESISTANCE MOTOR | $99.99 | ||
 | 113842 | 52 | MAGNET | $1.49 | ||
| 132315 | 53 | ZIP TIE | $3.49 | |||
| 246123 | 54 | SEAT CARRIAGE CAP | $15.99 | |||
 | 014018 | 55 | M6 SPLIT WASHER | $0.99 | ||
 | 286527 | 57A | SNAP MOUNT ONLY | $2.49 | ||
| 314929 | 57B | SNAP SCREW | $0.99 | |||
| 255072 | 58 | LARGE PULLEY | $91.99 | |||
 | 153209 | 59 | CRANK ARM CAP | $8.99 | ||
 | 237612 | 60 | M8 X 16MM PATCH SCREW | $1.49 | ||
 | 014174 | 61 | M8 SPLIT WASHER | $1.99 | ||
| 252438 | 62 | M10 X 95MM PATCH SCREW | $19.99 | |||
| 299379 | 63 | M8 x 45mm Patch Screw | $12.49 | |||
 | 291494 | 64 | FLANGE SCREW | $17.49 | ||
| 286763 | 65 | M6 X 50MM SCREW | $2.99 | |||
 | 014033 | 66 | IDLER WASHER | $1.49 | ||
| 281534 | 67 | M6 x 70mm Bolt Set | NLA | Unavailable to order | ||
| 280422 | 68 | M6 X 60MM BOLT SET | $5.99 | |||
| 300788 | 69 | 1/4″ X 16MM SCREW | $1.49 | |||
| 235321 | 70 | M8.5 LARGE WASHER | $2.49 | |||
| 280879 | 71 | HANDLEBAR PIVOT BUSHING | $3.99 | |||
| 280878 | 72 | UPRIGHT PIVOT BUSHING | $22.49 | |||
| 249928 | 73 | M8X20MM SCREW,RAMP WHEELS | $1.99 | |||
 | 012042 | 74 | M8 LOCKNUT | $1.99 | ||
 | 154848 | 75 | HOOD SCREW | $0.99 | ||
| 195090 | 76 | M6 X 20MM CHAMFER SCREW | $0.99 | |||
 | 281150 | 77 | IDLER PIVOT SCREW | $4.49 | ||
 | 208163 | 78 | IDLER SCREW | $1.99 | ||
 | 013423 | 79 | GROUND SCREW | $0.99 | ||
 | 195562 | 80 | M4 X 16MM SCREW | $1.99 | ||
 | 213457 | 81 | M4 X 12MM SCREW | $1.99 | ||
| 247332 | 82 | M6 x 16mm Screw | NLA | Unavailable to order | ||
| 013244 | 83 | PIVOT BOLT | $0.99 | |||
 | 281149 | 84 | DRIVE BELT ADJUST SCREW | $6.49 | ||
 | 263599 | 85 | BRAKE PAD SPACER | $15.49 | ||
 | 256446 | 86 | M8 LOCKNUT | $0.99 | ||
| 133828 | 87 | Fastener | NLA | Unavailable to order | ||
 | 130659 | 88 | #8 X 3/4″ BLACK SCREW | $0.99 | ||
| 322057 | 89 | MAIN WIRE | $57.49 | |||
 | 013162 | 92 | REED SWITCH CLAMP SCRW | $0.99 | ||
| 322025 | 93 | SPACER | $0.99 | Unavailable to order | ||
| 237952 | 94 | M4 LOCKNUT | $0.99 | |||
| 236940 | 95 | M3.5x15mm Screw | $2.99 |
