Proform Thinline Desk Treadmill – 24941.0 / 249410
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
114 Parts Available for Proform Thinline Desk Treadmill - 24941.0 / 249410 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013484 | 1 | 5/16″ X1/2″ UPRIGHT SCREW | $1.99 | ||
| 246727 | 4 | INCLINE MOTOR BOLT, UPPER | $1.99 | |||
| 353581 | 5 | PULSE BAR COVER | $112.49 | |||
| 252433 | 6 | DECAL, CAUTION, BASE LEG | $0.99 | |||
| CC1313 | 7 | 1/4″ X 1 1/2″ BOLT | $0.99 | |||
 | 013322 | 8 | #8 X 3/4″ SCREW | $0.99 | ||
 | 013576 | 9A | CROWN SCREW | $0.99 | ||
 | 168267 | 9B | M4 X 12MM FLANGE SCREW | $0.99 | ||
 | 286527 | 10 | SNAP MOUNT ONLY | $2.49 | ||
| 119445 | 11 | 1.25″ SCREW | $0.99 | |||
| 324822 | 12 | #8 X 1/4″ SCREW | $0.99 | |||
 | 013607 | 13 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 291486 | 14 | #8 X 5/8″ SCREW | $0.99 | ||
| 179767 | 15 | 3/8″ 1 3/4″ BOLT | $61.49 | |||
 | 346519 | 16 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
 | 145509 | 17 | 3/8″ X 1″ BOLT | $2.49 | ||
 | 295758 | 18 | 5/16″ DRIVE MOTOR SCREW | $3.49 | ||
| 136728 | 19 | #8 BELT GUIDE SCREW | $0.99 | |||
 | 298484 | 20 | 5/16″ X 1 3/4″ BOLT | $2.49 | ||
 | 186819 | 21 | #8 X 1/2″ SCREW | $0.99 | ||
 | 203283 | 22 | 5/16″ X 2″ BOLT | $2.99 | ||
| 194646 | 24 | 1/4″ X 1″ FLAT HEAD SCREW | $0.99 | |||
 | 013300 | 25 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
| 243673 | 26 | #8 X 3/4″ FLAT HEAD SCREW | $0.99 | |||
 | 013162 | 27 | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 188958 | 28 | 1/4″ STAR WASHER | $0.99 | ||
| 014157 | 29 | #8 STAR WASHER | $0.99 | |||
 | 014132 | 30 | 3/8″ WASHER | $0.99 | ||
 | 152478 | 31 | 5/16″ FLAT WASHER | $0.99 | ||
 | 014149 | 32 | 5/16″ STAR WASHER | $0.99 | ||
| 354947 | 33 | 7/8″ STAR WASHER | $2.99 | |||
 | 133333 | 34 | CLIP NUT | $0.99 | ||
 | 119425 | 35 | 3/8″ LOCKNUT | $0.99 | ||
 | 100427 | 36 | 5/16″ NUT | $0.99 | ||
| 354949 | 37A | 7/8″ NUT | $19.99 | |||
| 360377 | 37B | 7/8″ FLAT WASHER | $6.49 | |||
 | 014063 | 38 | 1/4″ FLAT WASHER | $0.99 | ||
| 354948 | 39 | 7/8″ PLASTIC WASHER | $1.99 | |||
| 354880 | 40 | AXLE | $27.49 | |||
| 353622 | 41 | LATCH BRACKET | $29.99 | |||
| 305284 | 42 | Latch Warning Decal | NLA | Unavailable to order | ||
 | 260685 | 43 | FRONT CUSHION | $24.49 | ||
| 354497 | 44 | LEFT FRAME COVER | $68.99 | |||
| 354981 | 45 | WALKING PLATFORM | $190.49 | |||
 | 361256 | 46 | WALKING BELT | $179.99 | ||
 | 198639 | 47 | BELT GUIDE | $5.99 | ||
 | 298474 | 48A | SMALL CUSHION | $1.99 | ||
| 322816 | 48B | REAR RUBBER CUSHION | $2.99 | |||
| 361157 | 49 | FRONT ROLLER/PULLEY | $152.49 | |||
| 355750 | 50 | LEFT FOOTRAIL | $57.99 | |||
| 355751 | 51 | RIGHT FOOTRAIL | $57.99 | |||
| 354498 | 53 | RIGHT FRAME COVER | $68.99 | |||
| 361167 | 54 | FRAME COVER | $172.49 | |||
| 354365 | 55 | REAR FOOT | $20.49 | |||
| 354364 | 56 | REAR CAP | $51.99 | |||
| 354978 | 57 | MOTOR HOOD | $133.99 | |||
| 263165 | 58 | Part # 263165 | NLA | Unavailable to order | ||
| 353620 | 59 | ELECTRONICS BRACKET | $25.49 | |||
| 240351 | 60 | 8″ WIRE TIE | $0.99 | |||
| 353607 | 61 | INCLINE FRAME | $142.49 | |||
 | 121204 | 62 | #8 X 1 1/4″ SCREW | $0.99 | ||
| 319715 | 63 | IDLER ROLLER | $116.99 | Unavailable to order | ||
| 354980 | 64A | Incline Motor | NLA | Unavailable to order | ||
 | 286707 | 64B | LIFT MTR SENSOR KIT | $70.49 | ||
 | 114078 | 64C | LIFT SPACER | $2.49 | ||
| 211260 | 64D | 12″ WIRE HRNS | $12.99 | |||
 | 251133 | 65 | FRAME SPACER | $1.49 | ||
 | 275608 | 66 | Drive Motor Belt | NLA | Unavailable to order | |
| 337720 | 67 | Part # 337720 | NLA | Unavailable to order | ||
 | 157504 | 68 | REED SWITCH | $26.99 | ||

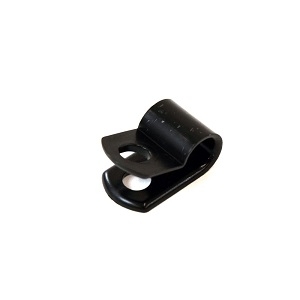

 | 131090 | 69 | CLAMP | $0.99 | ||
 | 031229 | 71 | POWER CORD | $39.99 | ||
 | 186726 | 72 | POWER SWITCH | $22.49 | ||
| 354366 | 73 | Belly Pan | NLA | Unavailable to order | ||
| 354428 | 75 | LEFT OUTSIDE PIVOT COVER | $3.49 | |||
| 354896 | 76 | CENTER COVER | $4.49 | |||
| 354429 | 77 | LEFT INSIDE PIVOT COVER | $2.99 | |||
| 353494 | 78 | CONSOLE BACK | $78.99 | |||
| 354430 | 79 | RIGHT INSIDE PIVOT COVER | $2.99 | |||
| 354431 | 80 | RIGHT OUTSIDE PIVOT COVER | $3.49 | |||
 | 253669 | 81 | WIRE HARNESS | $74.99 | ||
 | 173169 | 82 | SQUARE GROMMET | $0.99 | ||
| 355568 | 84A | Fitness Equipment Console | NLA | Unavailable to order | ||
 | 243855 | 84B | 30″ RT CNSL WIRE HRNS | $31.49 | ||
| 355157 | 84C | 35″ LT CNSL WIRE HRNS | $33.99 | |||
| 355156 | 84D | 30″ LT CNSL WIRE HRNS | $41.99 | |||
| 355155 | 84E | 25″ RT CNSL WIRE HRNS | $33.49 | |||
| 354950 | 85 | LATCH SPACER | $8.99 | |||
| 354946 | 86 | Latch Spring | NLA | Unavailable to order | ||
| 367192 | 87 | Latch Assembly | NLA | Unavailable to order | ||
| 132315 | 89 | ZIP TIE | $3.49 | |||
| 356829 | 90 | PIVOT CLAMP | $70.99 | |||
| 353965 | 91 | CONSOLE FRAME | $124.99 | |||
| 353515 | 92 | PULSE CROSSBAR | $99.49 | |||
| 361158 | 94 | EXTENSION LEG | $72.99 | |||
| 184438 | 95 | WHEEL SPACER | $3.49 | Unavailable to order | ||
| 052012 | 96 | FRONT WHEEL | $5.99 | |||
| 355748 | 97 | LEFT EXTENSION LEG COVER | $12.49 | |||
| 355749 | 98 | RIGHT EXTENSION LEG COVER | $12.49 | |||
 | 307031 | 99 | STABILIZER FOOT | $2.99 | ||
| 355349 | 101 | LEFT BASE COVER | $16.49 | |||
| 355350 | 103 | RIGHT BASE COVER | $16.49 | |||
| 354423 | 104 | LEFT CONTROL PANEL | $60.49 | |||
| 354424 | 105 | RIGHT CONTROL PANEL | $60.49 | |||
| 354969 | 106 | HANDRAIL | $244.49 | |||
| 353504 | 107 | TOP HANDRAIL COVER | $101.99 | |||
| 361164 | 108 | BOTTOM HANDRAIL COVER | $60.49 | |||
| 353518 | 109 | Key/Clip | NLA | Unavailable to order | ||
 | 013492 | 110 | 1/4″ ISLATR SCREW | $0.99 | ||
| 361253 | 112 | Frame Guide | NLA | Unavailable to order | ||
| 360245 | 113 | FRAME GUIDE SPACER | $7.99 | |||
| 013500 | 114 | 5/16″ X 1 1/2″ SCREW | $2.49 | |||
| 363622 | 116 | Gas Shock | NLA | Unavailable to order |
