PROFORM PERFORMANCE 600 C TREADMILL – PFTL79511.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
119 Parts Available for PROFORM PERFORMANCE 600 C TREADMILL - PFTL79511.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1 | CROWN SCREW | $0.99 | ||
 | 013322 | 2 | #8 X 3/4″ SCREW | $0.99 | ||
 | 013544 | 3 | 3/8″ X 2″ BOLT | $3.99 | ||
 | 149072 | 4 | TENSION BOLT | $3.99 | ||
 | 135622 | 5 | 3/8″ X 2 3/4″ SCREW | $18.99 | ||
| 119994 | 6 | 1.25″ SCREW | $2.99 | |||
 | 167049 | 7 | #10 X 3/4″ SCREW | $0.99 | ||

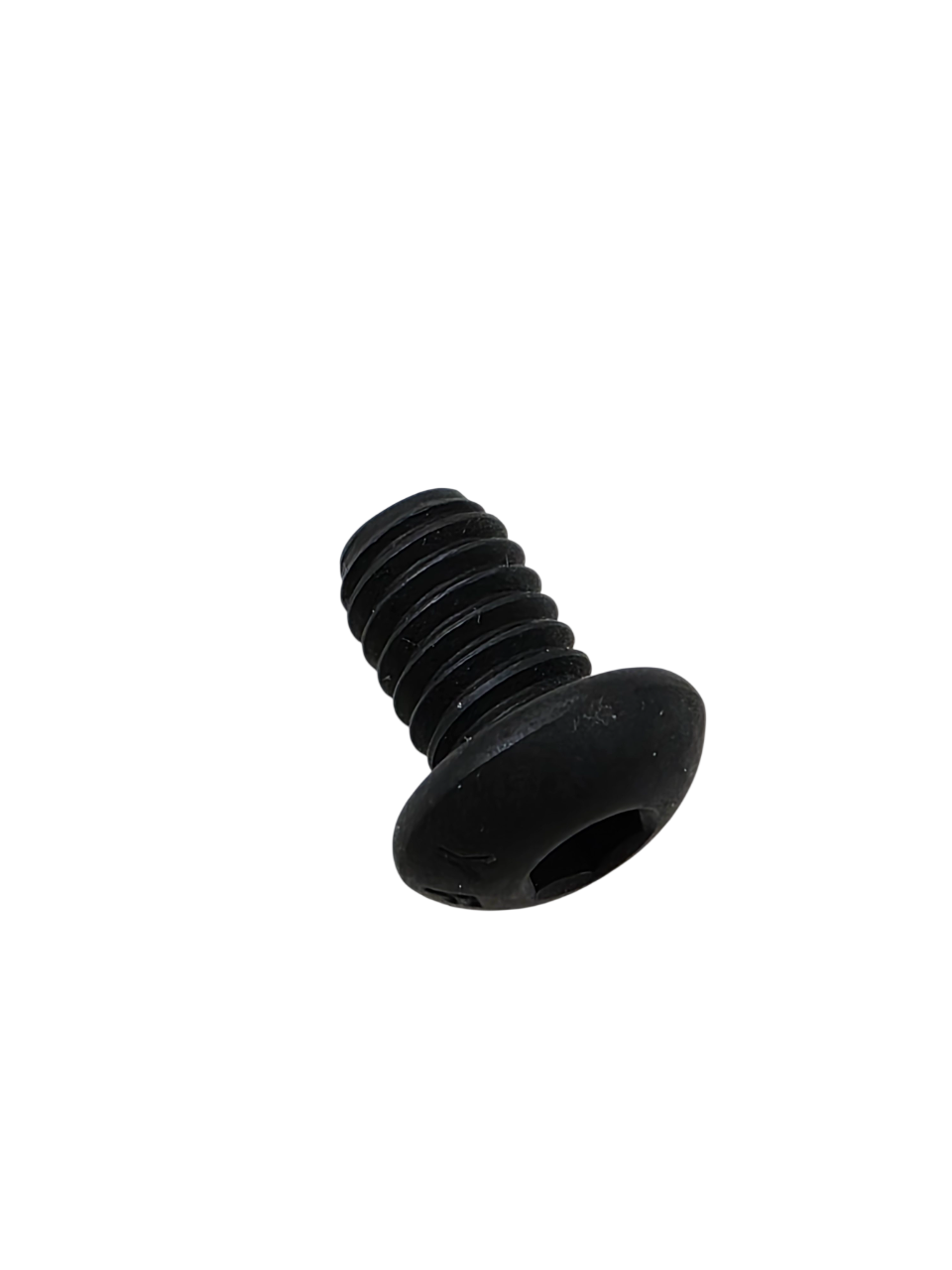

 | 013484 | 8 | 5/16″ X1/2″ UPRIGHT SCREW | $1.99 | ||
 | 013423 | 9 | GROUND SCREW | $0.99 | ||
 | 150699 | 10 | HANDRAIL BOLT | $3.99 | ||
 | 014149 | 11 | 5/16″ STAR WASHER | $0.99 | ||
 | 012149 | 12 | 3/8″ NUT | $0.99 | ||
 | 163045 | 13 | 3/8″ STAR WASHER | $0.99 | ||
 | 014088 | 14 | #10 STAR WASHER | $1.49 | ||
 | 013300 | 15 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
 | 013607 | 16 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 130659 | 17 | #8 X 3/4″ BLACK SCREW | $0.99 | ||
 | 114078 | 18 | LIFT SPACER | $2.49 | ||
 | 364027 | 19 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 195683 | 20 | 3/8″ X 2 1/2″ BOLT | $16.49 | ||
 | 186819 | 21 | #8 X 1/2″ SCREW | $0.99 | ||
 | 174320 | 22 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
| 159986 | 23 | TOP INCLINE BOLT | $6.49 | |||
 | 173169 | 24 | SQUARE GROMMET | $0.99 | ||
| 128263 | 25 | M4 X 42MM SCREW | $0.99 | |||
| 136728 | 26 | #8 BELT GUIDE SCREW | $0.99 | |||
 | 295758 | 27 | 5/16″ DRIVE MOTOR SCREW | $3.49 | ||
| 301975 | 28 | 1/2″ X 2 1/4″ BOLT | $6.99 | |||
 | 301976 | 29 | 3/8″ X 1″ BOLT | $2.49 | ||
 | 298484 | 30 | 5/16″ X 1 3/4″ BOLT | $2.49 | ||
| 014064 | 32 | 1/4″ EXTERNAL STAR WASHER | $0.99 | |||
 | 152478 | 33 | 5/16″ FLAT WASHER | $0.99 | ||
 | 100553 | 34 | 1/2″ LOCKNUT | $1.49 | ||
 | 119425 | 35 | 3/8″ LOCKNUT | $0.99 | ||
 | 100427 | 36 | 5/16″ NUT | $0.99 | ||
 | 133333 | 37 | CLIP NUT | $0.99 | ||
 | 298474 | 38 | SMALL CUSHION | $1.99 | ||
 | 291486 | 39 | #8 X 5/8″ SCREW | $0.99 | ||
| 013500 | 40 | 5/16″ X 1 1/2″ SCREW | $2.49 | |||
| 161121 | 41 | #4 FAN SCREW | $0.99 | |||
| 336434 | 42 | LEFT FRONT ISOLATOR TOP | $8.99 | |||
| 336436 | 43 | REAR ISOLATOR TOP | $6.99 | |||
| 336437 | 45 | ISOLATOR BOTTOM | $5.49 | |||
 | 361896 | 46 | WALKING BELT | $156.49 | ||
| 413303 | 47 | WARNING DECAL | $3.99 | |||
| 336584 | 48 | WALKING PLATFORM | $144.49 | |||
 | 198639 | 49 | BELT GUIDE | $5.99 | ||
| 336583 | 50 | LEFT FOOT RAIL | $65.49 | |||
 | 131090 | 51 | CLAMP | $0.99 | ||
 | 157504 | 52 | REED SWITCH | $26.99 | ||
| 303466 | 54 | DRIVE ROLLER/PULLEY | $141.49 | |||
| 240351 | 55 | 8″ WIRE TIE | $0.99 | |||
| 336435 | 56 | RIGHT FRONT ISOLATOR TOP | $8.99 | |||
| 405683 | 58 | DRIVE MOTOR | $277.99 | |||
 | 311589 | 59 | MOTOR BELT | $53.49 | ||
| 301343 | 60 | REAR FOOT | $11.99 | |||
 | 311588 | 61 | IDLER ROLLER | $114.99 | ||
| 336582 | 62 | RIGHT FOOT RAIL | $65.49 | |||
| 360222 | 64 | MOTOR HOOD | $83.49 | |||
| 336589 | 65 | HOOD ACCENT | $71.99 | |||
| 311214 | 66 | FRAME SPACER | $13.49 | |||
| 302527 | 67 | INCLINE FRAME SPACER | $1.49 | |||
| 173605 | 68 | STOP BRACKET | $2.99 | |||
| 300974 | 70 | INCLINE LEG | $103.49 | |||
 | 398055 | 71 | CONTROLLER | $196.99 | ||
| 302705 | 72 | CONTROLLER BRACKET | $12.49 | |||
| 230979 | 73 | BELLY PAN POST | $5.49 | |||
 | 186726 | 74 | POWER SWITCH | $22.49 | ||
| 311127 | 77 | RIGHT REAR COVER | $20.49 | |||
| 336645 | 78 | UPRIGHT WIRE | $67.99 | |||
| 336370 | 79 | LEFT UPRIGHT | $132.49 | |||
| 252433 | 80 | DECAL, CAUTION, BASE LEG | $0.99 | |||
| 336459 | 81 | LEFT BASE COVER | $20.49 | |||
 | 334653 | 82 | LEFT HANDRAIL COVER | $18.99 | ||
 | 335248 | 83 | LEFT HANDRAIL | $106.49 | ||
 | 334919 | 84 | LEFT BOTTOM HANDRAIL CVR | $18.99 | ||
 | 334655 | 85 | RIGHT HANDRAIL COVER | $18.99 | ||
 | 335245 | 86 | RIGHT HANDRAIL | $106.49 | ||
 | 334921 | 87 | RIGHT BOTTOM HANDRAIL CVR | $18.99 | ||
| 336375 | 88 | RIGHT UPRIGHT | $132.49 | |||
| 336460 | 89 | RIGHT BASE COVER | $20.49 | |||
 | 227199 | 90 | GROMMET | $2.49 | ||
| 301345 | 91 | BUMPER | $2.99 | |||
 | 139090 | 92 | WHEEL | $2.99 | ||
| 336731 | 93 | BASE CAP | $1.49 | |||
 | 031229 | 94 | POWER CORD | $39.99 | ||
| 336747 | 95 | BASE | $184.49 | |||
| 335569 | 96 | CONSOLE FRAME | $107.99 | |||
| 334694 | 97 | CONSOLE BRACKET | $1.49 | |||
 | 215822 | 98A | 4″ GRN WIRE | $5.99 | ||
| 223862 | 98B | 12″ CONSOLE GROUND WIRE | $8.99 | |||
 | 335158 | 99 | KEY/CLIP | $24.99 | ||
 | 296874 | 100 | CONSOLE FAN | $102.49 | ||
| 335340 | 102 | LEFT TRAY | $21.99 | |||
| 335341 | 103 | RIGHT TRAY | $21.99 | |||
| 132315 | 104 | WIRE TIE | $3.49 | |||
| 334639 | 105 | CONSOLE BASE | $83.49 | |||
| 335342 | 106 | CONSOLE TRIM | $22.99 | |||
| 334652 | 108 | PULSE BAR BOTTOM | $142.49 | |||
| 334647 | 109 | FAN COVER | $27.99 | |||
| 334648 | 110 | FAN GRILL | $17.49 | |||
| 336477 | # | LITPAC, NOTE: | NLA | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 198086 | # | 6″ WHITE WIRE, F/F | $3.99 | |||
| 336590 | # | CNSL REPROG MODULE | $195.99 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
| 336478 | # | USER’S MANUAL | NLA | |||
| 336476 | # | TECH SHEET | NLA | |||
 | 102634 | # | 8″ GREEN WIRE | $3.49 | ||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
 | 286707 | # | LIFT MTR SENSOR KIT | $70.49 | ||
 | 189813 | # | FILTER WIRE | $23.99 | ||
| EXIF12 | # | IFIT WIRI ACCESSORY KIT | NLA | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 334649 | # | CONSOLE RUBBER PAD | $28.49 | |||
| 191554 | # | 20″ INCLINE MTR WIRE HRNS | $13.99 | |||
| 268476 | # | DECAL, GROUND WARNING | $0.99 | |||
| 331708 | # | BUMPER | $0.99 | |||
| 158013 | # | FELT PAD. HOOD | $0.99 | |||
 | 128457 | # | 3/16-7/32″ ALLEN WRENCH | $25.49 |
