Proform Crosswalk Fit 415 Treadmill – 24853.0 / 248530
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
80 Parts Available for Proform Crosswalk Fit 415 Treadmill - 24853.0 / 248530 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 186819 | 1 | #8 X 1/2″ SCREW | $0.99 | ||
 | 013322 | 4 | #8 X 3/4″ SCREW | $0.99 | ||
| 101174 | 5 | PLATFORM SCREW | $0.99 | |||
| 101630 | 6 | STAR WASHER | $0.99 | |||
| 347725 | 7 | Console Frame | $96.99 | |||
 | 167049 | 8 | #10 X 3/4″ SCREW | $0.99 | ||
 | 195683 | 9 | 3/8″ X 2 1/2″ BOLT | $16.49 | ||
 | 012149 | 10 | 3/8″ NUT | $0.99 | ||
 | 319894 | 11 | M6 X 55MM SCREW | $6.49 | ||
 | 301976 | 12 | 3/8″ X 1″ BOLT | $2.49 | ||
 | 133333 | 13 | CLIP NUT | $0.99 | ||
 | 013607 | 14 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 181980 | 15 | 3/8″ X 1 1/2″ SCREW | $3.49 | ||
 | 119425 | 16 | 3/8″ LOCKNUT | $0.99 | ||
 | 295756 | 17 | MOTOR SCREW | $0.99 | ||
| 136728 | 18 | #8 BELT GUIDE SCREW | $0.99 | |||
| 013500 | 19 | 5/16″ X 1 1/2″ SCREW | $2.49 | |||
 | 100427 | 20 | 5/16″ NUT | $0.99 | ||
 | 013576 | 21 | CROWN SCREW | $0.99 | ||
| 014157 | 22 | #8 STAR WASHER | $0.99 | |||
| 265234 | 25 | 1/4″ X 1 1/4″ PATCH SCREW | $1.99 | |||
| 283997 | 26 | LIFT FRAME SPACER | $1.99 | |||
| 347940 | 27 | Left Foot Rail | $121.49 | |||
| 347964 | 28 | Platform Cushion | $57.99 | |||
| 305284 | 29 | Latch Warning Decal | NLA | Unavailable to order | ||
| 198640 | 30 | BELT GUIDE | $25.49 | |||
| 315693 | 31 | DRIVE ROLLER/PULLEY | $163.49 | |||
 | 346519 | 32 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||

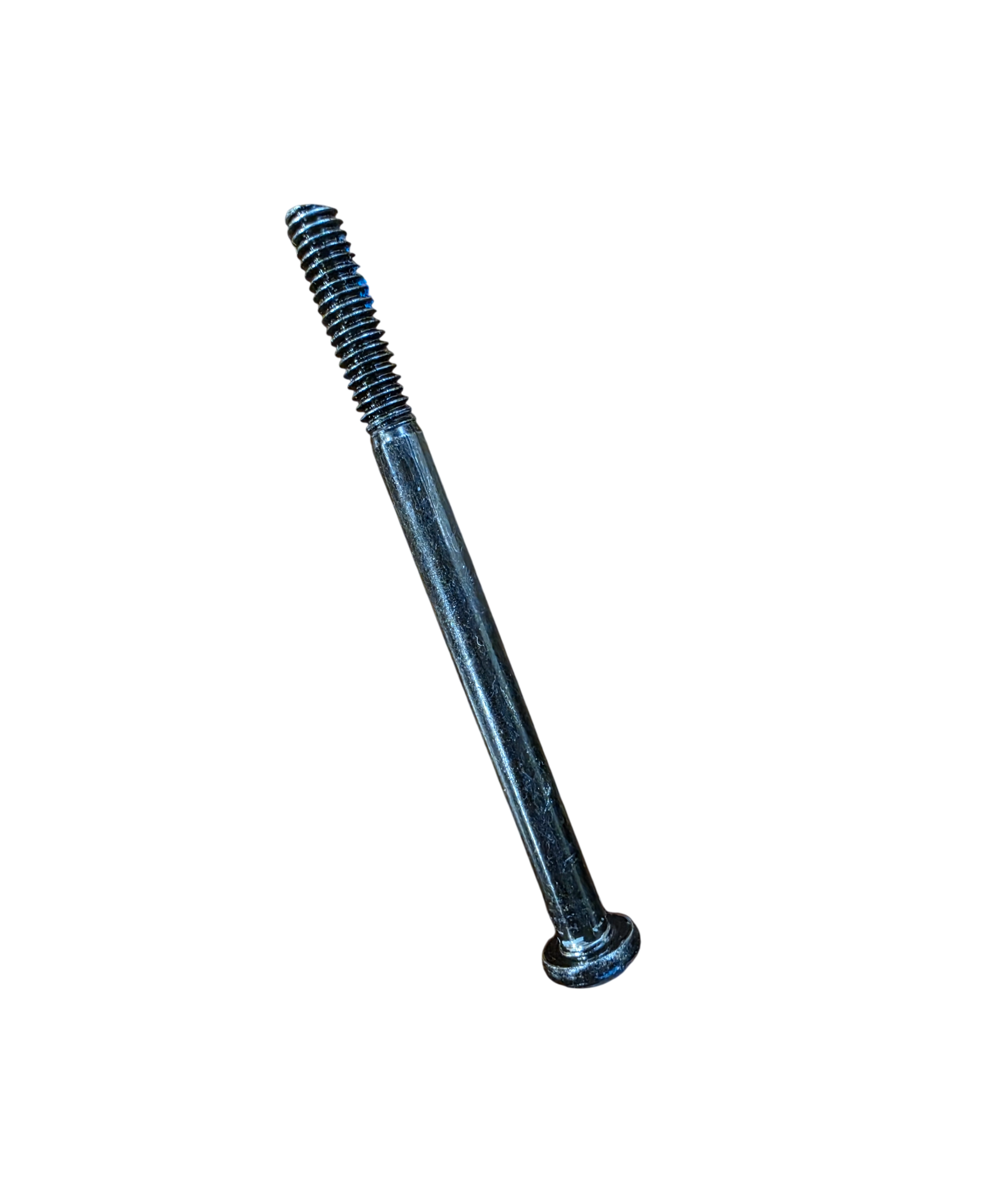

 | 316505 | 33 | 1/4″ X 3 1/2″ SCREW | $6.99 | ||
 | 013300 | 34 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
| 328342 | 35 | Part # 328342 | NLA | Unavailable to order | ||
| 357333 | 36 | Part # 357333 | NLA | Unavailable to order | ||
| 365327 | 37 | CNTRLR PLT&CLAMP BKT SET | $25.49 | |||
| 315692 | 39 | WALKING PLATFORM | $193.49 | |||
 | 270359 | 40 | WALKING BELT | $114.99 | ||
| 347941 | 41 | Right Foot Rail | $119.49 | |||
 | 248571 | 42 | IDLER ROLLER | $166.49 | ||
| 316434 | 43 | LEFT REAR FOOT | $24.49 | |||
| 132315 | 44 | ZIP TIE | $3.49 | |||
 | 260687 | 45 | MOTOR BELT | $61.99 | ||
| 316433 | 46 | RIGHT REAR FOOT | $24.49 | |||
| 213894 | 47 | SMALL WASHER | $0.99 | |||
| 347939 | 48 | Motor Hood | $142.99 | |||
 | 315689 | 49 | INCLINE MOTOR | $161.49 | ||
| 315067 | 50 | FRAME SPACER | $15.49 | |||
| 350180 | 51 | Lift Frame | NLA | Unavailable to order | ||
| 316431 | 52 | BELLY PAN | $147.99 | |||
 | 173169 | 53 | SQUARE GROMMET | $0.99 | ||
 | 031229 | 54 | POWER CORD | $39.99 | ||
 | 186726 | 55 | POWER SWITCH | $22.49 | ||
 | 013316 | 56 | #10 X 3/4″ SCREW | $0.99 | ||
| 348060 | 57 | Console Base | $179.49 | |||
| 347954 | 58 | Console | NLA | Unavailable to order | ||
| 347723 | 59 | Left Handrail | $80.49 | |||
| 347701 | 60 | Handrail Cap | $22.49 | |||
| 014064 | 61 | 1/4″ EXTERNAL STAR WASHER | $0.99 | |||
 | 347877 | 62 | KEY/CLIP | $25.99 | ||
| 347883 | 63 | UPRIGHT WIRE | Unavailable to order | |||
| 347722 | 64 | RIGHT HANDRAIL | $61.99 | |||
| 315068 | 65 | 1/2″ PIN | $7.99 | |||
| 347709 | 66 | Left Upright | $101.49 | |||
 | 358339 | 67 | LATCH ASSEMBLY | $61.99 | ||
| 252433 | 69 | DECAL, CAUTION, BASE LEG | $0.99 | |||
 | 306715 | 70 | BASE CAP | $1.49 | ||
 | 307032 | 71 | BASE PAD | $3.99 | ||
 | 307031 | 72 | STABILIZER FOOT | $2.99 | ||
 | 227199 | 73 | GROMMET | $2.49 | ||
| 349522 | 74 | Base | NLA | Unavailable to order | ||
 | 139090 | 75 | WHEEL | $2.99 | ||
| 347712 | 76 | RIGHT UPRIGHT | $158.99 | |||
| 225696 | 77 | 1/4″ X 1 1/4″ SCREW | $1.49 | |||
| 309770 | 78 | 5/16″ X 3 1/5″ Screw | NLA | Unavailable to order | ||
 | 215822 | 79 | 4″ GRN WIRE | $5.99 | ||
| 276105 | 80 | M4.2 X 8MM SCREW | NLA | Unavailable to order | ||

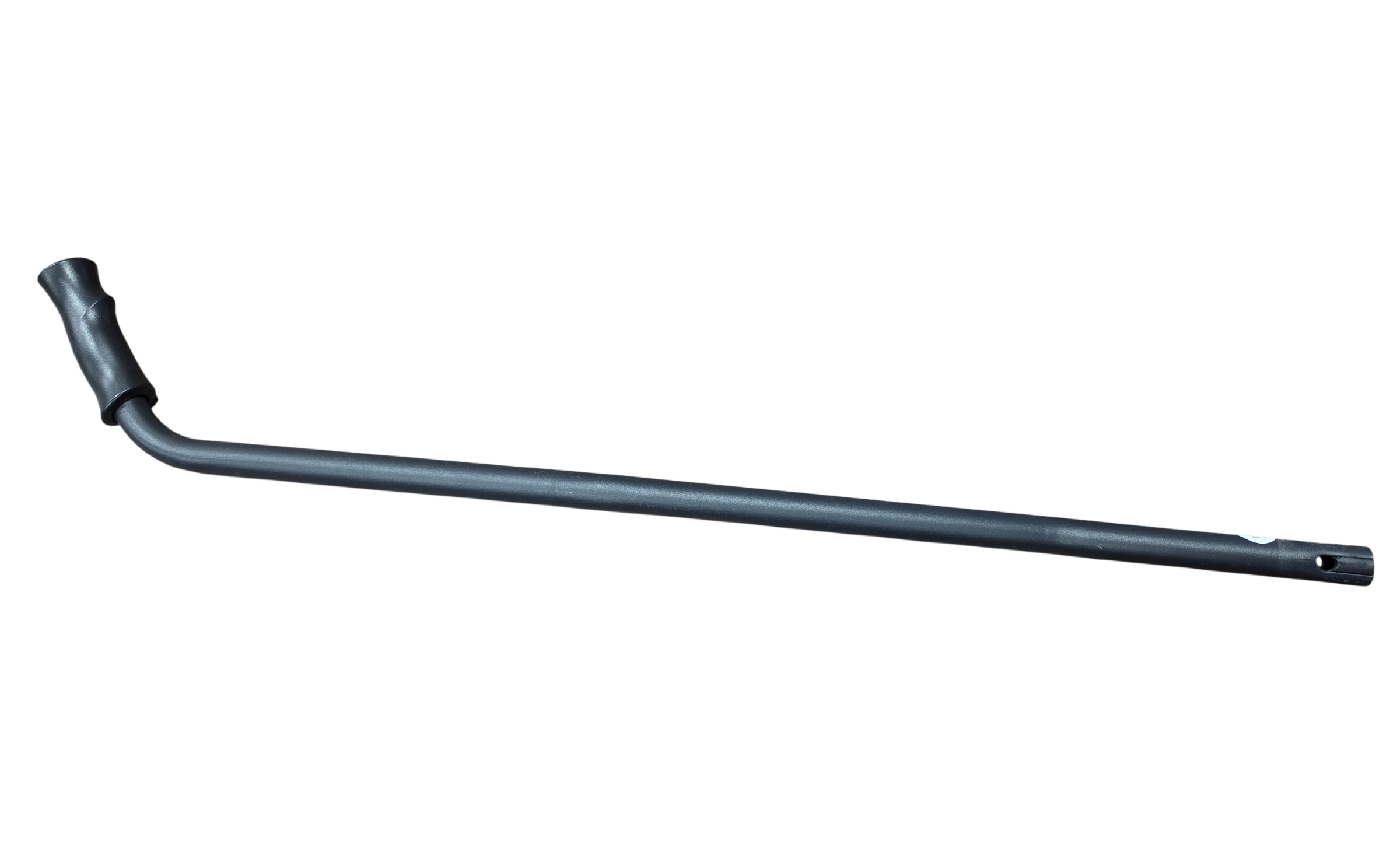

 | 316569 | 81 | Left Upper Body Arm | $69.00 | ||

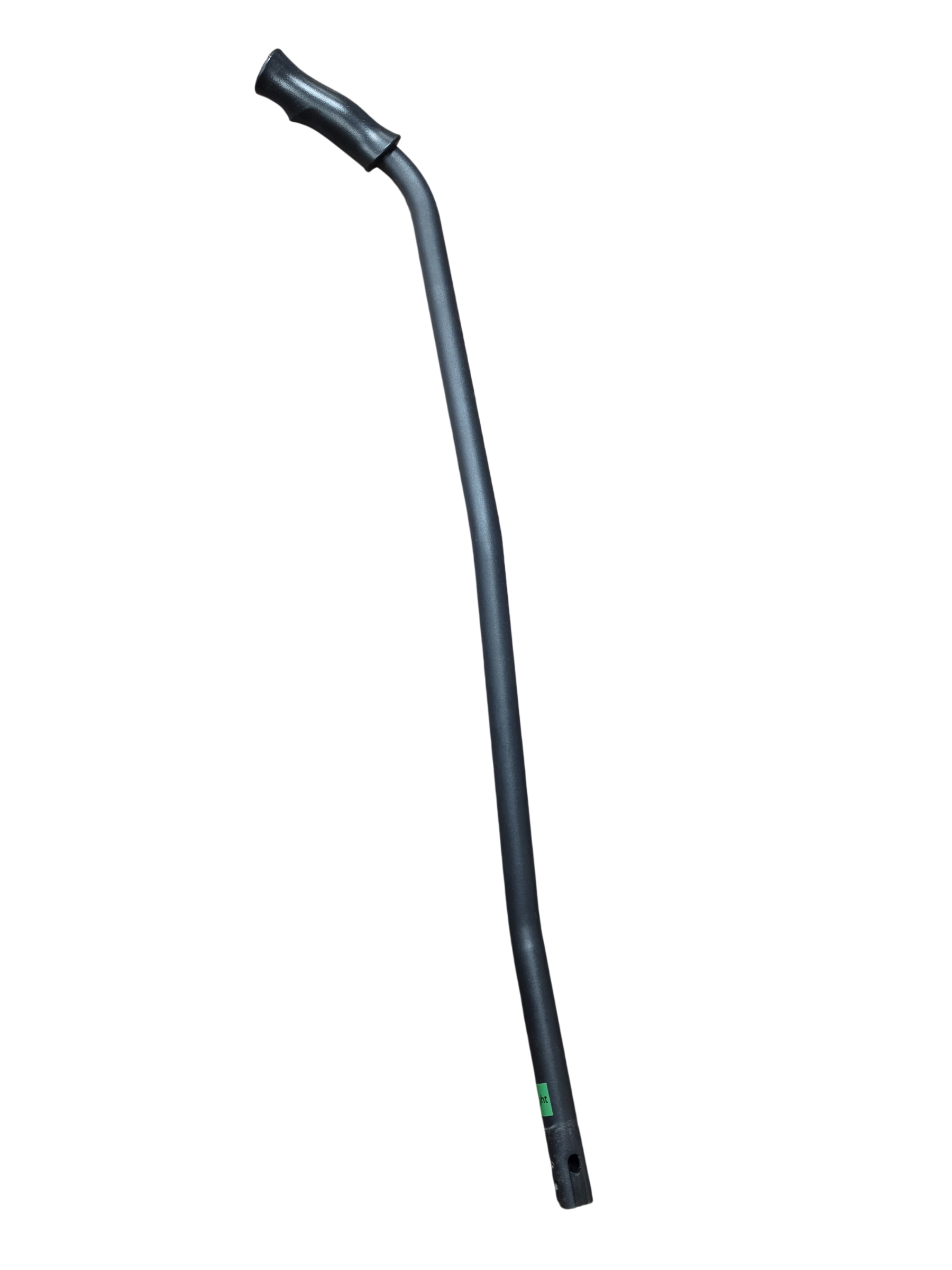

 | 316570 | 82 | RIGHT UPPER BODY ARM | $62.99 | Unavailable to order | |
| 347835 | 83 | Left Tray Bracket | $40.99 | |||
| 347834 | 84 | RIGHT TRAY BRACKET | $24.99 | |||
 | 227163 | 85 | UPPER BODY ARM ENDCAP | $1.49 | ||
| 347728 | 86 | TRAY | $116.49 |
