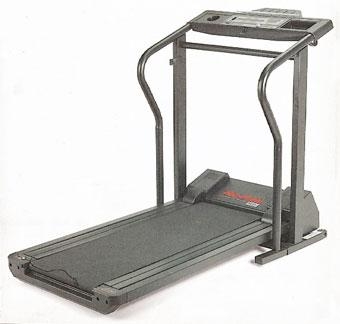

Proform 585Tl Treadmill – PFTL4206.1 / PFTL42061
62 Parts Available for Proform 585Tl Treadmill - PFTL4206.1 / PFTL42061 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 104725 | 1 | HANDRAIL BOLT | $2.49 | |||
| 121421 | 4 | Upright Bracket Bolt | NLA | |||
 | 013322 | 5 | #8 X 3/4″ SCREW | $0.99 | ||
| 013028 | 6 | #8 X 1″ SCREW | $0.99 | |||
| 106334 | 9 | COTTER PIN | $0.99 | |||
| 132449 | 10 | INCLINE LEG PIVOT BOLT | $1.99 | |||
| 117806 | 12 | Incline Wheel Bolt | NLA | |||
 | 013484 | 13 | 1/2″ SCREW | $1.99 | ||
 | 013300 | 14 | ANCHOR/BASE LEG SCREW | $0.99 | ||
| 014073 | 15 | 5/16″ FLAT WASHER | $1.49 | |||
 | 013162 | 16 | BELLYPAN SCREW | $0.99 | ||
| 131826 | 17 | ENDCAP BOLT | $0.99 | |||
 | 105444 | 18 | SHORT ADJUSTMENT BOLT | $0.99 | ||
| 014127 | 19 | ADJUSTMENT WASHER | $0.99 | |||
| 013456 | 20 | Seat Bolt | NLA | |||
 | 013576 | 21 | WEIGHT RACK SCREW | $0.99 | ||
| 134300 | 22 | Isolator for Fitness Equipment | NLA | |||
| 128272 | 24 | TOP ISOLATOR BOLT | $0.99 | |||
| 054023 | 25 | WIRE CLIP | NLA | |||
 | 121576 | 28 | 1/4″ NUT | $2.49 | ||
| 132456 | 29 | Spacer | $3.99 | |||
| 127597 | 31 | ENDCAP FASTENER | $1.99 | |||
| 133072 | 32 | Pan Fastener | $0.99 | |||
| 116927 | 33 | CABLE TIE CLAMP | $0.99 | |||
| 013547 | 35 | MOTOR TENSION BOLT | $0.99 | |||
 | 014117 | 36 | STAR WASHER | $0.99 | ||
| 122812 | 37 | MOTOR TENSION WASHER | $0.99 | |||
| 120867 | 38 | MOTOR TENSION NUT | $2.49 | |||
| 107503 | 39 | Motor Bolt | NLA | |||
| 129740 | 43 | Base Pad | NLA | |||
| 125677 | 44 | HOOD ANCHOR | $1.99 | |||
| 052012 | 45 | FRONT WHEEL | $5.99 | |||
| 103833 | 46 | BASE ENDCAP | $3.49 | |||
 | 125819 | 48 | PLASTIC STAND-OFF | $3.99 | ||
| 185582 | 50 | CHOKE | $76.99 | |||
 | 109382 | 53 | CIRCUIT BREAKER | $15.99 | ||
| 198640 | 57 | BELT GUIDE | $25.49 | |||
| 134326 | 67 | Motor | NLA | |||
| 224018 | 68 | MOTOR BELT | $25.49 | |||
| 124695 | 71 | Power Cord Grommet | NLA | |||
| 132315 | 73 | WIRE TIE | $3.49 | |||
 | 129004 | 74 | WIRE HARNESS GROMMET | $1.99 | ||
 | 113842 | 88 | MAGNET | $1.49 | ||
| 016028 | 90 | TOOL CLAMP | NLA | |||
| 138680 | 91 | Reed Switch | NLA | |||
 | 184542 | 92 | WALKING BELT W/FASTENERS | $125.99 | ||
| 219170 | 92A | 3 TUBE LUBE KIT | $39.49 | |||
| 137409 | 94 | Long Adjustment Bolt | $1.49 | |||
| 102073 | 95 | HANDRAIL PIVOT BOLT | $0.99 | |||
 | 131090 | 98 | REED SWITCH CLIP | $0.99 | ||
| 016057 | 103 | 8″ CABLE TIE | $2.99 | |||
 | 119038 | 105 | KEY/CLIP | $5.49 | ||
| 256836 | 106 | Warning Decal | NLA | |||
| 129639 | 115 | Battery Cover | NLA | |||
| 116926 | 117 | RELEASABLE CABLE TIE | $0.99 | |||
| 016029 | 118 | 4″ CABLE TIE | NLA | |||
| 134761 | 121 | TRIM GUARD | $14.49 | |||
 | 133333 | 122 | #8 HOOD CLIP | $0.99 | ||
| 127819 | 123 | UPRIGHT PLUG | $0.99 | |||
| 013375 | 124 | INCLINE BOLT | $2.99 | |||
 | 119425 | 125 | 3/8″ NUT | $0.99 | ||
| 013540 | 126 | CONSOLE SCREW | $0.99 |
