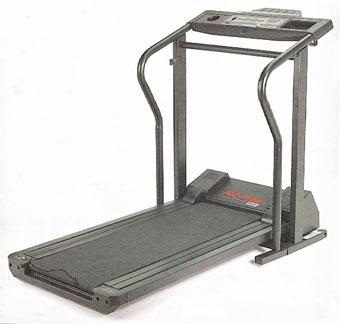

Proform 585Pi Treadmill – PCTL5919.0 / PCTL59190
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
75 Parts Available for Proform 585Pi Treadmill - PCTL5919.0 / PCTL59190 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 224019 | 1 | DRIVE BELT (REPLACES 118016) | $19.99 | ||
| 138989 | 5 | INCLINE PIVOT BOLT | $2.99 | |||
| 158644 | 8 | STOP BRACKET | $2.99 | |||
| 012152 | 9 | GROUND NUT | $0.99 | |||
| 014157 | 10 | #8 STAR WASHER | $0.99 | |||
 | 102955 | 11 | OPTIC SWITCH | $15.49 | ||
| 102959 | 13 | GROUND SCREW | $0.99 | |||
| 109370 | 14 | OPTIC DISK | NLA | |||
 | 119425 | 15 | NUT | $0.99 | ||
| 136728 | 16 | BELT GUIDE SCREW | $0.99 | |||
 | 125819 | 17 | STANDOFF | $3.99 | ||
| 148101 | 18 | SHORT HOOD BRACKET | $0.99 | |||
| 156899 | 20 | WARNING DECAL | $3.49 | |||
 | 157504 | 21 | REED SWITCH | $26.99 | ||
| 148202 | 22 | Reed Switch Clip | NLA | |||
| 167844 | 25 | ELECTRONICS BRACKET | $54.99 | |||
 | 109382 | 26 | CIRCUIT BREAKER | $15.99 | ||
| 124695 | 28 | Power Cord Grommet | NLA | |||
| 119994 | 32 | 1.25″ SCREW | $2.99 | |||
| 157295 | 33 | Frame Pivot Spacer | NLA | |||
| 159353 | 34 | UPRIGHT WIRE HARNESS | $98.99 | |||
| 165220 | 35 | Front Roller Adjustment Bolt | NLA | |||
 | 014063 | 36 | M6 LARGE WASHER | $0.99 | ||
 | 012090 | 37 | 1/4″ NYLON LOCK NUT | $0.99 | ||
| 013443 | 38 | MOTOR BOLT | $0.99 | |||
| 013028 | 39 | ENDCAP SCREW | $0.99 | |||
| 164597 | 42 | Front Roller/Pulley | NLA | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 128272 | 44 | PLATFORM SCREW | $0.99 | |||
 | 013576 | 46 | #8 X 1/2″ AB SCREW | $0.99 | ||
 | 138853 | 47 | BACKREST FASTENER | $0.99 | ||
| 148659 | 48 | Shield | NLA | |||
| 129639 | 50 | Battery Cover | NLA | |||
| 116927 | 53 | CABLE TIE CLAMP | $0.99 | |||
| 116926 | 54 | RELEASABLE TIE | $0.99 | |||
 | 173063 | 55 | WALKING BELT W/FASTENERS | $135.49 | ||
| 156429 | 56 | PULSE WIRE | NLA | |||
 | 159358 | 57 | Rear Roller | NLA | ||
 | 157096 | 59 | REAR FOOT | $4.49 | ||
 | 013282 | 60 | SPRING SCREW | $0.99 | ||
 | 102634 | 61 | 8″ GREEN WIRE, F/R | $3.49 | ||
| 120630 | 62 | SCREW | $0.99 | |||
 | 157004 | 64 | REAR ENDCAP | $79.99 | ||
 | 105444 | 65 | REAR ROLLER ADJ BOLT | $0.99 | ||
| 155353 | 67 | LATCH DECAL | $64.99 | |||
| 349204 | 67A | LATCH WARNING DECAL,6LANG | $43.99 | |||
| 100691 | 68 | PLATFORM SCREW | $0.99 | |||
| 109250 | 69 | Reed Switch/BLYPN Screw | NLA | |||
| 016057 | 72 | 8″ CABLE TIE | $2.99 | |||
 | 158332 | 73 | IFIT ADAPTER | $5.99 | ||
| 126038 | 74 | MOTOR TENSION BOLT | $2.49 | |||
 | 013162 | 76 | SAFETY COVER SCREW | $0.99 | ||
 | 174797 | 78 | UPRIGHT BOLT | $4.49 | ||
| 119445 | 79 | 1.25″ SCREW | $0.99 | |||
| 167079 | 80 | AUDIO PATCH CABLE | $19.49 | |||
 | 014117 | 81 | STAR WASHER | $0.99 | ||
| 013547 | 83 | INCLINE LEG/MOTOR BOLT | $0.99 | |||
| 102372 | 84 | 5/16″ SIDESHIELD WASHER | $0.99 | |||
| 013601 | 86 | 3/8″ X 2″ SCREW | $8.99 | |||
 | 013322 | 89 | #8 X 3/4″ SCREW | $0.99 | ||
 | 119038 | 90 | SAFETY KEY/CLIP | $5.49 | ||
| 147596 | 93 | BOOK HOLDER | NLA | |||
| 052012 | 95 | FRONT WHEEL | $5.99 | |||
| 167775 | 96 | INCLINE MOTOR SHIELD | $7.99 | |||
 | 157600 | 97 | BASE PAD | $1.99 | ||
 | 157646 | 98 | 12″ IFIT AUDIO JACK WIRE | $22.99 | ||
 | 129004 | 99 | 1″ GROMMET | $1.99 | ||
 | 013300 | 101 | FINGER GUARD SCREW | $0.99 | ||
| 185582 | 106 | CHOKE | $76.99 | |||
 | 150699 | 107 | HANDRAIL BOLT | $3.99 | ||
| 014073 | 108 | WASHER | $1.49 | |||
| 156273 | 113 | PIN CLIP | $0.99 | |||
| 159109 | 114 | LOCK PIN | $38.99 | |||
 | 157209 | 115 | REAR FOOT SPACER | $2.99 | ||
| 126650 | 116 | BASE PAD | $0.99 |
