PROFORM 585 CS TREADMILL – PFTL59908.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
84 Parts Available for PROFORM 585 CS TREADMILL - PFTL59908.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1 | M4 X 16MM FLAT HEAD SCREW | $0.99 | ||
 | 146427 | 2 | #8 X 1″ TEK SCREW | $0.99 | ||
 | 128457 | 3 | ALLEN WRENCH | $25.49 | ||
 | 013544 | 4 | LATCH SHOCK BOLT, LOWER | $3.99 | ||
| 013324 | 5 | HOOD SCREW, #10 X 3/4″ | $0.99 | |||
 | 215482 | 6 | 3/8″ X 4″ SCREW | $6.49 | ||
| 119994 | 7 | FRAME PIVOT BOLT | $2.99 | |||
 | 012149 | 8 | LATCH SHOCK NUT | $0.99 | ||
 | 163045 | 9 | 3/8″ STAR WASHER | $0.99 | ||
 | 013300 | 11 | 3/4″ SCREW | $0.99 | ||
 | 013322 | 12 | SCREW | $0.99 | ||
 | 161411 | 13 | SPACER | $0.99 | ||
 | 013607 | 15 | #8 X 3/4″ SCREW | $0.99 | ||
| 180917 | 16 | 3/4″ SCREW | $0.99 | |||
| 137224 | 17 | 5/16″ X 1 1/4″ BOLT | $0.99 | |||
| 145509 | 19 | 3/8″ X 1″ BOLT | $2.49 | |||
 | 305744 | 20 | SINGLE IDLER ROLLER BOLT | $5.99 | ||
| 179767 | 21 | 3/8″ X 1 3/4″ HEX HD BOLT | $61.49 | |||
 | 174320 | 22 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
| 013438 | 23 | FRAME PIVOT BOLT | $1.49 | |||
 | 186819 | 24 | 1/2″ SCREW | $0.99 | ||
 | 014088 | 27 | #10 STAR WASHER | $1.49 | ||
 | 186726 | 28 | RESET/OFF CIRCUIT BREAKER | $22.49 | ||
| 136728 | 29 | BELT GUIDE SCREW | $0.99 | |||
| 014129 | 30 | 1/4″ WASHER | $0.99 | |||
| 014126 | 31 | REAR ROLLER LOCK WASHER | $0.99 | |||
| 120867 | 32 | MOTOR TENSION NUT | $2.49 | |||
| 215823 | 35 | AUDIO WIRE | $11.99 | |||
| 136012 | 36 | PLATFORM NUT | $0.99 | |||
 | 133333 | 37 | CLIP | $0.99 | ||
 | 253669 | 38 | UPRIGHT WIRE | $74.99 | ||
| 200747 | 39 | GROUND WIRE | $3.49 | |||
 | 174801 | 40 | 1/4″ X 1/2″ SCREW | $0.99 | ||
| 413303 | 42 | WARNING DECAL | $3.99 | |||
| 262707 | 44 | WALKING PLATFORM | $193.99 | |||

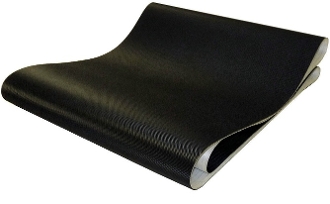

 | 253081 | 45 | WALKING BELT | $136.49 | ||
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
 | 251133 | 48 | FRAME SPACER | $1.49 | ||
| 013492 | 49 | ISOLATOR BOLT, BOTTOM | $0.99 | |||
 | 113842 | 50 | MAGNET | $1.49 | ||
| 273189 | 51 | DRIVE ROLLER/PULLEY | $150.49 | |||
| 116566 | 52 | 15 1/2″ CABLE TIE | $0.99 | |||
 | 254305 | 58 | IDLER ROLLER | $114.99 | ||
 | 254303 | 62 | DRIVE BELT | $38.99 | ||
 | 286075 | 64 | DRIVE MOTOR | $219.99 | ||
| 240351 | 66 | 50# WIRE CLAMP | $0.99 | |||
 | 214773 | 67 | CONTROLLER GROUND WIRE | $2.99 | ||
 | 031229 | 68 | POWER CORD | $39.99 | ||
 | 173169 | 69 | POWER CORD GROMMET | $0.99 | ||
 | 398063 | 70 | OEM CONTROLLER (301811) (259522) | $189.99 | ||
 | 165798 | 71 | REED SWITCH | $19.49 | ||
 | 131090 | 72 | REED SWITCH CLIP | $0.99 | ||
| 257285 | 73 | BELLY PAN | $86.99 | |||
| 231224 | 75 | INCLINE MOTOR | $142.49 | |||
 | 157600 | 81 | BUMPER | $1.99 | ||
| 252433 | 82 | CAUTION DECAL | $0.99 | |||
 | 139090 | 84 | WHEEL | $2.99 | ||
| 116926 | 85 | RELEASABLE TIE | $0.99 | |||
| 016057 | 86 | 8″ CABLE TIE | $2.99 | |||
| 215158 | 87 | ACCESS DOOR | $1.99 | |||
| 194020 | 88 | #3 X 1/4″ SCREW | $0.99 | |||
| 272555 | 89 | CONSOLE | $313.99 | |||
| 132315 | 92 | WIRE TIE | $3.49 | |||
| 251497 | 94 | CONSOLE CLAMP | $0.99 | |||
| 257590 | 97 | FRONT HANDRAIL ENDCAP | $28.49 | |||
 | 257191 | 98 | UPRIGHT CAP | $2.99 | ||
| 253591 | 100 | KEY/CLIP | $24.99 | |||
| 155623 | 101 | CONSOLE GROUND WIRE | $3.99 | |||
| 191554 | 102 | PHOTO SWITCH WIRE | $13.99 | |||
 | 119425 | 103 | LOCK NUT | $0.99 | ||
| 203945 | 106 | KEY BOARD | $0.99 | |||
| 227198 | 107 | 4″ BLACK WIRE, 2RING | $2.49 | |||
 | 117332 | 108 | MOTOR TENSION BOLT | $4.49 | ||
| 101263 | 109 | MOTOR PIVOT BOLT | $4.99 | |||
 | 014117 | 110 | STAR WASHER | $0.99 | ||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
| 219170 | # | 3 TUBE LUBE KIT | $39.49 | |||
 | 219168 | # | LUBE KIT, 1 TUBE | $18.99 | ||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
| 163253 | # | 10″ BLACK WIRE,M/F | $4.99 | |||
| 272027 | # | USER” MANUAL | NLA | |||
| 163254 | # | 10″ RED JUMPER WIRE, M/F | $4.99 | |||
| 198082 | # | 10″ BLUE WIRE, M/F | $4.99 | |||
| 198072 | # | 12″ BLUE JUMPER WIRE, F/F | $5.49 |
