Proform 545 Treadmill – PETL5702.0 / PETL57020
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
72 Parts Available for Proform 545 Treadmill - PETL5702.0 / PETL57020 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 129639 | 4 | Battery Cover | NLA | Unavailable to order | ||
| 146017 | 6 | LIFT MOTOR | $184.49 | |||
 | 190075 | 7 | REAR ROLLER | $131.99 | Unavailable to order | |
 | 224019 | 12 | DRIVE BELT (REPLACES 118016) | $19.99 | ||
 | 013322 | 13 | #8 X 3/4″ SCREW | $0.99 | ||
 | 137944 | 14 | LATCH | $10.99 | ||
| 180917 | 15 | GROUND/CHOKE SCREW | $0.99 | |||
| 016057 | 16 | 8″ CABLE TIE | $2.99 | |||
 | 012056 | 17 | WHEEL NUT | $0.99 | ||
 | 012149 | 22 | 3/8″ NUT | $0.99 | ||
 | 013300 | 25 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
| 107503 | 27 | Motor Bolt | NLA | Unavailable to order | ||
| 120867 | 28 | MOTOR TENSION NUT | $2.49 | |||
 | 014117 | 29 | STAR WASHER | $0.99 | ||
| 122812 | 30 | MOTOR TENSION WASHER | $0.99 | |||
| 013547 | 31 | INCLINE LEG/MOTOR BOLT | $0.99 | |||
| 136728 | 33 | #8 BELT GUIDE SCREW | $0.99 | |||
| 174651 | 35 | MOTOR BELT SHIELD | NLA | Unavailable to order | ||
| 169721 | 36 | WHEEL BOLT | $2.99 | |||
| 165009 | 37 | WHEEL | $2.49 | |||
 | 119425 | 38 | 3/8″ LOCKNUT | $0.99 | ||
 | 014063 | 39 | 1/4″ FLAT WASHER | $0.99 | ||
 | 157600 | 40 | BUMPER | $1.99 | ||
 | 129542 | 41 | UPRIGHT SPACER | $2.99 | Unavailable to order | |

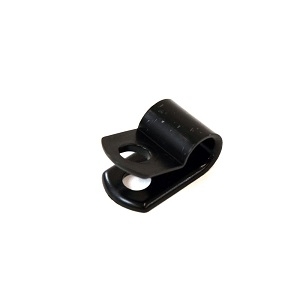

 | 131090 | 43 | CLAMP | $0.99 | ||
 | 157504 | 44 | REED SWITCH | $26.99 | ||
 | 113842 | 45 | MAGNET | $1.49 | ||
| 128272 | 48 | TOP ISOLATOR BOLT | $0.99 | |||
| 147990 | 50 | FRONT ROLLER/PULLEY | $141.99 | |||
| 162742 | 51 | FRONT ROLLER ADJ BOLT | $0.99 | |||
| 013470 | 53 | SEAT POST MOUNTING BOLT | $1.49 | |||
| 162358 | 54 | POWER CORD SET | $104.99 | |||
 | 109231 | 55 | RECEPTACLE | $18.49 | ||
 | 014132 | 57 | 3/8″ WASHER | $0.99 | ||
| 166492 | 58 | WHEEL BOLT | $2.49 | |||
| 155353 | 59 | LATCH DECAL | $64.99 | |||
| 161392 | 59A | LATCH DECAL, FRNCH/GERMN | $40.99 | |||
| 160935 | 59B | LATCH DECAL, ITALY/SPNSH | $40.99 | |||
| 116927 | 61 | TIE HOLDER CLAMP | $0.99 | |||
| 157498 | 62 | REAR PLATFORM SCREW | $0.99 | |||
| 116926 | 63 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 145367 | 64 | FILTER | $116.49 | |||
| 198640 | 65 | BELT GUIDE | $25.49 | |||
 | 013162 | 66 | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 142851 | 67 | WALKING BELT W/FASTENER | $107.99 | ||
| 125708 | 70 | 1/4″ CAGE NUT | $2.49 | |||
 | 129004 | 72 | ROUND GROMMET | $1.99 | ||
| 130459 | 73 | Endcap Screw | NLA | Unavailable to order | ||
 | 128457 | 74 | 3/16-7/32″ ALLEN WRENCH | $25.49 | ||
| 117806 | 77 | Incline Wheel Bolt | NLA | Unavailable to order | ||
| 173368 | 78 | GROUND SCREW | $0.99 | |||
 | 168267 | 79 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 143024 | 81 | 6″ BLACK WIRE, R/R | $2.99 | |||
 | 105444 | 83 | REAR ROLLER ADJ BOLT | $0.99 | ||
| 171377 | 84 | REAR ENDCAP | $78.49 | |||
| 014157 | 86 | #8 STAR WASHER | $0.99 | |||
 | 013607 | 87 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
| 149442 | 91 | 5/16 X 4″ SCREW | $4.99 | |||
| 014073 | 92 | WASHER | $1.49 | |||
 | 136012 | 93 | WALKING BOARD NUT | $0.99 | ||
 | 174320 | 94 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
| 177768 | 95 | ISOLATOR KIT | $24.99 | |||
| 119445 | 96 | 1.25″ SCREW | $0.99 | |||
| 102959 | 100 | PHOTO SWITCH SCREW | $0.99 | |||
| 012152 | 102 | PHOTO SWITCH NUT | $0.99 | |||
| 184903 | 103 | FILTER WIRE | $25.99 | |||
| 130285 | 104 | LIFT FRAME WASHER | $0.99 | |||
 | 184873 | 107 | FERRITE | $26.99 |
