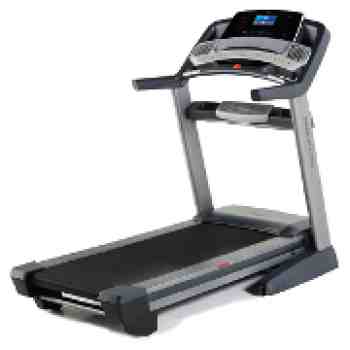

Proform 1500 Rt Treadmill – PFTL15610.0 / PFTL156100
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
103 Parts Available for Proform 1500 Rt Treadmill - PFTL15610.0 / PFTL156100 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1 | #8 X 1/2″ AB SCREW | $0.99 | ||
| 269360 | 4 | 5/16″ X 1 1/2″ BOLT/SCRW | $2.49 | |||
 | 013556 | 5 | HUB SCREW | $1.49 | ||
 | 266622 | 6 | 3/8″X1 3/4″ SCREW, NOTE | $40.49 | ||
 | 280156 | 7 | 3/8″ X 5 1/2″ SCREW | $6.18 | ||
 | 183246 | 8 | 1/4″ X 1/2″ SCREW | $1.49 | ||
 | 014149 | 9 | STAR WASHER | $0.99 | ||
 | 012149 | 10 | 3/8″ LOCKNUT | $0.99 | ||
 | 163045 | 11 | 3/8″ STAR WASHER | $0.99 | ||
 | 189861 | 12 | ROLLER STAR WASHER | $1.49 | ||
| 285772 | 13 | Part # 285772 | NLA | |||
 | 013322 | 14A | #8 X 3/4″ SCREW | $0.99 | ||
 | 154848 | 14B | 1″ BELLY PAN SCREW | $0.99 | ||
 | 305744 | 15 | SINGLE IDLER ROLLER BOLT | $5.99 | ||
| 179767 | 16 | 3/8″ X 1 3/4″ BOLT | $61.49 | |||
 | 186819 | 17 | ELECTRONICS SCREW | $0.99 | ||
| 251606 | 18 | Foot Rail Screw | NLA | |||
| 136728 | 19 | BELT GUIDE SCREW | $0.99 | |||
| 259500 | 20 | MOTOR BOLT | $2.99 | |||
| 284554 | 21 | 3/8″ X 2 1/8″ Bolt | $6.49 | |||
| 296273 | 22 | 3/8″ X 1 1/8″ Bolt | NLA | |||
| 228465 | 24 | 1/4″ X 1 3/4″ SCREW | $2.49 | |||
 | 014063 | 25 | M6 LARGE WASHER | $0.99 | ||
| 014126 | 26 | TRACK WASHER | $0.99 | |||
| 203451 | 27 | 5/16″ CAGE NUT | $3.99 | |||
| 153210 | 28A | M4.2 X 18MM SCREW | $0.99 | |||
| 125803 | 28B | #8 X 1″ SCREW | $1.99 | |||
 | 119425 | 29 | NUT | $0.99 | ||
| 136012 | 30 | WALKING PLATFORM NUT | $0.99 | |||
 | 133333 | 31 | COVER CLIP | $0.99 | ||
| 014064 | 32 | STAR WASHER | $0.99 | |||
| 014157 | 33 | #8 STAR WASHER | $0.99 | |||
| 013028 | 34 | ENDCAP SCREW | $0.99 | |||
| 289715 | 35 | LEFT FOOT RAIL | $49.99 | |||
| 256836 | 36 | Warning Decal | NLA | |||
| 289622 | 37 | PLATFORM CUSHION | $102.49 | |||
 | 198639 | 39 | BELT GUIDE | $5.99 | ||
| 289713 | 40 | LEFT FOOT RAIL COVER | $81.49 | |||
| 289714 | 41 | RIGHT FOOT RAIL COVER | $81.49 | |||
| 285260 | 42 | DRIVE ROLLER/PULLEY | $148.49 | |||
 | 222902 | 43 | MAG,CUST,.39X.15″ | NLA | ||
 | 157504 | 44 | REED SWITCH | $26.99 | ||
| 216626 | 45 | REED SWITCH CLIP | $0.99 | |||
 | 287224 | 46 | MOTOR BELT | $53.49 | ||
 | 287483 | 47 | MOTOR | $289.99 | ||
 | 260062 | 48 | OEM WALKING BELT | |||
 | 227199 | 49 | GROMMET | $2.49 | ||
| 328547 | 51 | Storage Latch | NLA | |||
| 244582 | 52 | CUSHION STOP | NLA | |||
| 284557 | 53 | Electronics Bracket | $25.49 | |||
| 266333 | 54 | Part # 266333 | NLA | |||
 | 263724 | 56 | IDLER ROLLER | $114.99 | ||
| 285768 | 57 | RIGHT FRAME FOOT | $24.99 | |||
| 285769 | 58 | LEFT FRAME FOOT | $24.99 | |||
 | 128457 | 59 | 3/16″-7/32″ ALLEN WRENCH | $25.49 | ||
| 045023 | 60 | 5/16″ ALLEN WRENCH | $1.99 | |||
| 276539 | 62 | CUSHION TRACK | $16.49 | |||
| 283997 | 63 | INCLINE FRAME SPACER | $1.99 | |||
| 284195 | 64 | FRAME SPACER | $0.99 | |||
| 296730 | 65 | LIFT FRAME | $104.99 | |||
| 287658 | 66 | INCLINE MOTOR | $151.49 | |||
| 222258 | 67 | Wheel Spacer | NLA | |||
| 284197 | 68 | Hood Mount | $6.49 | |||
| 285612 | 69 | BLYPN,MOLDED | NLA | |||
 | 186726 | 70 | POWER SWITCH | $22.49 | ||
| 252752 | 71 | POWER CORD | $69.99 | |||
 | 173169 | 72 | POWER CORD PLATE | $0.99 | ||
| 223520 | 73 | MOTOR CONTROLLER WIRE | $12.99 | |||
| 116926 | 74 | RELEASABLE TIE | $0.99 | |||
| 116566 | 75 | 15 1/2″ CABLE TIE | $0.99 | |||
| 016057 | 76 | 8″ CABLE TIE | $2.99 | |||
| 284186 | 77 | HANDRAIL CAP | $2.99 | |||
| 292819 | 78 | LEFT HANDRAIL | $66.99 | |||
| 292818 | 79 | RIGHT HANDRAIL | $66.99 | |||
| 285098 | 80 | CONSOLE CLAMP | $0.99 | |||
| 292820 | 81 | CONSOLE FRAME | $61.99 | |||
| 284049 | 82 | LEFT UPRIGHT | $112.99 | |||
| 284051 | 83 | Part # 284051 | NLA | |||
| 286186 | 84 | BASE COVER | $30.49 | |||
| 287250 | 85 | UPRIGHT WIRE | $93.49 | |||
| 285610 | 87 | LEFT UPRIGHT COVER | $23.99 | |||
| 284713 | 88 | BOLT SPACER | $2.49 | |||
| 252433 | 89 | CAUTION DECAL, NOTE: | $0.99 | |||
| 290441 | 90 | SPCR,UPRT,LT,GPHTX | $27.49 | |||
| 290437 | 91 | RIGHT UPRIGHT SPACER | $27.49 | |||
 | 157600 | 92 | BASE PAD | $1.99 | ||
| 215823 | 93 | AUDIO WIRE | $11.99 | |||
| 296960 | 94 | Part # 296960 | NLA | |||
| 191892 | 95 | Rear Wheel | NLA | |||
| 284196 | 96 | WHEEL HOUSING | $4.49 | |||
| 284000 | 97 | WHEEL AXLE | $2.99 | |||
 | 256790 | 98 | KEY/CLIP | $19.99 | ||
| 132315 | 99 | CABLE CLAMP | $3.49 | |||
| 285248 | 102 | CNSL,BASE,CHARLIE 09 | $108.99 | |||
| 285985 | 103 | MODULE HOUSING | $50.99 | |||
| 285113 | 104 | Right Cup Holder Console | $23.99 | |||
| 264420 | 105 | ACCESS DOOR | $1.99 | |||
 | 215822 | 107 | 4″ WIRE | $5.99 | ||
| 166909 | 108 | DECAL,SITE WARNING | $2.49 | |||
| 240351 | 109 | ANCHORED CABLE TIE | $0.99 | |||
| 287383 | 110 | LIFT MOTOR SENSOR WIRE | $32.49 | |||
 | 013529 | 111 | #8 X 35MM SCREW | $0.99 |
