Proform Ze3 Elliptical - PFEL03009.0 / PFEL030090

Proform Ze3 Elliptical – PFEL03009.0 / PFEL030090

Brand: ProForm

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

89 Parts Available for Proform Ze3 Elliptical - PFEL03009.0 / PFEL030090 ↓

Part #	Diagram #	Title	Price
281550	4	Fitness Equipment Console	Contact for Pricing
280935	5	WATER BOTTLE HOLDER	$27.99
241954	7	RESISTANCE DISC	$1.99
283886	8	Left Upper Body Arm	$108.99
283887	9	RIGHT UPPER BODY ARM	$112.99
230444	10	FOAM GRIP	Contact for Pricing
246303	11	UPPER BODY ARM CAP	$0.99
283856	12	LEFT PEDAL	$120.99
283858	13	RIGHT PEDAL	Contact for Pricing
283888	14	Left Pedal Arm	$156.49
283661	15	Pedal Bracket	$58.99
280933	16	FRONT UPRIGHT COVER	Contact for Pricing

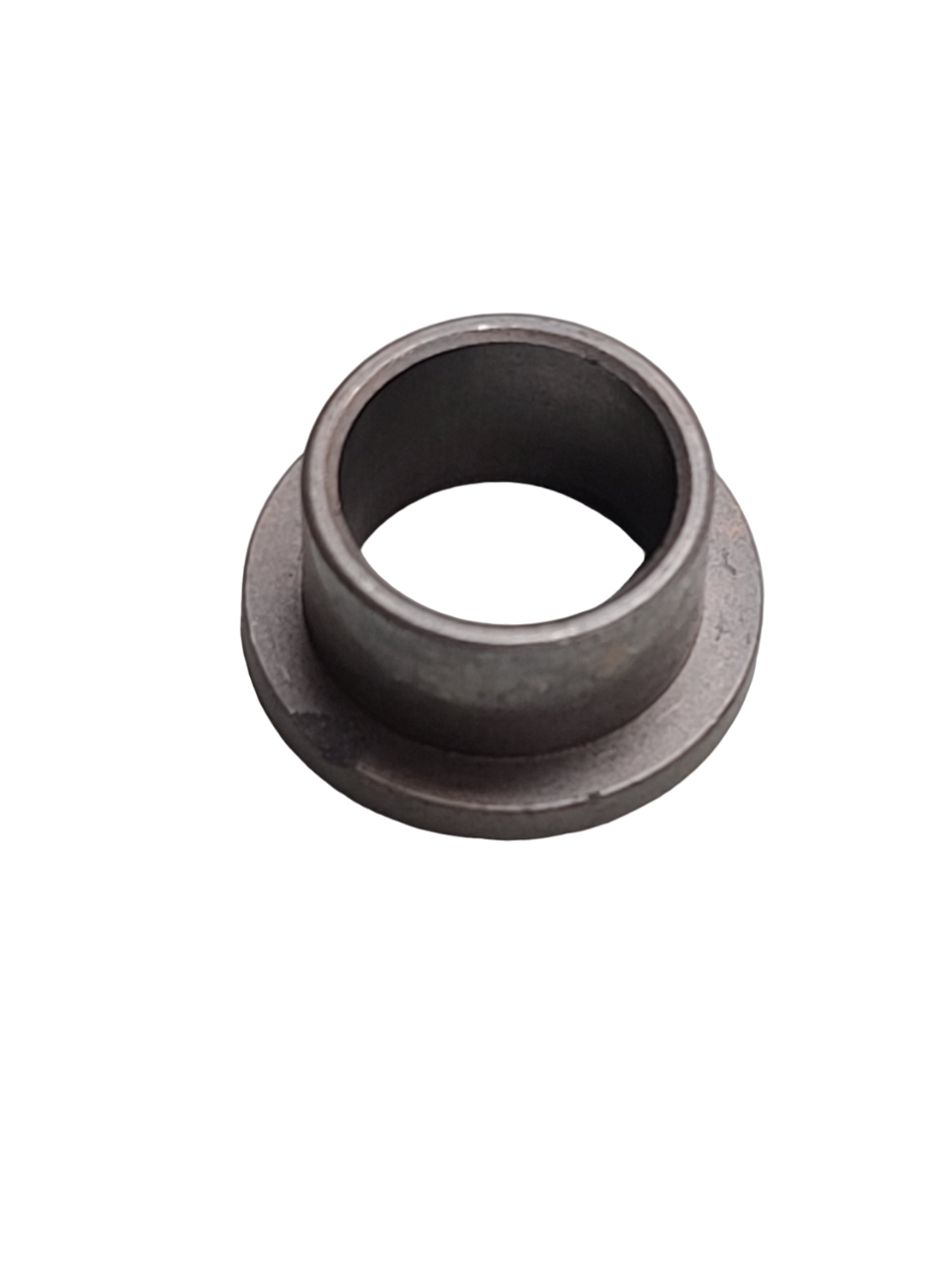

256295	17	HANDLEBAR BUSHING (138574)	$4.99
283669	18	Disc Cover	$65.49
280931	19	Pivot Cover A	Contact for Pricing
280936	20	Front Leg Cover	Contact for Pricing
280937	21	REAR LEG COVER	Contact for Pricing
280932	22	Pivot Cover B	Contact for Pricing
281011	24	CRANK ASSEMBLY	NLA	Unavailable to order
281017	25	CRANK ARM	Contact for Pricing
283667	27	RIGHT PEDAL DISC	$114.99
272391	28A	RIGHT PULSE WIRE	$31.99
272392	28B	LEFT PULSE WIRE	$17.49
018030	29	BEARING	$19.49
280950	30	PEDAL ARM CAP	Contact for Pricing
281023	31	SHOULDER BOLT	$17.99
283133	32	CONSOLE COVER	$27.99
261150	33	M8 WASHER	$2.20
279644	34	RESISTANCE ARM LOCK	$1.49
284578	35	LOWER RESIST ARM ASSY	$60.49
280929	37	TOP SHIELD COVER	$25.49
139703	38	SMALL BEARING / FOLDING FRAME BEARING	$29.98
283862	39	Handlebar	NLA	Unavailable to order
143742	40	SNAP RING	$3.99
113842	41	MAGNET	$1.49
281473	42	Wire Harness	NLA	Unavailable to order
014063	43	M6 WASHER	$0.99
283883	44	Left Shield	$159.99
283884	45	RIGHT SHIELD	~~$136.36~~ $129.54	Unavailable to order
286275	46	DRIVE BELT	$128.49
280953	47	LEVELING FOOT	$24.49
278591	48	Stabilizer Cap	NLA	Unavailable to order
283889	49	RIGHT PEDAL ARM	~~$161.99~~ $140.70	Unavailable to order
280951	50	WHEEL	$70.49
363093	52	IDLER	$116.49
284577	53	C-Magnet Bracket	NLA	Unavailable to order
284576	54	RESISTANCE MOTOR	$117.99
279645	55	MOTOR BRACKET	$12.99
131090	57	CLAMP	$0.99
186070	58	REED SWITCH/WIRE	$28.99
283891	59	Rear Shield Cover	$66.99
281559	60	KEY	$2.49
281558	61	M8 LOCKNUT	$3.49
199493	62	M6 X 16MM BUTTON SCREW	$4.62
251978	63	M10 X 41MM SCREW	$12.99

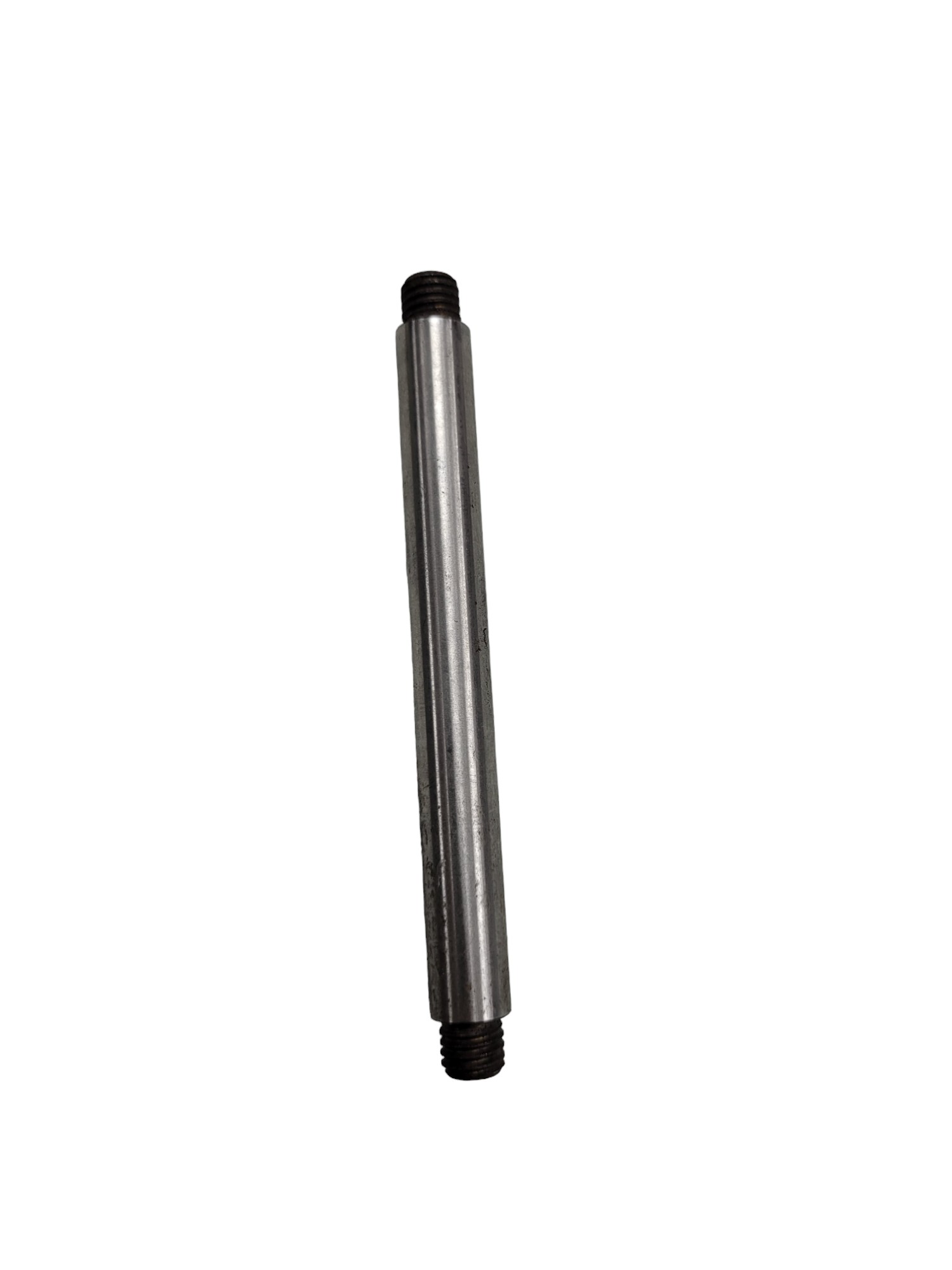

284116	64	FLYWHEEL AXLE	$19.99
281148	65	M6 X 65MM HEX BOLT	$3.49
281150	66	M6 X 20MM SHLDR SCRW,NOTE	$4.49
252110	67	M6 x 9mm Screw	Contact for Pricing
281557	68	CRANK ARM SCREW	Contact for Pricing
168267	69	M4 X 12MM FLANGE SCREW	$0.99
283869	70	Rear Stabilizer	$113.49
234286	71	M6 X 8MM HEX SCREW	$0.99
281149	72	M10 X 50MM HEX SCREW	$6.49
283868	73	Front Stabilizer	$98.49
254769	74	M6 LOCKNUT	$1.49
383565	75	M10 X 48MM PATCH SCREW	Contact for Pricing
153770	76	M8 X 45MM BUTTON BOLT	$14.49
256446	77	M8 JAM NUT	$0.99
177034	78	M10 SPLIT WASHER	$1.49
248334	79	M10 X 20MM PATCH SCREW	$5.49
223168	80	M8 X 20MM PATCH SCREW	$5.99
204486	81	M8 X 14MM BUTTON SCREW	$2.99
242965	82	M10 x 85mm Screw	Contact for Pricing
283304	83	M5 X 7MM SCREW	$3.49
340823	84	#10 X 16MM SCREW	Contact for Pricing
247329	85	M8 X 18MM SCREW	$2.99
282797	86	#10 X 12MM SCREW	$0.99
175284	87	#6 X 1/2″ SCREW	$0.99
208163	88	M6 X 20MM HEX SCREW	$1.99
275248	89	M4 X 48MM SCREW	$0.99
013423	90	M4 X 16MM PHILLIPS SCREW	$0.99
236807	91	M5 STAR WASHER	$0.99
013162	92A	M4 X 13MM FLANGE SCREW	$0.99
121204	92B	M4 X 30MM SCREW	$0.99
208817	92C	M4.2 X 13MM PAN HD SCREW	$0.99
284963	93A	LEFT PULSE SENSOR/WIRE	$68.49
284964	93B	RIGHT PULSE SENSOR/WIRE	$68.49
172638	94	6000ZZ BEARING	$23.49
