Proform Hybrid Trainer Elliptical – PFEL03717.0 / PFEL037170
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
113 Parts Available for Proform Hybrid Trainer Elliptical - PFEL03717.0 / PFEL037170 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 392044 | 4 | Fitness Equipment Console | $173.49 | Unavailable to order | |
| 392023 | 5 | Front Stabilizer | $70.99 | |||
| 392024 | 6 | Rear Stabilizer | $70.99 | |||
| 392074 | 7 | Right Upper Body Arm | $62.49 | |||
| 392017 | 8 | RIGHT PIVOT LEG | $53.99 | |||
| 392079 | 9 | RIGHT PEDAL ARM | $92.99 | |||
| 392048 | 10 | Left Upper Body Arm | $62.49 | |||
| 392016 | 11 | Left Pivot Leg | $69.99 | |||
| 392078 | 12 | Left Pedal Arm | $118.99 | Unavailable to order | ||
| 392028 | 13 | Pivot Knob | $31.49 | |||
| 371624 | 14 | ACCESSORY TRAY | $17.49 | |||
| 200329 | 15 | FOAM GRIP | $81.99 | |||
| 271688 | 16 | PULSE GRIP ASSY | $60.99 | |||
| 371804 | 17 | WHEEL CAP | $2.49 | |||
 | 153209 | 18 | CRANK ARM CAP | $8.99 | ||
| 234664 | 19 | M10 X 80MM SCREW | $5.49 | |||
| 372120 | 20 | WIRE COVER | $7.49 | |||
| 371499 | 21 | SIDE ACCESS COVER | $14.49 | |||
| 392046 | 22 | Left Shield | $181.49 | |||
| 392025 | 24 | CRANK ARM | $115.49 | |||
| 372009 | 25 | PIVOT COVER | $1.99 | Unavailable to order | ||
| 392080 | 26 | Rear Access Cover | $27.99 | |||
 | 372252 | 27 | BACKREST | $59.99 | ||
| 392041 | 28 | SEAT | $79.99 | |||
| 392040 | 29 | SEAT HANDLEBAR | $42.99 | |||
| 392021 | 30 | Right Crank Bracket | $70.99 | |||
| 243656 | 31 | SEAT HANDLE GRIP | $18.49 | |||
| 392037 | 32 | SEAT CARRIAGE | $128.49 | |||
| 243728 | 33 | 25MM ROUND CAP | $3.49 | |||
| 392039 | 34 | SEAT CARRIAGE BRACKET | $18.99 | |||
| 372253 | 35 | SEAT CARRIAGE BUSHING | $6.49 | |||
| 392026 | 37 | Carriage Knob | $31.49 | |||
| 013132 | 38 | M5 X 10MM SCREW | $0.99 | |||
| 260939 | 39 | M6 X 10MM SCREW | $0.99 | |||
 | 197037 | 40 | M6X12MM LIFT MOTOR SCREW | $0.99 | ||
| 126166 | 41 | STABILIZER CAP | $6.99 | |||
| 371805 | 42 | STABILIZER CAP | $3.99 | |||
| 372284 | 43 | C-MAGNET | $43.49 | |||
 | 241949 | 44 | RESISTANCE MOTOR | $112.99 | ||
 | 304734 | 45 | RESISTANCE ARM | $32.99 | ||
 | 241954 | 46 | RESISTANCE DISC | $1.99 | ||
 | 303952 | 47 | RESISTANCE BRACKET | $4.99 | ||
| 299290 | 48 | PULLEY | $95.99 | |||
| 372200 | 49 | CRANK | $55.99 | |||
| 372309 | 50 | WELD SPACER | $0.99 | |||

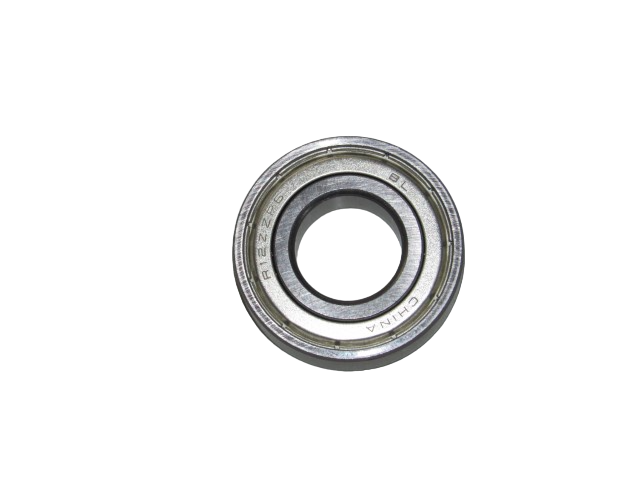

 | 139703 | 51 | SMALL BEARING / FOLDING FRAME BEARING | $33.49 | ||
| 372440 | 52 | BEARING SPACER | $0.99 | |||
| 372291 | 53 | CRANK COLLAR | $11.49 | |||
| 372203 | 54 | IDLER AXLE | $39.49 | |||
| 372254 | 55 | IDLER BOLT | $4.49 | |||
| 372250 | 56 | IDLER BUSHING | $2.99 | |||
| 372197 | 57 | IDLER BRACKET | $34.99 | |||
| 372257 | 58 | SMALL PULLEY | $28.49 | |||
| 372629 | 59 | FLYWHEEL | $89.99 | |||
 | 372087 | 60 | REED SWITCH/WIRE | $23.49 | ||
| 392077 | 61 | SEAT FRAME | $125.49 | |||
 | 237631 | 62 | LARGE LEVELING FOOT | $34.99 | ||
 | 282277 | 63 | REED SWITCH CLAMP | $3.49 | ||
 | 176559 | 64 | DRIVE BELT | $59.99 | ||
 | 332787 | 65 | PIVOT BUSHING | $20.49 | ||
| 392020 | 66 | Left Crank Bracket | $70.99 | |||
| 207203 | 67 | M8 X 10MM SET SCREW | $1.99 | Unavailable to order | ||
 | 333350 | 68 | M8 LOCKNUT | $1.99 | ||
 | 291494 | 69 | FLANGE SCREW | $17.49 | ||
| 372742 | 70 | RIGHT LARGE PEDAL | $62.99 | |||
| 372743 | 71 | LEFT LARGE PEDAL | $62.99 | |||
| 372744 | 72 | PEDAL INSERT | $21.49 | |||
| 372745 | 73 | PEDAL BASE | $25.99 | |||
| 392031 | 74 | RIGHT SMALL PEDAL | $55.99 | Unavailable to order | ||
| 246303 | 75 | 1 1/4″ ROUND ENDCAP | $0.99 | |||
| 250420 | 76 | M10 X 20MM SCREW | $2.99 | |||
| 368038 | 77 | M5 X 10MM SCREW | $0.99 | |||
| 332701 | 78 | UPPER BODY ARM COVER | $14.49 | |||
 | 371082 | 79 | PIVOT SPACER | $34.99 | ||
 | 332271 | 80 | AXLE | $73.99 | Unavailable to order | |
 | 121642 | 81 | 1.25″ ROUND ENDCAP | $1.49 | ||
| 277311 | 82 | WHEEL | $3.49 | |||
 | 372122 | 83A | PIVOT COVER | $0.99 | ||
 | 392011 | 83B | Pivot Cover | $8.99 | ||
 | 362430 | 84 | M4X16MM SCREW, CRANK AXLE | $3.49 | ||
 | 157600 | 85 | BUMPER | $1.99 | ||
 | 347975 | 86 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
 | 331026 | 87 | M8 X 23MM WASHER | $3.99 | ||
 | 150327 | 88 | M5 NUT | $1.99 | ||
 | 234926 | 90 | M4 X 10MM SCREW | $2.99 | ||
 | 197404 | 91 | M5 WASHER | $1.99 | ||
| 373259 | 92 | M8 X 20MM SCREW | $3.99 | |||
 | 113842 | 93 | MAGNET | $1.49 | ||
 | 372406 | 94 | UPPER WIRE | $30.99 | ||
 | 234732 | 95 | M8 X 37MM PTH SCRW,NOTE: | $4.49 | ||
| 234183 | 96 | LOWER WIRE HARNESS | $60.49 | |||
| 172117 | 97 | M6 X 18MM SCREW | $3.49 | |||
| 246784 | 98 | M6 X 35MM SCREW | $0.99 | |||
| 378278 | 99 | M10 X 55MM BOLT | $1.99 | |||
 | 370011 | 100 | M8 SNAP RING | $0.99 | ||
| 372442 | 101 | M8 X 54MM SHOULDER SCREW | $3.49 | |||
 | 251830 | 102 | M8 X 38MM HEX SCREW | $4.49 | ||
| 399152 | 103 | LEFT PULSE WIRE | $65.49 | |||
| 372376 | 104 | Right Pulse Wire | NLA | Unavailable to order | ||
| 378273 | 105 | M19 SNAP RING | $17.49 | |||
 | 204488 | 106 | M8X12MM CRANK PULLY SCREW | $3.49 | ||
| 392033 | 107 | Left Small Pedal | $71.99 | |||
| 250181 | 108 | M4 X 16MM BRIGHT SCREW | $0.99 | |||
| 392075 | 109 | RIGHT PEDAL BRACE | $72.99 | |||
 | 014174 | 110 | M8 SPLIT WASHER | $1.99 | ||
 | 012142 | 111 | BRACKET SPACER | $0.99 | ||
 | 133333 | 112 | CLIP NUT | $0.99 | ||
| 392076 | 113 | LEFT PEDAL BRACE | $94.49 | |||
| 318342 | 115 | WEIGHT SCREW | $0.99 | |||
| 372718 | 116 | PEDAL BRACE BUSHING | $0.99 | |||
| 378820 | 117 | M10 X 21MM SHOULDER SCREW | $6.99 | |||
| 371791 | 118 | PEDAL AXLE | $22.99 | |||
| 130286 | 119 | M8 FLAT WASHER | $11.49 |
