Proform Hybrid Trainer Elliptical – 23895.0 / 238950
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
113 Parts Available for Proform Hybrid Trainer Elliptical - 23895.0 / 238950 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 392044 | 4 | Fitness Equipment Console | $173.49 | Unavailable to order | |
| 392023 | 5 | Front Stabilizer | $70.99 | |||
| 392024 | 6 | Rear Stabilizer | $70.99 | |||
| 392074 | 7 | Right Upper Body Arm | $62.49 | |||
| 392017 | 8 | RIGHT PIVOT LEG | $53.99 | |||
| 392079 | 9 | RIGHT PEDAL ARM | $92.99 | |||
| 392048 | 10 | Left Upper Body Arm | $62.49 | |||
| 392016 | 11 | Left Pivot Leg | $69.99 | |||
| 392078 | 12 | Left Pedal Arm | $118.99 | Unavailable to order | ||
| 392028 | 13 | Pivot Knob | $31.49 | |||
| 371624 | 14 | ACCESSORY TRAY | $17.49 | |||
| 200329 | 15 | GRIP | $83.99 | |||
| 271688 | 16 | PULSE SENSOR W/O WIRE | $60.99 | |||
| 371804 | 17 | WHEEL CAP | $2.49 | |||
 | 153209 | 18 | CRANK CAP | $8.99 | ||
| 234664 | 19 | M10 X 80MM BUTTON SCREW | $5.49 | |||
| 372120 | 20 | WIRE COVER | $7.49 | |||
| 371499 | 21 | SIDE ACCESS COVER | $14.49 | |||
| 392046 | 22 | Left Shield | $181.49 | |||
| 392025 | 24 | CRANK ARM | $115.49 | |||
| 372009 | 25 | PIVOT COVER | $1.99 | Unavailable to order | ||
| 392080 | 26 | Rear Access Cover | $27.99 | |||
 | 372252 | 27 | BACKREST | $59.99 | ||
| 392041 | 28 | SEAT | $79.99 | |||
| 392040 | 29 | SEAT HANDLEBAR | $42.99 | |||
| 392021 | 30 | Right Crank Bracket | $70.99 | |||
| 243656 | 31 | FOAM GRIP | $18.49 | |||
| 392037 | 32 | SEAT CARRIAGE | $128.49 | |||
| 243728 | 33 | SEAT HANDLE CAP | $3.49 | |||
| 392039 | 34 | SEAT CARRIAGE BRACKET | $18.99 | |||
| 372253 | 35 | SEAT CARRIAGE BUSHING | $6.49 | |||
| 392026 | 37 | Carriage Knob | $31.49 | |||
| 260939 | 39 | M6 X 10MM SCREW | $0.99 | |||
 | 197037 | 40 | M6 X 12MM BUTTON SCREW | $0.99 | ||
| 126166 | 41 | 26MM X 76MM INT ENDCAP | $6.99 | |||
| 371805 | 42 | STABILIZER CAP | $3.99 | |||
| 400937 | 43 | C-MAGNET | $104.49 | |||
| 372284 | 43 | C-MAGNET | $43.49 | |||
 | 241949 | 44 | RESISTANCE MOTOR | $112.99 | ||
 | 304734 | 45 | RESISTANCE ARM | $32.99 | ||
 | 241954 | 46 | RESISTANCE DISC | $1.99 | ||
 | 303952 | 47 | RESISTANCE BRACKET | $4.99 | ||
| 299290 | 48 | PULLEY | $95.99 | |||
| 372200 | 49 | CRANK | $55.99 | |||
| 372309 | 50 | WELD SPACER | $0.99 | |||
 | 139703 | 51 | SMALL BEARING / FOLDING FRAME BEARING | $29.98 | ||
| 372440 | 52 | BEARING SPACER | $0.99 | |||
| 372291 | 53 | CRANK COLLAR | $11.49 | |||
| 372203 | 54 | IDLER AXLE | $39.49 | |||
| 372254 | 55 | IDLER BOLT | $4.49 | |||
| 372250 | 56 | IDLER BUSHING | $2.99 | |||
| 372197 | 57 | IDLER BRACKET | $34.99 | |||
| 372257 | 58 | SMALL PULLEY | $28.49 | |||
| 372629 | 59 | FLYWHEEL | $89.99 | |||
 | 372087 | 60 | REED SWITCH/WIRE | $23.49 | ||
| 392077 | 61 | SEAT FRAME | $125.49 | |||
 | 237631 | 62 | LEVELING FOOT | $34.99 | ||
 | 282277 | 63 | REED SWITCH CLAMP | $3.49 | ||
 | 176559 | 64 | DRIVE BELT | $59.99 | ||
 | 332787 | 65 | PIVOT BUSHING | $20.49 | ||
| 392020 | 66 | Left Crank Bracket | $70.99 | |||
| 207203 | 67 | M8 X 10MM SET SCREW | $1.99 | |||
 | 333350 | 68 | M8 LOCKNUT | $1.99 | ||
 | 291494 | 69 | 5/16″ FLANGE SCREW | $17.49 | ||
| 372742 | 70 | RIGHT LARGE PEDAL | $62.99 | |||
| 372743 | 71 | LEFT LARGE PEDAL | $62.99 | |||
| 372744 | 72 | PEDAL INSERT | $21.49 | |||
| 372745 | 73 | PEDAL BASE | $25.99 | |||
| 392031 | 74 | RIGHT SMALL PEDAL | $55.99 | Unavailable to order | ||
| 246303 | 75 | HANDLEBAR CAP | $0.99 | |||
| 250420 | 76 | M10 X 20MM SCREW | $2.99 | |||
| 368038 | 77 | M5 X 10MM SCREW | $0.99 | |||
| 332701 | 78 | UPPER BODY ARM COVER | $14.49 | |||
 | 371082 | 79 | PIVOT SPACER | $34.99 | ||
 | 332271 | 80 | AXLE | $73.99 | Unavailable to order | |
 | 121642 | 81 | HANDLEBAR ENDCAP, NOTE: | $1.49 | ||
| 277311 | 82 | WHEEL | $3.49 | |||

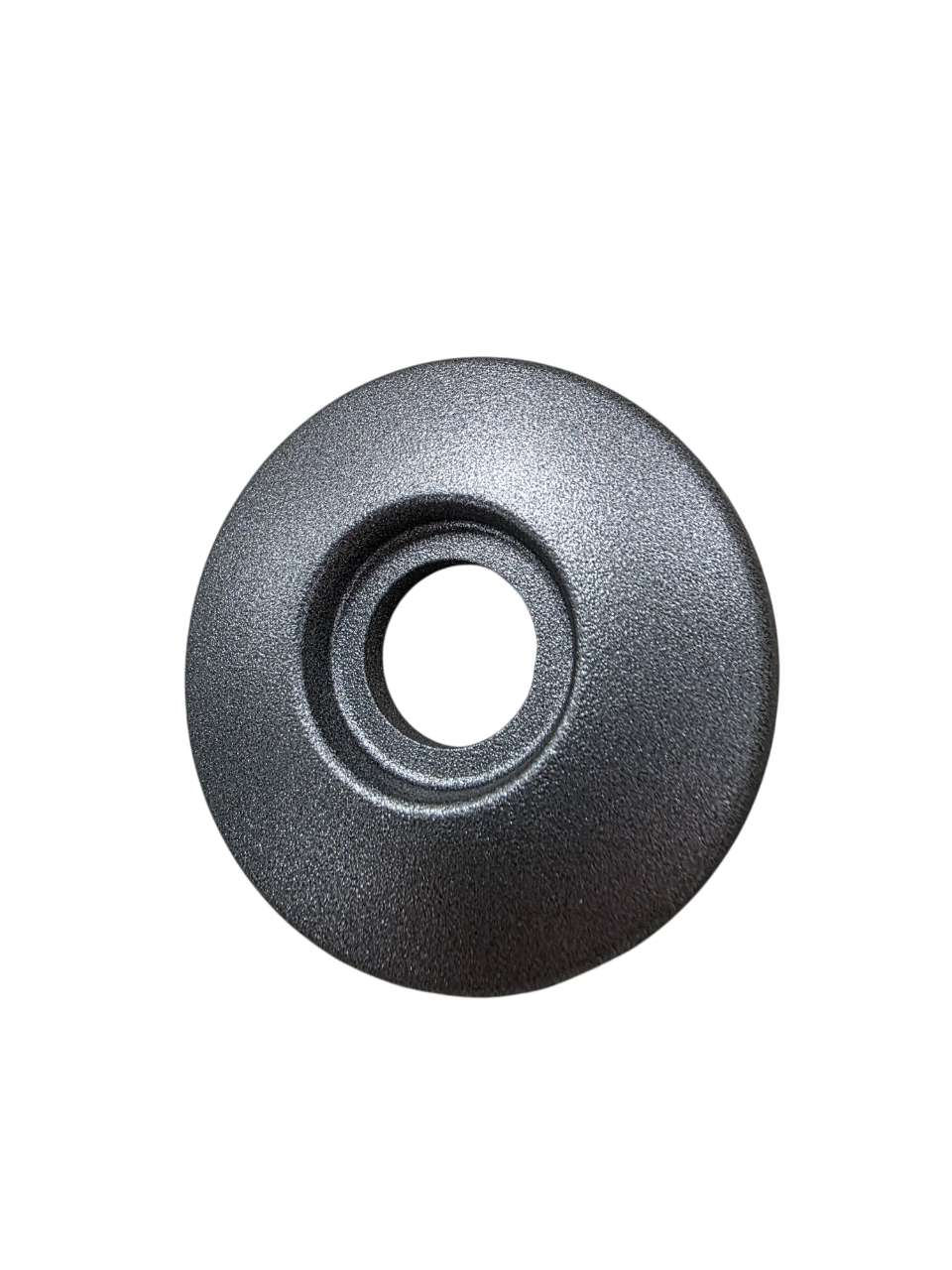

 | 392011 | 83A | Pivot Cover | $8.99 | ||
 | 372122 | 83B | PIVOT COVER | $0.99 | ||
 | 362430 | 84 | M4 X 16MM BLUNT SCREW | $3.49 | ||
 | 157600 | 85 | BASE FOOT | $1.99 | ||
 | 347975 | 86 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
 | 331026 | 87 | M8 WASHER | $3.99 | ||
 | 150327 | 88 | M5 NUT | $1.99 | ||
 | 234926 | 90 | RSW CLAMP SCREW | $2.99 | ||
 | 197404 | 91 | M5 WASHER | $1.99 | ||
| 373259 | 92 | M8 X 20MM BOLT | $3.99 | |||
 | 113842 | 93 | MAGNET | $1.49 | ||
 | 372406 | 94 | UPPER WIRE | $30.99 | ||
 | 234732 | 95 | M8 X 38MM SCREW | $4.49 | ||
| 234183 | 96 | LOWER WIRE | $60.49 | |||
| 172117 | 97 | M6 X 18MM SCREW | $3.49 | |||
| 246784 | 98 | M6 X 35MM BUTTON SCREW | $0.99 | |||
| 378278 | 99 | M10 X 55MM BOLT | $1.99 | |||

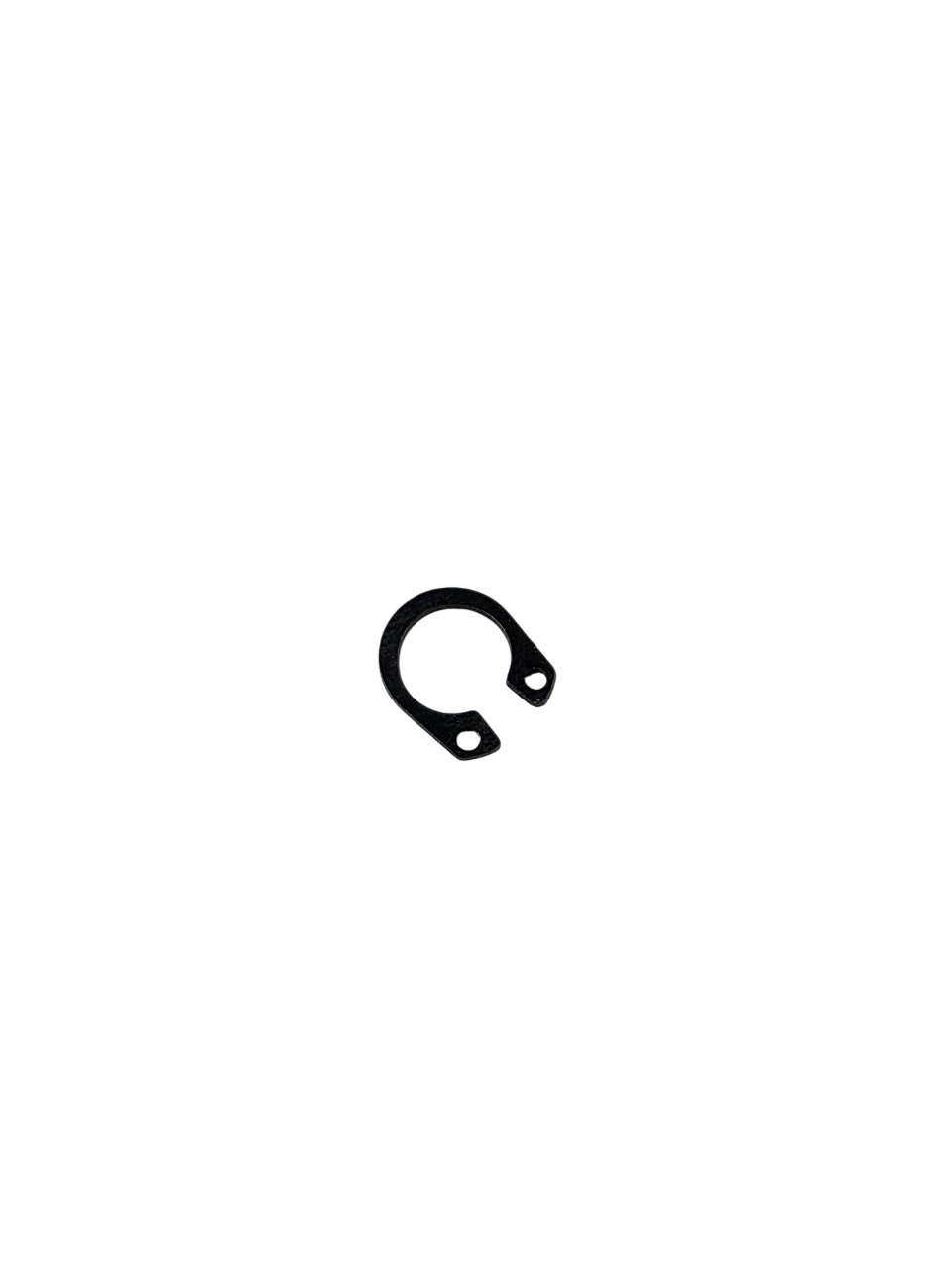

 | 370011 | 100 | SMALL SNAP RING | $0.99 | ||
| 372442 | 101 | M8 X 54MM SHOULDER SCREW | $3.49 | |||
 | 251830 | 102 | M8 X 38MM BOLT | $4.49 | ||
| 399152 | 103 | LEFT PULSE WIRE | $65.49 | |||
| 399154 | 104 | RIGHT PULSE WIRE | $27.49 | |||
| 378273 | 105 | M19 SNAP RING | $17.49 | |||
 | 204488 | 106 | M8 X 12MM SCREW | $3.49 | ||
| 392033 | 107 | Left Small Pedal | $71.99 | |||
| 250181 | 108 | M4 X 15MM SCREW | $0.99 | |||
| 392075 | 109 | RIGHT PEDAL BRACE | $72.99 | |||
 | 014174 | 110 | M8 SPLIT WASHER | $1.99 | ||
 | 012142 | 111 | M6 LOCKNUT | $0.99 | ||
 | 133333 | 112 | CLIP | $0.99 | ||
| 392076 | 113 | LEFT PEDAL BRACE | $94.49 | |||
| 318342 | 115 | WEIGHT SCREW | $0.99 | |||
| 372718 | 116 | PEDAL BRACE BUSHING | $0.99 | |||
| 378820 | 117 | M10 X 21MM SHOULDER SCREW | $6.99 | |||
| 371791 | 118 | PEDAL AXLE | $22.99 | |||
| 130286 | 119 | M10 LARGE WASHER | $11.49 |
