Proform 9.0 Et Elliptical – PFEL01014.0 / PFEL010140
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
139 Parts Available for Proform 9.0 Et Elliptical - PFEL01014.0 / PFEL010140 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 361779 | 4A | Fitness Equipment Console | NLA | Unavailable to order | ||
| 361780 | 4B | Reprogrammable Console Module | $203.49 | |||
| 349856 | 5 | ACCESSORY TRAY | $30.99 | |||
| 350383 | 6 | RIGHT UPPER BODY LEG | $156.49 | |||
| 364100 | 7A | EDDY MECHANISM | $325.99 | |||
 | 321353 | 7B | RESISTANCE CABLE 13.715″L | $49.99 | ||
| 350314 | 8 | LEFT UPPER BODY ARM | $114.99 | |||
| 350315 | 9 | RIGHT UPPER BODY ARM | $114.99 | |||
 | 299478 | 10 | HANDGRIP | $57.49 | ||
| 349864 | 11 | RIGHT LEG FRONT COVER | $26.99 | |||
| 349542 | 12 | Left Pedal | NLA | Unavailable to order | ||
| 349540 | 13 | RIGHT PEDAL | $105.99 | |||
| 350262 | 14 | Left Pedal Arm | NLA | Unavailable to order | ||
| 349865 | 15 | RIGHT LEG REAR COVER | $22.99 | |||
| 349871 | 16 | FRONT UPRIGHT COVER | $32.99 | |||
 | 293159 | 17 | UPRIGHT BUSHING | $9.49 | ||
| 349862 | 18 | LEFT LEG FRONT COVER | $27.49 | |||
| 349863 | 19 | LEFT LEG REAR COVER | $22.99 | |||
| 349861 | 20 | UPPER BODY ARM COVER | $34.49 | |||
| 349857 | 21 | TRAY HOUSING | $34.49 | |||
| 349855 | 22 | RIGHT LEG OUTER COVER | $26.49 | |||
 | 355179 | 24 | CRANK | $63.49 | ||
 | 350309 | 25 | CRANK ARM | $176.99 | ||
| 353943 | 26 | Pedal Disc Insert | $62.49 | |||
| 349919 | 27 | LARGE STORAGE FOOT | $58.49 | |||
| 350377 | 28 | MAIN WIRE HARNESS | $119.49 | |||
 | 290729 | 29 | PEDAL ARM BEARING ASSY | $43.49 | ||
| 353950 | 30 | Pedal Arm Cap | $8.99 | |||
 | 345936 | 31 | PEDAL ARM AXLE | $26.99 | ||
| 349854 | 32 | RIGHT LEG INNER COVER | $28.49 | |||
 | 331026 | 33 | M8 X 23MM WASHER | $3.99 | ||
| 361782 | 34 | Left Front Shield | $151.99 | |||
| 361777 | 35 | Right Front Shield | $151.99 | |||
| 353944 | 36 | Pedal Disc | $151.99 | |||
| 361781 | 37 | TOP SHIELD | $26.99 | |||
 | 295804 | 38 | PEDAL ARM BEARING | $66.99 | ||
| 349852 | 39 | LEFT LEG INNER COVER | $28.49 | |||
| 338320 | 40 | SLEEVE | $2.49 | |||
 | 113842 | 41 | MAGNET | $1.49 | ||
 | 342275 | 42 | POWER CORD | $49.99 | ||
 | 346533 | 43 | FLANGE | $4.49 | ||
| 349920 | 44 | LEFT SHIELD | $129.49 | |||
| 349921 | 45 | RIGHT SHIELD | $125.49 | |||
 | 119199 | 46 | DRIVE BELT | $59.99 | ||
 | 246285 | 47 | LEVELING FOOT | $10.99 | ||
| 349876 | 48 | STABILIZER CAP | $21.49 | |||
| 350261 | 49 | RIGHT PEDAL ARM | Unavailable to order | |||
| 349848 | 50 | WHEEL | $29.49 | |||
| 349873 | 51 | SMALL STORAGE FOOT | $12.49 | |||
 | 363093 | 52 | IDLER | $116.49 | ||
| 306635 | 53 | PLASTIC SPACER | $3.49 | |||
 | 193223 | 54A | RESISTANCE MOTOR | $99.99 | ||
| 326276 | 54B | 10″ WHITE WIRE, RES MTR | $30.49 | |||
| 349866 | 55 | AXLE COVER | $20.99 | |||
| 354710 | 56 | M4X12MM WASHER HEAD SCREW | $0.99 | |||
 | 282277 | 57 | REED SWITCH CLAMP | $3.49 | ||
 | 186070 | 58 | REED SWITCH/WIRE | $28.99 | ||
 | 373258 | 59 | M10 X 20MM BOLT | $5.49 | ||
| 352003 | 60 | KEY | $5.49 | |||
 | 195562 | 61A | M4 X 16MM SCREW | $1.99 | ||
 | 313568 | 61B | M4X19MM RSW CLAMP SCREW | $0.99 | ||
 | 213457 | 61C | M4 X 12MM SCREW | $1.99 | ||
 | 224606 | 61D | M4 X 25MM SCREW | $0.99 | ||
| 265270 | 62 | M4 X 30MM SCREW | $3.49 | |||
| 324444 | 63 | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
| 273353 | 64 | M4 X 38MM SCREW,NOTE | $0.99 | |||
| 250961 | 65 | M4 X 19MM SCREW | $0.99 | |||
| 277369 | 66 | PULLEY | $174.49 | |||
| 350331 | 67 | M4 X 15MM SCREW | $0.99 | |||
| 250181 | 68 | M4 X 16MM BRIGHT SCREW | $0.99 | |||
| 349115 | 69 | Pulse Wire | NLA | Unavailable to order | ||
| 351839 | 70 | REAR STABILIZER | $189.49 | |||
| 276108 | 71 | M4 BOLT | $13.49 | |||
 | 281149 | 72 | DRIVE BELT ADJUST SCREW | $6.49 | ||
| 361783 | 73 | Front Stabilizer | $182.99 | |||
 | 354709 | 74 | M6 X 12MM FLAT HEAD SCREW | $0.99 | ||
 | 197037 | 75A | M6X12MM LIFT MOTOR SCREW | $0.99 | ||
| 373267 | 75B | M6X12MM SCREW,LIFTMTR TOP | $0.99 | |||
 | 247329 | 76 | M8 X 18MM BOLT | $2.99 | ||
| 208938 | 77 | M10 X 60MM BUTTON SCREW | $5.99 | |||
| 283894 | 78 | M10 X 45MM SCREW | $9.49 | |||
| 277730 | 79 | M10 X 55MM HEX BOLT | $8.99 | |||
| 284975 | 80 | M6 X 25MM SHOULDER SCREW | $5.49 | |||

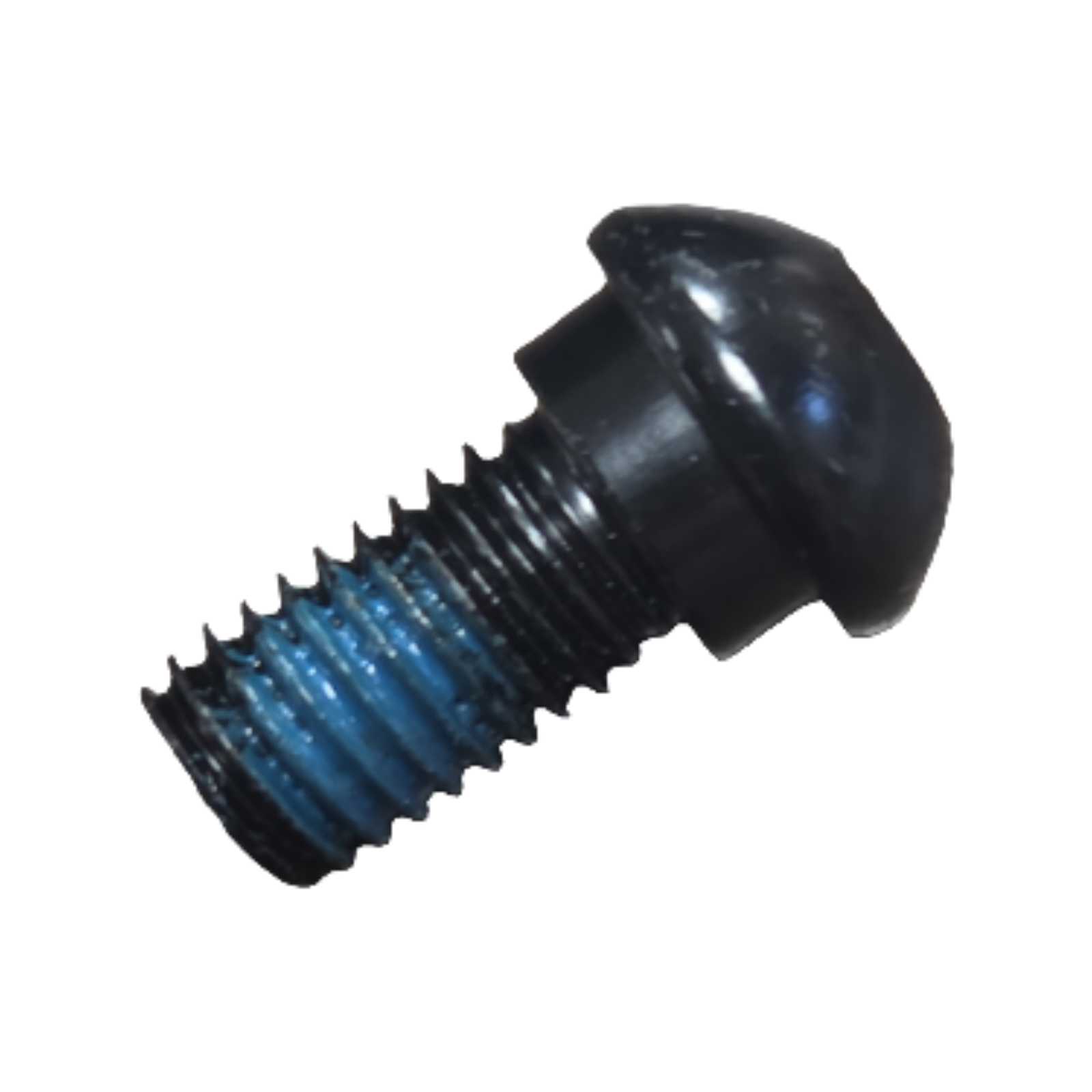

 | 347975 | 81 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
 | 275907 | 82 | M10 LOCKNUT, CRANK | $4.49 | ||
| 181900 | 83 | M10 WASHER | $0.99 | |||
| 256377 | 84 | M10 X 120MM SCREW | $13.49 | |||
| 350300 | 85A | UPRIGHT KNOB | $93.99 | |||
| 356178 | 85B | M12 WASHER | $2.49 | |||
| 356179 | 85C | M12 SPLIT WASHER | $2.99 | |||
| 349878 | 86 | RIGHT UPRIGHT COVER | $41.49 | |||
| 349877 | 87 | LEFT UPRIGHT COVER | $41.49 | |||
| 354708 | 88 | M5 X 5MM SCREW | $0.99 | |||
 | 350296 | 89 | LATCH RELEASE | $7.99 | ||
| 350307 | 90 | LATCH | $50.99 | |||
 | 264511 | 91 | POWER SWITCH | $32.99 | ||
| 349853 | 92 | LEFT LEG OUTER COVER | $26.49 | |||
| 353135 | 93 | FRONT CONSOLE COVER | $47.99 | |||
| 349870 | 94 | REAR CONSOLE COVER | $29.49 | |||
| 268401 | 95 | M10 X 50MM PATCH SCREW | $8.49 | |||
 | 208163 | 96 | IDLER SCREW | $1.99 | ||
 | 281150 | 97 | IDLER PIVOT SCREW | $4.49 | ||
 | 014033 | 98A | IDLER WASHER | $1.49 | ||
| 238124 | 98B | ROLLER FLAT WASHER | $0.99 | |||
| 342081 | 98C | M6 X 16MM WASHER | $1.99 | |||
 | 256446 | 99 | M8 LOCKNUT | $0.99 | ||
 | 125819 | 100 | STANDOFF | $3.99 | ||
| 350450 | 101 | LEFT UPPER BODY LEG | $156.49 | Unavailable to order | ||
| 348647 | 102 | UPRIGHT AXLE | $27.99 | |||
| 373259 | 103 | M8 X 20MM SCREW | $3.99 | |||
| 350306 | 104 | Lift Frame | $264.49 | |||
| 350823 | 105A | LIFT MOTOR | $194.49 | |||
| 300906 | 105B | LIFT MTR 75″ WIRE 3 CONN | $33.99 | |||
| 300907 | 105C | MOTOR POWER WIRE | $78.99 | |||
| 333432 | 106 | CONTROL BOARD | $146.49 | Unavailable to order | ||
| 334515 | 107 | CONTROL BOARD BRACKET | $22.49 | |||
| 347488 | 108 | LIFT FRAME AXLE | $79.99 | |||
| 349847 | 109 | Large Wheel | $24.49 | |||
| 349868 | 110 | RIGHT LIFT MOTOR COVER | $62.99 | |||
| 349867 | 111 | Left Lift Motor Cover | $62.99 | |||
| 353949 | 112 | Incline Frame Cap | $9.49 | |||
 | 286527 | 113A | SNAP MOUNT ONLY | $2.49 | ||
| 349860 | 114 | LIFT FRAME COVER | $44.49 | |||
 | 313668 | 115 | STRAIN-RELIEF BUSHING | $9.49 | ||
| 223084 | 116 | M10 X 140MM BOLT | $14.99 | |||
 | 148710 | 117 | M10 LOCKNUT | $2.49 | ||
| 373266 | 118 | M6 X 16MM SCREW | $1.99 | |||
| 361621 | 119 | RIGHT PEDAL PAD | $60.99 | |||
| 361622 | 120 | Left Pedal Pad | $77.99 | |||
| 353941 | 121 | RIGHT PEDAL HANDLE | $25.99 | |||
| 353942 | 122 | Left Pedal Handle | $25.99 | |||
| 350308 | 123 | RIGHT PEDAL PLATE | $145.49 | |||
| 350305 | 124 | Left Pedal Plate | $161.99 | |||
| 359361 | 125 | LIFT MOTOR AXLE | $16.49 | |||
| 321268 | 126 | PEDAL SPRING | $3.49 | |||
 | 194653 | 127 | M6 ACORN NUT | $1.99 | ||
 | 325993 | 128 | PEDAL PIN | $19.99 | ||
| 356195 | 129 | Lift Frame Bushing | $20.49 | |||
| 361623 | 130 | Pedal Insert | $81.99 | Unavailable to order |
