Proform 585 Cse Elliptical – PFEL95918.0 / PFEL959180
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
70 Parts Available for Proform 585 Cse Elliptical - PFEL95918.0 / PFEL959180 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 253927 | 6 | WATER BOTTLE HOLDER | $26.99 | |||
| 253921 | 7 | Track Cover | $69.49 | |||
 | 237631 | 9 | LARGE LEVELING FOOT | $34.99 | ||
| 243224 | 10 | EDDY MECHANISM | $289.49 | |||
| 254989 | 12 | IDLER | $65.99 | |||
| 255072 | 13 | LARGE PULLEY | $91.99 | |||
| 253737 | 14 | CRANK | $58.99 | |||
 | 139703 | 15 | SMALL BEARING / FOLDING FRAME BEARING | $33.49 | ||
 | 193223 | 16 | RESISTANCE MOTOR | $99.99 | ||
| 255599 | 17 | Resistance Cable | NLA | Unavailable to order | ||
 | 113842 | 18 | MAGNET | $1.49 | ||
 | 256295 | 19 | HANDLEBAR BUSHING (138574) | $4.99 | ||
 | 131090 | 20 | CLAMP | $0.99 | ||
 | 170205 | 21 | REED SWITCH/WIRE | $24.99 | ||
| 260336 | 22 | Left Handlebar | $45.99 | |||
| 253766 | 25 | Left Link Arm | NLA | Unavailable to order | ||
| 254670 | 26 | Pedal | $63.49 | |||
| 237644 | 29 | Roller Axle | NLA | Unavailable to order | ||
| 254675 | 30 | Roller Cover | NLA | Unavailable to order | ||
| 253740 | 31 | CRANK ARM | $72.49 | |||
| 253926 | 32 | Crank Arm Cover | NLA | Unavailable to order | ||
| 272584 | 33 | Left Shield | $119.99 | |||
| 254979 | 34 | Upper Body Endcap | $1.99 | |||
| 254673 | 35 | PEDAL LEG ENDCAP | $1.99 | |||
| 260338 | 36 | RIGHT HANDLEBAR | $28.99 | |||
| 253744 | 39 | Right Link Arm | $110.99 | |||
| 272585 | 40 | RIGHT SHIELD | $92.99 | |||
| 253743 | 41 | Pivot Axle | NLA | Unavailable to order | ||
| 260320 | 42 | Inner Pivot Bushing | $12.99 | |||
| 252254 | 43 | Upper Bushing | NLA | Unavailable to order | ||
 | 237619 | 45 | Pedal Arm Bushing | NLA | Unavailable to order | |
 | 253778 | 48 | Link Axle Bushing | NLA | Unavailable to order | |
| 255071 | 49 | Link Axle Cover | NLA | Unavailable to order | ||
| 234017 | 50 | KEY | $2.49 | |||
 | 197037 | 51 | M6X12MM LIFT MOTOR SCREW | $0.99 | ||

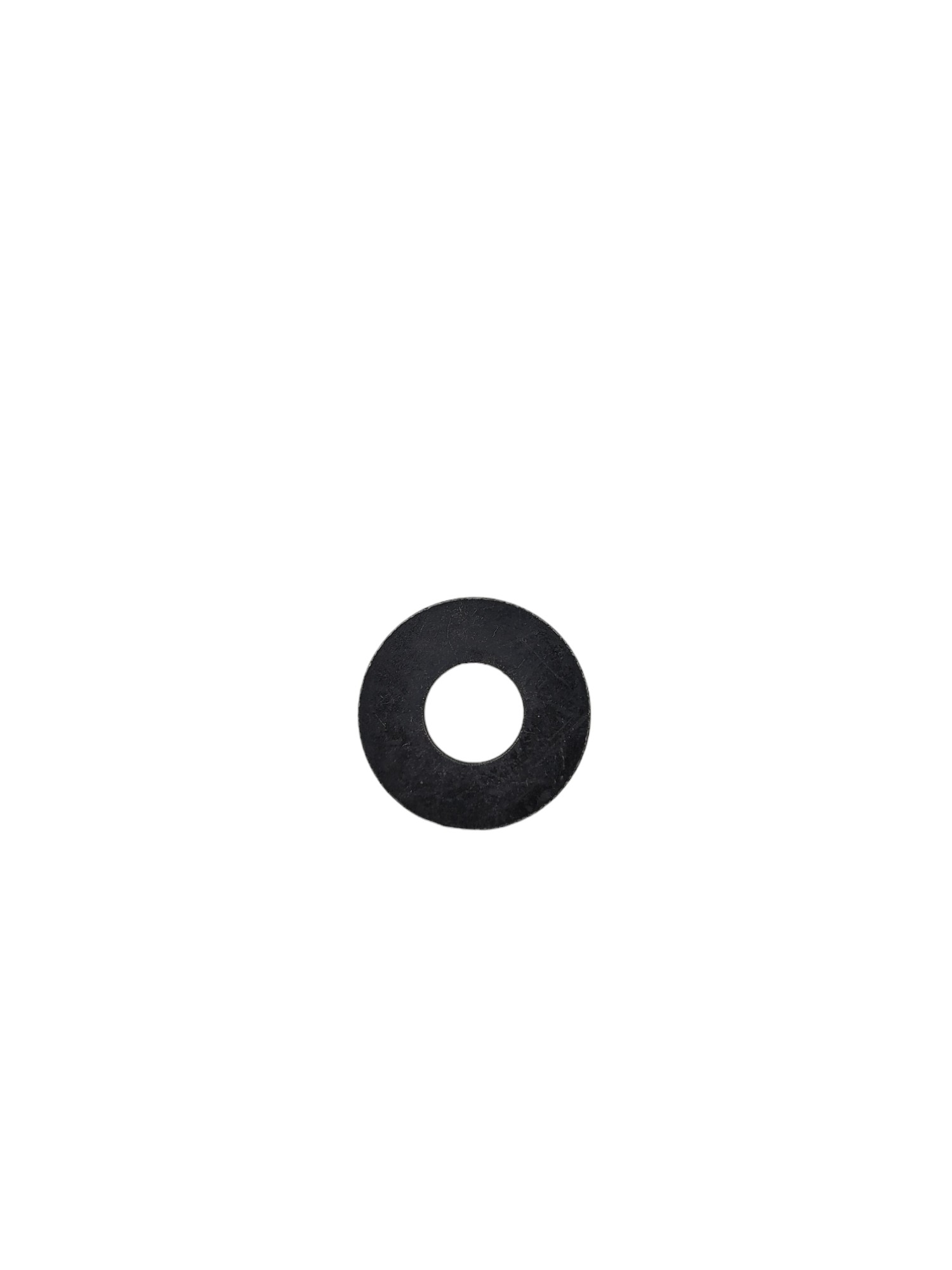

 | 254272 | 52 | M10 x 25mm x 1.5mm Washer | $0.99 | ||
| 249929 | 53 | M8 X 16MM SCREW | $2.49 | |||
 | 248349 | 54 | CRANK PVT CAP WSHR | $6.49 | ||
 | 014174 | 55 | M8 SPLIT WASHER | $1.99 | ||
 | 143742 | 56 | SMALL SNAP RING | $3.99 | ||
 | 251978 | 57 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
| 248334 | 58 | M10 X 19MM PATCH SCREW | $5.49 | |||
| 123325 | 59 | M4 X 12MM RND HEAD SCREW | $0.99 | |||
 | 213457 | 60 | M4 X 12MM SCREW | $1.99 | ||
| 206677 | 61 | M6 X 25MM BUTTON SCREW | $0.99 | |||
| 171347 | 62 | M6 FLANGE NUT, NOTE | $0.99 | |||
| 245109 | 63 | BUSHING, IDLER ATTACHMENT | $2.99 | |||
| 195728 | 64 | M10 FLANGE NUT | $3.49 | |||
| 261944 | 65 | M8 X 50MM BUTTON SCREW | $6.99 | |||
 | 213148 | 66 | 22MM X 16MM WAVE WASHER | $6.49 | ||
| 249931 | 67 | M8 X 40MM BOLT | $3.49 | |||
 | 256446 | 68 | M8 LOCKNUT | $0.99 | ||
| 255138 | 69 | M8 X 50MM HEX SCREW | $3.99 | |||
 | 012042 | 70 | M8 LOCKNUT | $1.99 | ||
 | 224385 | 71 | Wave Washer | $1.99 | ||
 | 013423 | 72A | GROUND SCREW | $0.99 | ||
 | 195562 | 72B | M4 X 16MM SCREW | $1.99 | ||
| 242434 | 73 | LOWER WIRE HARNESS | $69.49 | |||
| 260542 | 74 | M4 X 35MM SCREW | $0.99 | |||
 | 250961 | 75 | M4 X 19MM SCREW | $0.99 | ||
| 260541 | 76 | M4 X 50MM SCREW | $1.99 | |||
 | 186409 | 77 | SCREW, M8 x 25mm | $8.99 | ||
| 144528 | 79 | #8 X 3/8″ SCREW | $0.99 | |||
| 260509 | 80 | Inner Wire Cover | $15.49 | |||
| 260510 | 81 | Outer Wire Cover | $11.49 | |||
| 260537 | 82 | RIGHT CONTROLLER WIRE | $24.49 | |||
| 260536 | 83 | Right Extension Wire | $22.49 | |||
 | 144335 | 84 | BELT | $89.99 | ||
| 260539 | 85 | LEFT CONTROLLER WIRE | $24.49 | |||
| 260538 | 86 | Left Extension Wire | $22.49 |
