Proform 300 Zle Elliptical – PFEVEL83910.0 / PFEVEL839100
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
90 Parts Available for Proform 300 Zle Elliptical - PFEVEL83910.0 / PFEVEL839100 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 285788 | 4 | Fitness Equipment Console | NLA | Unavailable to order | ||
| 280935 | 5 | ACCESSORY TRAY | $27.49 | |||
| 283912 | 6 | UPPER BODY LEG | $81.99 | Unavailable to order | ||
 | 241954 | 7 | RESISTANCE DISC | $1.99 | ||
| 299939 | 8 | Left Upper Body Arm | $130.99 | |||
| 299940 | 9 | RIGHT UPPER BODY ARM | $118.99 | |||
| 256150 | 10 | HANDLE GRIP | $33.49 | |||
| 215823 | 11 | AUDIO WIRE | $11.99 | |||
| 283856 | 12 | LEFT PEDAL | $120.99 | |||
| 283858 | 13 | RIGHT PEDAL | NLA | Unavailable to order | ||
| 283926 | 14 | Left Pedal Arm | $160.49 | |||
| 283662 | 15 | Pedal Bracket | NLA | Unavailable to order | ||
| 280933 | 16 | FRONT UPRIGHT COVER | NLA | Unavailable to order | ||
 | 256295 | 17 | HANDLEBAR BUSHING (138574) | $4.99 | ||
| 283670 | 18 | Disc Cover | $83.49 | |||
 | 280931 | 19 | Pivot Cover A | NLA | Unavailable to order | |
| 280936 | 20 | Front Leg Cover | NLA | Unavailable to order | ||
| 280937 | 21 | REAR LEG COVER | NLA | Unavailable to order | ||
| 280932 | 22 | Pivot Cover B | NLA | Unavailable to order | ||
| 281011 | 24 | CRANK ASSEMBLY | NLA | Unavailable to order | ||
| 281017 | 25 | CRANK ARM | NLA | Unavailable to order | ||
| 283928 | 26 | Left Pedal Disc | $197.99 | |||
| 283668 | 27 | Right Pedal Disc | NLA | Unavailable to order | ||
| 272391 | 28A | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 28B | LEFT PULSE WIRE | $17.49 | |||
 | 018030 | 29 | MEDIUM ROLLER | $19.49 | ||
 | 280950 | 30 | PEDAL ARM CAP | NLA | Unavailable to order | |
| 281023 | 31 | SHOULDER BOLT | $17.99 | |||
 | 283133 | 32 | CONSOLE COVER | $27.99 | ||
 | 261150 | 33 | M8 X 23.5MM WASHER | $2.20 | ||
| 279644 | 34 | ADJUSTMENT LOCK | $1.49 | |||
| 284578 | 36 | ADJUSTMENT ASSEMBLY | $60.49 | Unavailable to order | ||
| 280929 | 37 | TOP SHIELD COVER | $25.49 | |||
 | 139703 | 38 | SMALL BEARING / FOLDING FRAME BEARING | $33.49 | ||
| 283909 | 39 | Handlebar | $69.49 | |||
 | 143742 | 40 | SMALL SNAP RING | $3.99 | ||
 | 113842 | 41 | MAGNET | $1.49 | ||
| 281473 | 42 | Wire Harness | NLA | Unavailable to order | ||
 | 014063 | 43 | 1/4″ FLAT WASHER | $0.99 | ||
| 283921 | 44 | LEFT SHIELD | $185.99 | |||
| 283922 | 45 | RIGHT SHIELD | $185.99 | |||
 | 234542 | 46 | Drive Belt | NLA | Unavailable to order | |
| 280953 | 47 | LEVELING FOOT | $24.49 | |||
| 278591 | 48 | Stabilizer Cap | NLA | Unavailable to order | ||
| 283927 | 49 | RIGHT PEDAL ARM | $153.99 | |||
 | 280951 | 50 | WHEEL | $24.49 | ||
 | 363093 | 52 | IDLER | $116.49 | ||
| 282109 | 53 | C-Magnet Bracket | NLA | Unavailable to order | ||
 | 241949 | 54 | RESISTANCE MOTOR | $112.99 | ||
| 279645 | 55 | MOTOR BRACKET | $12.99 | |||
 | 131090 | 57 | CLAMP | $0.99 | ||
 | 186070 | 58 | REED SWITCH/WIRE | $28.99 | ||
| 299941 | 59 | Rear Shield Cover | $64.99 | |||
| 281559 | 60 | KEY | $2.49 | |||
| 281558 | 61 | RT CRANK ARM NUT | $3.49 | |||
 | 199493 | 62 | M6 X 16MM TAPRD BTN SCREW | $4.62 | ||
 | 251978 | 63 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
 | 284116 | 64 | FLYWHEEL AXLE | $19.99 | ||
| 281148 | 65 | C-MAGNET BRACKET BOLT | $3.49 | |||
 | 281150 | 66 | IDLER PIVOT SCREW | $4.49 | ||
| 252110 | 67 | M6 x 9mm Screw | NLA | Unavailable to order | ||
| 281557 | 68 | CRANK ARM SCREW | NLA | Unavailable to order | ||
 | 168267 | 69 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 283916 | 70 | Rear Stabilizer | $75.49 | |||
| 234286 | 71 | MOTOR BRACKET SCREW | $0.99 | |||
 | 281149 | 72 | DRIVE BELT ADJUST SCREW | $6.49 | ||
| 283915 | 73 | Front Stabilizer | $98.49 | |||
| 254769 | 74 | M6 LOCKNUT | $1.49 | |||
| 383565 | 75 | M10 X 48MM PATCH SCREW | NLA | Unavailable to order | ||
| 153770 | 76 | M8 X 45MM BUTTON SCREW | $14.49 | |||
 | 256446 | 77 | M8 LOCKNUT | $0.99 | ||
 | 177034 | 78 | M10 SPLIT WASHER | $1.49 | ||
| 248334 | 79 | M10 X 19MM PATCH SCREW | $5.49 | |||

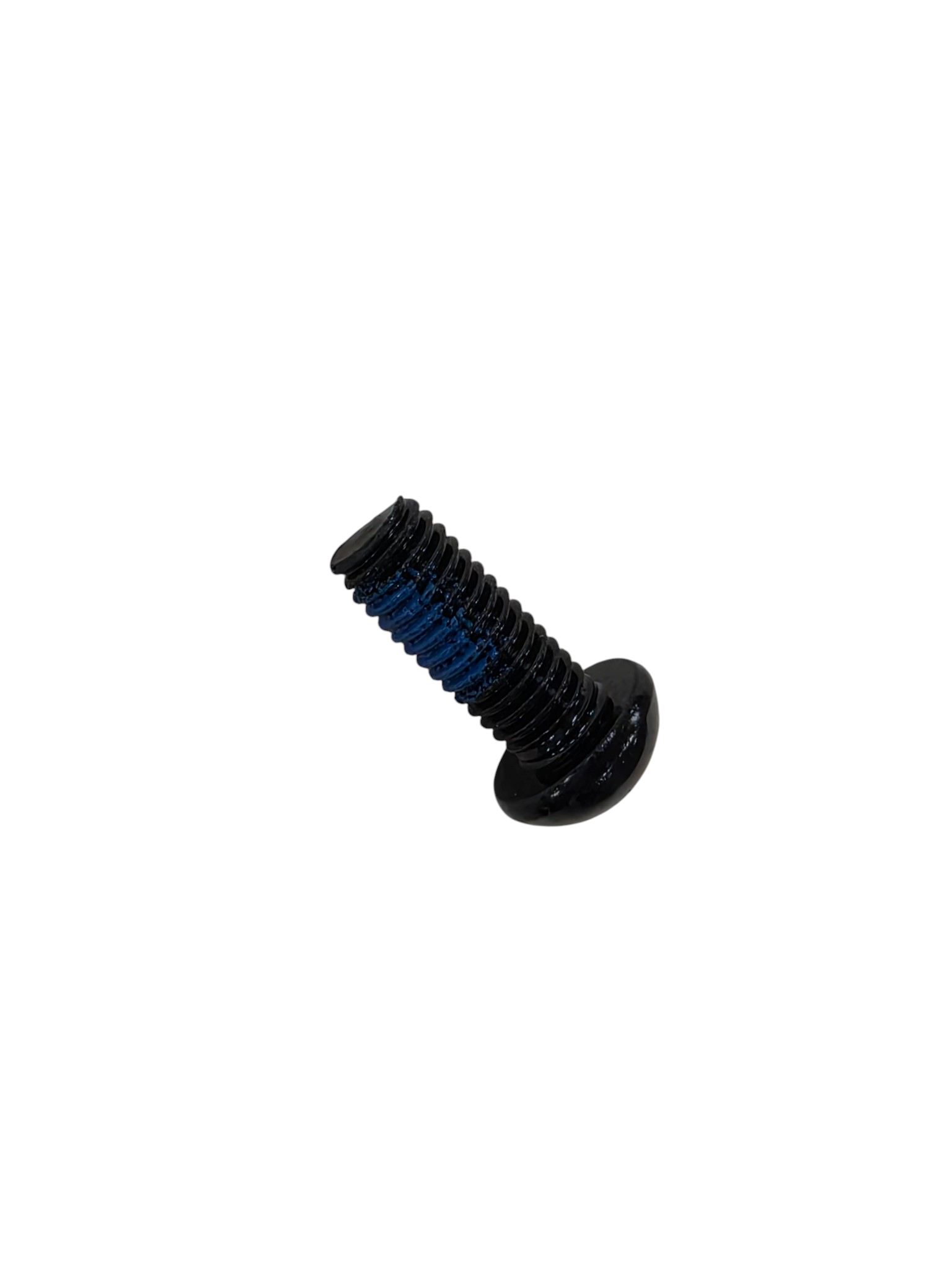

 | 223168 | 80 | CAM SCREW | $5.99 | ||
| 204486 | 81 | M8 X 14MM BUTTON SCREW | $2.99 | |||
| 242965 | 82 | M10 x 85mm Screw | NLA | Unavailable to order | ||
| 283304 | 83 | M5 X 7MM SCREW | $3.49 | |||
| 340823 | 84 | #10 X 16MM SCREW | NLA | Unavailable to order | ||
 | 247329 | 85 | M8 X 18MM BOLT | $2.99 | ||
 | 213717 | 86 | M5 X 16MM BUTTON SCREW | $0.99 | ||
 | 276024 | 87 | M3.5 X 12MM SCREW,NOTE | $1.49 | ||
 | 208163 | 88 | IDLER SCREW | $1.99 | ||
 | 275248 | 89 | M4 X 48MM SCREW | $0.99 | ||
 | 013423 | 90 | GROUND SCREW | $0.99 | ||
| 236807 | 91 | M5 STAR WASHER | $0.99 | |||
 | 195562 | 92A | M4 X 16MM SCREW | $1.99 | ||
 | 013162 | 92B | REED SWITCH CLAMP SCRW | $0.99 | ||
| 284963 | 93A | LT PULSE GRIP ASSY W/WIRE | $68.49 | |||
| 284964 | 93B | RT PULSE GRIP ASSY W/WIRE | $68.49 | |||
 | 172638 | 94 | 6000ZZ BEARING | $23.49 |
