Proform 19.0 Re Elliptical – PFEL09812.0 / PFEL098120
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
145 Parts Available for Proform 19.0 Re Elliptical - PFEL09812.0 / PFEL098120 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 338648 | 4 | Rear Stabilizer | $149.99 | |||
| 338646 | 5 | UPRIGHT | $207.99 | |||
| 340142 | 6 | RIGHT UPPER BODY LEG | $81.99 | |||
| 340144 | 7 | Left Upper Body Leg | $105.99 | |||
| 338286 | 8 | RIGHT UPPER BODY ARM | $86.99 | |||
| 338283 | 9 | Left Upper Body Arm | $111.49 | |||
| 338295 | 10 | RIGHT PEDAL PLATE | $92.99 | |||
| 338293 | 11 | Left Pedal Plate | $119.49 | |||
| 338650 | 12 | RIGHT PEDAL ARM | Unavailable to order | |||
| 338649 | 13 | Left Pedal Arm | $226.49 | |||
| 338847 | 14 | RIGHT PEDAL | $184.99 | |||
| 338844 | 15 | Left Pedal | $173.99 | |||
| 287134 | 16 | Wheel Cap | NLA | Unavailable to order | ||
| 285649 | 17 | DISC | $139.99 | |||
| 287124 | 18 | RIGHT SHIELD | $142.99 | |||
| 296826 | 19 | LEFT SHIELD | $153.49 | |||
| 287332 | 20 | ACCESS COVER | $96.49 | |||
| 287329 | 21 | RIGHT FRAME COVER | $194.49 | |||
| 287328 | 22 | LEFT FRAME COVER | $194.49 | |||
| 287132 | 24 | FRONT UPRIGHT COVER | $96.49 | |||
| 287133 | 25 | REAR UPRIGHT COVER | $86.49 | |||
| 285658 | 26 | WATER BOTTLE HOLDER | $51.49 | |||
| 287165 | 27 | TOP COVER | $68.49 | |||
| 287128 | 28 | RIGHT PEDAL ARM COVER | $35.49 | |||
 | 286527 | 29A | FOOT RAIL SNAP | $2.49 | ||
| 303479 | 29B | SCREW, COVER MOUNT | $3.99 | |||
| 287125 | 30 | LATCH COVER | $16.99 | |||
| 279656 | 31A | PEDAL ARM MAGNET | Contact for Pricing | |||
| 314590 | 31B | MAGNET W/TAPE | $78.99 | |||
 | 286547 | 32 | RAMP ROLLER | $59.99 | ||
| 338645 | 33 | Fitness Equipment Console | NLA | Unavailable to order | ||
| 337593 | 34A | Left Sensor Assembly | NLA | Unavailable to order | ||
| 399567 | 34B | LT SENSOR WIRE HARNESS | $43.99 | |||
| 316468 | 35 | RIGHT GRIP | $80.99 | |||
| 287137 | 36 | Wheel for Fitness Equipment | Contact for Pricing | |||
| 287136 | 37 | STABILIZER CAP | $63.49 | |||
 | 201296 | 38 | DRIVE BELT | $49.99 | ||
| 287161 | 39 | CRANK ARM | NLA | Unavailable to order | ||
| 287127 | 40 | LEFT PEDAL ARM COVER | $35.49 | |||
 | 237631 | 41 | LEVELING FOOT | $34.99 | ||
| 267412 | 42 | LATCH BRACKET | $30.99 | |||
| 287156 | 43 | RIGHT LINK ARM | $63.49 | |||
| 316467 | 44 | LEFT GRIP | $107.99 | |||
| 337594 | 45A | RIGHT SENSOR ASSEMBLY | $96.49 | |||
| 399565 | 45B | RT SENSOR WIRE HARNESS | $43.99 | |||

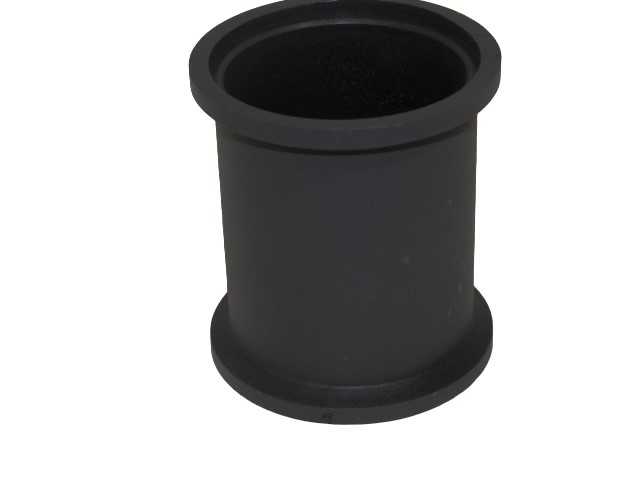

 | 287141 | 46 | ADJUSTMENT SLEEVE | $14.99 | ||
 | 233194 | 47A | OUTER SLEEVE BUSHING | $24.99 | ||
 | 233710 | 47B | INNER SLEEVE BUSHING | $22.99 | ||
| 285644 | 48 | Upright Axle | NLA | Unavailable to order | ||
| 285531 | 51 | LARGE LATCH SPRING | $2.49 | |||
| 303449 | 52 | LATCH | $28.99 | |||
| 228902 | 53 | LONG LATCH SPRING | $3.49 | |||
| 233193 | 54 | Upper Body Bearing | Contact for Pricing | |||
 | 194653 | 55 | M6 ACORN NUT | $1.99 | ||
 | 287135 | 56 | SMALL AXLE COVER | $7.99 | ||
| 247256 | 57 | PIVOT BUSHING | $12.49 | |||
| 287336 | 58 | SMALL BUSHING | $24.99 | |||
| 334515 | 59 | CONTROL BOARD BRACKET | $22.99 | |||
| 286436 | 60 | Wire Harness | NLA | Unavailable to order | ||
| 321221 | 61A | EDDY MECHANISM | Contact for Pricing | |||
 | 321678 | 61B | RESISTANCE CABLE | $46.49 | ||
| 338793 | 62 | Left Pedal Handle | $26.99 | |||
| 285645 | 63 | FRAME AXLE | $40.99 | |||
 | 143426 | 64 | UPRIGHT BUSHING | $8.99 | ||
| 249656 | 65 | Latch Axle | $12.99 | |||
 | 247275 | 66 | LATCH SPRING | $7.49 | ||
| 287167 | 67 | Latch Button | NLA | Unavailable to order | ||
 | 249655 | 68 | Button Frame | Contact for Pricing | ||
 | 186070 | 69 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 70 | CLAMP | $0.99 | ||
| 228084 | 71 | CRANK FLANGE | $98.49 | |||
 | 287117 | 72 | CRANK | Contact for Pricing | ||
| 285653 | 73 | Crank Spacer | Contact for Pricing | |||
| 255072 | 74 | LARGE PULLEY | $91.99 | |||
 | 113842 | 75 | MAGNET | $1.49 | ||
 | 139703 | 76 | SMALL BEARING / FOLDING FRAME BEARING | $29.98 | ||
 | 363093 | 77 | IDLER | $116.49 | ||
 | 193223 | 78 | RESISTANCE MOTOR | $99.99 | ||
| 338792 | 79 | RIGHT PEDAL HANDLE | Unavailable to order | |||
 | 321268 | 80 | PEDAL SPRING | $3.49 | ||
 | 325993 | 81 | PEDAL PIN | $19.99 | ||
| 223084 | 82 | M10 X 140MM BOLT | $14.99 | |||
| 337985 | 83 | IPAD HOLDER | $134.99 | |||
| 319146 | 84 | FRAME WIRE HARNESS | $91.99 | |||
| 281156 | 85 | DRIVE BELT ADJ SCREW | $8.49 | |||
| 237611 | 86A | M8 X 28MM PATCH SCREW | $1.49 | |||
 | 251511 | 86B | M8 X 35MM SCREW | $3.49 | ||
 | 143742 | 87 | SNAP RING | $3.99 | ||
| 296943 | 88 | SHORT LIFT MTR WIRE HRNS | $43.99 | |||
 | 168267 | 89 | M4 X 12.7MM BRIGHT SCREW | $0.99 | ||
 | 102634 | 90 | 8″ GREEN WIRE | $3.49 | ||
| 334517 | 91 | RESISTANCE MOTOR WIRE | $28.49 | |||
| 161692 | 92 | OFFSET | $2.99 | |||
| 287116 | 93 | LIFT MOTOR LINK ARM | $11.49 | |||
 | 256446 | 94 | M8 JAM LOCKNUT | $0.99 | ||
 | 261150 | 95 | M8 WASHER | $2.20 | ||
 | 014033 | 96 | M6 WASHER | $1.49 | ||
 | 208163 | 97 | IDLER SHOULDER SCREW | $1.99 | ||
 | 304180 | 98 | SMALL SNAP RING | $0.99 | ||
 | 281150 | 99 | M6 X 20MM SHLDR SCRW,NOTE | $4.49 | ||
| 252438 | 100 | M10 X 95MM PATCH SCREW | $19.99 | |||
 | 243375 | 101 | SMALL SNAP RING | $2.49 | ||
 | 237612 | 102 | M8 X 16MM SCERW | $1.49 | ||
 | 014174 | 103 | M8 SPLIT WASHER | $1.99 | ||
| 158743 | 104 | CHEST PULSE WIRE | $27.99 | |||
 | 013162 | 106A | 1/2″ CONSOLE SCREW | $0.99 | ||
 | 208817 | 106B | M4 X 16MM SCREW | $0.99 | ||
 | 208581 | 107 | M10 X 25MM BUTTON SCREW | $5.49 | ||
| 216385 | 108 | M10 WASHER | $1.99 | |||
| 214070 | 109 | M8 X 16MM SCREW | $6.49 | |||
 | 250868 | 110 | M8 X 23.5MM X 1MM WASHER | $3.49 | ||
 | 262341 | 111 | M6 X 12MM SCREW, WT RACK | $3.49 | ||
| 287155 | 112 | Left Link Arm | NLA | Unavailable to order | ||
 | 286660 | 113 | LARGE AXLE COVER | $5.99 | ||
 | 286526 | 114 | LINK ARM AXLE | $27.49 | ||
 | 264511 | 115 | POWER SWITCH | $32.99 | ||
 | 313668 | 116 | GROMMET | $9.49 | ||
 | 287322 | 117 | LIFT BRACKET BUSHING | $10.99 | ||
 | 287202 | 118 | 16MM WAVE WASHER | $1.99 | ||
 | 342275 | 119 | POWER CORD | $49.99 | ||
| 373558 | 120 | CONTROL BOARD W/STANDOFF | $144.49 | |||
 | 236321 | 121 | M8 X 25MM SCREW | $4.49 | ||
| 272630 | 122 | 3/8″ X 1/2″ FLANGE SCREW | $3.99 | |||
| 213460 | 123 | M6 x 16mm TPRD Button Screw | NLA | Unavailable to order | ||
| 290182 | 124 | M8 X 47MM BOLT | $23.99 | |||
 | 148710 | 126 | M10 LOCKNUT | $2.49 | ||
| 241034 | 127 | SHORT C-PIN | $0.99 | |||
| 241033 | 128 | LONG C-PIN | $0.99 | |||
 | 013423 | 129 | #8 X 1/2″ GROUND SCREW | $0.99 | ||
| 286889 | 130 | RAMP | $179.99 | |||
| 338647 | 131 | Ramp Cover | $113.99 | |||
| 285643 | 132 | SMALL BEARING | $10.99 | |||
| 285646 | 133 | Ramp Axle | Contact for Pricing | |||
| 286402 | 135 | LIFT MOTOR STOP | $2.99 | |||
| 286400 | 136 | RAMP ARM ROLLER | Contact for Pricing | |||
| 286404 | 137 | ROLLER AXLE | $8.49 | |||
| 287222 | 138 | LIFT ARM | $74.99 | |||
| 285642 | 139 | LIFT ARM BUSHING | $4.49 | |||
| 285654 | 140 | PLASTIC WASHER | $1.49 | |||
| 290181 | 141 | M8 X 27MM BOLT | $28.49 | |||
 | 012042 | 142 | M8 NYLON LOCKNUT | $1.99 | ||
 | 268411 | 143 | 6MM WASHER | $0.99 | ||
| 361996 | 144 | RECEIVER | $87.49 | |||
| 315183 | 145A | CHEST PULSE SENSOR | $12.49 | |||
| 315184 | 145B | CHEST HEART RATE MONITOR | $98.99 |
